GN 1130
Lifting Pins
Steel / Stainless Steel, Self-Locking
Description
Specification

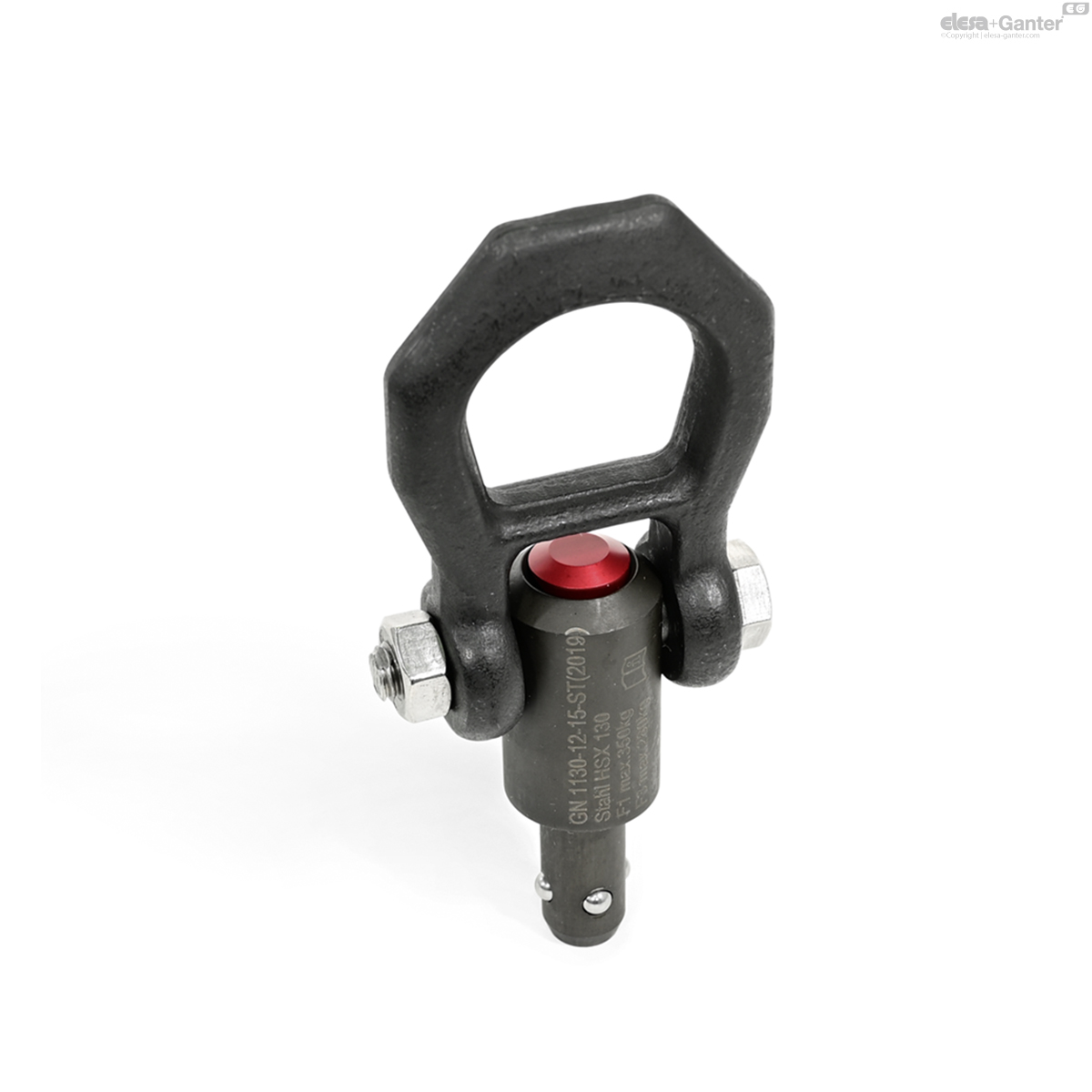

Version in Steel
Steel ST
- Stud, shackle
- Heat-treated, manganese phosphated

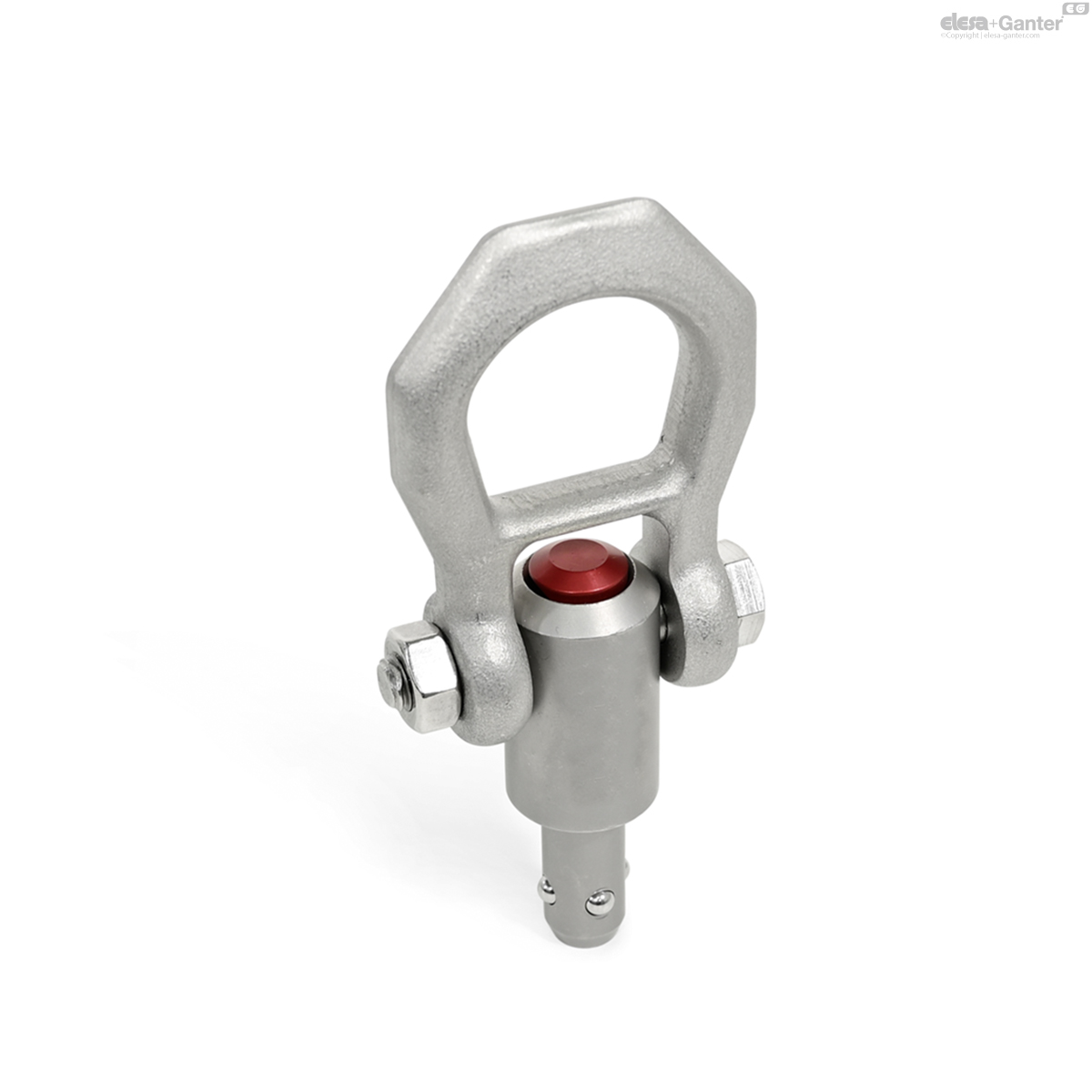

Version in Stainless Steel
Stainless Steel NI
Stud AISI 630
Precipitation hardened
Shackle AISI 316Ti
Push button
Aluminum, red anodized
Spring
Stainless Steel
Information
Lifting pins GN 1130 are carrier elements designed for fast and easy use. Pressing the red aluminum button will release the locking effect of the locking ball, allowing the load bolt to be moved in or out of the holding bore hole. The shackle rotates by at least 180°, with a safety flange fitted as a safeguard against inadvertent operation. Depending on the direction of pull, the ball load bolt may move freely by 360° in the holding bore hole.
Sling and lifting gear permanently remaining at the workpiece (e.g. load rings) is no longer necessary. Holding bore holes with d1 H11 are sufficient in use with corresponding strength of materials.
Furthermore, the holding bushings GN 1132 are also available.
For more user guidlines, see the operating instruction enclosed with every lifting pin.
Accessory
- Holding Bushings GN 1132
Technical information
- Stainless Steel CharacteristicsÂ

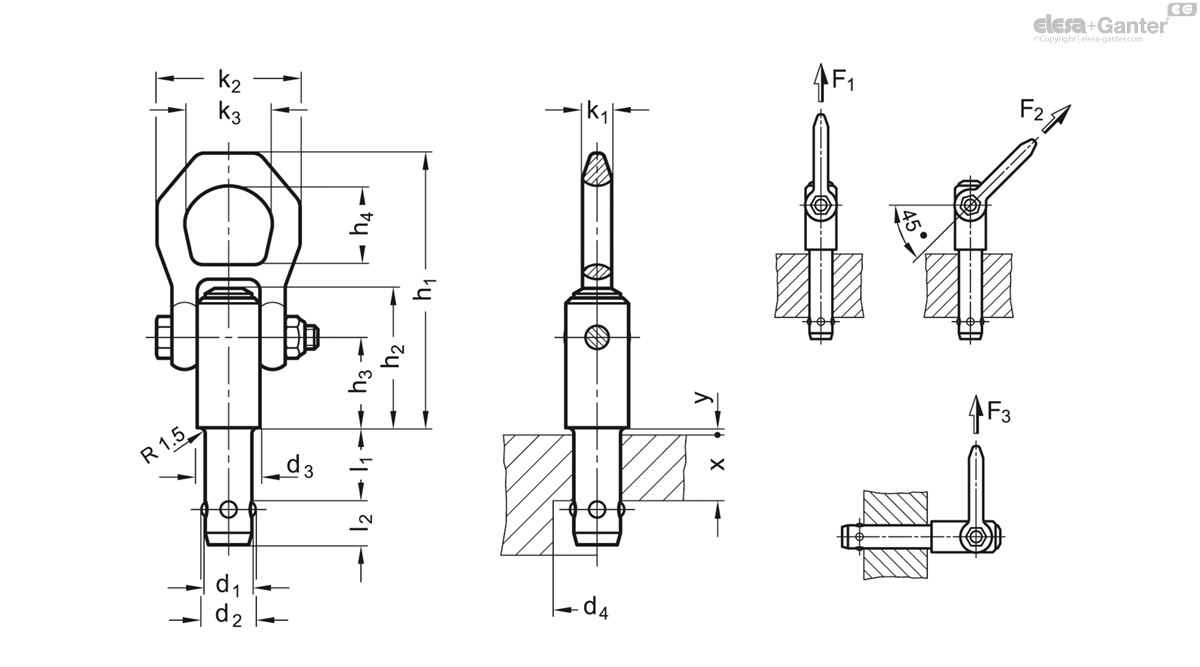

GN 1130
| d1 -0.04/-0.08 | d2 | d3 | d4 min. | h1 | h2 | h3 | h4 | k1 | k2 | k3 | l2 | x min. | y | Nominal load in kN F1 |
Nominal load in kN F2 |
Nominal load in kN F3 |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||||||
| GN 1130-8-10-ST | 8 | 9.35 | 21.5 | 9.9 | 87.5 | 38.5 | 25.7 | 27 | 9.5 | 49 | 30 | 8.75 | 5 | 1.5 | 1.5* | 1.2* | 0.5* | 230 |
|
| GN 1130-8-15-ST | 8 | 9.35 | 21.5 | 9.9 | 87.5 | 38.5 | 25.7 | 27 | 9.5 | 49 | 30 | 8.75 | 5 | 1.5 | 1.5* | 1.2* | 0.5* | 228 |
|
| GN 1130-8-25-ST | 8 | 9.35 | 21.5 | 9.9 | 87.5 | 38.5 | 25.7 | 27 | 9.5 | 49 | 30 | 8.75 | 10 | 1.5 | 1.5* | 1.2* | 0.5* | 236 |
|
| GN 1130-8-35-ST | 8 | 9.35 | 21.5 | 9.9 | 87.5 | 38.5 | 25.7 | 27 | 9.5 | 49 | 30 | 8.75 | 20 | 1.5 | 1.5* | 1.2* | 0.5* | 233 |
|
| GN 1130-10-15-ST | 10 | 11.7 | 21.5 | 12.2 | 87.5 | 38.5 | 25.7 | 27 | 9.5 | 49 | 30 | 10.2 | 5 | 1.5 | 2.7* | 2.4* | 2.1* | 234 |
|
| GN 1130-10-25-ST | 10 | 11.7 | 21.5 | 12.2 | 87.5 | 38.5 | 25.7 | 27 | 9.5 | 49 | 30 | 10.2 | 15 | 1.5 | 2.7* | 2.4* | 2.1* | 238 |
|
| GN 1130-10-35-ST | 10 | 11.7 | 21.5 | 12.2 | 87.5 | 38.5 | 25.7 | 27 | 9.5 | 49 | 30 | 10.2 | 25 | 1.5 | 2.7* | 2.4* | 2.1* | 260 |
|
| GN 1130-10-50-ST | 10 | 11.7 | 21.5 | 12.2 | 87.5 | 38.5 | 25.7 | 27 | 9.5 | 49 | 30 | 10.2 | 40 | 1.5 | 2.7* | 2.4* | 2.1* | 256 |
|
| GN 1130-12-15-ST | 12 | 14.2 | 21.5 | 14.7 | 87.5 | 38.5 | 25.7 | 27 | 9.5 | 49 | 30 | 11 | 5 | 1.5 | 3.5* | 3.2* | 2.8* | 242 |
|
| GN 1130-12-25-ST | 12 | 14.2 | 21.5 | 14.7 | 87.5 | 38.5 | 25.7 | 27 | 9.5 | 49 | 30 | 11 | 10 | 1.5 | 3.5* | 3.2* | 2.8* | 254 |
|
| GN 1130-12-35-ST | 12 | 14.2 | 21.5 | 14.7 | 87.5 | 38.5 | 25.7 | 27 | 9.5 | 49 | 30 | 11 | 20 | 1.5 | 3.5* | 3.2* | 2.8* | 260 |
|
| GN 1130-12-50-ST | 12 | 14.2 | 21.5 | 14.7 | 87.5 | 38.5 | 25.7 | 27 | 9.5 | 49 | 30 | 11 | 35 | 1.5 | 3.5* | 3.2* | 2.8* | 268 |
|
| GN 1130-16-25-ST | 16 | 18.6 | 25 | 19.2 | 92.8 | 47.5 | 31 | 27 | 9.5 | 49 | 30 | 15.1 | 10 | 1.5 | 4.8* | 4.5* | 4.1* | 317 |
|
| GN 1130-16-50-ST | 16 | 18.6 | 25 | 19.2 | 92.8 | 47.5 | 31 | 27 | 9.5 | 49 | 30 | 15.1 | 15 | 1.5 | 4.8* | 4.5* | 4.1* | 356 |
|
| GN 1130-16-75-ST | 16 | 18.6 | 25 | 19.2 | 92.8 | 47.5 | 31 | 27 | 9.5 | 49 | 30 | 15.1 | 35 | 1.5 | 4.8* | 4.5* | 4.1* | 398 |
|
| GN 1130-20-50-ST | 20 | 24.5 | 30 | 25 | 114 | 55.9 | 36.5 | 32.6 | 11 | 56 | 36 | 19.7 | 25 | 1.5 | 10* | 8.5* | 6.5* | 398 |
|
| GN 1130-20-75-ST | 20 | 24.5 | 30 | 25 | 114 | 55.9 | 36.5 | 32.6 | 11 | 56 | 36 | 19.7 | 45 | 1.5 | 10* | 8.5* | 6.5* | 398 |
|
