Home Indexing and Positioning Elements Lock pins GN 113.8

GN 113.8

Stainless Steel-Ball lock pins

AISI 630, with plastic T-Handle

Enquire Now

Description

Specification

Pin Stainless Steel AISI 630

precipitation-hardened

hard coated

T-Handle

Plastic (Polyamide PA)

black

temperature resistant up to 80 °C

Balls

Stainless Steel AISI 420C

Spring

Stainless Steel

German Material No. 14565

Information

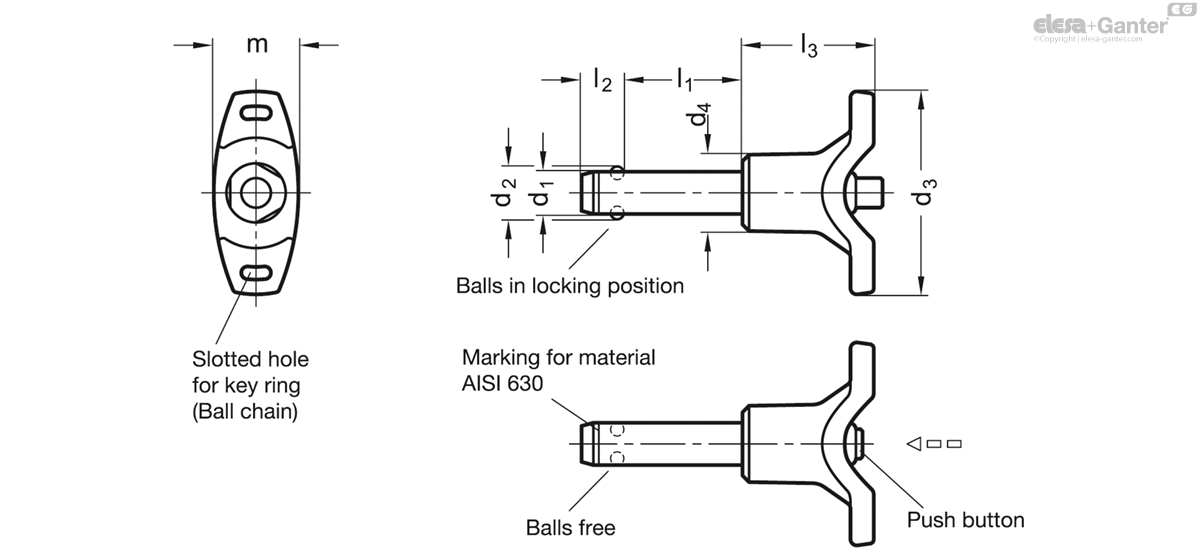

Stainless Steel-Ball lock pins GN 113.8 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.

By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.

Ball lock pins GN 113.8 have an extreme load capacity, the pin is made of heavy duty, hardened and highly abrasion-resistant stainless steel.

The load values given in the above table at shar stress are theoretically obtained and indicative only. They are non-binding recommended values and rule out of any liability. They consstitute no general warranty of quality and condition. The user must determine from case to case whether a product ist suitable for the intended use.

Accessory

Ball chains GN 111

Stainless Steel-Ball chains GN 111.5

Retaining cables GN 111.2

Spiral retaining cables GN 111.4

Technical information

List of Lock Pin Types
Load Capacity
ISO-Fundamental Tolerances
Stainless Steel characteristics

GN 113.8

	d₁ -0.04/-0.08	l₁ +0.6	d₂	d₃	d₄	l₂ ±1	l₂ ±0.2	l₃	m	Location bore H11	Load F in kN ≈ Load capacity in kN ≈ Double sided shearing resistance according DIN 50141 (breaking strength)
Code													Actions
GN 113.8-5-10	5	10	5.5	40	13.5	6	-	25	15.5	5	24	14
GN 113.8-5-15	5	15	5.5	40	13.5	6	-	25	15.5	5	24	14
GN 113.8-5-20	5	20	5.5	40	13.5	6	-	25	15.5	5	24	15
GN 113.8-5-25	5	25	5.5	40	13.5	6	-	25	15.5	5	24	16
GN 113.8-5-30	5	30	5.5	40	13.5	6	-	25	15.5	5	24	17
GN 113.8-5-35	5	35	5.5	40	13.5	6	-	25	15.5	5	24	17
GN 113.8-5-40	5	40	5.5	40	13.5	6	-	25	15.5	5	24	18
GN 113.8-5-45	5	45	5.5	40	13.5	6	-	25	15.5	5	24	18
GN 113.8-5-50	5	50	5.5	40	13.5	6	-	25	15.5	5	24	19
GN 113.8-5-60	5	60	5.5	40	13.5	6	-	25	15.5	5	24	20
GN 113.8-5-70	5	70	5.5	40	13.5	6	-	25	15.5	5	24	22
GN 113.8-5-80	5	80	5.5	40	13.5	6	-	25	15.5	5	24	23
GN 113.8-6-10	6	10	7	40	13.5	7.1	-	25	15.5	6	35	15
GN 113.8-6-15	6	15	7	40	13.5	7.1	-	25	15.5	6	35	16
GN 113.8-6-20	6	20	7	40	13.5	7.1	-	25	15.5	6	35	16
GN 113.8-6-25	6	25	7	40	13.5	7.1	-	25	15.5	6	35	17
GN 113.8-6-30	6	30	7	40	13.5	7.1	-	25	15.5	6	35	18
GN 113.8-6-35	6	35	7	40	13.5	7.1	-	25	15.5	6	35	20
GN 113.8-6-40	6	40	7	40	13.5	7.1	-	25	15.5	6	35	21
GN 113.8-6-45	6	45	7	40	13.5	7.1	-	25	15.5	6	35	22
GN 113.8-6-50	6	50	7	40	13.5	7.1	-	25	15.5	6	35	23
GN 113.8-6-60	6	60	7	40	13.5	7.1	-	25	15.5	6	35	24
GN 113.8-6-70	6	70	7	40	13.5	7.1	-	25	15.5	6	35	26
GN 113.8-6-80	6	80	7	40	13.5	7.1	-	25	15.5	6	35	28
GN 113.8-8-10	8	10	9.5	48	18	8.2	-	31	20.5	8	63	35
GN 113.8-8-15	8	15	9.5	48	18	8.2	-	31	20.5	8	63	37
GN 113.8-8-20	8	20	9.5	48	18	8.2	-	31	20.5	8	63	39
GN 113.8-8-25	8	25	9.5	48	18	8.2	-	31	20.5	8	63	40
GN 113.8-8-30	8	30	9.5	48	18	8.2	-	31	20.5	8	63	43
GN 113.8-8-35	8	35	9.5	48	18	8.2	-	31	20.5	8	63	45
GN 113.8-8-40	8	40	9.5	48	18	8.2	-	31	20.5	8	63	46
GN 113.8-8-45	8	45	9.5	48	18	8.2	-	31	20.5	8	63	48
GN 113.8-8-50	8	50	9.5	48	18	8.2	-	31	20.5	8	63	50
GN 113.8-8-60	8	60	9.5	48	18	8.2	-	31	20.5	8	63	53
GN 113.8-8-70	8	70	9.5	48	18	8.2	-	31	20.5	8	63	57
GN 113.8-8-80	8	80	9.5	48	18	8.2	-	31	20.5	8	63	61
GN 113.8-8-90	8	90	9.5	48	18	8.2	-	31	20.5	8	63	64
GN 113.8-8-100	8	100	9.5	48	18	8.2	-	31	20.5	8	63	68
GN 113.8-10-15	10	15	12	48	18	9.6	-	31	20.5	10	100	42
GN 113.8-10-20	10	20	12	48	18	9.6	9.6	31	20.5	10	100	46
GN 113.8-10-25	10	25	12	48	18	9.6	-	31	20.5	10	100	48
GN 113.8-10-30	10	30	12	48	18	9.6	-	31	20.5	10	100	52
GN 113.8-10-35	10	35	12	48	18	9.6	-	31	20.5	10	100	54
GN 113.8-10-40	10	40	12	48	18	9.6	-	31	20.5	10	100	57
GN 113.8-10-45	10	45	12	48	18	9.6	-	31	20.5	10	100	60
GN 113.8-10-50	10	50	12	48	18	9.6	-	31	20.5	10	100	63
GN 113.8-10-60	10	60	12	48	18	9.6	-	31	20.5	10	100	69
GN 113.8-10-70	10	70	12	48	18	9.6	-	31	20.5	10	100	74
GN 113.8-10-80	10	80	12	48	18	9.6	-	31	20.5	10	100	80
GN 113.8-10-90	10	90	12	48	18	9.6	-	31	20.5	10	100	86
GN 113.8-10-100	10	100	12	48	18	9.6	-	31	20.5	10	100	92
GN 113.8-10-110	10	110	12	48	18	9.6	-	31	20.5	10	100	98
GN 113.8-10-120	10	120	12	48	18	9.6	-	31	20.5	10	100	104
GN 113.8-12-20	12	20	14.5	58	24	10.6	-	36.5	27.5	12	144	89
GN 113.8-12-25	12	25	14.5	58	24	10.6	-	36.5	27.5	12	144	94
GN 113.8-12-30	12	30	14.5	58	24	10.6	-	36.5	27.5	12	144	98
GN 113.8-12-35	12	35	14.5	58	24	10.6	-	36.5	27.5	12	144	103
GN 113.8-12-40	12	40	14.5	58	24	10.6	-	36.5	27.5	12	144	107
GN 113.8-12-45	12	45	14.5	58	24	10.6	-	36.5	27.5	12	144	111
GN 113.8-12-50	12	50	14.5	58	24	10.6	-	36.5	27.5	12	144	115
GN 113.8-12-60	12	60	14.5	58	24	10.6	-	36.5	27.5	12	144	124
GN 113.8-12-70	12	70	14.5	58	24	10.6	-	36.5	27.5	12	144	132
GN 113.8-12-80	12	80	14.5	58	24	10.6	-	36.5	27.5	12	144	141
GN 113.8-12-90	12	90	14.5	58	24	10.6	-	36.5	27.5	12	144	149
GN 113.8-12-100	12	100	14.5	58	24	10.6	-	36.5	27.5	12	144	157
GN 113.8-12-110	12	110	14.5	58	24	10.6	-	36.5	27.5	12	144	166
GN 113.8-12-120	12	120	14.5	58	24	10.6	-	36.5	27.5	12	144	175
GN 113.8-16-30	16	30	19	58	24	14	-	36.5	27.5	16	257	130
GN 113.8-16-35	16	35	19	58	24	14	-	36.5	27.5	16	257	138
GN 113.8-16-40	16	40	19	58	24	14	-	36.5	27.5	16	257	146
GN 113.8-16-45	16	45	19	58	24	14	-	36.5	27.5	16	257	153
GN 113.8-16-50	16	50	19	58	24	14	-	36.5	27.5	16	257	166
GN 113.8-16-60	16	60	19	58	24	14	-	36.5	27.5	16	257	176
GN 113.8-16-70	16	70	19	58	24	14	-	36.5	27.5	16	257	192
GN 113.8-16-80	16	80	19	58	24	14	-	36.5	27.5	16	257	206
GN 113.8-16-90	16	90	19	58	24	14	-	36.5	27.5	16	257	226
GN 113.8-16-100	16	100	19	58	24	14	-	36.5	27.5	16	257	242
GN 113.8-16-110	16	110	19	58	24	14	-	36.5	27.5	16	257	258
GN 113.8-16-120	16	120	19	58	24	14	-	36.5	27.5	16	257	273
GN 113.8-16-130	16	130	19	58	24	14	-	36.5	27.5	16	257	289
GN 113.8-16-140	16	140	19	58	24	14	-	36.5	27.5	16	257	305
GN 113.8-16-150	16	150	19	58	24	14	-	36.5	27.5	16	257	320
GN 113.8-20-50	20	50	25	80	34	20.5	-	46.5	38	20	403	306
GN 113.8-20-60	20	60	25	80	34	20.5	-	46.5	38	20	403	324
GN 113.8-20-70	20	70	25	80	34	20.5	-	46.5	38	20	403	354
GN 113.8-20-80	20	80	25	80	34	20.5	-	46.5	38	20	403	373
GN 113.8-20-90	20	90	25	80	34	20.5	-	46.5	38	20	403	403
GN 113.8-20-100	20	100	25	80	34	20.5	-	46.5	38	20	403	225
GN 113.8-20-110	20	110	25	80	34	20.5	-	46.5	38	20	403	421
GN 113.8-20-120	20	120	25	80	34	20.5	-	46.5	38	20	403	451
GN 113.8-20-130	20	130	25	80	34	20.5	-	46.5	38	20	403	500
GN 113.8-20-140	20	140	25	80	34	20.5	-	46.5	38	20	403	523
GN 113.8-20-150	20	150	25	80	34	20.5	-	46.5	38	20	403	548
GN 113.8-25-50	25	50	30.8	80	34	22	-	46.5	38	25	631	404
GN 113.8-25-60	25	60	30.8	80	34	22	-	46.5	38	25	631	442
GN 113.8-25-70	25	70	30.8	80	34	22	-	46.5	38	25	631	480
GN 113.8-25-80	25	80	30.8	80	34	22	-	46.5	38	25	631	516
GN 113.8-25-90	25	90	30.8	80	34	22	-	46.5	38	25	631	557
GN 113.8-25-100	25	100	30.8	80	34	22	-	46.5	38	25	631	594
GN 113.8-25-110	25	110	30.8	80	34	22	-	46.5	38	25	631	633
GN 113.8-25-120	25	120	30.8	80	34	22	-	46.5	38	25	631	671
GN 113.8-25-130	25	130	30.8	80	34	22	-	46.5	38	25	631	709
GN 113.8-25-140	25	140	30.8	80	34	22	-	46.5	38	25	631	746
GN 113.8-25-150	25	150	30.8	80	34	22	-	46.5	38	25	631	786
