GN 111.3

Key Rings

Stainless Steel

Enquire Now

Description

Specification

Stainless steel AISI 301

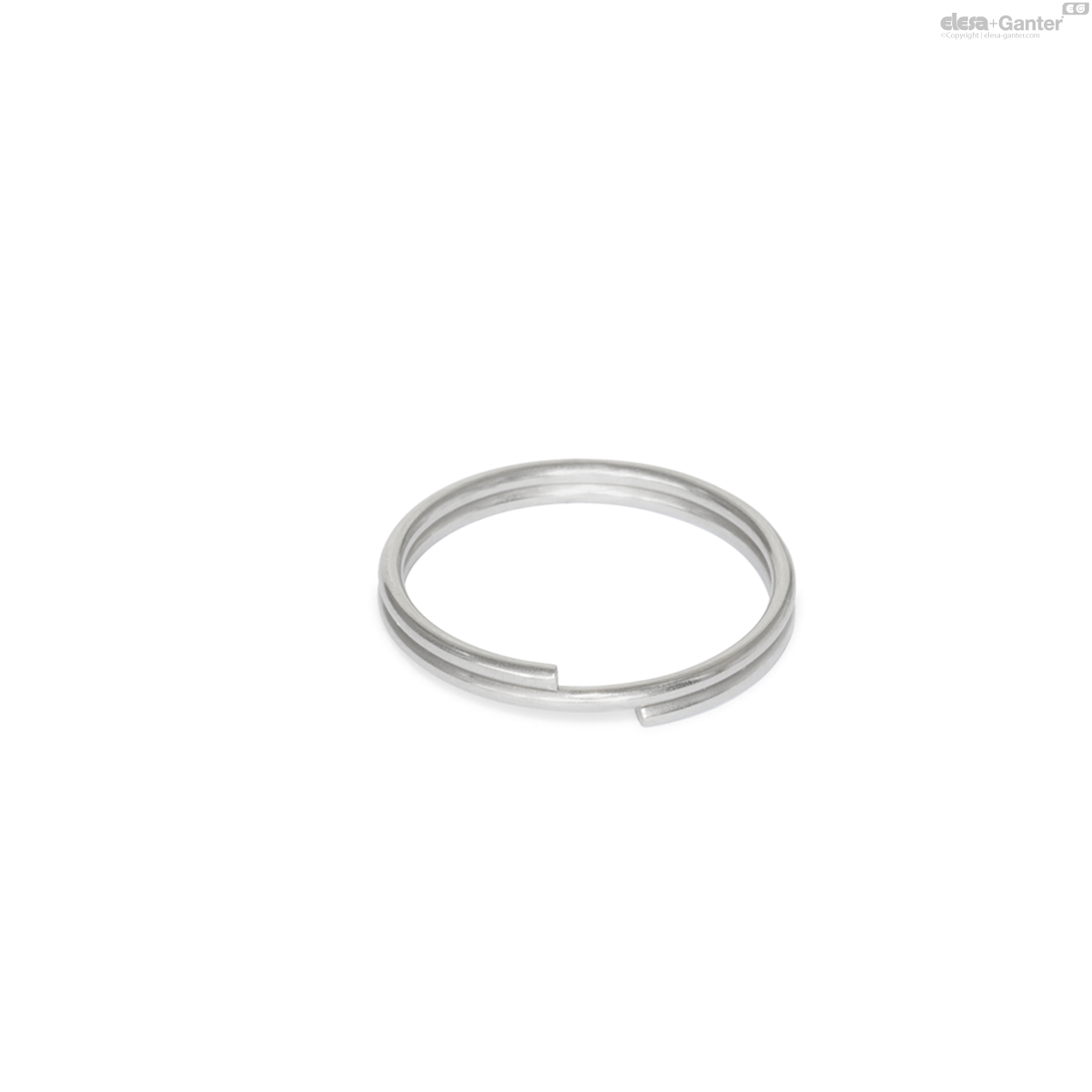

Plain finish BL

Tumbled

Zinc plated

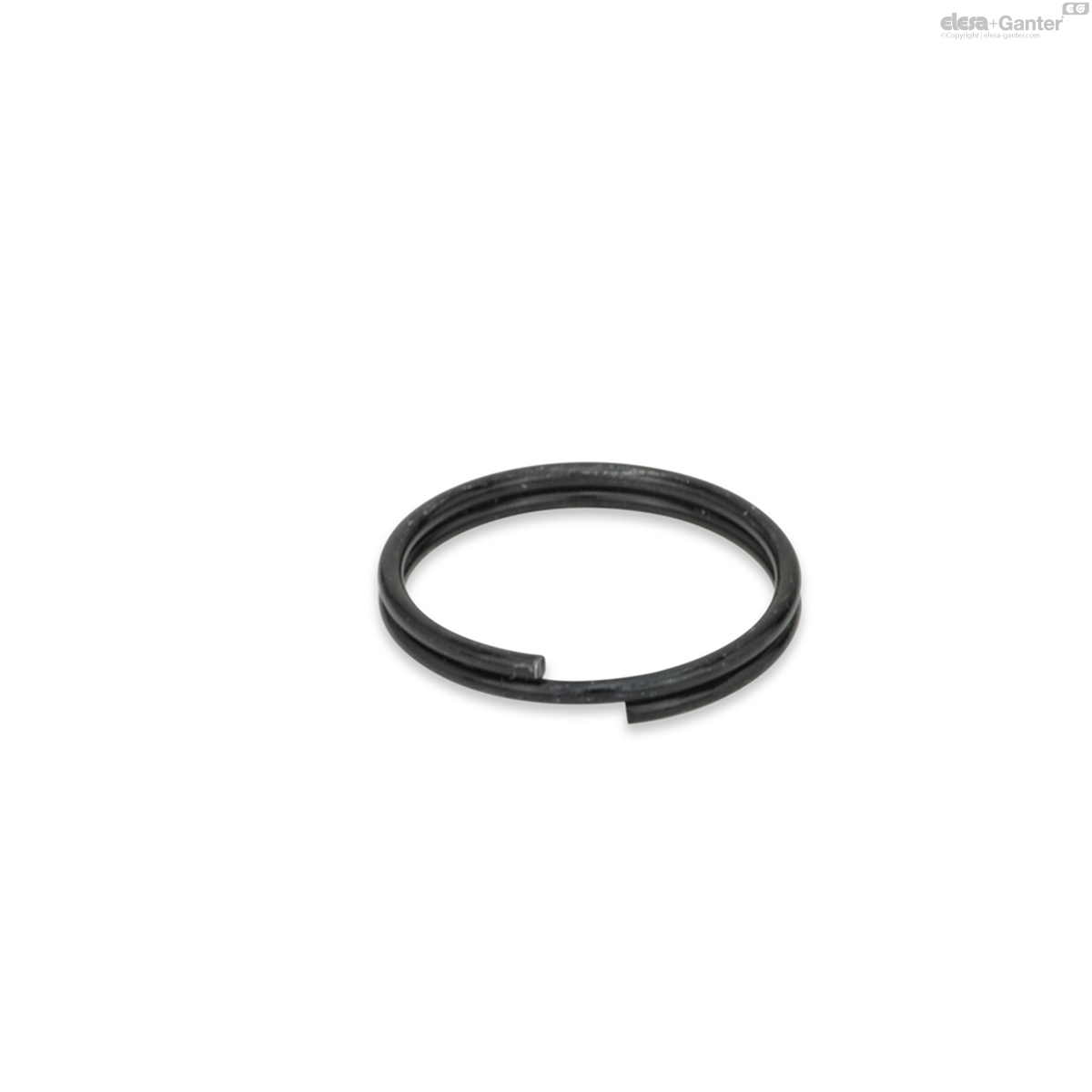

Black passivated SW

Information

Key rings GN 111.3 are suitable as universal connection elements for traction cables, ball chains, retaining straps etc. where light loads are possible. The black design is visually discreet and is also used in situations where the reflections on the surface are to be minimized.

The locking pins and ball lock pins listed in the table have location holes, which the key rings are threaded into. Furthermore, key rings can also be used to supplement retaining cables and ball chains. Thus, it is very easy to secure several elements at the same time from any loss.

The details on load-bearing capacity are guide values given without warranty.

Suitable for ball lock pins and locking pins with pin Ø

Suitable for ball lock pins and locking pins with pin Ø
d₁	GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10	GN 113.5, GN 113.6	GN 113.11, GN 113.12	GN 114.2, GN 114.3, GN 114.6	GN 114.7, GN 114.8	GN 114.11, GN 114.12	GN 124.1, GN 124.2	GN 124.3	GN 214.2, GN 214.3, GN 214.6	GN 314
14	5 / 6 / 8	all	5 / 6 / 8 / 10	all	6 / 8	6 / 8 / 10 / 12	all	8 / 10	6 / 8	-
18	10 / 12 / 16 / 20 / 25	-	12 / 16	-	10 / 12 / 16 / 20	16 / 20	-	10 / 12	10 / 12 / 16 / 20 / 25	8 / 10 / 12
24	-	-	20 / 25	-	-	-	-	-	-	16 / 20
30	-	-	-	-	-	-	-	-	-	-
38	-	-	-	-	-	-	-	-	-	-

Technical information

Stainless Steel Characteristics

GN 111.3

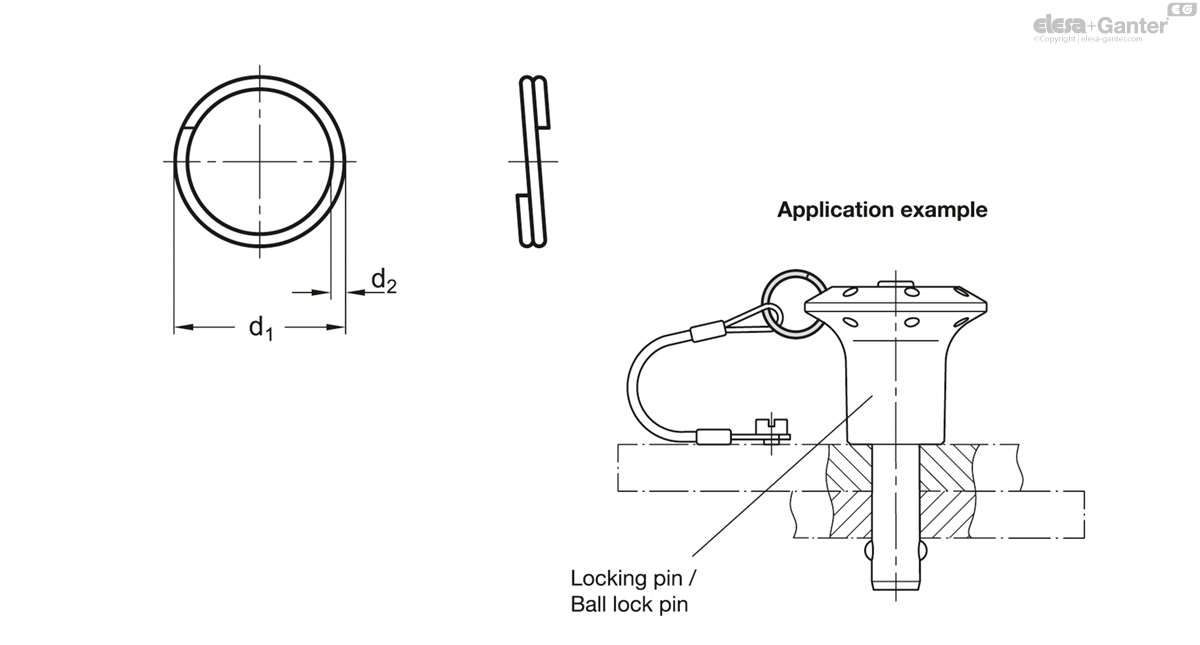

	Color	d₁	d₂	Static load in N ≈
Code						Actions
GN 111.3-14-BL	BL - Plain finish	14	1	50	1
GN 111.3-14-SW	SW - RAL 9005	14	1	50	1
GN 111.3-18-BL	BL - Plain finish	18	1.3	90	1
GN 111.3-18-SW	SW - RAL 9005	18	1.3	90	1
GN 111.3-24-BL	BL - Plain finish	24	1.5	100	2
GN 111.3-24-SW	SW - RAL 9005	24	1.5	100	2
GN 111.3-30-BL	BL - Plain finish	30	1.8	120	3
GN 111.3-30-SW	SW - RAL 9005	30	1.8	120	3
GN 111.3-38-BL	BL - Plain finish	38	2	120	5
GN 111.3-38-SW	SW - RAL 9005	38	2	120	5
