Retaining Cables

Stainless Steel, with Key Rings or One Key Ring and One Mounting Tab / with Mounting Tabs or Loops, with Carabiner

Enquire Now

With mounting tab and key ring

With mounting tab and loop

GN 111.2-K

Retaining Cables

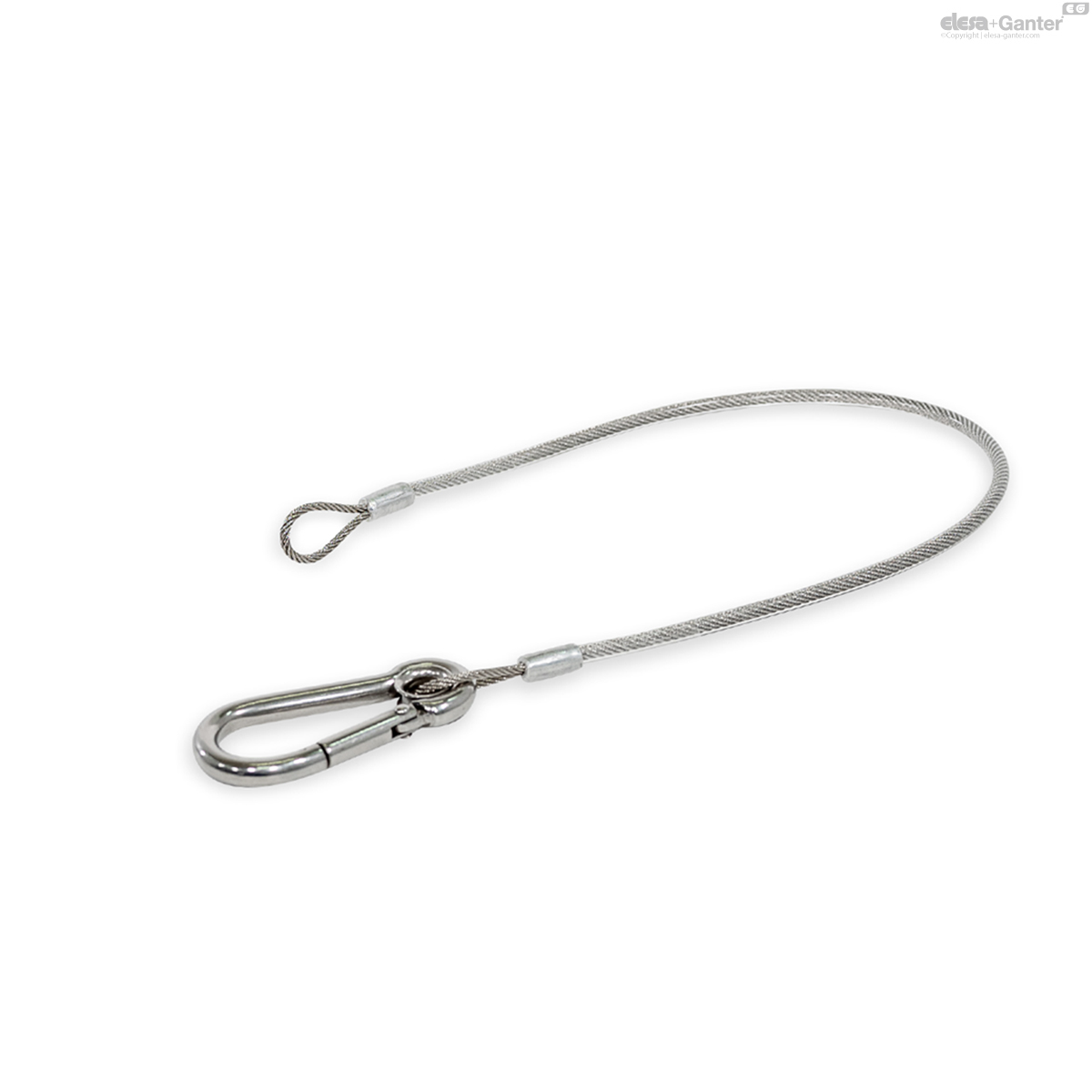

With carabiner and loop

GN 111.2-L

Retaining Cables

With carabiner and mounting tab

GN 111.2-M

Retaining Cables

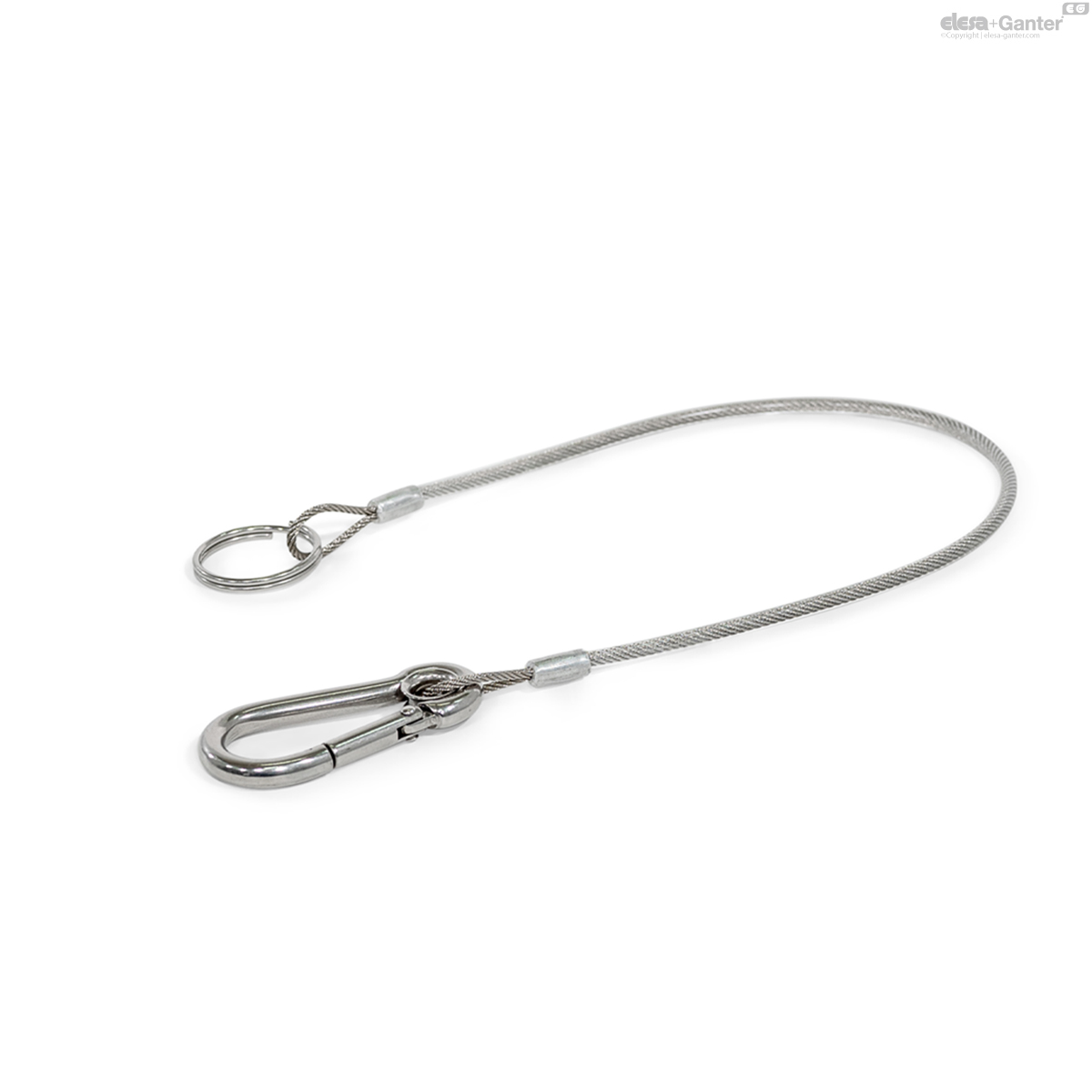

With carabiner and key ring

Description

Specification

Types

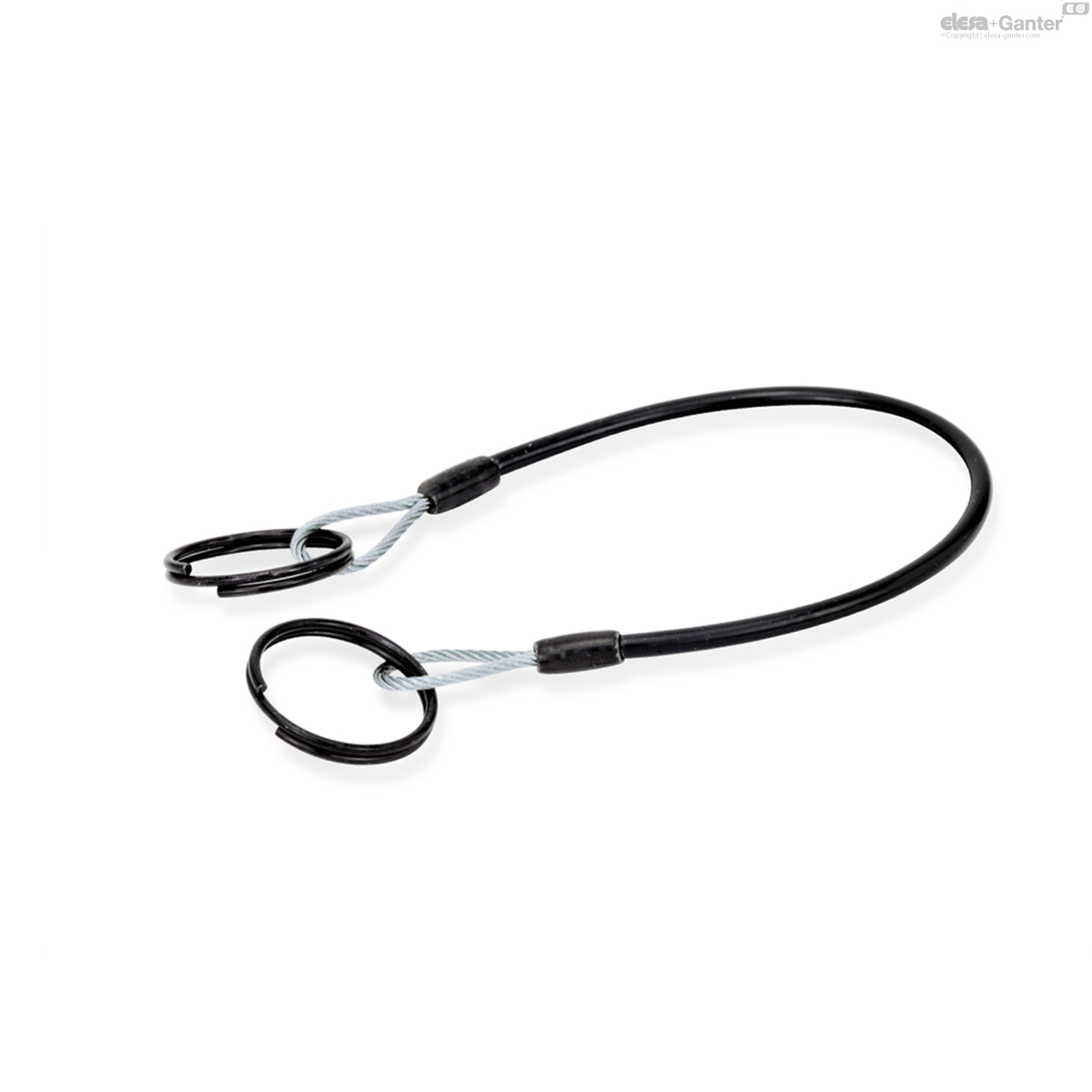

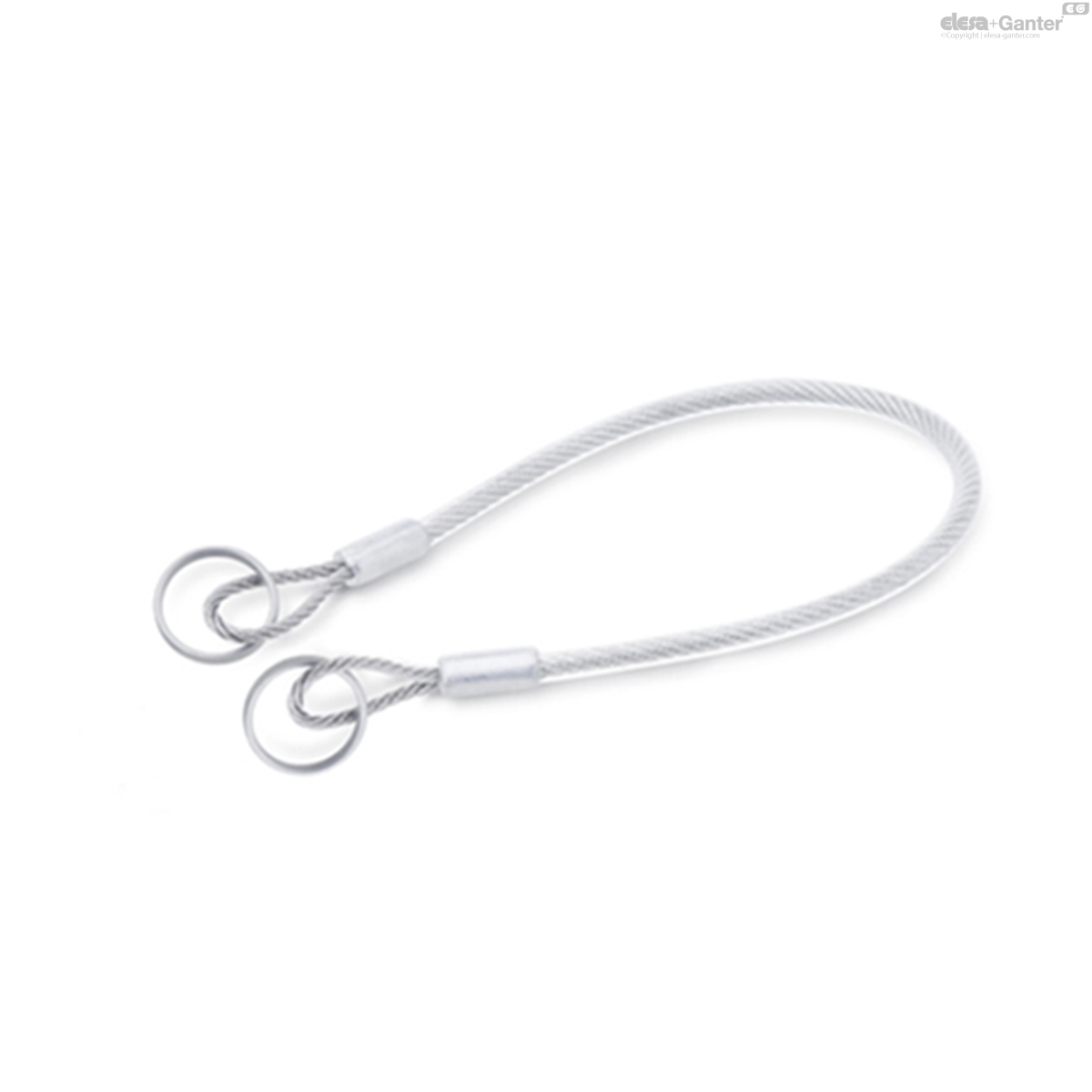

Type A: With 2 key rings

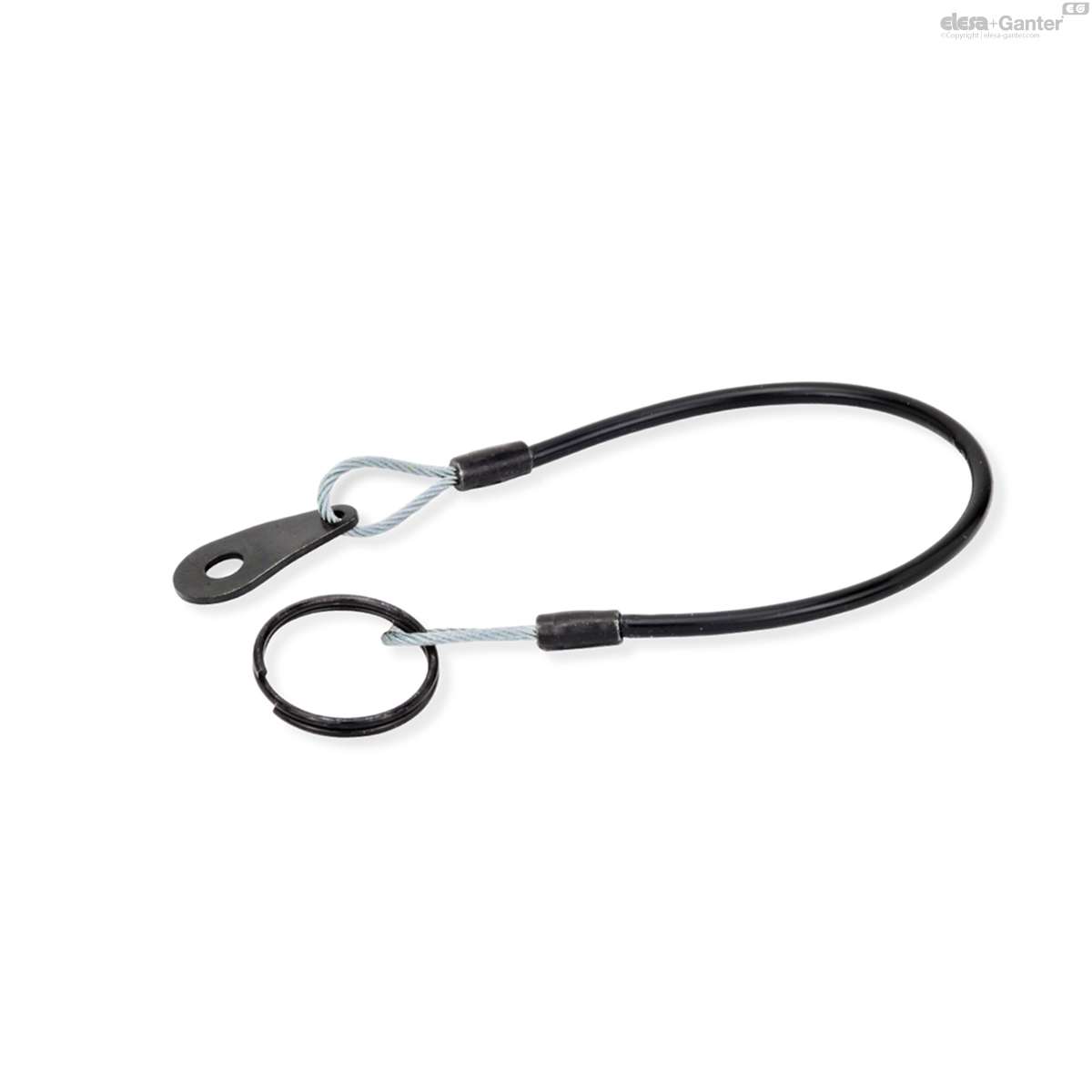

Type B: With mounting tab and key ring

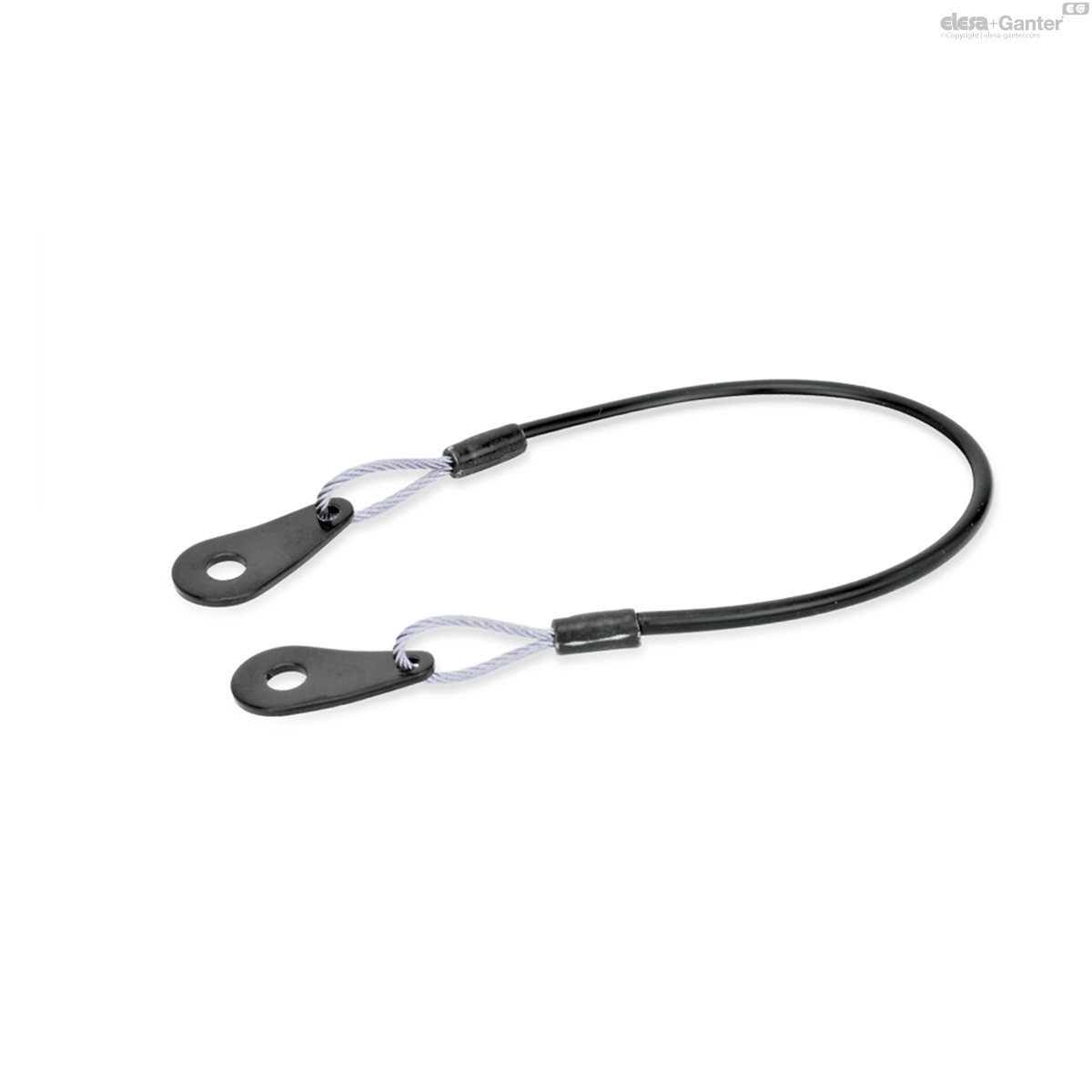

Type C: With 2 mounting tabs

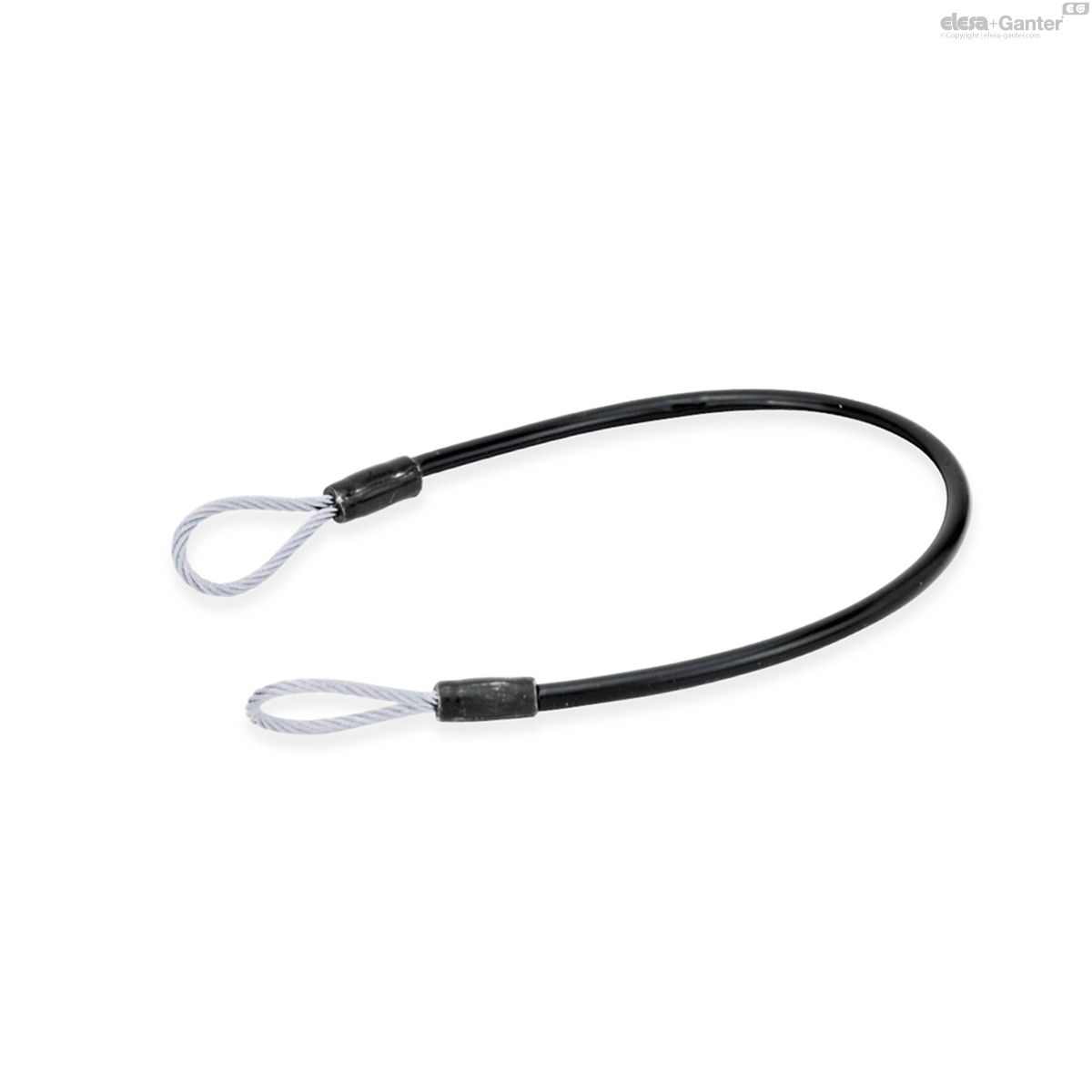

Type D: With 2 loops

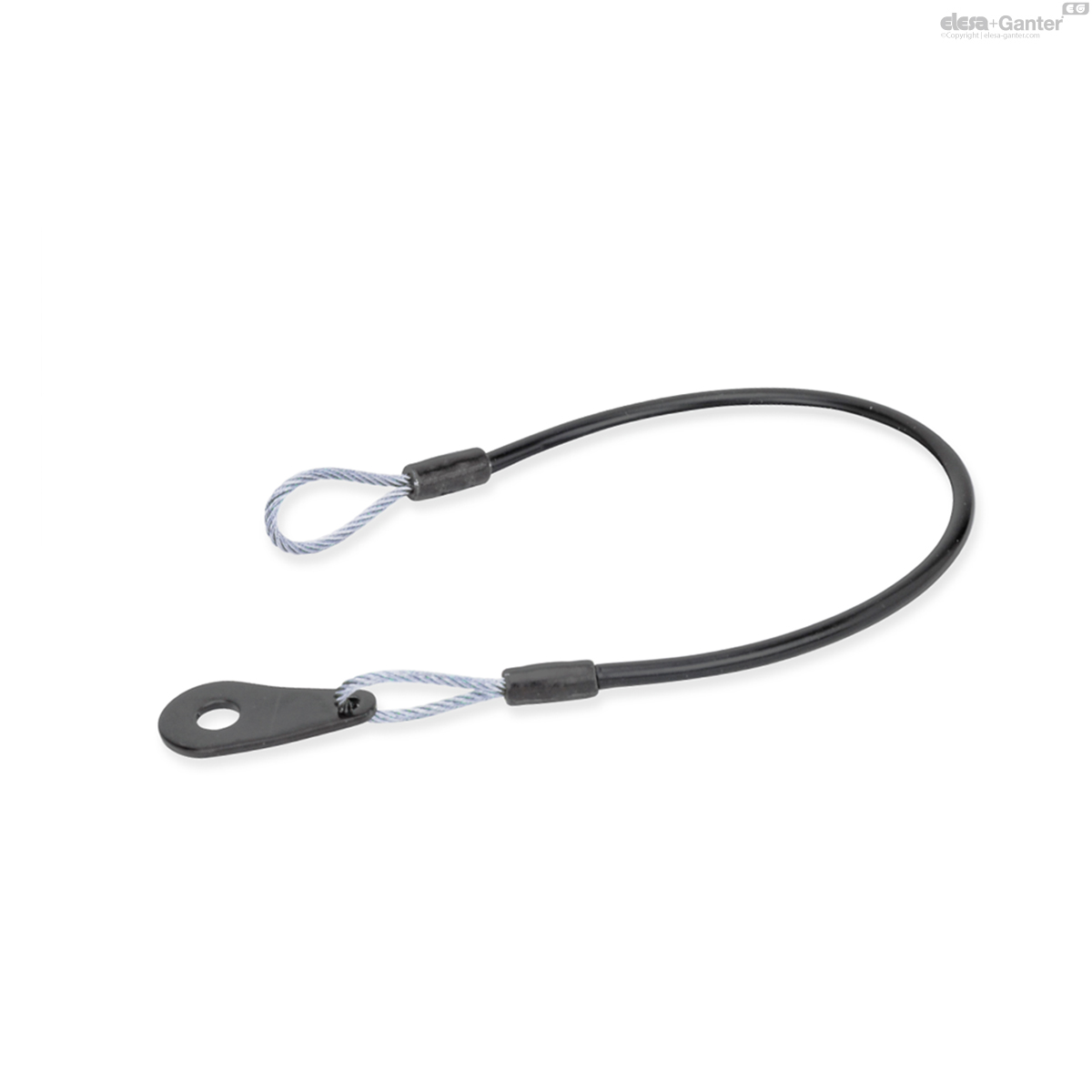

Type E: With mounting tab and loop
Type K: With carabiner and loop

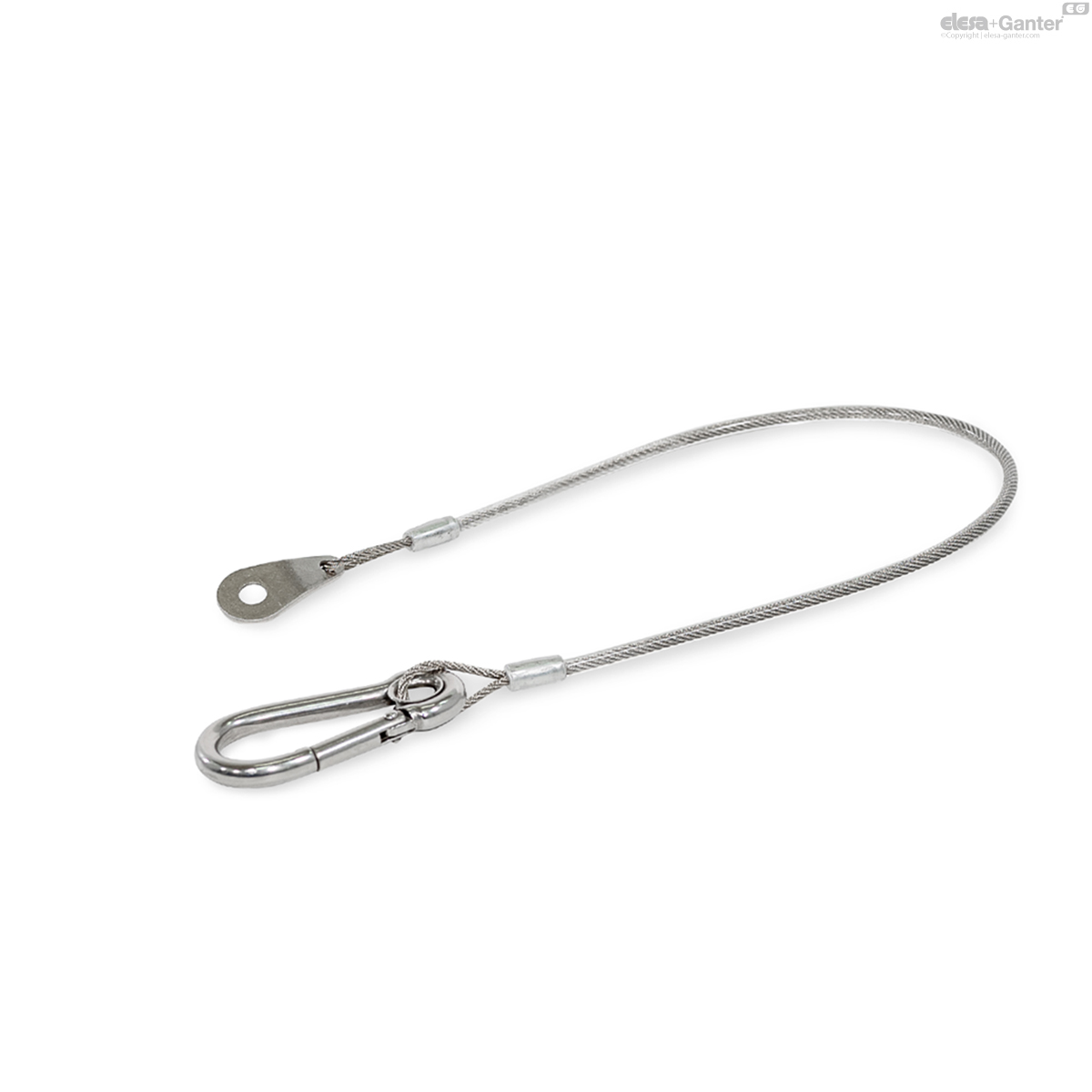

Type L: With carabiner and mounting tab
Type M: With carabiner and key ring

Retaining cable

Stainless steel AISI 304

Plain finish BL

Plastic coated (PVC)

Transparent TR

Black SW

Carabiner

Stainless steel AISI 316

Plain finish

Mounting tab

Stainless steel AISI 304

Plain finish for BL / TR

Zinc plated, black passivated for SW

Key ring

Stainless steel AISI 301

Plain finish, ground for BL / TR

Zinc plated, black passivated for SW

Press sleeves

Aluminum

Plain finish for BL / TR

Black anodized for SW

Information

Retaining cables GN 111.2 are available in 5 different types and can therefore be used in a wide range of applications, e.g. for loss protection or as connecting and mounting cables.

The coating of versions TR and SW protects adjacent parts from chafing or other damage. The smooth surface is also pleasant to the touch. The black design is visually discreet and is also used in situations where the reflections on the surface are to be minimized.

On delivery the key rings are already mounted on the retaining cable. With type A, both rings have the same diameter d₁.

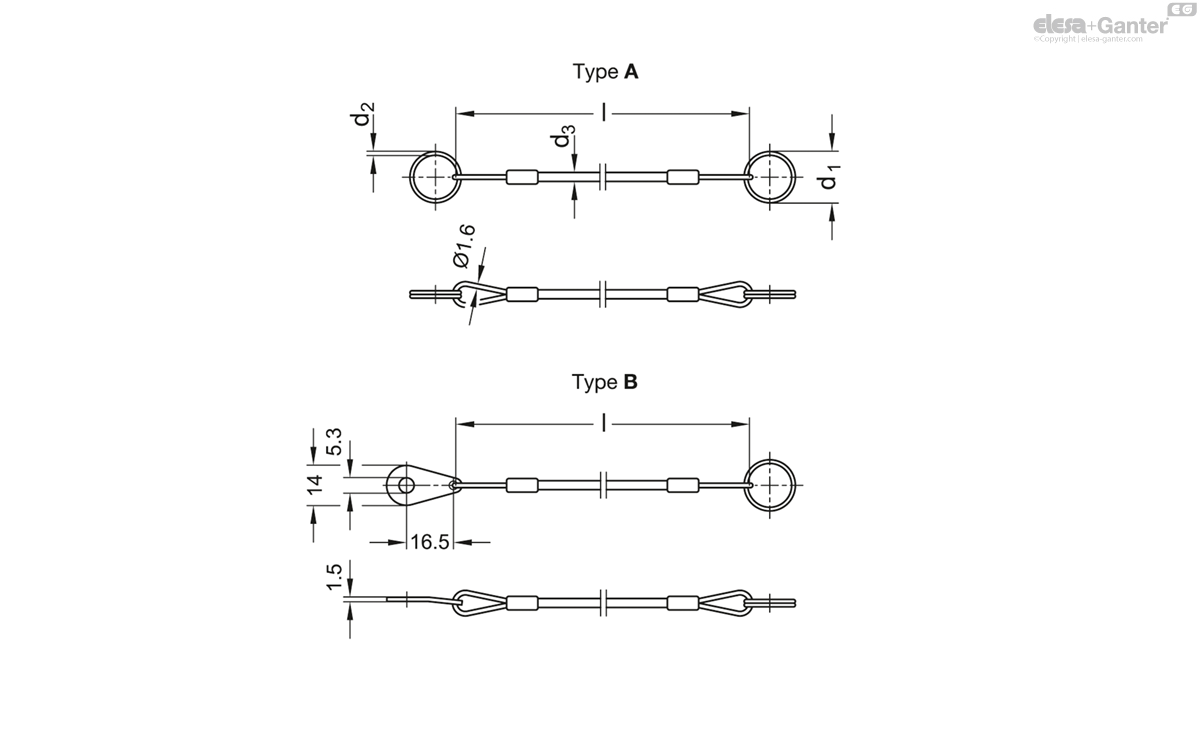

For all types the loops are reversed laterally and attached parallel to each other, which is not entirely considered in the simplified drawing. The load values given in the table are non-binding guide values and rule out any liability.

Retaining cables GN 111.2 with carabiner are available in 3 different types and can therefore be used in a wide range of applications, e.g. for loss protection or as connecting and fastening cables.

The retaining cable is firmly connected on one side to a carabiner GN 5299. With type M, the key ring is loosely enclosed with the retaining cable.

The orientation of the cable loops, mounting tabs and carabiners may differ from what is depicted in the drawing. The load values given in the table are non-binding guide values and rule out any liability.

Key rings (Type A, B, M) suitable for ball lock pins and lock pins with pin Ø:

Key rings (Type A, B, M) suitable for ball lock pins and lock pins with pin Ø:
d₁	GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10	GN 113.5, GN 113.6	GN 113.11, GN 113.12	GN 114.2, GN 114.3, GN 114.6	GN 114.7, GN 114.8	GN 114.11, GN 114.12	GN 124.1, GN 124.2	GN 124.3	GN 214.2, GN 214.3, GN 214.6	GN 314
14	5 / 6 / 8	all	5 / 6 / 8 / 10	all	6 / 8	6 / 8 / 10 / 12	all	8 / 10	6 / 8	-
18	10 / 12 / 16 / 20 / 25	-	12 / 16	-	10 / 12 / 16 / 20	16 / 20	-	10 / 12	10 / 12 / 16	8 / 10 / 12
24	-	-	20 / 25	-	-	-	-	-	-	16 / 20
30	-	-	-	-	-	-	-	-	-	-

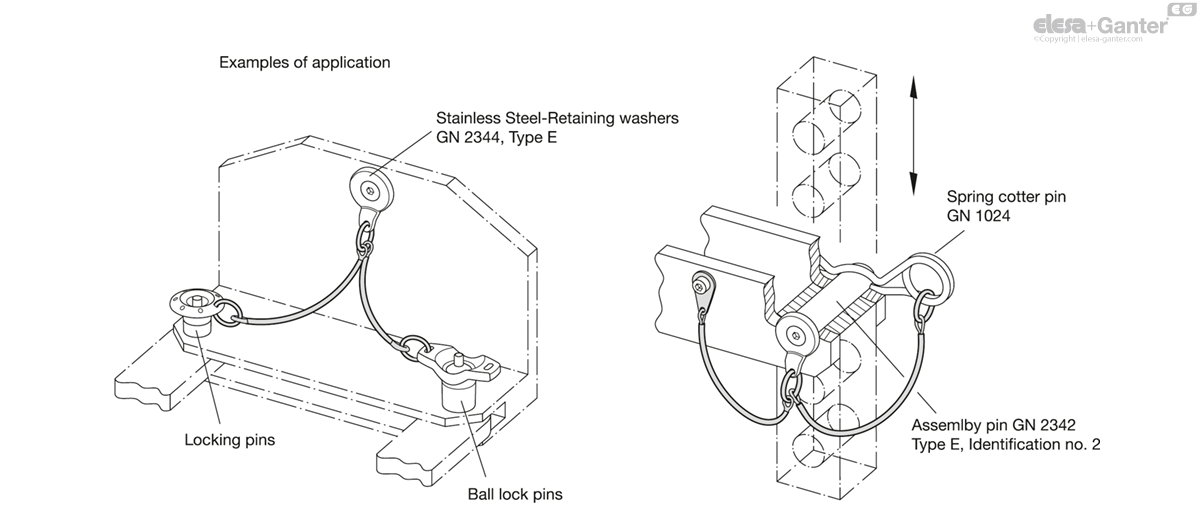

Application examples

Accessory

Key Rings GN 111.3
Carabiners GN 5299

Technical information

Stainless Steel Characteristics

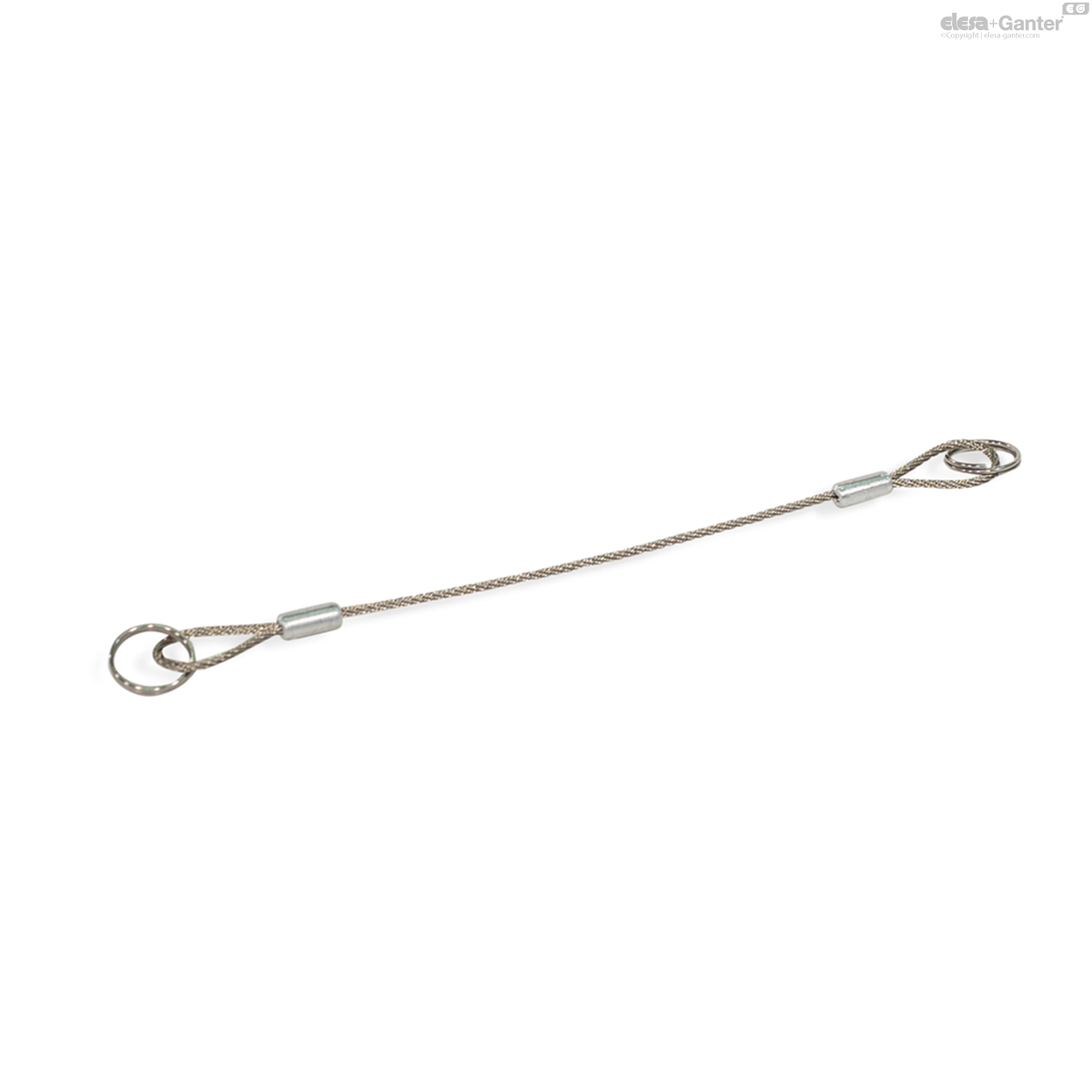

GN 111.2-A

	Color	l	d₁	d₂	d₃	Static load in N ≈
Code								Actions
GN 111.2-150-14-A-BL	BL - Plain finish	150	14	1	1.6	50	31
GN 111.2-150-14-A-SW	SW - Black	150	14	1	3	50	5
GN 111.2-150-14-A-TR	TR - Transparent	150	14	1	3	50	5
GN 111.2-150-18-A-BL	BL - Plain finish	150	18	1.3	1.6	90	32
GN 111.2-150-18-A-SW	SW - Black	150	18	1.3	3	90	6
GN 111.2-150-18-A-TR	TR - Transparent	150	18	1.3	3	90	6
GN 111.2-150-24-A-BL	BL - Plain finish	150	24	1.5	1.6	100	34
GN 111.2-150-24-A-SW	SW - Black	150	24	1.5	3	100	8
GN 111.2-150-24-A-TR	TR - Transparent	150	24	1.5	3	100	8
GN 111.2-150-30-A-BL	BL - Plain finish	150	30	1.8	1.6	120	37
GN 111.2-150-30-A-SW	SW - Black	150	30	1.8	3	120	11
GN 111.2-150-30-A-TR	TR - Transparent	150	30	1.8	3	120	11
GN 111.2-200-14-A-BL	BL - Plain finish	200	14	1	1.6	50	12
GN 111.2-200-14-A-SW	SW - Black	200	14	1	3	50	6
GN 111.2-200-14-A-TR	TR - Transparent	200	14	1	3	50	6
GN 111.2-200-18-A-BL	BL - Plain finish	200	18	1.3	1.6	90	12
GN 111.2-200-18-A-SW	SW - Black	200	18	1.3	3	90	7
GN 111.2-200-18-A-TR	TR - Transparent	200	18	1.3	3	90	7
GN 111.2-200-24-A-BL	BL - Plain finish	200	24	1.5	1.6	100	13
GN 111.2-200-24-A-SW	SW - Black	200	24	1.5	3	100	9
GN 111.2-200-24-A-TR	TR - Transparent	200	24	1.5	3	100	9
GN 111.2-200-30-A-BL	BL - Plain finish	200	30	1.8	1.6	120	15
GN 111.2-200-30-A-SW	SW - Black	200	30	1.8	3	120	12
GN 111.2-200-30-A-TR	TR - Transparent	200	30	1.8	3	120	12
GN 111.2-320-14-A-BL	BL - Plain finish	320	14	1	1.6	50	15
GN 111.2-320-14-A-SW	SW - Black	320	14	1	3	50	8
GN 111.2-320-14-A-TR	TR - Transparent	320	14	1	3	50	8
GN 111.2-320-18-A-BL	BL - Plain finish	320	18	1.3	1.6	90	15
GN 111.2-320-18-A-SW	SW - Black	320	18	1.3	3	90	9
GN 111.2-320-18-A-TR	TR - Transparent	320	18	1.3	3	90	9
GN 111.2-320-24-A-BL	BL - Plain finish	320	24	1.5	1.6	100	16
GN 111.2-320-24-A-SW	SW - Black	320	24	1.5	3	100	11
GN 111.2-320-24-A-TR	TR - Transparent	320	24	1.5	3	100	11
GN 111.2-320-30-A-BL	BL - Plain finish	320	30	1.8	1.6	120	18
GN 111.2-320-30-A-SW	SW - Black	320	30	1.8	3	120	14
GN 111.2-320-30-A-TR	TR - Transparent	320	30	1.8	3	120	14
GN 111.2-500-14-A-BL	BL - Plain finish	500	14	1	1.6	50	22
GN 111.2-500-14-A-SW	SW - Black	500	14	1	3	50	12
GN 111.2-500-14-A-TR	TR - Transparent	500	14	1	3	50	12
GN 111.2-500-18-A-BL	BL - Plain finish	500	18	1.3	1.6	90	23
GN 111.2-500-18-A-SW	SW - Black	500	18	1.3	3	90	12
GN 111.2-500-18-A-TR	TR - Transparent	500	18	1.3	3	90	12
GN 111.2-500-24-A-BL	BL - Plain finish	500	24	1.5	1.6	100	24
GN 111.2-500-24-A-SW	SW - Black	500	24	1.5	3	100	14
GN 111.2-500-24-A-TR	TR - Transparent	500	24	1.5	3	100	14
GN 111.2-500-30-A-BL	BL - Plain finish	500	30	1.8	1.6	120	25
GN 111.2-500-30-A-SW	SW - Black	500	30	1.8	3	120	17
GN 111.2-500-30-A-TR	TR - Transparent	500	30	1.8	3	120	17
