GN 111

Ball Chains

Brass, with Two Key Rings

Enquire Now

Description

Specification

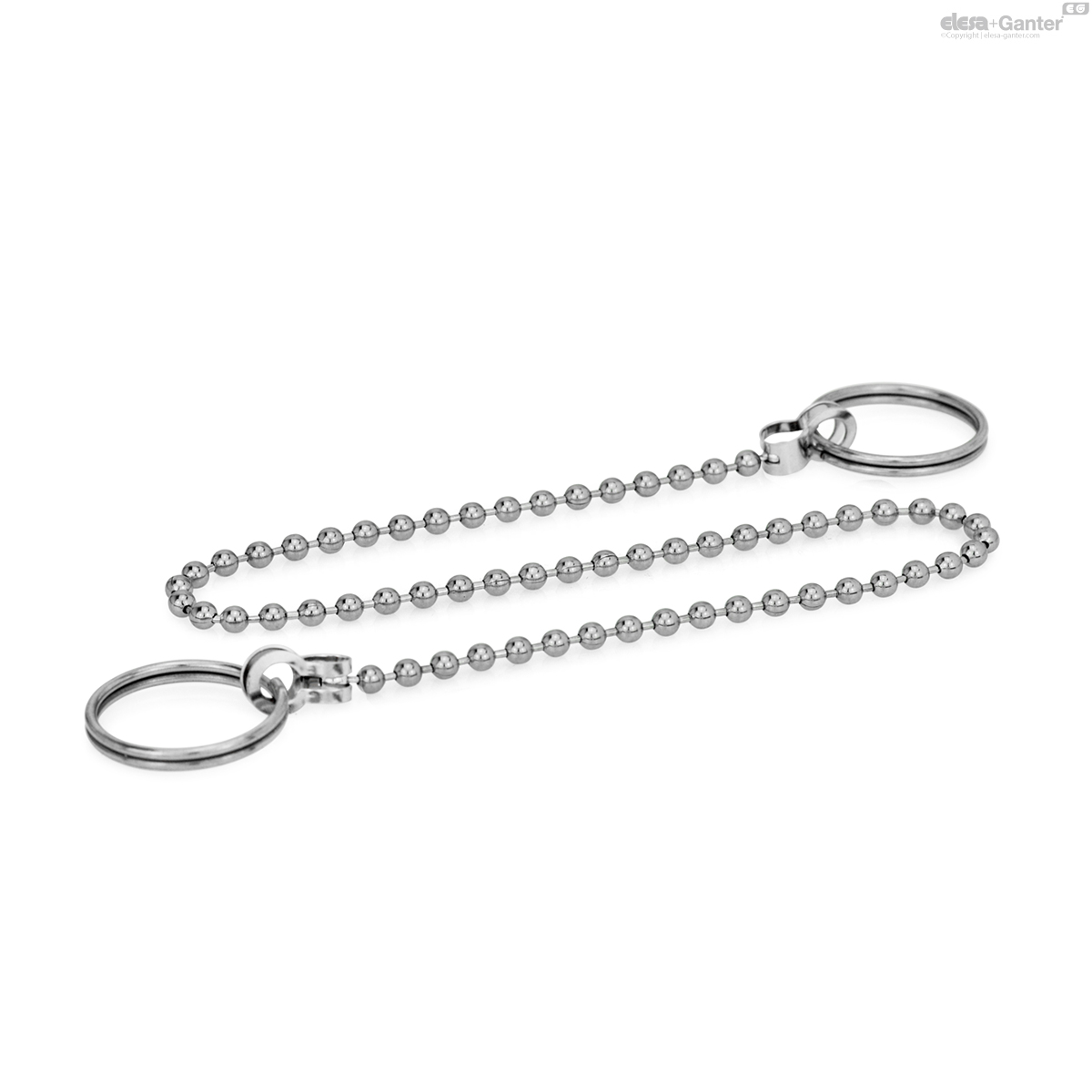

Ball chain

Brass

Nickel plated

Key ring

Stainless steel AISI 301

Information

Ball chains GN 111 are mainly used in connection with ball lock pins and locking pins with axial lock.

The ball chains lack any amount of stiffness due to their design.

The key rings are supplied unmounted. Both rings have the same Ø d₁.

The details on static loads are guide values given without warranty.

Ideal suitable for ball lock pins and locking pins with axial lock:

Ideal suitable for ball lock pins and locking pins with axial lock with pins Ø:
d₁	GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10	GN 113.5, GN 113.6	GN 113.11, GN 113.12	GN 114.2, GN 114.3, GN 114.6	GN 114.7, GN 114.8	GN 114.11, GN 114.12	GN 124.1, GN 124.2	GN 124.3	GN 214.2, GN 214.3, GN 214.6	GN 314
14	5 / 6 / 8	all	5 / 6 / 8 / 10	all	6 / 8	6 / 8 / 10 / 12	all	2024-10-08	6 / 8	-
18	10 / 12 / 16 / 20 / 25	-	12 / 16	-	10 / 12 / 16 / 20	16 / 20	-	10 / 12	10 / 12 / 16 / 20 / 25	8 / 10 / 12
24	-	-	20 / 25	-	-	-	-	-	-	16 / 20
30	-	-	-	-	-	-	-	-	-	-

Accessory

	l ±3	d₁	d₂	Static load in N ≈ with key ring	Static load in N ≈ without key ring
Code							Actions
GN 111-200-14	200	14	1	50	180	5
GN 111-200-18	200	18	1.3	90	180	6
GN 111-200-24	200	24	1.5	100	180	8
GN 111-200-30	200	30	1.8	120	180	9
GN 111-320-14	320	14	1	50	180	10
GN 111-320-18	320	18	1.3	90	180	11
GN 111-320-24	320	24	1.5	100	180	13
GN 111-320-30	320	30	1.8	120	180	14
GN 111-500-14	500	14	1	50	180	14
GN 111-500-18	500	18	1.3	90	180	15
GN 111-500-24	500	24	1.5	100	180	15
GN 111-500-30	500	30	1.8	120	180	16
GN 111-1000-14	1000	14	1	50	180	25
GN 111-1000-18	1000	18	1.3	90	180	25
GN 111-1000-24	1000	24	1.5	100	180	26
GN 111-1000-30	1000	30	1.8	120	180	27
