GN 10b

Aluminum Profiles

b-Modular System, with Open Slots on All Sides, Profile Type Light / Heavy

Enquire Now

Description

Specification

Profile types

Type L: Light

Type S: Heavy

Aluminum

Anodized, natural color N

Information

Aluminum profiles GN 10b are produced by extrusion molding. They can be used, for example, to easily construct protective enclosures, workplace equipment or jigs.

Aluminum profiles in combination with the removable and reusable accessories form a flexible modular system. Attachments can be fastened to either the slots or the end faces via the holes.

The profile type light is typically used for small loads or for weight-optimized constructions.

Aluminum profiles are supplied in bundles. The table shows the quantity included in each bundle.

Accessory

T-Nuts GN 50b

T-Slot Nuts GN 51b

T-Slot Bolts GN 52b

Cover Caps GN 60b

Cover and Edging Profiles GN 70b

Cover Profiles GN 71b

Transport and Base Plates GN 80b

Mechanical Data (in Extrusion Direction)

Material: Al Mg Si 0.5 F25 (EN AW – 6063)
Delivery condition: Artificially aged
Anodized coating: E6EV1 (natural color), layer thickness: 10 μm
Dimensional deviations as per DIN EN 12020-2
Tensile strength R_m min. 245 N/mm²
Yield point Rp0,2 min. 195 N/mm²
Density 2.7 kg/dm³
Linear expansion coefficient 23,6x10^-6 1/k
Modulus of elasticity E ≈ 70,000 N/mm²
Hardness ≈ 75HB -2.5/187.5

Permissible Tensile Load on the Slot

n	Grid size	Profile type	F_N* in N
-	-	-	With T-nuts GN 50b		With T-slot nuts GN 51b	With T-slot bolts GN 52b
-	-	-	Type V / F	Type S	-	-
8	30	Heavy	2500	6000	3000	3500
10	40	Light	7500	-	5500	9000
10	45	Light	7500	-	5500	9000
10	45	Heavy	8500	17500	7500	9000

* Depending on the thread size of the T-nut / T-slot nut / T-slot bolt

Cross-Section Properties

W_x, W_y = Axial resistance torque against bending

l_x, l_y = 2nd moment of area against bending

A = Cross-section area

m = Length-related mass

GN 10b Profile type light
s₁	s₂	n	Grid size	Bending axis x-x		Bending axis y-y		A	m ≈
-	-	-	-	l_x in cm4	W_x in cm3	l_y in cm4	W_y in cm3	in cm2	in kg/m
40	40	10	40	9.06	4.53	9.06	4.53	5.61	1.51
40	80	10	40	63.2	15.8	17.2	8.61	9.86	2.67
45	45	10	45	11.7	4.89	11.7	4.89	5.73	1.55
45	90	10	45	81.8	18.2	23.5	10.5	11.3	3.05
80	80	10	40	132.6	33.2	132.6	33.2	18.5	4.98
90	90	10	45	210.5	46.8	210.5	46.8	23.5	6.34

GN 10b Profile type heavy
s₁	s₂	n	Grid size	Bending axis x-x		Bending axis y-y		A	m ≈
-	-	-	-	l_x in cm4	W_x in cm3	l_y in cm4	W_y in cm3	in cm2	in kg/m
30	30	8	30	2.77	1.85	2.77	1.85	3.14	0.85
30	60	8	30	5.09	3.39	19.7	6.55	5.53	1.49
45	45	10	45	13.9	6.91	13.9	6.91	7.5	2.03
45	60	10	45	37.6	12.5	22.7	10.1	11.1	3.01
45	90	10	45	124.1	27.6	32.3	14.3	15.2	4.12
90	90	10	45	302.0	67.1	302.0	67.1	38.9	10.5

GN 10b-S

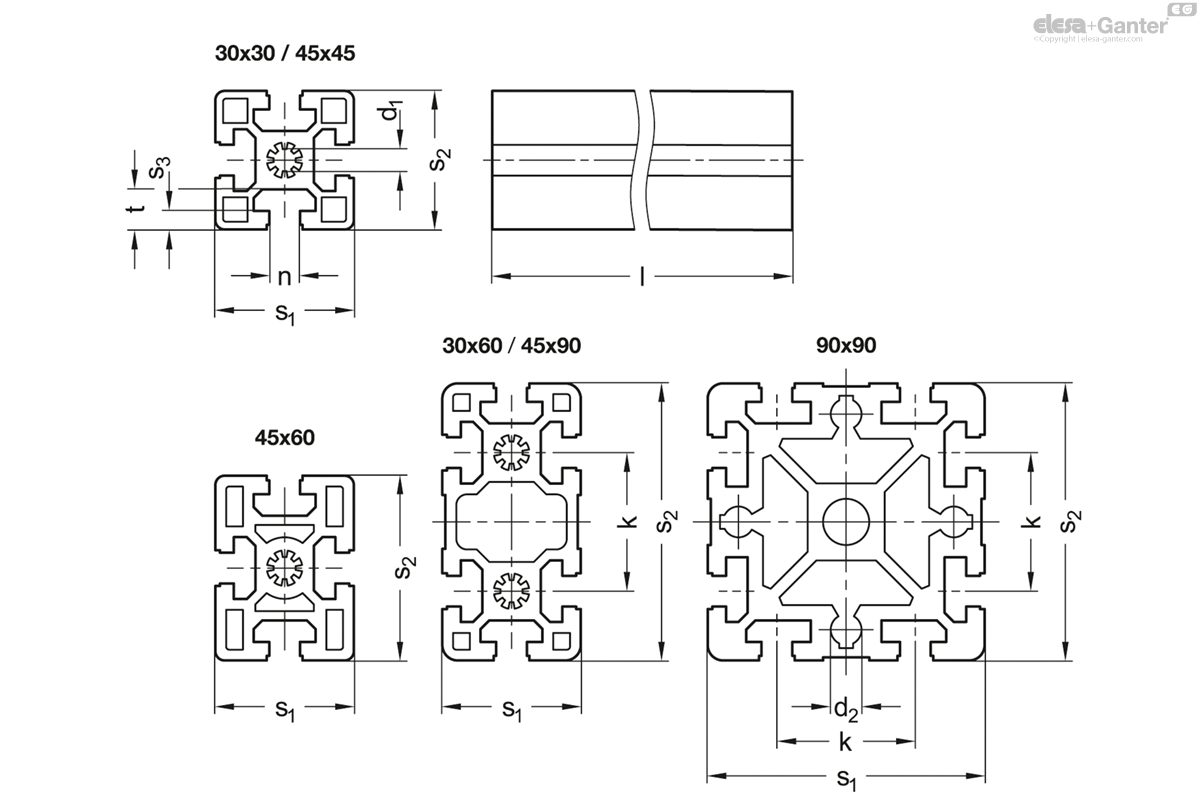

	Color	s₁	s₂	n	Length l in m +1.5mm	Bundle Pieces	d₁	d₂	k	s₃	t	Grid size
Code														Actions

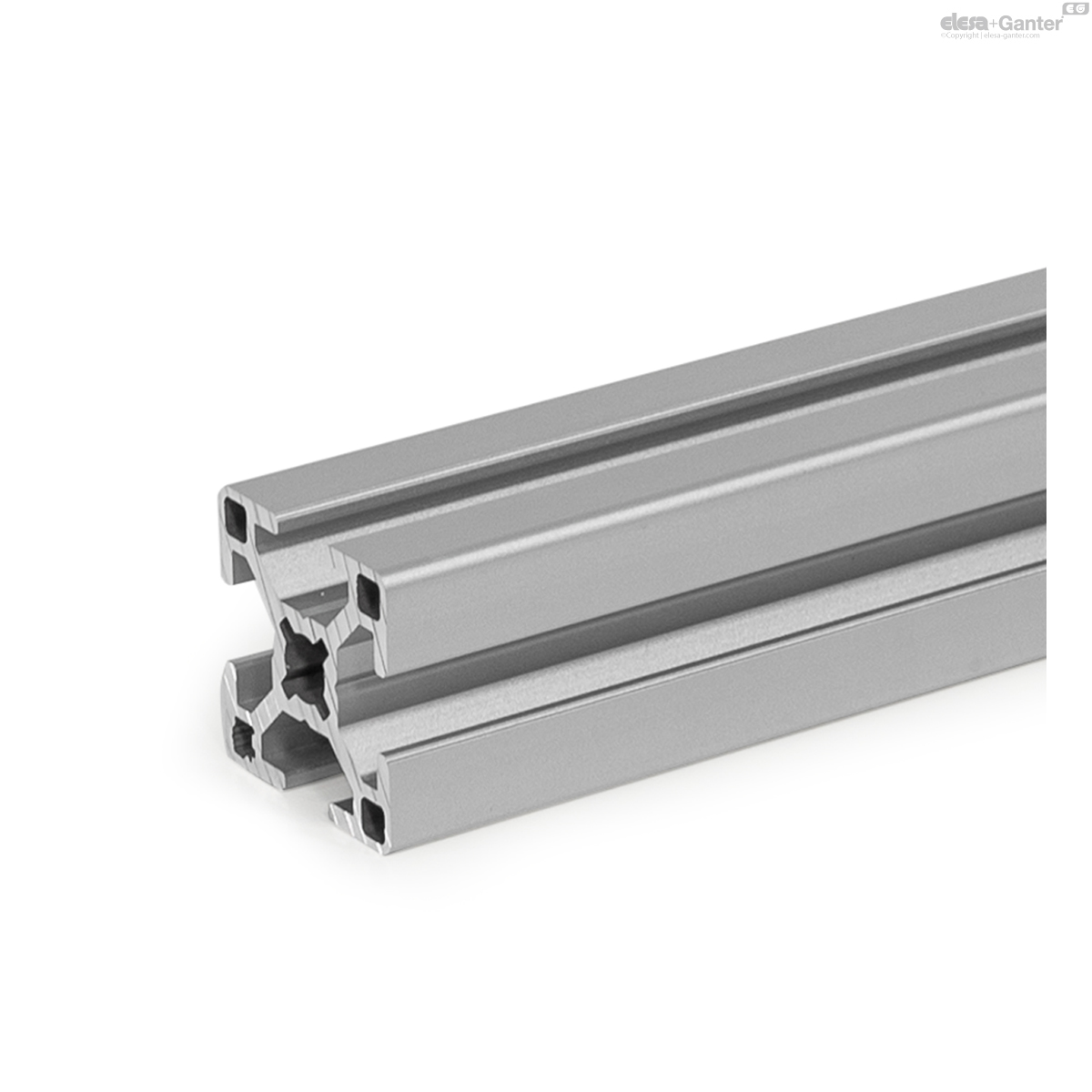

GN 10b-30308S-N-2-4	30308	30	30	8	2	4	7.3	-	-	2.2	9	30	6800
GN 10b-30308S-N-3-4	30308	30	30	8	3	4	7.3	-	-	2.2	9	30	10200
GN 10b-30608S-N-2-2	30608	30	60	8	2	2	7.3	-	30	2.2	9	30	5960
GN 10b-30608S-N-3-2	30608	30	60	8	3	2	7.3	-	30	2.2	9	30	8940

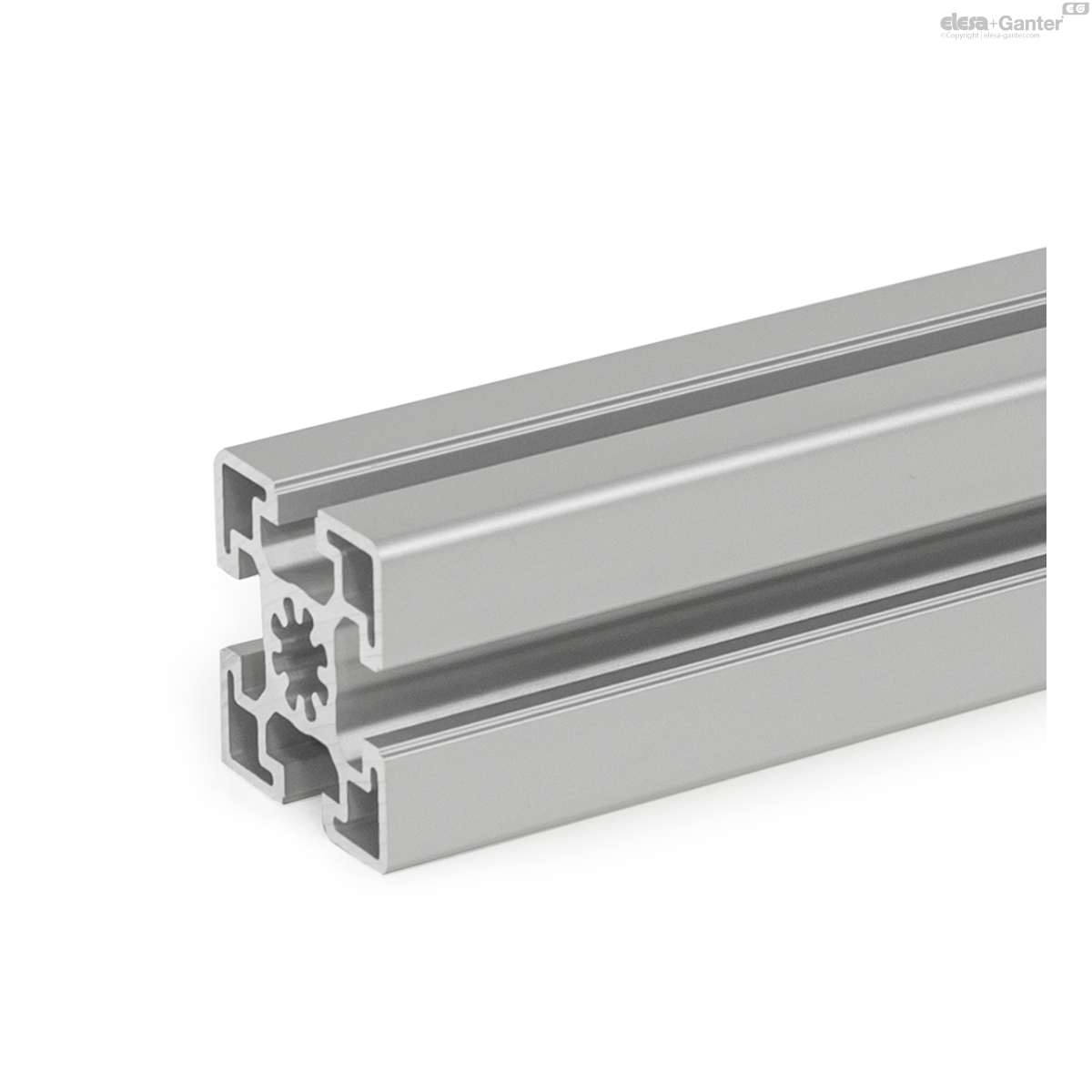

GN 10b-454510S-N-2-4	454510	45	45	10	2	4	10	-	-	6	12.5	45	16240
GN 10b-454510S-N-3-4	454510	45	45	10	3	4	10	-	-	6	12.5	45	24360

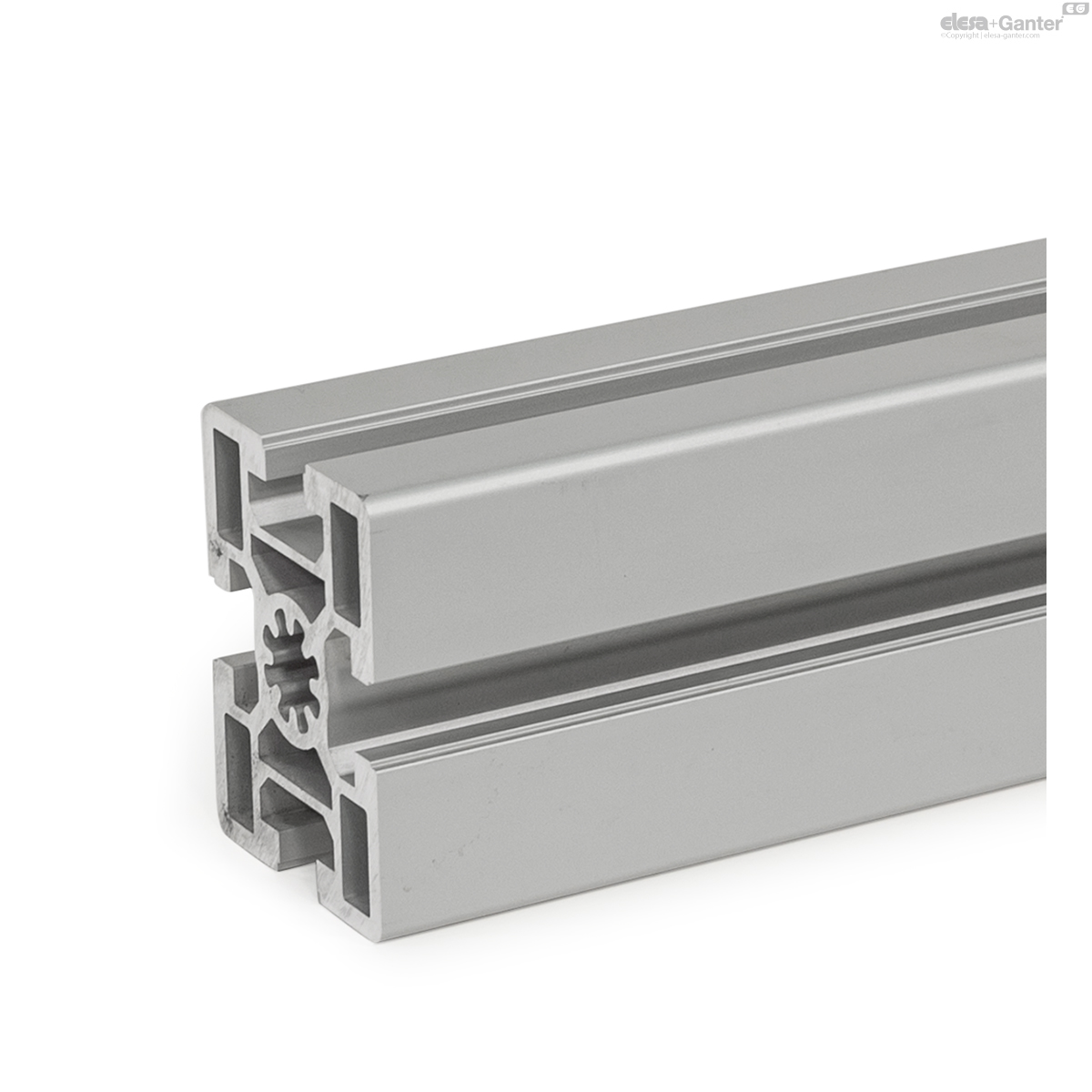

GN 10b-456010S-N-2-2	456010	45	60	10	2	2	10	-	-	6	12.5	45	12040
GN 10b-456010S-N-3-2	456010	45	60	10	3	2	10	-	-	6	12.5	45	18060

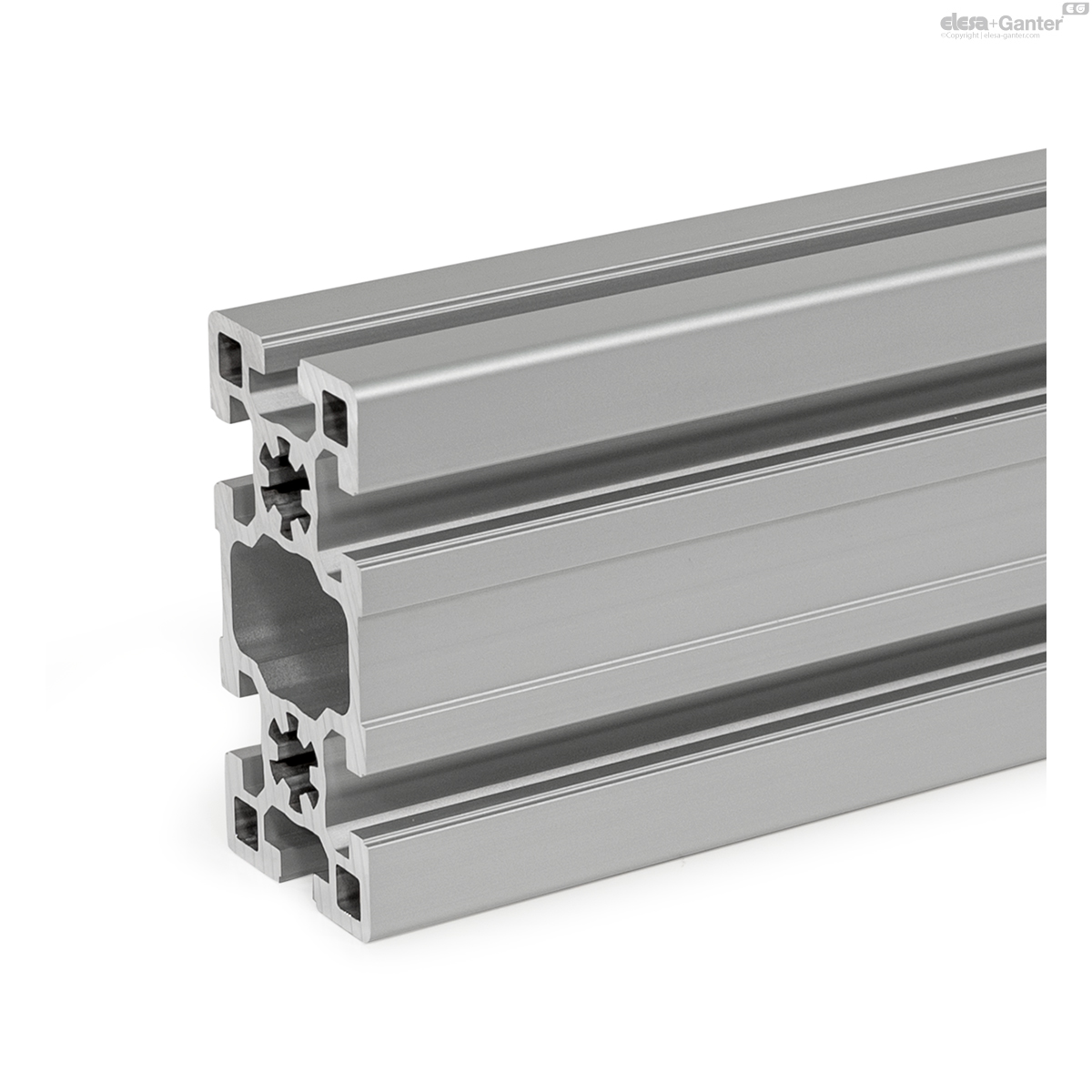

GN 10b-459010S-N-2-2	459010	45	90	10	2	2	10	-	45	6	12.5	45	16480
GN 10b-459010S-N-3-2	459010	45	90	10	3	2	10	-	45	6	12.5	45	24720

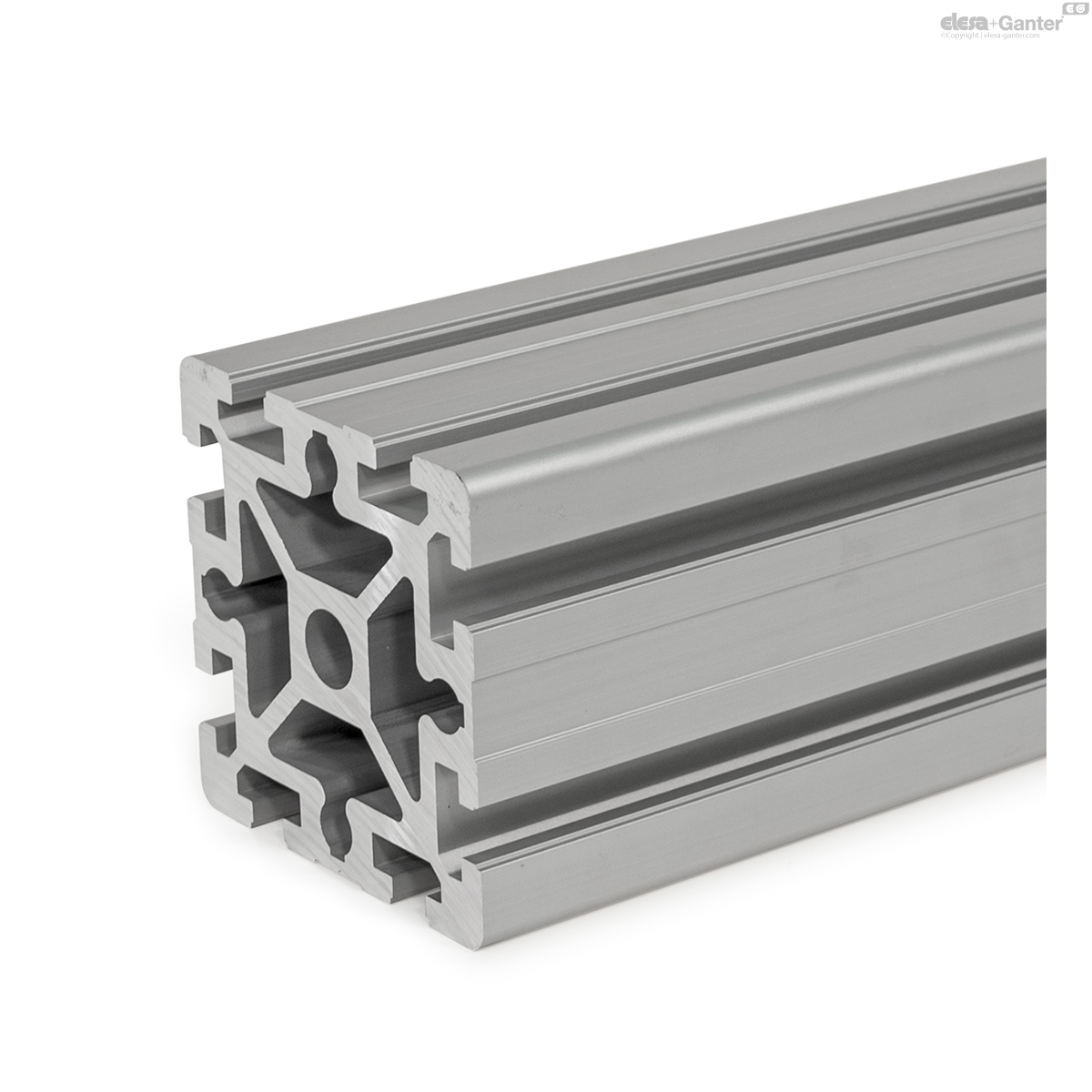

GN 10b-909010S-N-2-1	909010	90	90	10	2	1	15	10	45	6	12.5	45	21020
GN 10b-909010S-N-3-1	909010	90	90	10	3	1	15	10	45	6	12.5	45	31530
