Home Linear motion components Trapezoidal Lead Screws, Trapezoidal Lead Nuts GN 103

GN 103

Trapezoidal Lead Screws

Steel / Stainless Steel, Single- or Multi-Start

Enquire Now

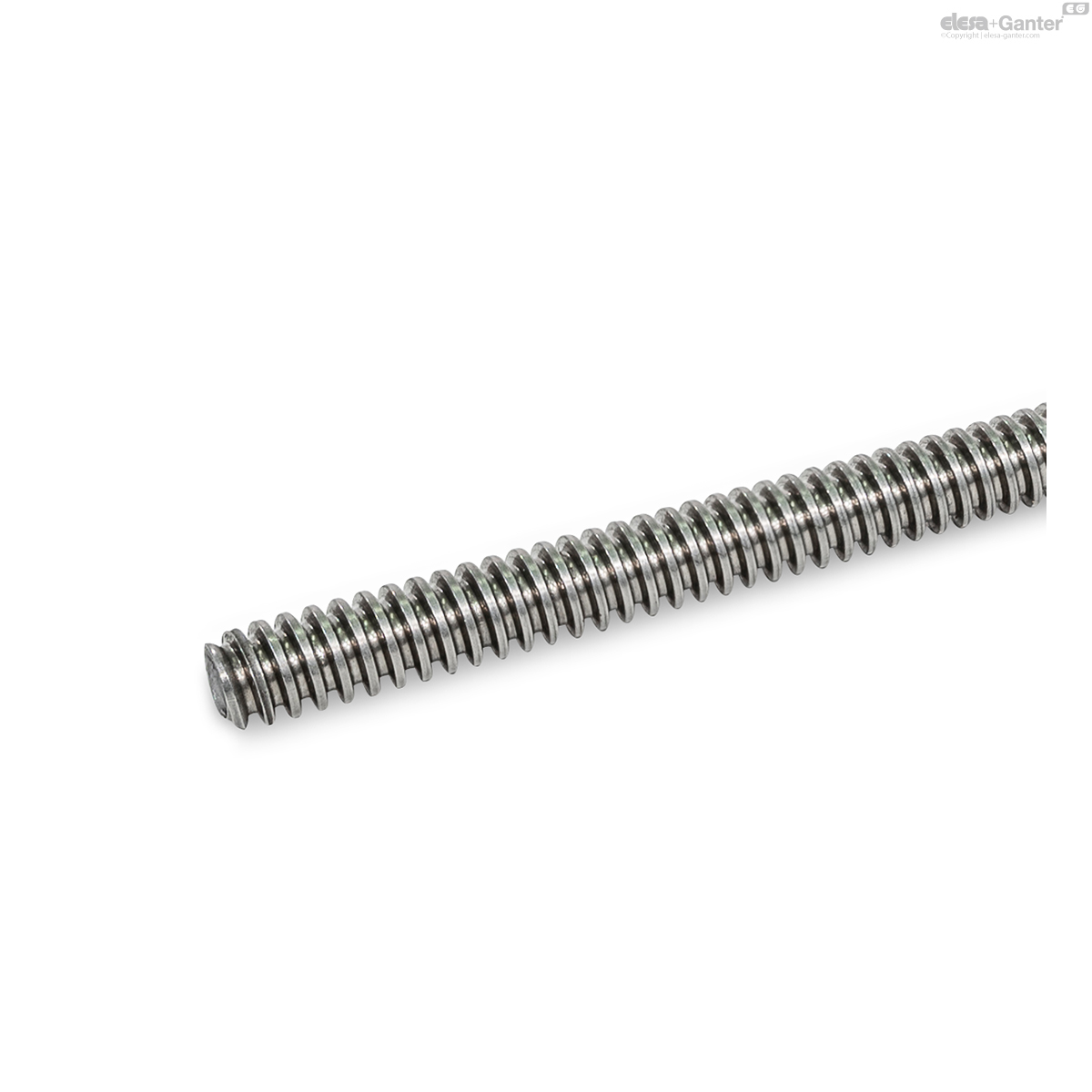

GN 103-ST

Trapezoidal Lead Screws

Steel

GN 103-NI

Trapezoidal Lead Screws

Stainless Steel

Description

Specification

Lead direction

RH: Right-hand thread

LH: Left-hand thread

Case-hardened steel C15 ST

Stainless steel AISI 304 NI

Information

In connection with trapezoidal lead nuts, trapezoidal lead screws GN 103 convert rotational movements into linear movements. They are used to move parts and transmit forces, such as in mechanical and plant engineering.

The threaded spindles are manufactured using a rolling process, which gives the thread a high level of strength. Depending on the application, either the nut or the threaded spindle moves axially during adjustment.

The thread dimensions of the trapezoidal lead screws comply with DIN 103. Trapezoidal thread drives can be assembled in conjunction with spindle nuts of the same thread size, number of thread starts and lead direction. The ends of the trapezoidal lead screws can be machined individually to accommodate the bearing or drive.

Accessory

Trapezoidal Lead Nuts GN 103.1 (Gunmetal, with Flange)

Lead Screw Nuts NSF (Plastic, with Flange)

Trapezoidal Lead Nuts GN 103.2 (with Hex)

Trapezoidal Lead Nuts GN 103.3 (Cylindrical)

Technical information

Trapezoidal Lead Screws

Stainless Steel Characteristics

GN 103-ST

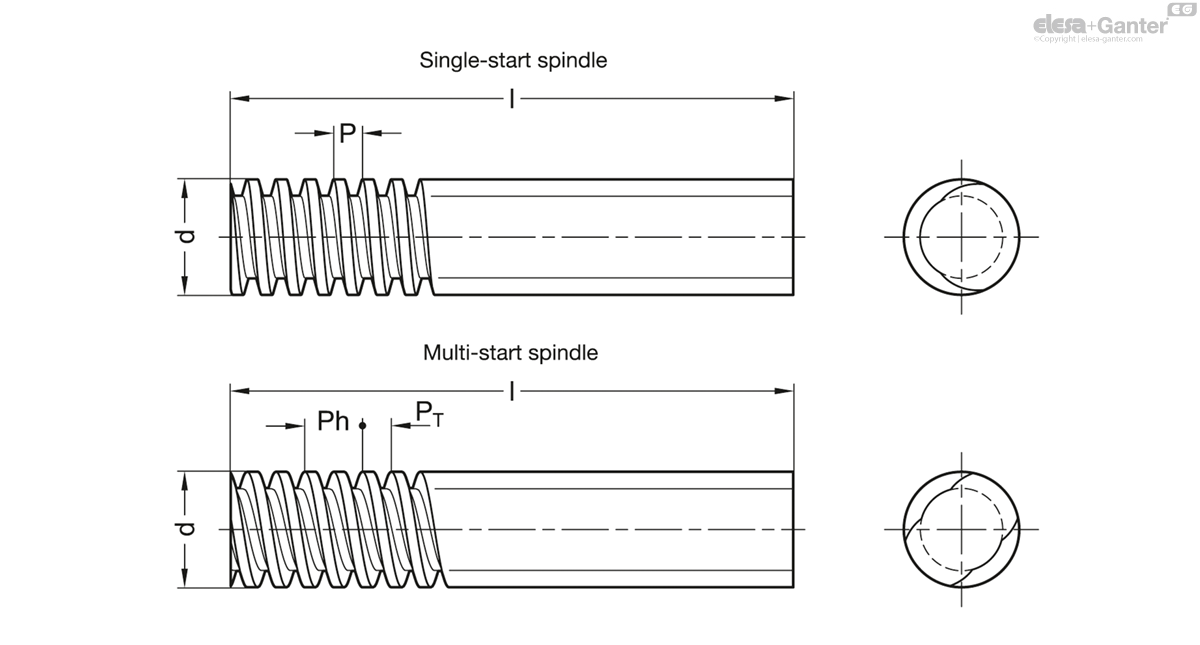

	Color	d x P Single-start	d x Ph Multi-start	Length l	P_T Pitch	Number of thread turns Ph / P_T
Code								Actions
GN 103-8x1,5-500-LH-ST	LH	8 x 1.5	-	500	-	-	150
GN 103-8x1,5-500-RH-ST	RH	8 x 1.5	-	500	-	-	150
GN 103-8x1,5-1000-LH-ST	LH	8 x 1.5	-	1000	-	-	300
GN 103-8x1,5-1000-RH-ST	RH	8 x 1.5	-	1000	-	-	300
GN 103-10x2-500-LH-ST	LH	10 x 2	-	500	-	-	300
GN 103-10x2-500-RH-ST	RH	10 x 2	-	500	-	-	300
GN 103-10x2-1000-LH-ST	LH	10 x 2	-	1000	-	-	600
GN 103-10x2-1000-RH-ST	RH	10 x 2	-	1000	-	-	600
GN 103-10x3-500-LH-ST	LH	10 x 3	-	500	-	-	300
GN 103-10x3-500-RH-ST	RH	10 x 3	-	500	-	-	300
GN 103-10x3-1000-LH-ST	LH	10 x 3	-	1000	-	-	600
GN 103-10x3-1000-RH-ST	RH	10 x 3	-	1000	-	-	600
GN 103-12x3-500-LH-ST	LH	12 x 3	-	500	-	-	400
GN 103-12x3-500-RH-ST	RH	12 x 3	-	500	-	-	400
GN 103-12x3-1000-LH-ST	LH	12 x 3	-	1000	-	-	800
GN 103-12x3-1000-RH-ST	RH	12 x 3	-	1000	-	-	800
GN 103-12x6-1000-RH-ST	RH	-	12 x 6	1000	P3	2	800
GN 103-14x4-500-LH-ST	LH	14 x 4	-	500	-	-	450
GN 103-14x4-500-RH-ST	RH	14 x 4	-	500	-	-	450
GN 103-14x4-1000-LH-ST	LH	14 x 4	-	1000	-	-	900
GN 103-14x4-1000-RH-ST	RH	14 x 4	-	1000	-	-	900
GN 103-16x4-500-LH-ST	LH	16 x 4	-	500	-	-	700
GN 103-16x4-500-RH-ST	RH	16 x 4	-	500	-	-	700
GN 103-16x4-1000-LH-ST	LH	16 x 4	-	1000	-	-	1400
GN 103-16x4-1000-RH-ST	RH	16 x 4	-	1000	-	-	1400
GN 103-16x8-1000-RH-ST	RH	-	16 x 8	1000	P4	2	1400
GN 103-18x4-1000-LH-ST	LH	18 x 4	-	1000	-	-	1600
GN 103-18x4-1000-RH-ST	RH	18 x 4	-	1000	-	-	1600
GN 103-20x4-1000-LH-ST	LH	20 x 4	-	1000	-	-	2100
GN 103-20x4-1000-RH-ST	RH	20 x 4	-	1000	-	-	2100
GN 103-20x8-1000-RH-ST	RH	-	20 x 8	1000	P4	2	2100
GN 103-24x5-1000-LH-ST	LH	24 x 5	-	1000	-	-	2900
GN 103-24x5-1000-RH-ST	RH	24 x 5	-	1000	-	-	2900
GN 103-24x10-1000-RH-ST	RH	-	24 x 10	1000	P5	2	2900
GN 103-30x6-1000-LH-ST	LH	30 x 6	-	1000	-	-	4700
GN 103-30x6-1000-RH-ST	RH	30 x 6	-	1000	-	-	4700
GN 103-30x12-1000-RH-ST	RH	-	30 x 12	1000	P6	2	4700
GN 103-36x6-1000-LH-ST	LH	36 x 6	-	1000	-	-	6700
GN 103-36x6-1000-RH-ST	RH	36 x 6	-	1000	-	-	6700
GN 103-40x7-1000-LH-ST	LH	40 x 7	-	1000	-	-	9400
GN 103-40x7-1000-RH-ST	RH	40 x 7	-	1000	-	-	9400
GN 103-40x14-1000-RH-ST	RH	-	40 x 14	1000	P7	2	9400
GN 103-50x8-1000-LH-ST	LH	50 x 8	-	1000	-	-	12600
GN 103-50x8-1000-RH-ST	RH	50 x 8	-	1000	-	-	12600
