GN 103.3
Trapezoidal Lead Nuts
Steel / Stainless Steel / Gunmetal / Plastic, Single- or Multi-Start, Cylindrical
GN 103.3-ST
Trapezoidal Lead Nuts
Steel
GN 103.3-NI
Trapezoidal Lead Nuts
Stainless Steel

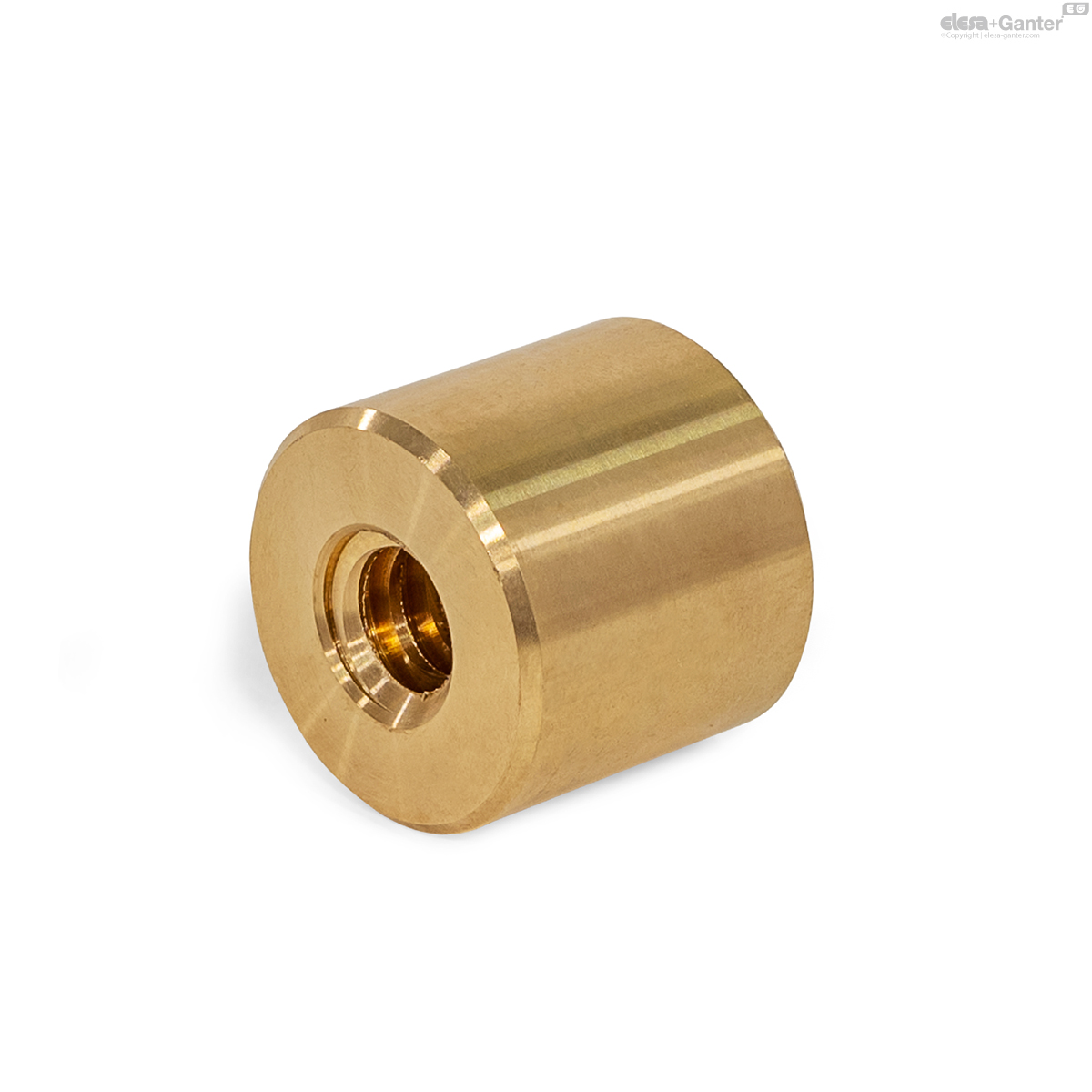

GN 103.3-RG
Trapezoidal Lead Nuts
Gunmetal
GN 103.3-POM
Trapezoidal Lead Nuts
Plastic
Description
Specification
Lead direction
- RH: Right-hand thread
- LH: Left-hand thread
Identification no.
- No. 1: Short version (Material ST / NI)
- No. 2: Long version (Material ST / RG / POM)
Steel 1.0718 ST
Stainless steel AISI 303 NI
Gunmetal (Rg7) RG
Plastic, Polyacetal POM
- White
- Temperature resistant up to 90 °C
Information
Trapezoidal lead nuts GN 103.3 are used together with trapezoidal lead screws GN 103. The nuts are available in various lengths depending on the material and the resulting strength. The nuts can be fastened via individually machined surfaces, grooves or threads on the flat surfaces or on the circumference.
To minimize wear, the trapezoidal lead nuts should be lubricated. However, if lubrication is insufficient, the bronze alloy (gunmetal) generally has emergency running properties. Steel and stainless steel nuts are primarily used for sporadic adjustments.
Accessory
- Trapezoidal Lead Screws GN 103
Technical information
- Trapezoidal Lead ScrewsÂ
- Plastic CharacteristicsÂ
- Stainless Steel CharacteristicsÂ
GN 103.3-RG
| Color | d1 x P Single-start |
d1 x Ph Multi-start |
PT Pitch |
Number of thread turns Ph / PT |
d2 | Length l Identification No. 2 |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 103.3-8x1,5-LH-2-RG | LH | 8 x 1.5 | - | - | - | 18 | 16 | 60 |
|
| GN 103.3-8x1,5-RH-2-RG | RH | 8 x 1.5 | - | - | - | 18 | 16 | 60 |
|
| GN 103.3-10x2-LH-2-RG | LH | 10 x 2 | - | - | - | 22 | 20 | 60 |
|
| GN 103.3-10x2-RH-2-RG | RH | 10 x 2 | - | - | - | 22 | 20 | 60 |
|
| GN 103.3-10x3-LH-2-RG | LH | 10 x 3 | - | - | - | 22 | 20 | 60 |
|
| GN 103.3-10x3-RH-2-RG | RH | 10 x 3 | - | - | - | 22 | 20 | 60 |
|
| GN 103.3-12x3-LH-2-RG | LH | 12 x 3 | - | - | - | 26 | 24 | 80 |
|
| GN 103.3-12x3-RH-2-RG | RH | 12 x 3 | - | - | - | 26 | 24 | 80 |
|
| GN 103.3-12x6-RH-2-RG | RH | - | 12 x 6 | P3 | 2 | 26 | 24 | 80 |
|
| GN 103.3-14x4-LH-2-RG | LH | 14 x 4 | - | - | - | 30 | 28 | 120 |
|
| GN 103.3-14x4-RH-2-RG | RH | 14 x 4 | - | - | - | 30 | 28 | 120 |
|
| GN 103.3-16x4-LH-2-RG | LH | 16 x 4 | - | - | - | 36 | 32 | 220 |
|
| GN 103.3-16x4-RH-2-RG | RH | 16 x 4 | - | - | - | 36 | 32 | 220 |
|
| GN 103.3-16x8-RH-2-RG | RH | - | 16 x 8 | P4 | 2 | 36 | 32 | 220 |
|
| GN 103.3-18x4-LH-2-RG | LH | 18 x 4 | - | - | - | 40 | 36 | 320 |
|
| GN 103.3-18x4-RH-2-RG | RH | 18 x 4 | - | - | - | 40 | 36 | 320 |
|
| GN 103.3-20x4-LH-2-RG | LH | 20 x 4 | - | - | - | 45 | 40 | 420 |
|
| GN 103.3-20x4-RH-2-RG | RH | 20 x 4 | - | - | - | 45 | 40 | 420 |
|
| GN 103.3-20x8-RH-2-RG | RH | - | 20 x 8 | P4 | 2 | 45 | 40 | 420 |
|
| GN 103.3-24x5-LH-2-RG | LH | 24 x 5 | - | - | - | 50 | 48 | 600 |
|
| GN 103.3-24x5-RH-2-RG | RH | 24 x 5 | - | - | - | 50 | 48 | 600 |
|
| GN 103.3-24x10-RH-2-RG | RH | - | 24 x 10 | P5 | 2 | 50 | 48 | 600 |
|
| GN 103.3-30x6-LH-2-RG | LH | 30 x 6 | - | - | - | 60 | 60 | 1060 |
|
| GN 103.3-30x6-RH-2-RG | RH | 30 x 6 | - | - | - | 60 | 60 | 1060 |
|
| GN 103.3-30x12-RH-2-RG | RH | - | 30 x 12 | P6 | 2 | 60 | 60 | 1060 |
|
| GN 103.3-36x6-LH-2-RG | LH | 36 x 6 | - | - | - | 75 | 72 | 1980 |
|
| GN 103.3-36x6-RH-2-RG | RH | 36 x 6 | - | - | - | 75 | 72 | 1980 |
|
| GN 103.3-40x7-LH-2-RG | LH | 40 x 7 | - | - | - | 80 | 80 | 2440 |
|
| GN 103.3-40x7-RH-2-RG | RH | 40 x 7 | - | - | - | 80 | 80 | 2440 |
|
| GN 103.3-40x14-RH-2-RG | RH | - | 40 x 14 | P7 | 2 | 80 | 80 | 2440 |
|
| GN 103.3-50x8-LH-2-RG | LH | 50 x 8 | - | - | - | 90 | 100 | 3640 |
|
| GN 103.3-50x8-RH-2-RG | RH | 50 x 8 | - | - | - | 90 | 100 | 3640 |
|
