GN 101.1
Adjustable hand levers
Zinc die casting, Bushing / Threaded bolt Stainless Steel
GN 101.1
Adjustable hand levers
with internal thread
GN-101.1
Adjustable hand levers
with threaded stud
Description
Specification
Handle
Zinc die casting
plastic coated

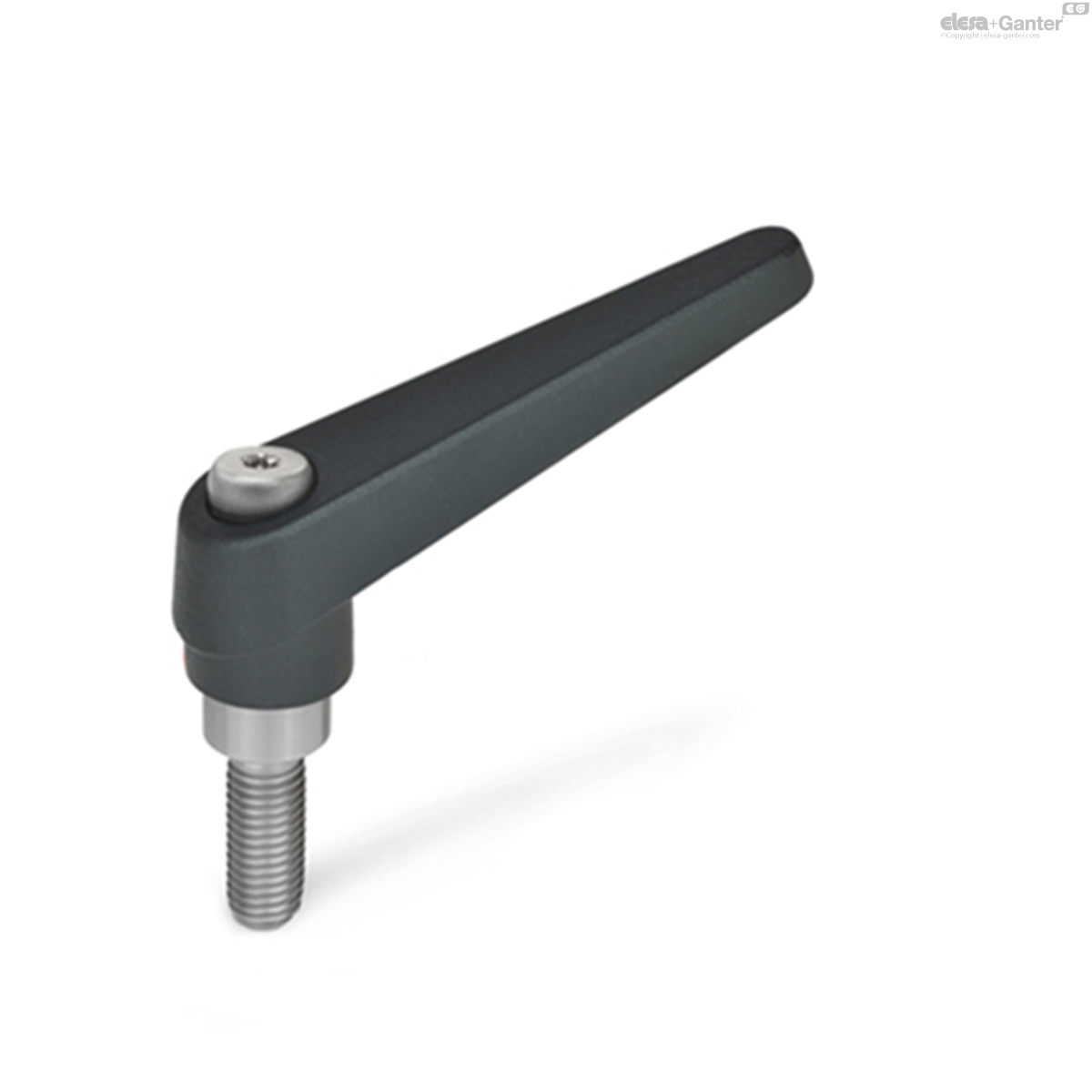

black, RAL 9005, textured finish SW

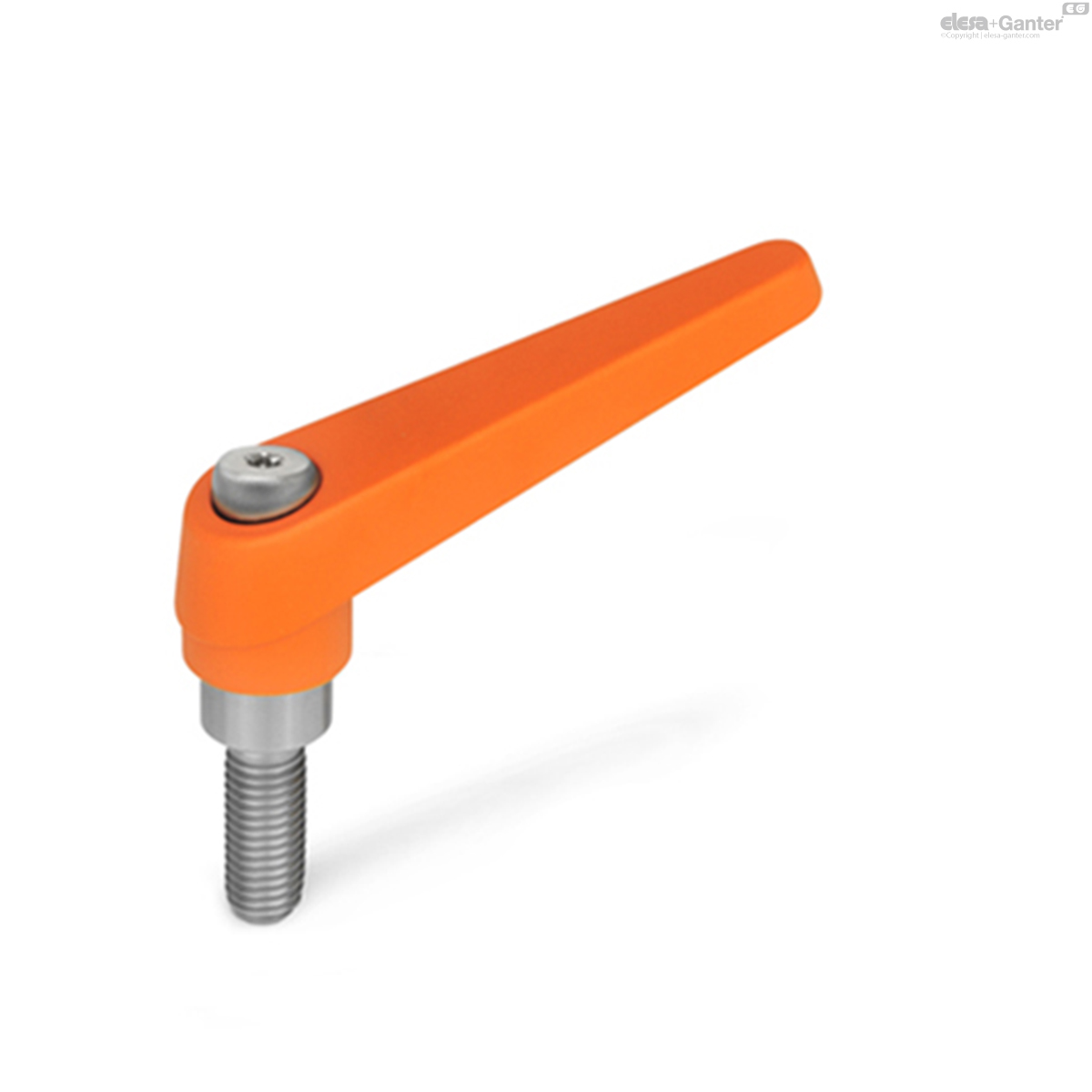

orange, RAL 2004, textured finish OS
Version with internal thread
Threaded bush and retaining screw
Stainless Steel AISI 303
Version with threaded stud
Threaded stud and retaining screw
Stainless Steel AISI 303
Information
Adjustable hand levers GN 101.1 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.
Pulling the lever disengages serrations and allowing to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
Technical information
- Stainless Steel characteristicsÂ

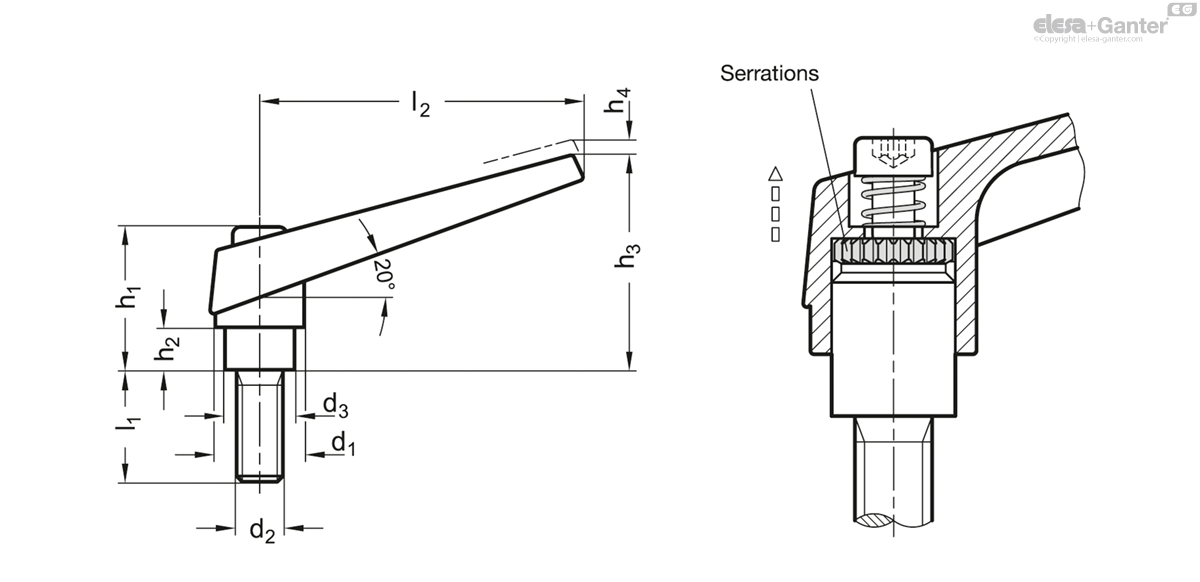

GN-101.1
| Color | d1 | d2 | l1 | d3 | h1 | h2 | h3 ≈ | h4 | l2 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 101.1-14-M5-12-OS | OS - RAL 2004 | 14 | M 5 | 12 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 36 |
|
| GN 101.1-14-M5-12-SW | SW - RAL 9004 | 14 | M 5 | 12 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 36 |
|
| GN 101.1-14-M5-16-OS | OS - RAL 2004 | 14 | M 5 | 16 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 37 |
|
| GN 101.1-14-M5-16-SW | SW - RAL 9004 | 14 | M 5 | 16 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 37 |
|
| GN 101.1-14-M5-20-OS | OS - RAL 2004 | 14 | M 5 | 20 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 37 |
|
| GN 101.1-14-M5-20-SW | SW - RAL 9004 | 14 | M 5 | 20 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 37 |
|
| GN 101.1-14-M5-25-OS | OS - RAL 2004 | 14 | M 5 | 25 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 38 |
|
| GN 101.1-14-M5-25-SW | SW - RAL 9004 | 14 | M 5 | 25 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 38 |
|
| GN 101.1-14-M5-32-OS | OS - RAL 2004 | 14 | M 5 | 32 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 39 |
|
| GN 101.1-14-M5-32-SW | SW - RAL 9004 | 14 | M 5 | 32 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 39 |
|
| GN 101.1-14-M5-40-OS | OS - RAL 2004 | 14 | M 5 | 40 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 40 |
|
| GN 101.1-14-M5-40-SW | SW - RAL 9004 | 14 | M 5 | 40 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 40 |
|
| GN 101.1-14-M5-50-OS | OS - RAL 2004 | 14 | M 5 | 50 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 41 |
|
| GN 101.1-14-M5-50-SW | SW - RAL 9004 | 14 | M 5 | 50 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 41 |
|
| GN 101.1-14-M6-12-OS | OS - RAL 2004 | 14 | M 6 | 12 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 37 |
|
| GN 101.1-14-M6-12-SW | SW - RAL 9004 | 14 | M 6 | 12 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 37 |
|
| GN 101.1-14-M6-16-OS | OS - RAL 2004 | 14 | M 6 | 16 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 38 |
|
| GN 101.1-14-M6-16-SW | SW - RAL 9004 | 14 | M 6 | 16 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 38 |
|
| GN 101.1-14-M6-20-OS | OS - RAL 2004 | 14 | M 6 | 20 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 38 |
|
| GN 101.1-14-M6-20-SW | SW - RAL 9004 | 14 | M 6 | 20 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 38 |
|
| GN 101.1-14-M6-25-OS | OS - RAL 2004 | 14 | M 6 | 25 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 39 |
|
| GN 101.1-14-M6-25-SW | SW - RAL 9004 | 14 | M 6 | 25 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 39 |
|
| GN 101.1-14-M6-32-OS | OS - RAL 2004 | 14 | M 6 | 32 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 41 |
|
| GN 101.1-14-M6-32-SW | SW - RAL 9004 | 14 | M 6 | 32 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 41 |
|
| GN 101.1-14-M6-40-OS | OS - RAL 2004 | 14 | M 6 | 40 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 42 |
|
| GN 101.1-14-M6-40-SW | SW - RAL 9004 | 14 | M 6 | 40 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 42 |
|
| GN 101.1-14-M6-50-OS | OS - RAL 2004 | 14 | M 6 | 50 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 43 |
|
| GN 101.1-14-M6-50-SW | SW - RAL 9004 | 14 | M 6 | 50 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 43 |
|
| GN 101.1-18-M6-16-OS | OS - RAL 2004 | 18 | M 6 | 16 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 76 |
|
| GN 101.1-18-M6-16-SW | SW - RAL 9004 | 18 | M 6 | 16 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 76 |
|
| GN 101.1-18-M6-20-OS | OS - RAL 2004 | 18 | M 6 | 20 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 77 |
|
| GN 101.1-18-M6-20-SW | SW - RAL 9004 | 18 | M 6 | 20 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 77 |
|
| GN 101.1-18-M6-25-OS | OS - RAL 2004 | 18 | M 6 | 25 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 78 |
|
| GN 101.1-18-M6-25-SW | SW - RAL 9004 | 18 | M 6 | 25 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 78 |
|
| GN 101.1-18-M6-32-OS | OS - RAL 2004 | 18 | M 6 | 32 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 80 |
|
| GN 101.1-18-M6-32-SW | SW - RAL 9004 | 18 | M 6 | 32 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 80 |
|
| GN 101.1-18-M6-40-OS | OS - RAL 2004 | 18 | M 6 | 40 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 81 |
|
| GN 101.1-18-M6-40-SW | SW - RAL 9004 | 18 | M 6 | 40 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 81 |
|
| GN 101.1-18-M6-50-OS | OS - RAL 2004 | 18 | M 6 | 50 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 82 |
|
| GN 101.1-18-M6-50-SW | SW - RAL 9004 | 18 | M 6 | 50 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 82 |
|
| GN 101.1-18-M6-63-OS | OS - RAL 2004 | 18 | M 6 | 63 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 84 |
|
| GN 101.1-18-M6-63-SW | SW - RAL 9004 | 18 | M 6 | 63 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 84 |
|
| GN 101.1-18-M8-16-OS | OS - RAL 2004 | 18 | M 8 | 16 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 79 |
|
| GN 101.1-18-M8-16-SW | SW - RAL 9004 | 18 | M 8 | 16 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 79 |
|
| GN 101.1-18-M8-20-OS | OS - RAL 2004 | 18 | M 8 | 20 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 80 |
|
| GN 101.1-18-M8-20-SW | SW - RAL 9004 | 18 | M 8 | 20 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 80 |
|
| GN 101.1-18-M8-25-OS | OS - RAL 2004 | 18 | M 8 | 25 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 82 |
|
| GN 101.1-18-M8-25-SW | SW - RAL 9004 | 18 | M 8 | 25 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 82 |
|
| GN 101.1-18-M8-32-OS | OS - RAL 2004 | 18 | M 8 | 32 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 84 |
|
| GN 101.1-18-M8-32-SW | SW - RAL 9004 | 18 | M 8 | 32 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 84 |
|
| GN 101.1-18-M8-40-OS | OS - RAL 2004 | 18 | M 8 | 40 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 86 |
|
| GN 101.1-18-M8-40-SW | SW - RAL 9004 | 18 | M 8 | 40 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 86 |
|
| GN 101.1-18-M8-50-OS | OS - RAL 2004 | 18 | M 8 | 50 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 90 |
|
| GN 101.1-18-M8-50-SW | SW - RAL 9004 | 18 | M 8 | 50 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 90 |
|
| GN 101.1-18-M8-63-OS | OS - RAL 2004 | 18 | M 8 | 63 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 94 |
|
| GN 101.1-18-M8-63-SW | SW - RAL 9004 | 18 | M 8 | 63 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 94 |
|
| GN 101.1-22-M10-20-OS | OS - RAL 2004 | 22 | M 10 | 20 | 16 | 36 | 8 | 52 | 4 | 74 | 133 |
|
| GN 101.1-22-M10-20-SW | SW - RAL 9004 | 22 | M 10 | 20 | 16 | 36 | 8 | 52 | 4 | 74 | 133 |
|
| GN 101.1-22-M10-25-OS | OS - RAL 2004 | 22 | M 10 | 25 | 16 | 36 | 8 | 52 | 4 | 74 | 135 |
|
| GN 101.1-22-M10-25-SW | SW - RAL 9004 | 22 | M 10 | 25 | 16 | 36 | 8 | 52 | 4 | 74 | 135 |
|
| GN 101.1-22-M10-32-OS | OS - RAL 2004 | 22 | M 10 | 32 | 16 | 36 | 8 | 52 | 4 | 74 | 138 |
|
| GN 101.1-22-M10-32-SW | SW - RAL 9004 | 22 | M 10 | 32 | 16 | 36 | 8 | 52 | 4 | 74 | 138 |
|
| GN 101.1-22-M10-40-OS | OS - RAL 2004 | 22 | M 10 | 40 | 16 | 36 | 8 | 52 | 4 | 74 | 143 |
|
| GN 101.1-22-M10-40-SW | SW - RAL 9004 | 22 | M 10 | 40 | 16 | 36 | 8 | 52 | 4 | 74 | 143 |
|
| GN 101.1-22-M10-50-OS | OS - RAL 2004 | 22 | M 10 | 50 | 16 | 36 | 8 | 52 | 4 | 74 | 148 |
|
| GN 101.1-22-M10-50-SW | SW - RAL 9004 | 22 | M 10 | 50 | 16 | 36 | 8 | 52 | 4 | 74 | 148 |
|
| GN 101.1-22-M10-63-OS | OS - RAL 2004 | 22 | M 10 | 63 | 16 | 36 | 8 | 52 | 4 | 74 | 155 |
|
| GN 101.1-22-M10-63-SW | SW - RAL 9004 | 22 | M 10 | 63 | 16 | 36 | 8 | 52 | 4 | 74 | 155 |
|
| GN 101.1-22-M10-80-OS | OS - RAL 2004 | 22 | M 10 | 80 | 16 | 36 | 8 | 52 | 4 | 74 | 162 |
|
| GN 101.1-22-M10-80-SW | SW - RAL 9004 | 22 | M 10 | 80 | 16 | 36 | 8 | 52 | 4 | 74 | 162 |
|
| GN 101.1-25-M12-25-OS | OS - RAL 2004 | 25 | M 12 | 25 | 19 | 43 | 11 | 63 | 4 | 89 | 203 |
|
| GN 101.1-25-M12-25-SW | SW - RAL 9004 | 25 | M 12 | 25 | 19 | 43 | 11 | 63 | 4 | 89 | 203 |
|
| GN 101.1-25-M12-32-OS | OS - RAL 2004 | 25 | M 12 | 32 | 19 | 43 | 11 | 63 | 4 | 89 | 208 |
|
| GN 101.1-25-M12-32-SW | SW - RAL 9004 | 25 | M 12 | 32 | 19 | 43 | 11 | 63 | 4 | 89 | 208 |
|
| GN 101.1-25-M12-40-OS | OS - RAL 2004 | 25 | M 12 | 40 | 19 | 43 | 11 | 63 | 4 | 89 | 213 |
|
| GN 101.1-25-M12-40-SW | SW - RAL 9004 | 25 | M 12 | 40 | 19 | 43 | 11 | 63 | 4 | 89 | 213 |
|
| GN 101.1-25-M12-50-OS | OS - RAL 2004 | 25 | M 12 | 50 | 19 | 43 | 11 | 63 | 4 | 89 | 219 |
|
| GN 101.1-25-M12-50-SW | SW - RAL 9004 | 25 | M 12 | 50 | 19 | 43 | 11 | 63 | 4 | 89 | 219 |
|
| GN 101.1-25-M12-63-OS | OS - RAL 2004 | 25 | M 12 | 63 | 19 | 43 | 11 | 63 | 4 | 89 | 230 |
|
| GN 101.1-25-M12-63-SW | SW - RAL 9004 | 25 | M 12 | 63 | 19 | 43 | 11 | 63 | 4 | 89 | 230 |
|
| GN 101.1-25-M12-80-OS | OS - RAL 2004 | 25 | M 12 | 80 | 19 | 43 | 11 | 63 | 4 | 89 | 241 |
|
| GN 101.1-25-M12-80-SW | SW - RAL 9004 | 25 | M 12 | 80 | 19 | 43 | 11 | 63 | 4 | 89 | 241 |
|
| GN 101.1-30-M16-32-OS | OS - RAL 2004 | 30 | M 16 | 32 | 23 | 50.5 | 12 | 76 | 5 | 108 | 363 |
|
| GN 101.1-30-M16-32-SW | SW - RAL 9004 | 30 | M 16 | 32 | 23 | 50.5 | 12 | 76 | 5 | 108 | 363 |
|
| GN 101.1-30-M16-40-OS | OS - RAL 2004 | 30 | M 16 | 40 | 23 | 50.5 | 12 | 76 | 5 | 108 | 374 |
|
| GN 101.1-30-M16-40-SW | SW - RAL 9004 | 30 | M 16 | 40 | 23 | 50.5 | 12 | 76 | 5 | 108 | 374 |
|
| GN 101.1-30-M16-50-OS | OS - RAL 2004 | 30 | M 16 | 50 | 23 | 50.5 | 12 | 76 | 5 | 108 | 390 |
|
| GN 101.1-30-M16-50-SW | SW - RAL 9004 | 30 | M 16 | 50 | 23 | 50.5 | 12 | 76 | 5 | 108 | 390 |
|
| GN 101.1-30-M16-63-OS | OS - RAL 2004 | 30 | M 16 | 63 | 23 | 50.5 | 12 | 76 | 5 | 108 | 405 |
|
| GN 101.1-30-M16-63-SW | SW - RAL 9004 | 30 | M 16 | 63 | 23 | 50.5 | 12 | 76 | 5 | 108 | 405 |
|
| GN 101.1-30-M16-80-OS | OS - RAL 2004 | 30 | M 16 | 80 | 23 | 50.5 | 12 | 76 | 5 | 108 | 427 |
|
| GN 101.1-30-M16-80-SW | SW - RAL 9004 | 30 | M 16 | 80 | 23 | 50.5 | 12 | 76 | 5 | 108 | 427 |
|
