GN 101
Adjustable hand levers
Zinc die casting, Bushing / Threaded bolt Steel
Description
Specification
Handle
Zinc die casting
plastic coated

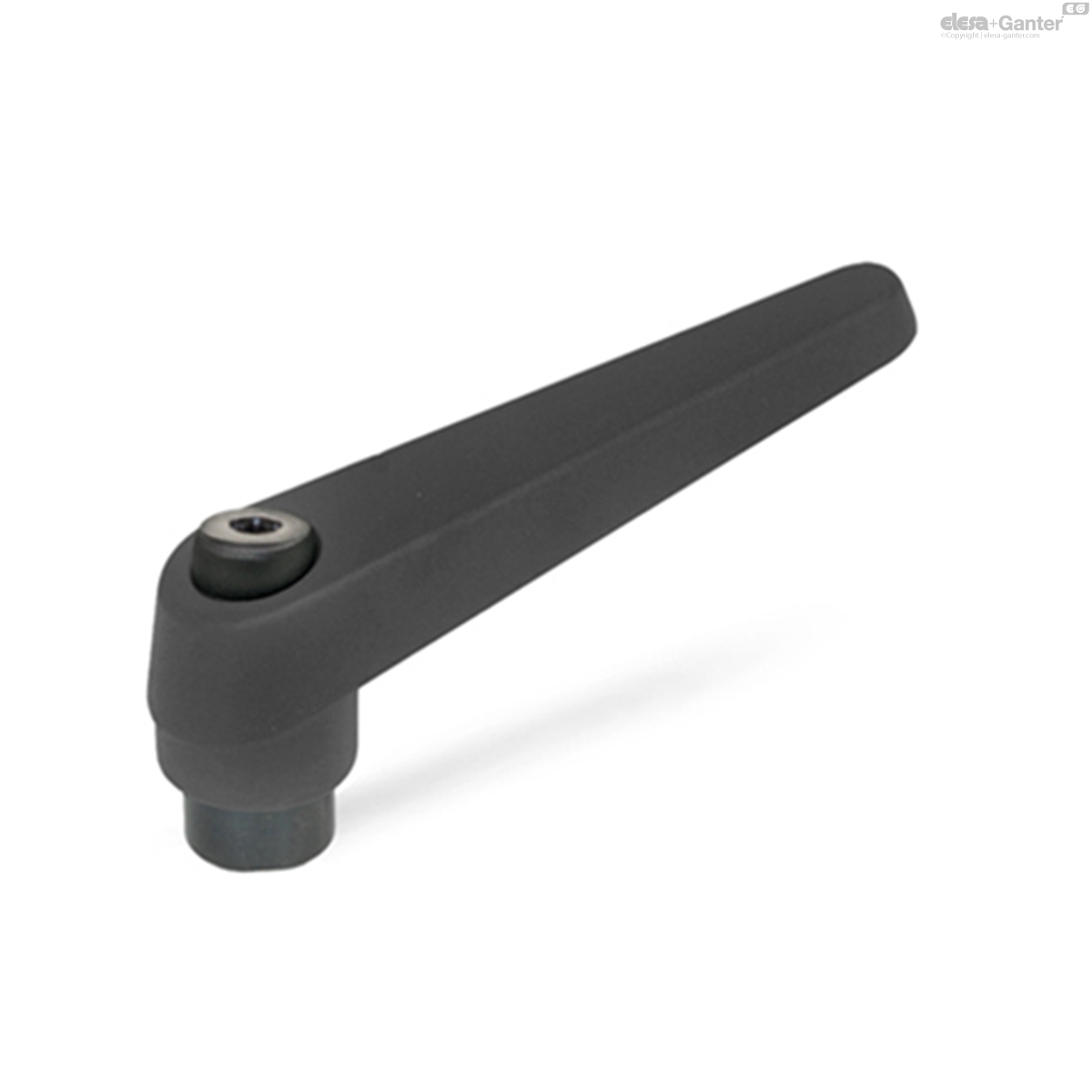

black, RAL 9005, textured finish SW

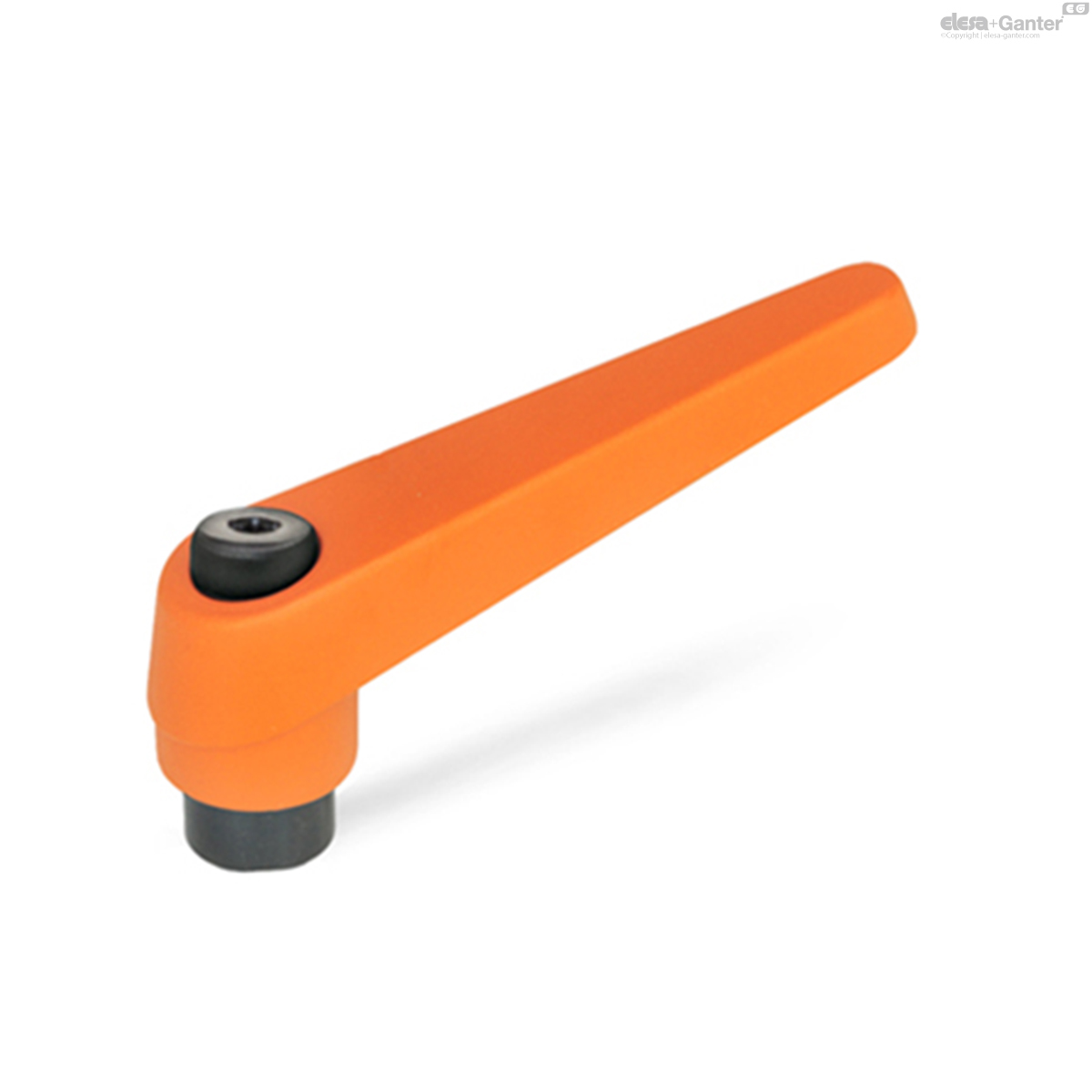

orange, RAL 2004, textured finish OS

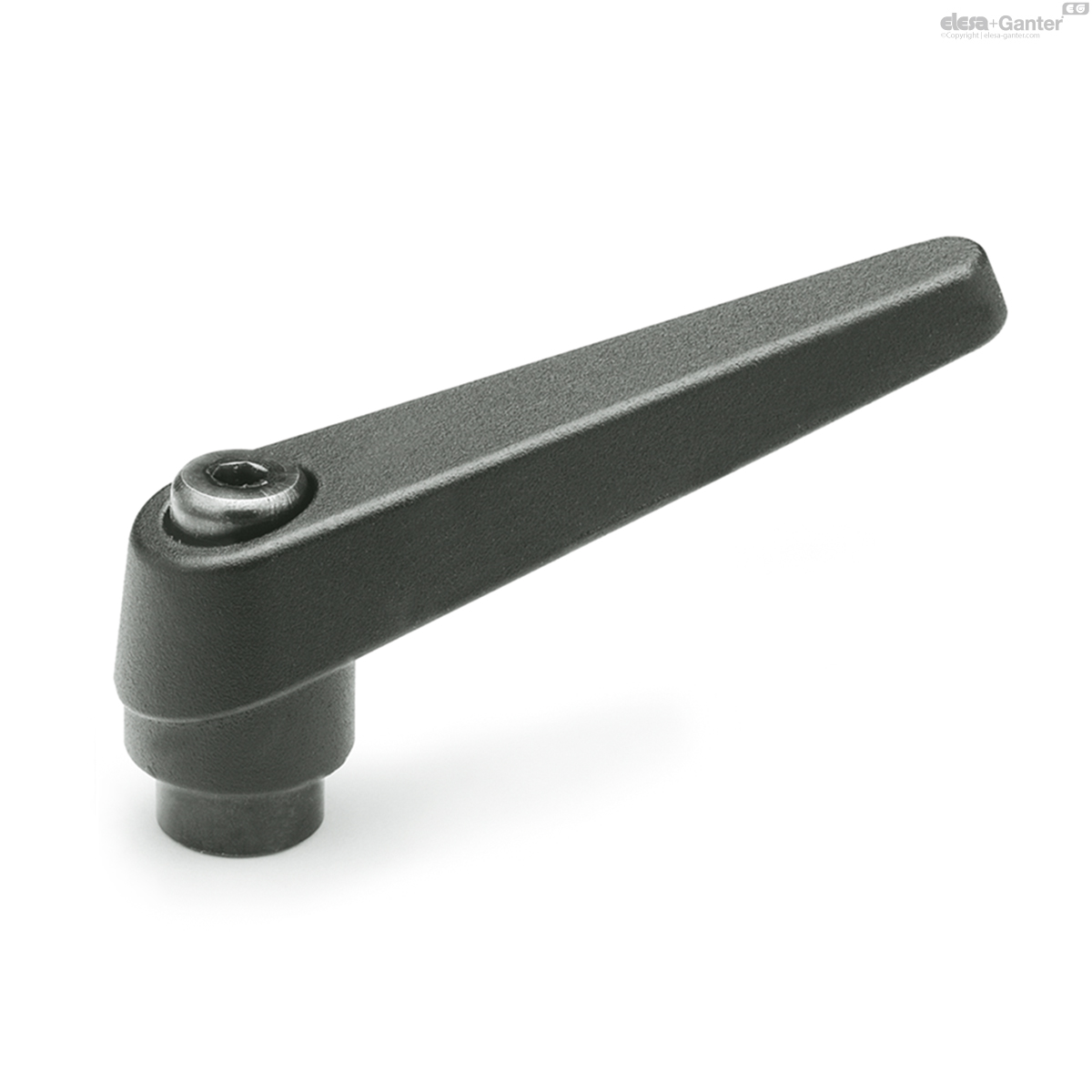

Version with internal thread
Threaded bush and retaining screw
Steel (5.8), blackened

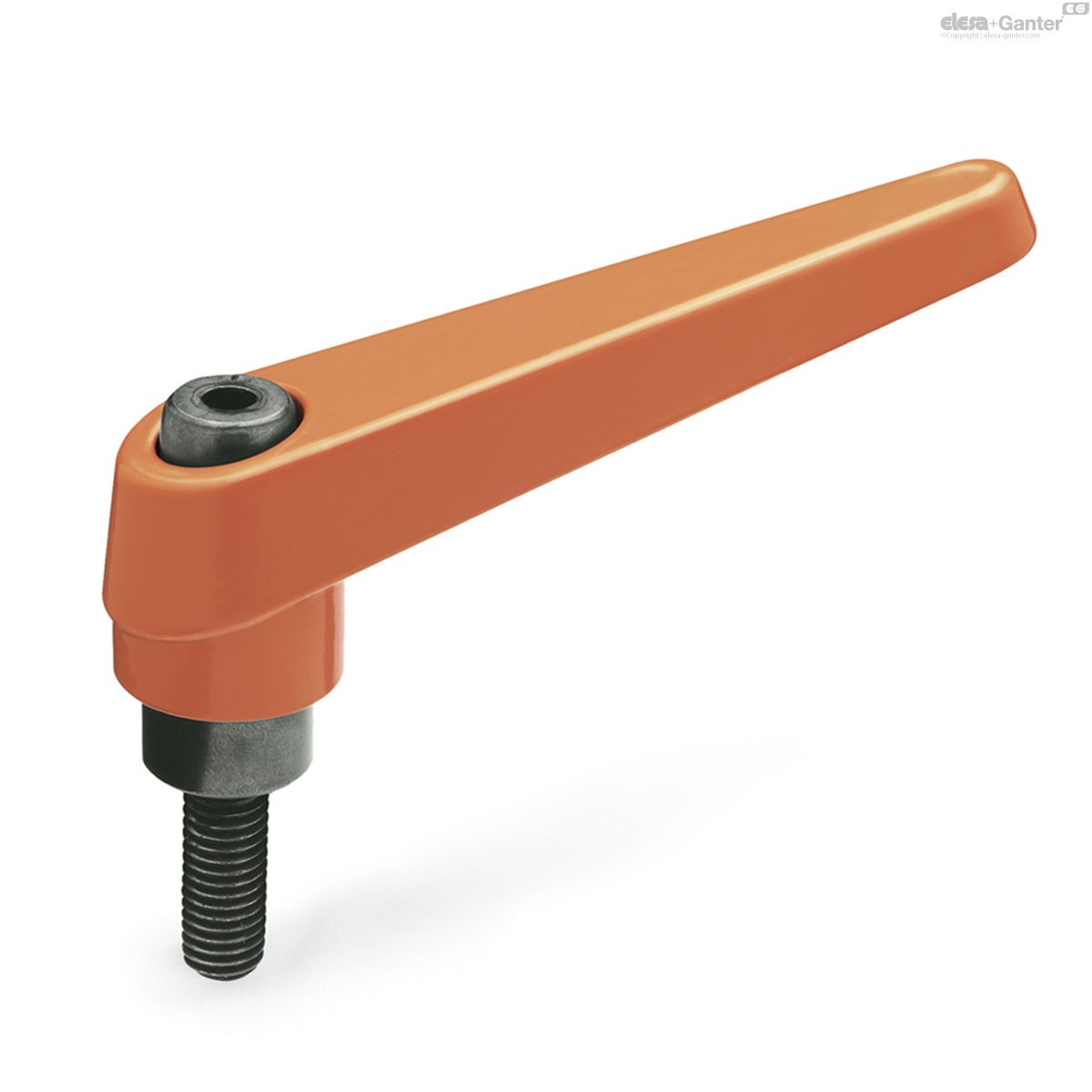

Version with threaded stud
Threaded stud and retaining screw
Steel (5.8), blackened
Information
Adjustable hand levers GN 101 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.
Pulling the lever disengages serrations and allowing to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
Technical information
- Strength values of screwsÂ
GN 101
| Color | d1 | d2 | d3 | h1 | h2 | h3 ≈ | h4 | l2 | t min. |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 101-14-M5-OS | OS - RAL 2004 | 14 | M 5 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 9 | 33 |
|
| GN 101-14-M5-SW | SW - RAL 9004 | 14 | M 5 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 9 | 33 |
|
| GN 101-14-M6-OS | OS - RAL 2004 | 14 | M 6 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 9 | 33 |
|
| GN 101-14-M6-SW | SW - RAL 9004 | 14 | M 6 | 10 | 25 | 4.5 | 35 | 3.5 | 45 | 9 | 33 |
|
| GN 101-18-M6-OS | OS - RAL 2004 | 18 | M 6 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 11 | 72 |
|
| GN 101-18-M6-SW | SW - RAL 9004 | 18 | M 6 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 11 | 72 |
|
| GN 101-18-M8-OS | OS - RAL 2004 | 18 | M 8 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 11 | 70 |
|
| GN 101-18-M8-SW | SW - RAL 9004 | 18 | M 8 | 13.5 | 31 | 6.5 | 45 | 4 | 62 | 11 | 70 |
|
| GN 101-22-M8-OS | OS - RAL 2004 | 22 | M 8 | 16 | 36 | 8 | 52 | 4 | 74 | 14 | 117 |
|
| GN 101-22-M8-SW | SW - RAL 9004 | 22 | M 8 | 16 | 36 | 8 | 52 | 4 | 74 | 14 | 117 |
|
| GN 101-22-M10-OS | OS - RAL 2004 | 22 | M 10 | 16 | 36 | 8 | 52 | 4 | 74 | 14 | 114 |
|
| GN 101-22-M10-SW | SW - RAL 9004 | 22 | M 10 | 16 | 36 | 8 | 52 | 4 | 74 | 14 | 114 |
|
| GN 101-25-M10-OS | OS - RAL 2004 | 25 | M 10 | 19 | 43 | 11 | 63 | 4 | 89 | 17 | 174 |
|
| GN 101-25-M10-SW | SW - RAL 9004 | 25 | M 10 | 19 | 43 | 11 | 63 | 4 | 89 | 17 | 174 |
|
| GN 101-25-M12-OS | OS - RAL 2004 | 25 | M 12 | 19 | 43 | 11 | 63 | 4 | 89 | 17 | 169 |
|
| GN 101-25-M12-SW | SW - RAL 9004 | 25 | M 12 | 19 | 43 | 11 | 63 | 4 | 89 | 17 | 169 |
|
| GN 101-30-M12-OS | OS - RAL 2004 | 30 | M 12 | 23 | 50.5 | 12 | 76 | 5 | 108 | 22 | 169 |
|
| GN 101-30-M12-SW | SW - RAL 9004 | 30 | M 12 | 23 | 50.5 | 12 | 76 | 5 | 108 | 22 | 169 |
|
| GN 101-30-M16-OS | OS - RAL 2004 | 30 | M 16 | 23 | 50.5 | 12 | 76 | 5 | 108 | 22 | 287 |
|
| GN 101-30-M16-SW | SW - RAL 9004 | 30 | M 16 | 23 | 50.5 | 12 | 76 | 5 | 108 | 22 | 287 |
|
