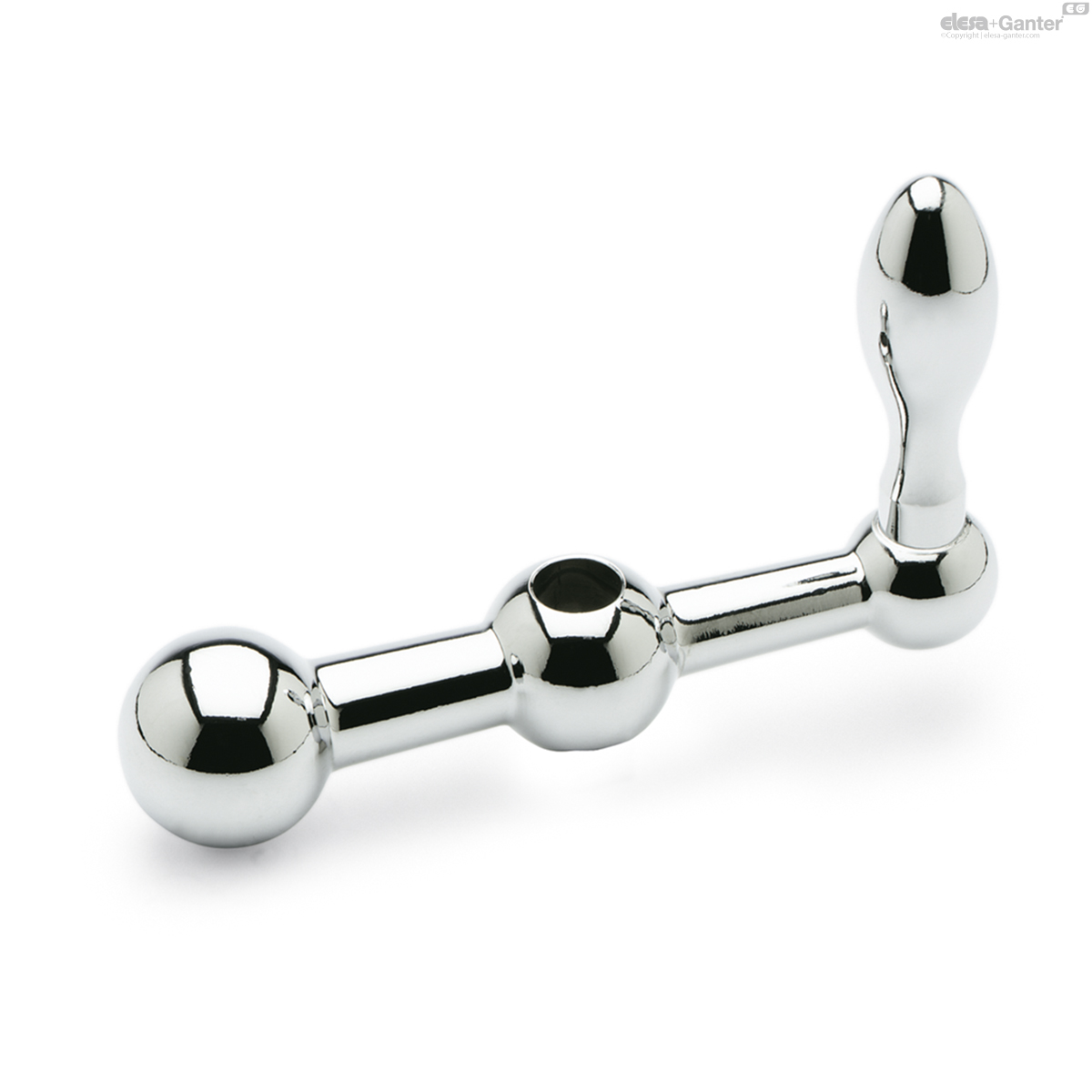

GN 10
Tri-ball handles
Steel
Description
Specification
Type
- Type F: with fixed handle
Steel
- turned
- zinc plated, blue passivated
Fixed handles DIN 39 -
Steel zinc plated, blue passivated
Information
Tri-ball handles GN 10 allow fine adjustment.
An alternative in modern design are control handles GN 112.1Â
Technical information
- ISO-Fundamental TolerancesÂ
GN 10

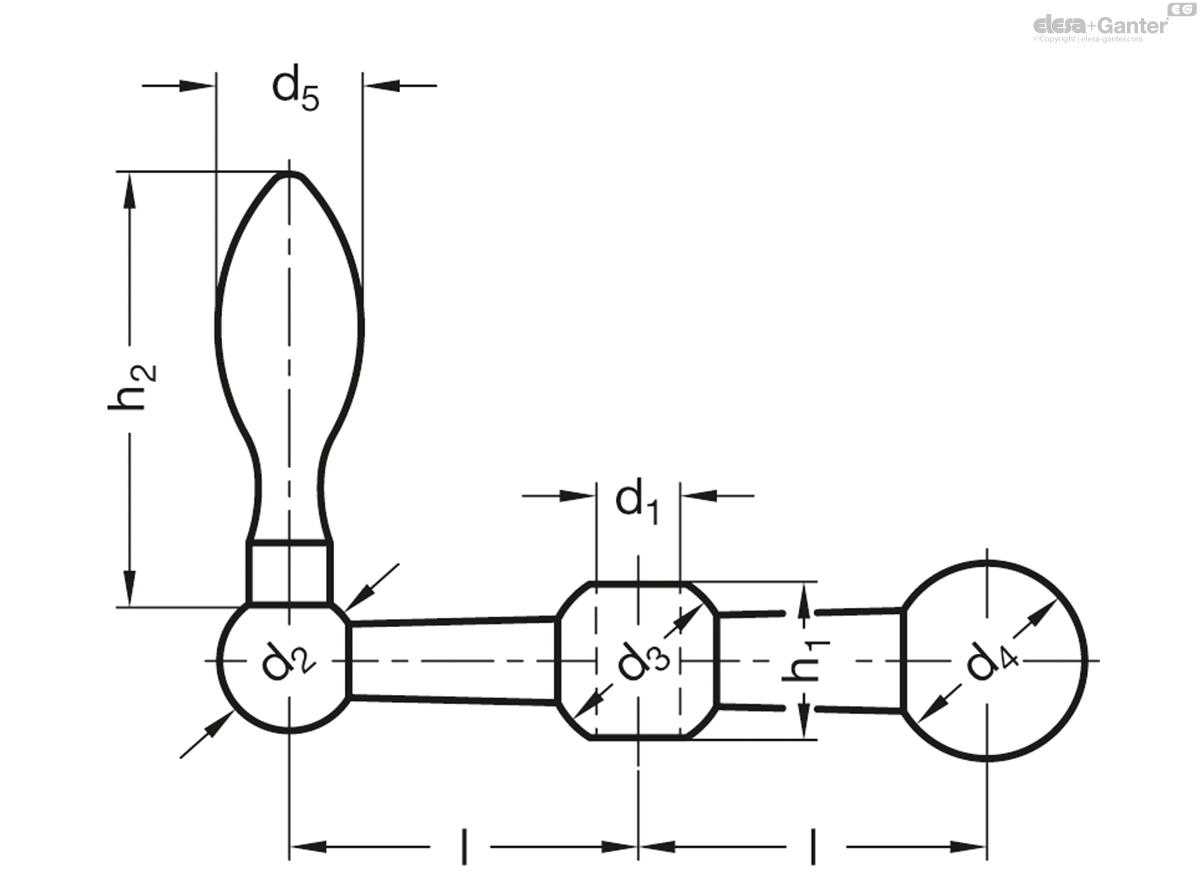

| No. | d1 H7 | d2 | d3 | d4 | d5 | h1 | h2 ≈ | l |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||
| GN 10-100-B7-F | 100 | B 7 | 13 | 16 | 18 | 10 | 13 | 31 | 25 | 61 |
|
| GN 10-101-B8-F | 101 | B 8 | 15 | 19 | 20 | 13 | 17 | 40 | 28 | 102 |
|
| GN 10-102-B8-F | 102 | B 8 | 16 | 20 | 22 | 14 | 17 | 45 | 34 | 130 |
|
| GN 10-103-B10-F | 103 | B 10 | 18 | 23 | 25 | 16 | 19.5 | 50 | 41 | 194 |
|
| GN 10-104-B12-F | 104 | B 12 | 20 | 26 | 28 | 18 | 21.5 | 56 | 50 | 283 |
|
