GLD-SST

Roller side guides

Technopolymer, stainless steel

Enquire Now

Three rows of rollers

GLD-4-SST

Roller side guides

Four rows of rollers

Description

Main specifications

Profile

AISI 304 stainless steel.

Pins support

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour.

Pins

AISI 304 stainless steel.

Rollers

Shaped with cylindrical contact area, in acetal resin technopolymer, white colour.

Standard executions

GLD-1-SST: one row of rollers.

GLD-2-SST: two rows of rollers.

GLD-3-SST: three rows of rollers.

GLD-4-SST: four rows of rollers.

General information

Features and applications

The GLD-SST side guides are particularly solid self-supporting structures, suitable for handling products of significant weight and size (e.g. pallets).

The shaped rollers are particularly suitable for glass product guides, as in the event of accidental breakages they facilitate the expulsion of debris.

Other executions

Special executions on request

Roller side guides with zinc-plated steel profile, length 3129 mm.

Accessories

Accessories on request

MPG-R-SST: guide rail clamps

MPG-P: fixing pin (419513 MPG-P16-M10x17).

SPF: guide rail brackets for linear positioning.

SPR: guide rail brackets for linear and corner positioning.

SPR.V: guide rail brackets for linear and corner positioning.

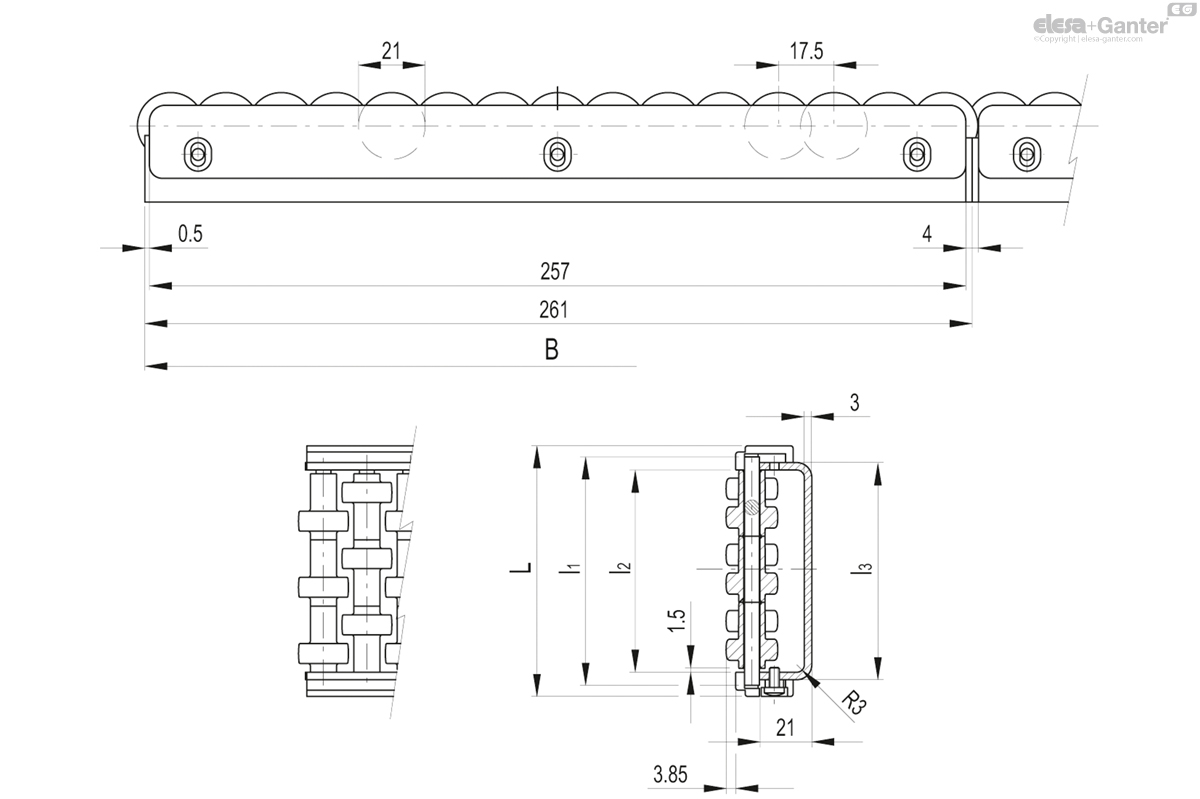

GLD-3-SST

		L	B	l₁	l₂	l₃	Mounting brackets
Code	Description								Actions
419322	GLD-3-SST-RT-100-1041	100.4	1041	91.5	81	87	MPG-R-SST-3	5238
419324	GLD-3-SST-RT-100-2085	100.4	2085	91.5	81	87	MPG-R-SST-3	10479
