GFL

Lobe threaded nut

Technopolymer

__logo__ELE_OD__

__logo__RoHS__

__logo__PA__

__logo__g10030__

Enquire Now

product image

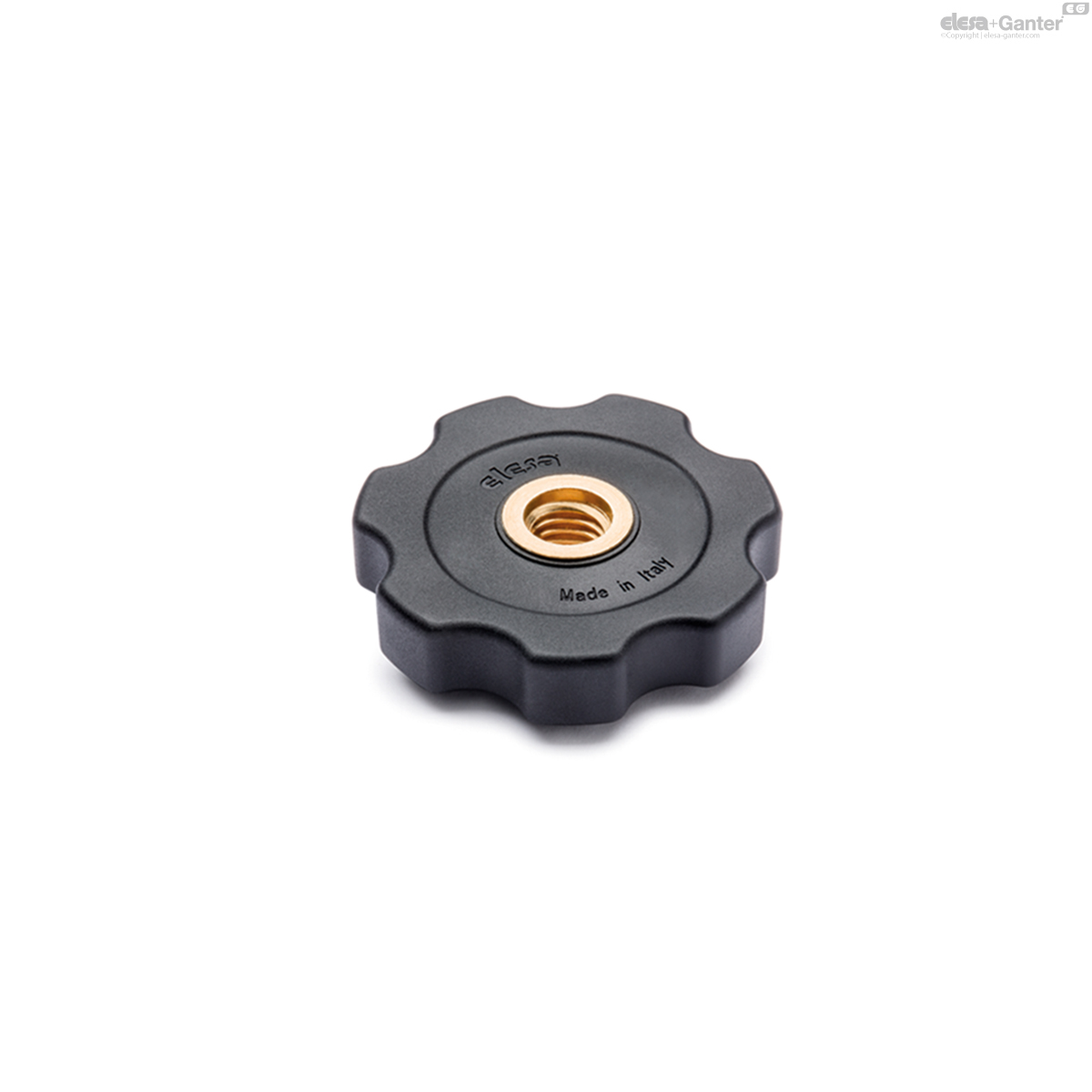

Lobe threaded nut

Brass boss, threaded pass-through hole

product image

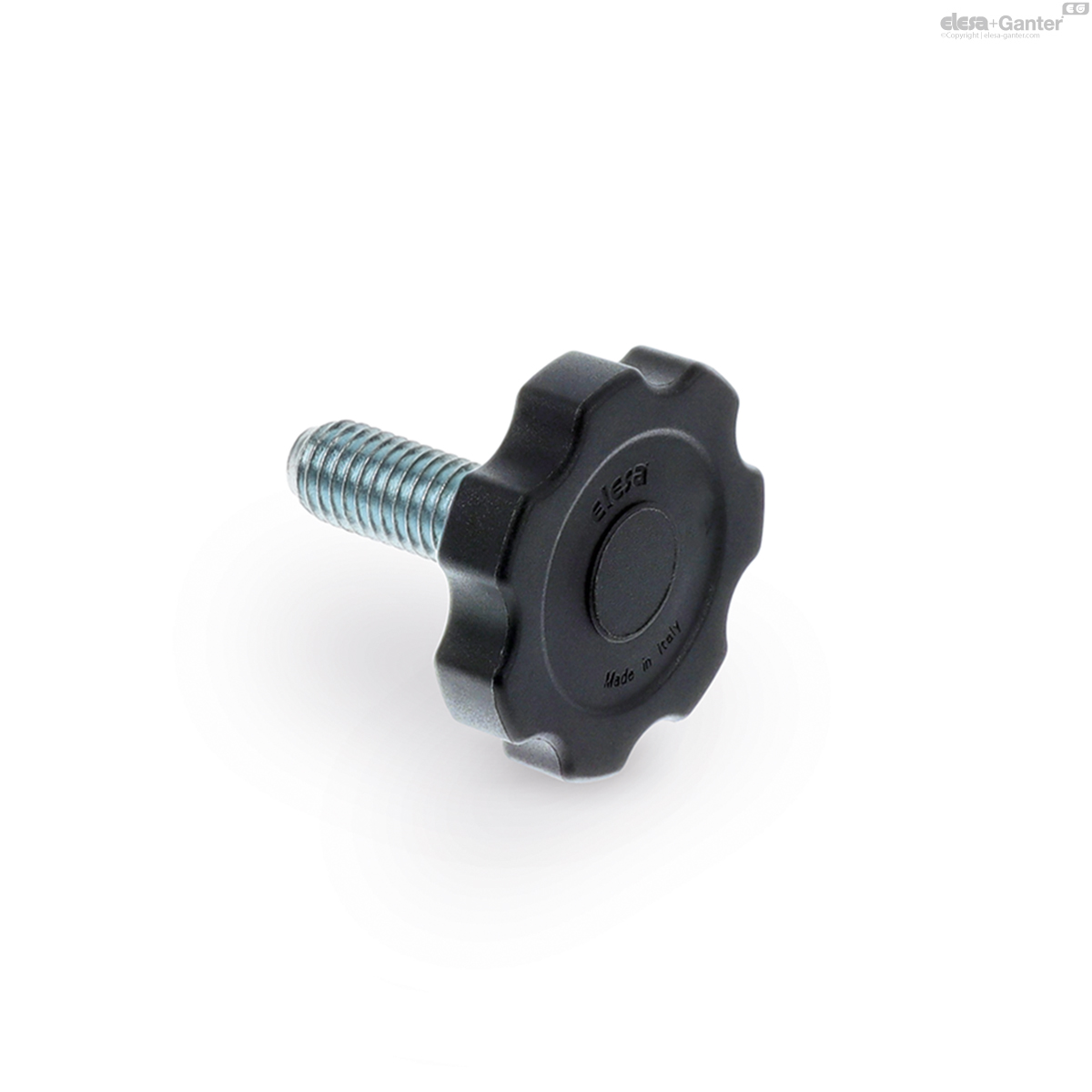

Lobe threaded nut

Zinc-plated steel threaded stud

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

GFL-B: brass boss, threaded through hole.

GFL-p: zinc-plated steel threaded stud.

Features and applications

Features and applications

The ergonomic seven-lobe shape allows an effective grip to the operator when tightening.

Suitable for axial locking; it can be used as a nut.

GFL-B

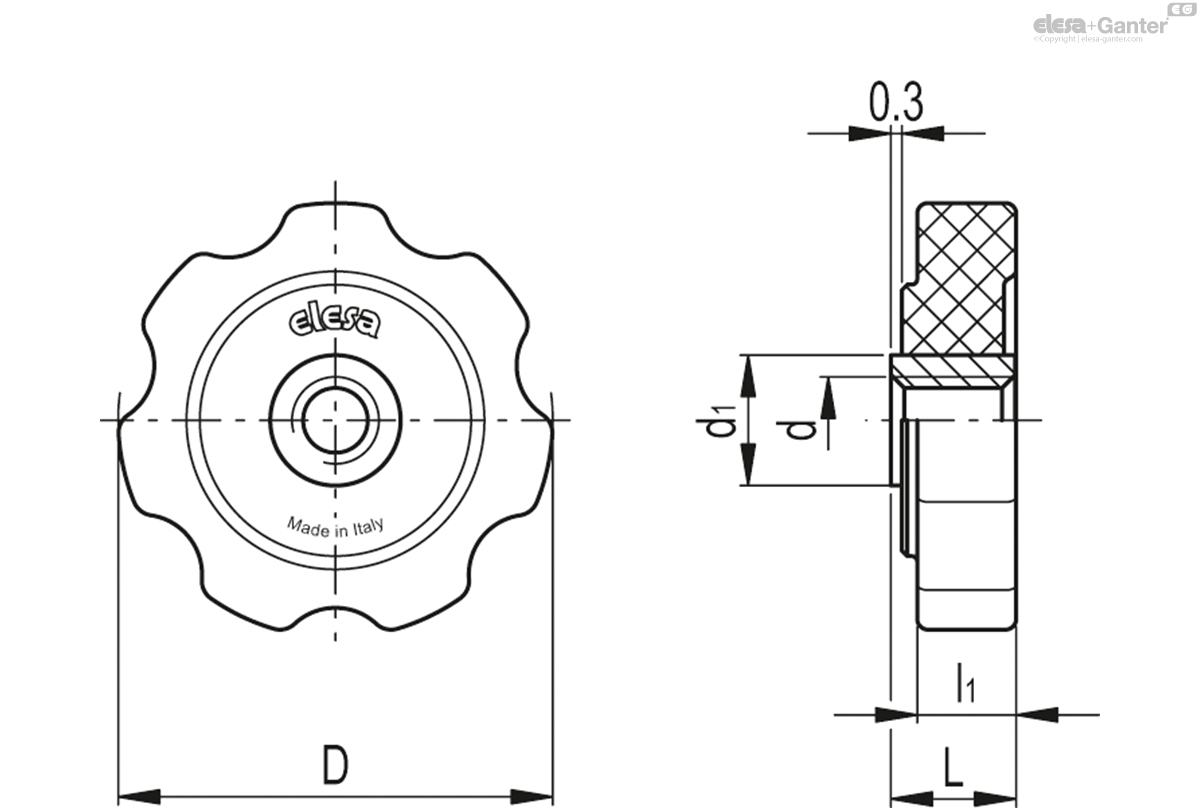

		D	d_6H	L	d₁	l₁
Code	Description							Actions
168540	GFL.40-B M6	40	M6	10	12	8.5	15
168541	GFL.40-B M8	40	M8	10	12	8.5	17
168542	GFL.40-B M10	40	M10	10	13	8.5	16
168571	GFL.50-B M8	50	M8	10	12	8.5	22
168572	GFL.50-B M10	50	M10	10	13	8.5	24
