GCA-4

Roller central guides

Technopolymer, aluminium, stainless steel

Enquire Now

GCA-4-RS

Roller central guides

Spherical contact

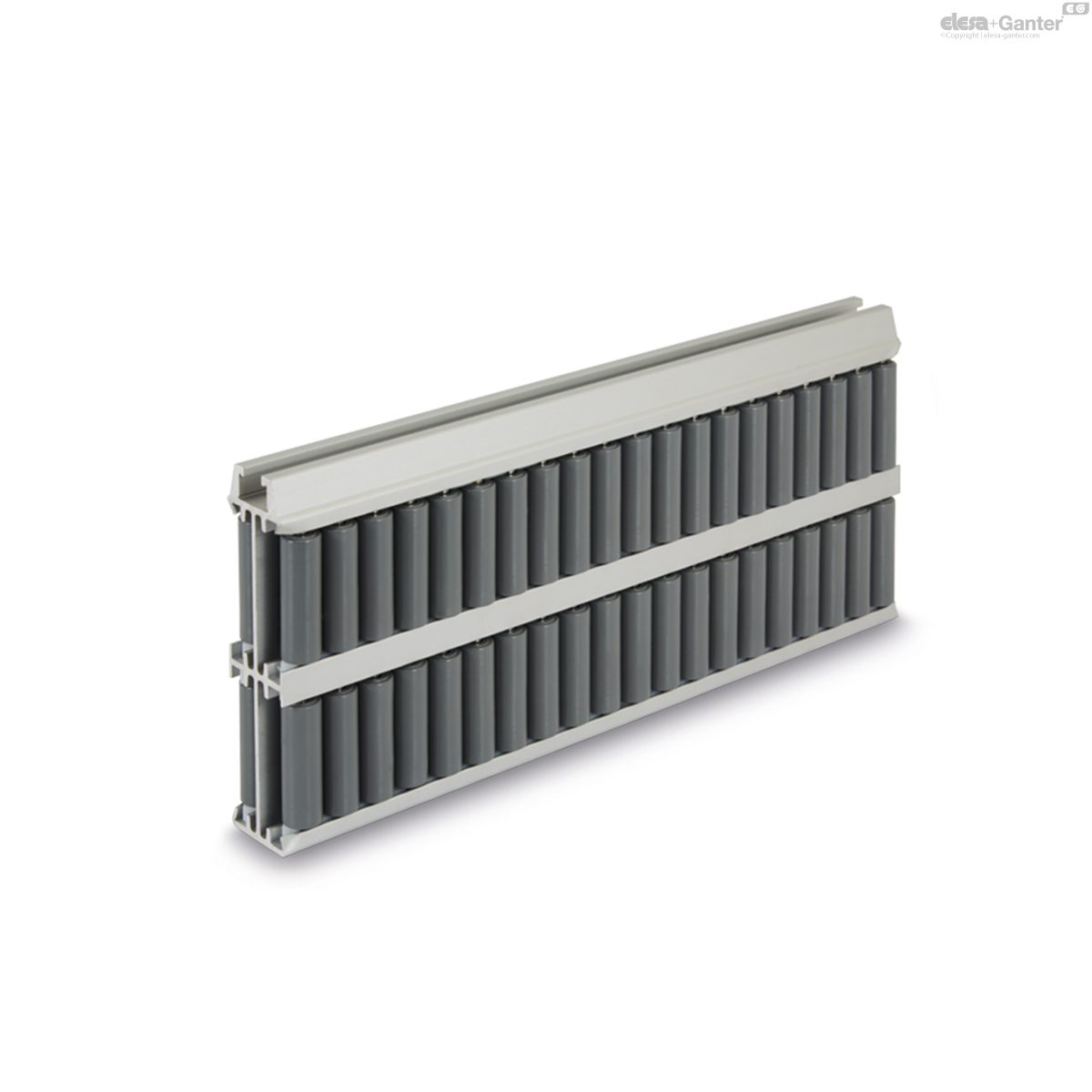

GCA-4-RC

Roller central guides

Cylindrical rollers

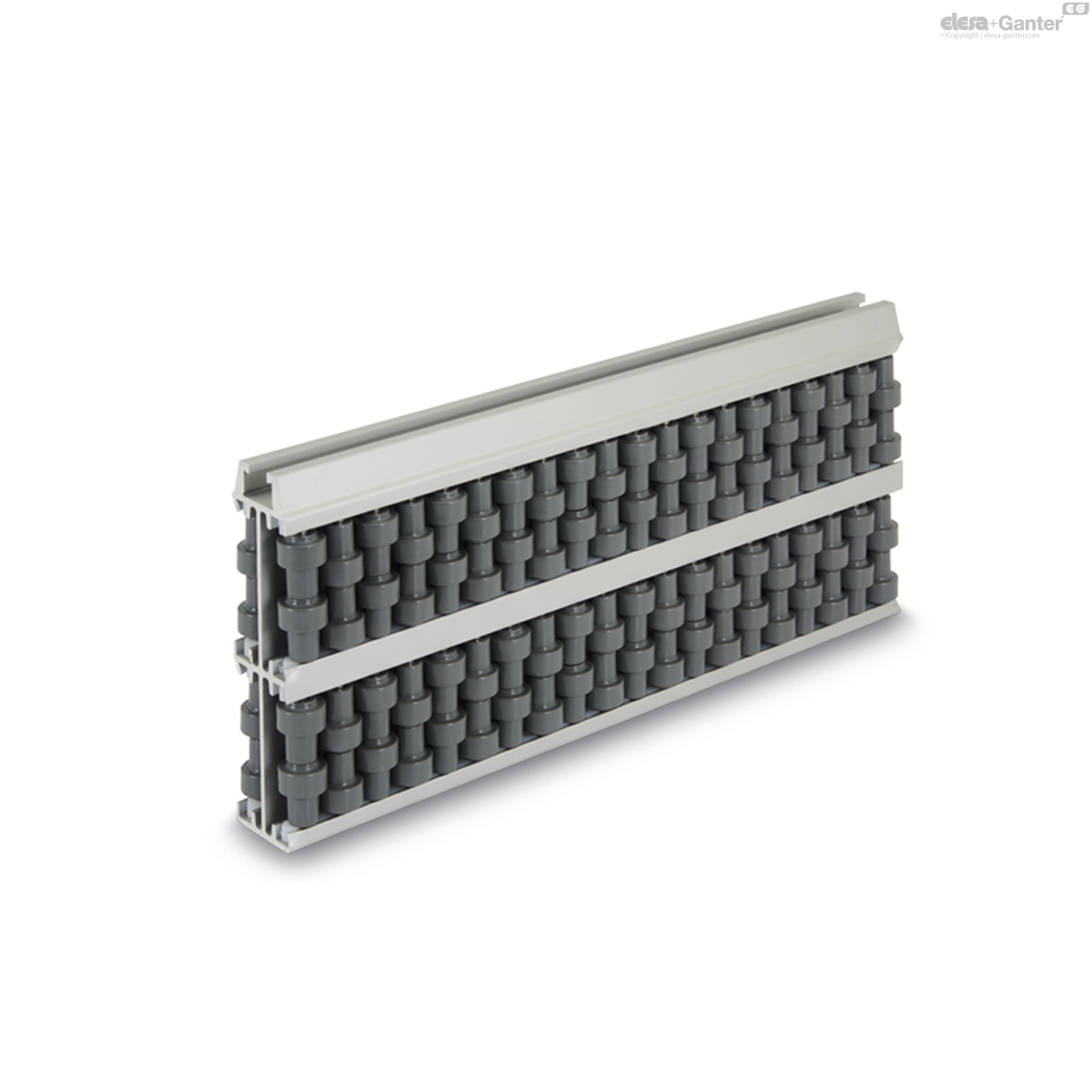

GCA-4-RT

Roller central guides

Cylindrical contact

Description

Main specifications

Profile

Anodised aluminium, natural colour, matte finish.

Pins support

Acetal resin based (POM) technopolymer, white colour.

Pins

AISI 304 stainless steel.

Rollers

Polyethylene based (PE) technopolymer, grey colour.

Standard executions

GCA-4-RS: with shaped rollers, spherical contact.

GCA-4-RC: with cylindrical rollers.

GCA-4-RT: with shaped rollers, cylindrical contact.

General information

Features and applications

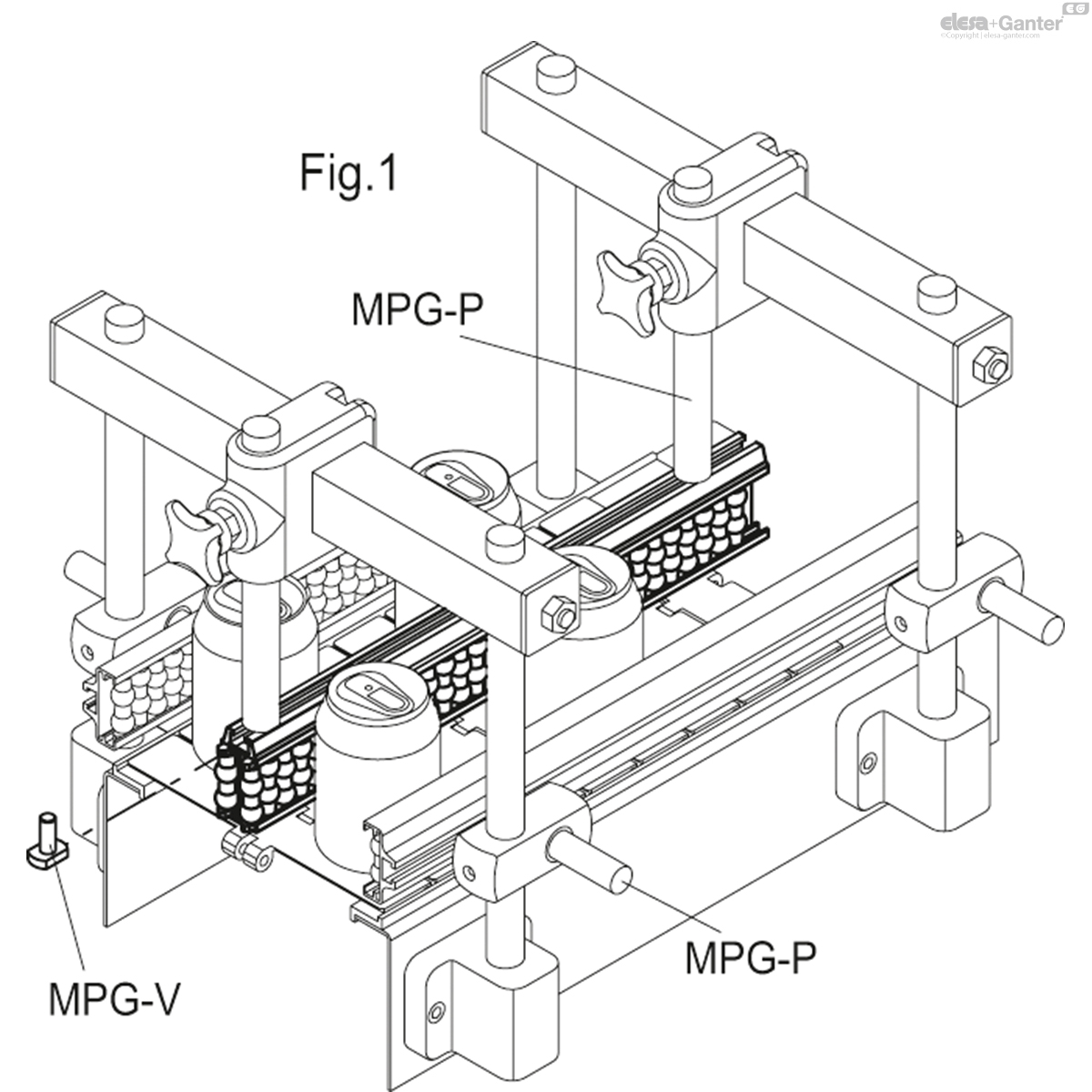

GCA-4 central guides are self-supporting structures for the side guide of products with important vertical dimensions on conveyor belts (Fig.1).

Depending on the product to transport, it is recommended to use:

GCA-4-RS: for the guide of products in cans or in plastic containers;

GCA-4-RC: for the guide of cardboard products, for a greater fluency;

GCA-4-RT: for the guide of glass products, in case of accidental breakage they facilitate the expulsion of debris.

Supplied assembled in bars of 1440 or 3000 mm length.

Other executions

Special executions on request

Central guides with rollers in different colours.

Central guides with pins in acetal resin based (POM) technopolymer.

Accessories

Accessories on request

BDG: zinc-plated steel connecting bar for guides.

TGL: closing cap for guides.

PGC-4: separation block for central guide.

MPG-P: assembly pin.

MPG-V: zinc-plated steel hammer head screw.

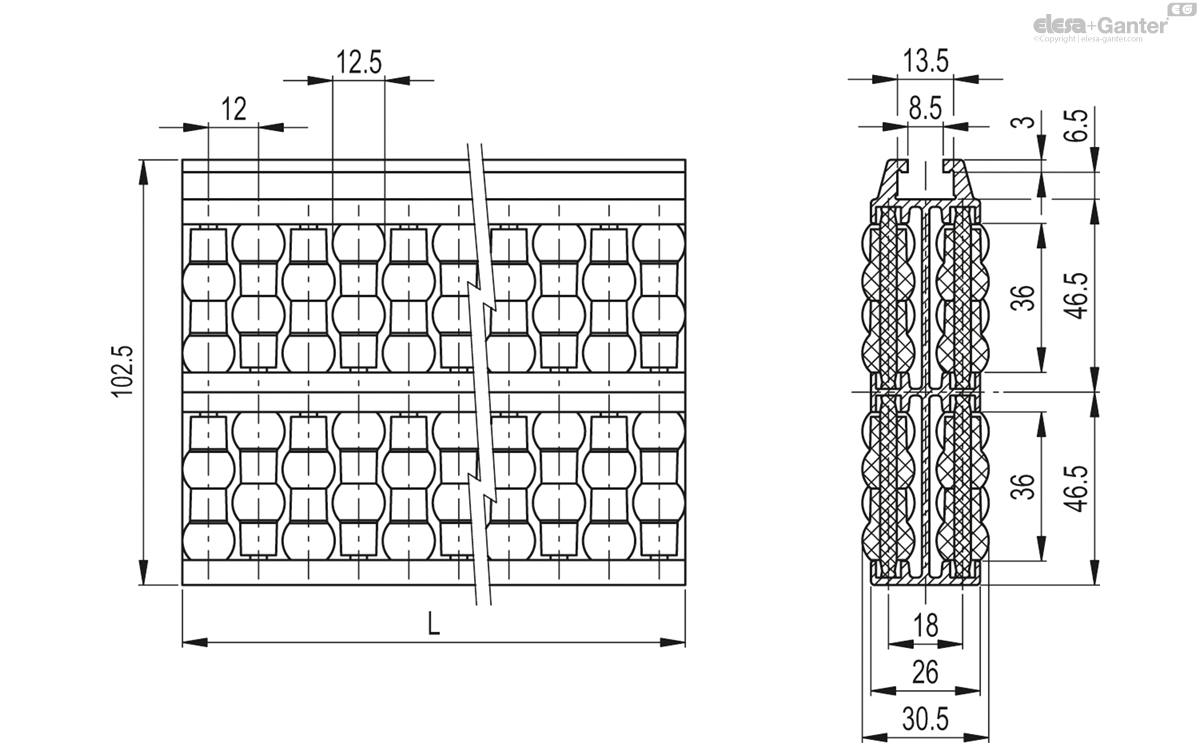

GCA-4-RS

		L
Code	Description			Actions
419131	GCA-4-RS-103-3000	3000	13040
419134	GCA-4-RS-103-1440	1440	6260
