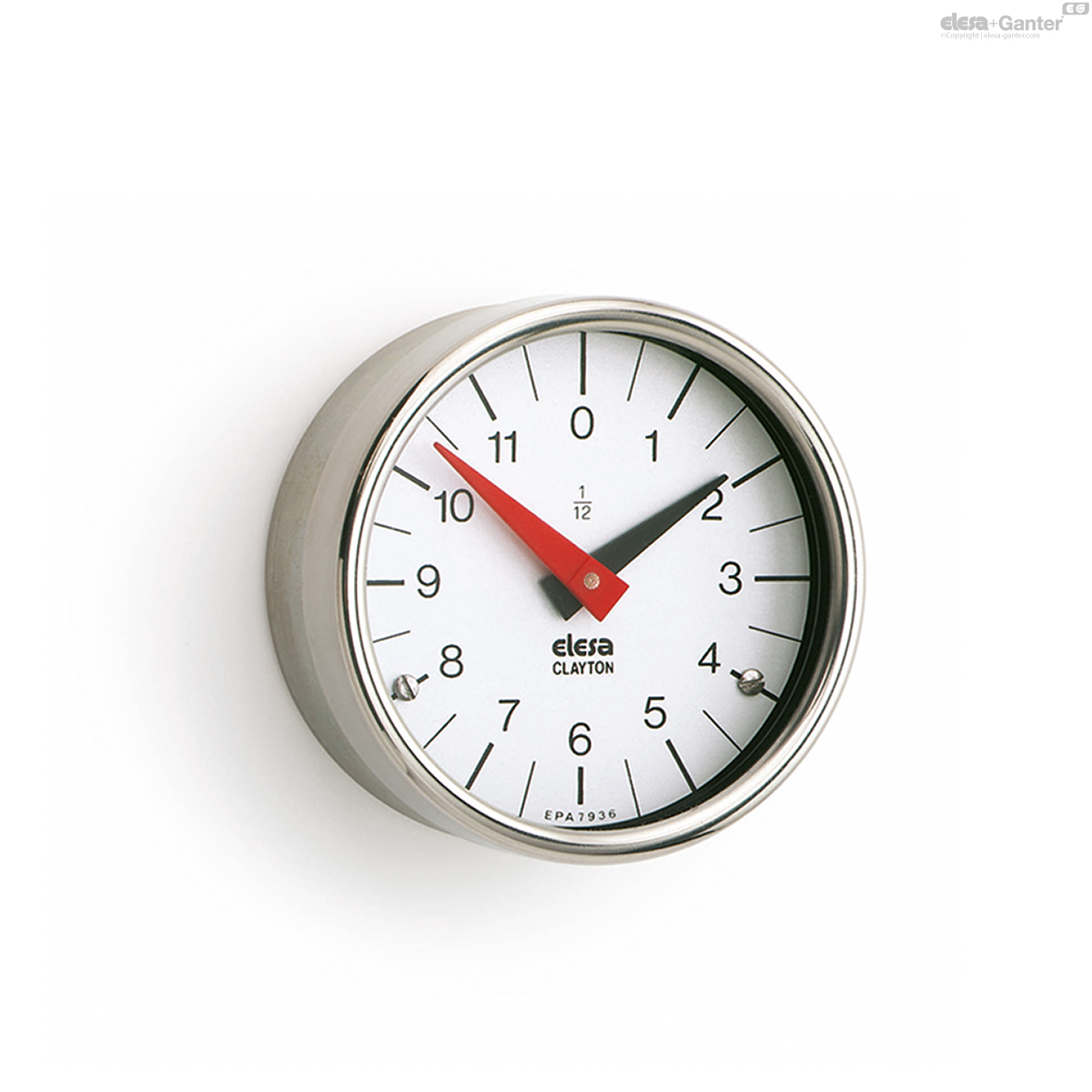

GA01 - GA02 - GA05

Position indicators

gravity drive, steel

Enquire Now

Description

Main specifications

Case

Zinc-plated steel.

Bezel

AISI 303 stainless steel.

Window

Glass.

Dial

Natural matte anodised aluminium.

Clockwise (D) or anti-clockwise (S) graduation, black colour.

Reading

The black pointer indicates the number of turns of the spindle from the start position (0); the red pointer indicates the fractions of turn.

Ballrace rotation: maximum reading accuracy.

Ratio

To choose the ratio see 'Gravity position indicators introduction'-.

General information

Features and applications

The knobs with integral gravity position indicator are suitable on spindles with horizontal or max 60° inclined axis.

To choose the handwheel see the table 'Handwheels/knobs-possible assembly with indicators'-.

Special executions on request

Special dial with logo or customized graduations
Special ratios
Filling with paraffin oil, maximum continuous working temperature 40°C
Single pointer
Window in plexiglass instead of glass.

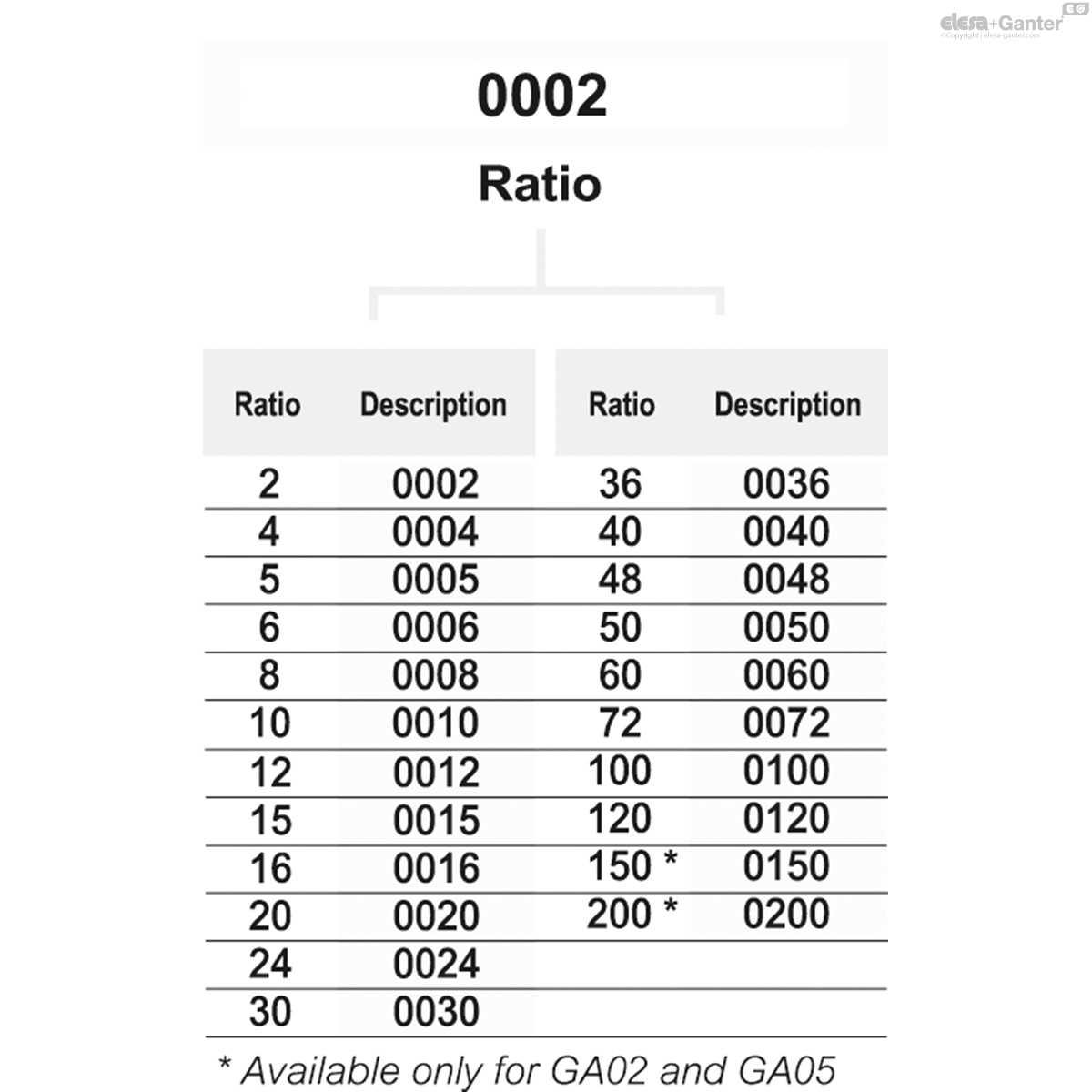

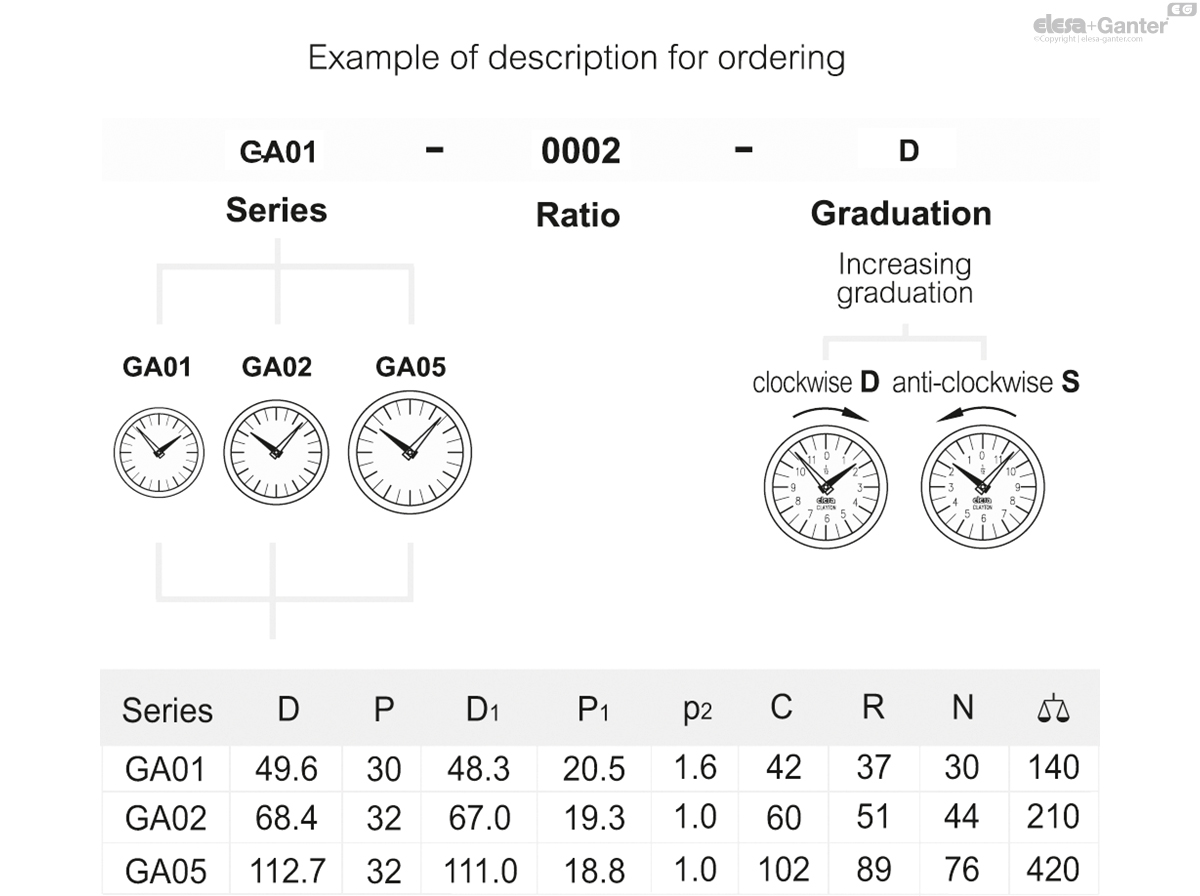

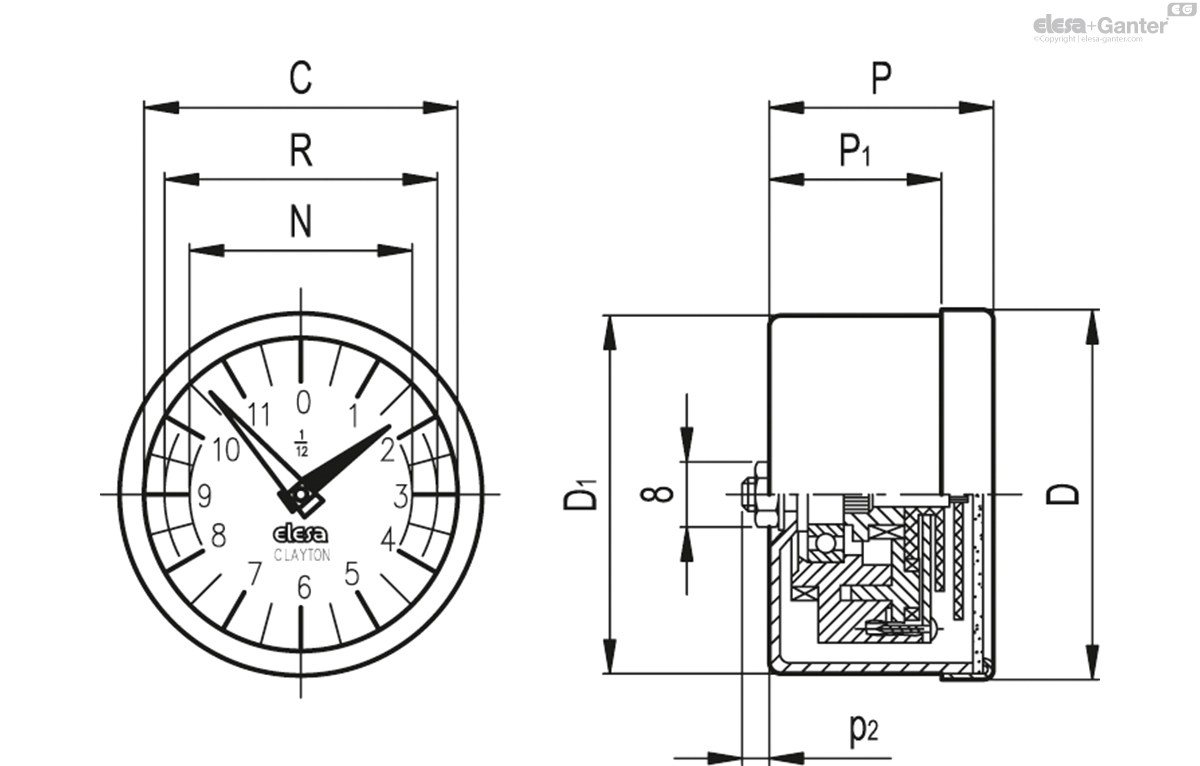

		Series	Ratio	Increasing numbering
Code	Description					Actions
CE.20001	GA01-0002-D	GA01	2	D	153
CE.20002	GA01-0002-S	GA01	2	S	149
CE.20021	GA01-0004-D	GA01	4	D	140
CE.20022	GA01-0004-S	GA01	4	S	140
CE.20031	GA01-0005-D	GA01	5	D	140
CE.20032	GA01-0005-S	GA01	5	S	140
CE.20041	GA01-0006-D	GA01	6	D	145
CE.20042	GA01-0006-S	GA01	6	S	140
CE.20061	GA01-0008-D	GA01	8	D	140
CE.20062	GA01-0008-S	GA01	8	S	140
CE.20081	GA01-0010-D	GA01	10	D	149
CE.20082	GA01-0010-S	GA01	10	S	154
CE.20101	GA01-0012-D	GA01	12	D	153
CE.20102	GA01-0012-S	GA01	12	S	152
CE.20141	GA01-0015-D	GA01	15	D	140
CE.20142	GA01-0015-S	GA01	15	S	140
CE.20151	GA01-0016-D	GA01	16	D	240
CE.20152	GA01-0016-S	GA01	16	S	140
CE.20201	GA01-0020-D	GA01	20	D	150
CE.20202	GA01-0020-S	GA01	20	S	151
CE.20211	GA01-0024-D	GA01	24	D	148
CE.20212	GA01-0024-S	GA01	24	S	151
CE.20217	GA01-0030-D	GA01	30	D	146
CE.20218	GA01-0030-S	GA01	30	S	140
CE.20224	GA01-0036-D	GA01	36	D	151
CE.20225	GA01-0036-S	GA01	36	S	152
CE.20231	GA01-0040-D	GA01	40	D	152
CE.20232	GA01-0040-S	GA01	40	S	152
CE.20234	GA01-0048-D	GA01	48	D	140
CE.20235	GA01-0048-S	GA01	48	S	140
CE.20237	GA01-0050-D	GA01	50	D	140
CE.20238	GA01-0050-S	GA01	50	S	140
CE.20244	GA01-0060-D	GA01	60	D	140
CE.20245	GA01-0060-S	GA01	60	S	153
CE.20251	GA01-0072-D	GA01	72	D	152
CE.20252	GA01-0072-S	GA01	72	S	140
CE.20257	GA01-0100-D	GA01	100	D	149
CE.20258	GA01-0100-S	GA01	100	S	140
CE.20261	GA01-0120-D	GA01	120	D	140
CE.20262	GA01-0120-S	GA01	120	S	140
CE.20287	GA02-0002-D	GA02	2	D	225
CE.20288	GA02-0002-S	GA02	2	S	221
CE.20294	GA02-0004-D	GA02	4	D	224
CE.20295	GA02-0004-S	GA02	4	S	224
CE.20297	GA02-0005-D	GA02	5	D	236
CE.20298	GA02-0005-S	GA02	5	S	236
CE.20301	GA02-0006-D	GA02	6	D	222
CE.20302	GA02-0006-S	GA02	6	S	224
CE.20351	GA02-0008-D	GA02	8	D	210
CE.20352	GA02-0008-S	GA02	8	S	228
CE.20401	GA02-0010-D	GA02	10	D	226
CE.20402	GA02-0010-S	GA02	10	S	223
CE.20501	GA02-0012-D	GA02	12	D	226
CE.20502	GA02-0012-S	GA02	12	S	224
CE.20541	GA02-0015-D	GA02	15	D	210
CE.20542	GA02-0015-S	GA02	15	S	210
CE.20551	GA02-0016-D	GA02	16	D	210
CE.20552	GA02-0016-S	GA02	16	S	210
CE.20601	GA02-0020-D	GA02	20	D	227
CE.20602	GA02-0020-S	GA02	20	S	224
CE.20701	GA02-0024-D	GA02	24	D	225
CE.20702	GA02-0024-S	GA02	24	S	222
CE.20801	GA02-0030-D	GA02	30	D	223
CE.20802	GA02-0030-S	GA02	30	S	224
CE.20901	GA02-0036-D	GA02	36	D	220
CE.20902	GA02-0036-S	GA02	36	S	223
CE.20911	GA02-0040-D	GA02	40	D	210
CE.20912	GA02-0040-S	GA02	40	S	223
CE.20917	GA02-0048-D	GA02	48	D	210
CE.20918	GA02-0048-S	GA02	48	S	210
CE.20921	GA02-0050-D	GA02	50	D	224
CE.20922	GA02-0050-S	GA02	50	S	226
CE.20931	GA02-0060-D	GA02	60	D	224
CE.20932	GA02-0060-S	GA02	60	S	224
CE.20941	GA02-0072-D	GA02	72	D	210
CE.20942	GA02-0072-S	GA02	72	S	223
CE.20951	GA02-0100-D	GA02	100	D	230
CE.20952	GA02-0100-S	GA02	100	S	210
CE.20956	GA02-0120-D	GA02	120	D	236
CE.20957	GA02-0120-S	GA02	120	S	236
CE.20961	GA02-0150-D	GA02	150*	D	236
CE.20962	GA02-0150-S	GA02	150*	S	210
CE.20973	GA02-0200-D	GA02	200*	D	210
CE.20974	GA02-0200-S	GA02	200*	S	210
CE.20987	GA05-0002-D	GA05	2	D	420
CE.20988	GA05-0002-S	GA05	2	S	420
CE.20994	GA05-0004-D	GA05	4	D	420
CE.20995	GA05-0004-S	GA05	4	S	420
CE.20997	GA05-0005-D	GA05	5	D	420
CE.20998	GA05-0005-S	GA05	5	S	420
CE.21101	GA05-0006-D	GA05	6	D	413
CE.21102	GA05-0006-S	GA05	6	S	412
CE.21151	GA05-0008-D	GA05	8	D	420
CE.21152	GA05-0008-S	GA05	8	S	420
CE.21201	GA05-0010-D	GA05	10	D	417
CE.21202	GA05-0010-S	GA05	10	S	420
CE.21301	GA05-0012-D	GA05	12	D	415
CE.21302	GA05-0012-S	GA05	12	S	410
CE.21341	GA05-0015-D	GA05	15	D	420
CE.21342	GA05-0015-S	GA05	15	S	420
CE.21351	GA05-0016-D	GA05	16	D	420
CE.21352	GA05-0016-S	GA05	16	S	420
CE.21401	GA05-0020-D	GA05	20	D	410
CE.21402	GA05-0020-S	GA05	20	S	415
CE.21501	GA05-0024-D	GA05	24	D	420
CE.21502	GA05-0024-S	GA05	24	S	418
CE.21601	GA05-0030-D	GA05	30	D	413
CE.21602	GA05-0030-S	GA05	30	S	420
CE.21701	GA05-0036-D	GA05	36	D	416
CE.21702	GA05-0036-S	GA05	36	S	420
CE.21751	GA05-0040-D	GA05	40	D	420
CE.21752	GA05-0040-S	GA05	40	S	420
CE.21801	GA05-0048-D	GA05	48	D	420
CE.21802	GA05-0048-S	GA05	48	S	420
CE.21851	GA05-0050-D	GA05	50	D	420
CE.21852	GA05-0050-S	GA05	50	S	420
CE.21901	GA05-0060-D	GA05	60	D	413
CE.21902	GA05-0060-S	GA05	60	S	411
CE.21951	GA05-0072-D	GA05	72	D	420
CE.21952	GA05-0072-S	GA05	72	S	420
CE.22101	GA05-0100-D	GA05	100	D	416
CE.22102	GA05-0100-S	GA05	100	S	414
CE.22111	GA05-0120-D	GA05	120	D	420
CE.22112	GA05-0120-S	GA05	120	S	420
CE.22151	GA05-0150-D	GA05	150*	D	531
CE.22152	GA05-0150-S	GA05	150*	S	420
CE.22173	GA05-0200-D	GA05	200*	D	420
CE.22174	GA05-0200-S	GA05	200*	S	420
