FL Hygienic Grub screw Standard Solid
Bearings supports
Description
Description
The FL hygienic bearings - solid version are made of additive-enhanced PBT for improved thermal expansion resistance and working temperature.
Bearings are made in stainless steel, with 2,5° adjustment. They can be used at temperature between 0°C and +80°C.
Basic features
| Series: | Hygienic |
|---|---|
| Type: | Standard (no cap) |
| Fixation: | 2-holes |
| Material: | Plastic |
| Version: | Solid |
| Fixing method: | Grub screw |
| Unit of measure: | Ea |
| Box: | - |
FL Hygienic Grub screw Standard Solid

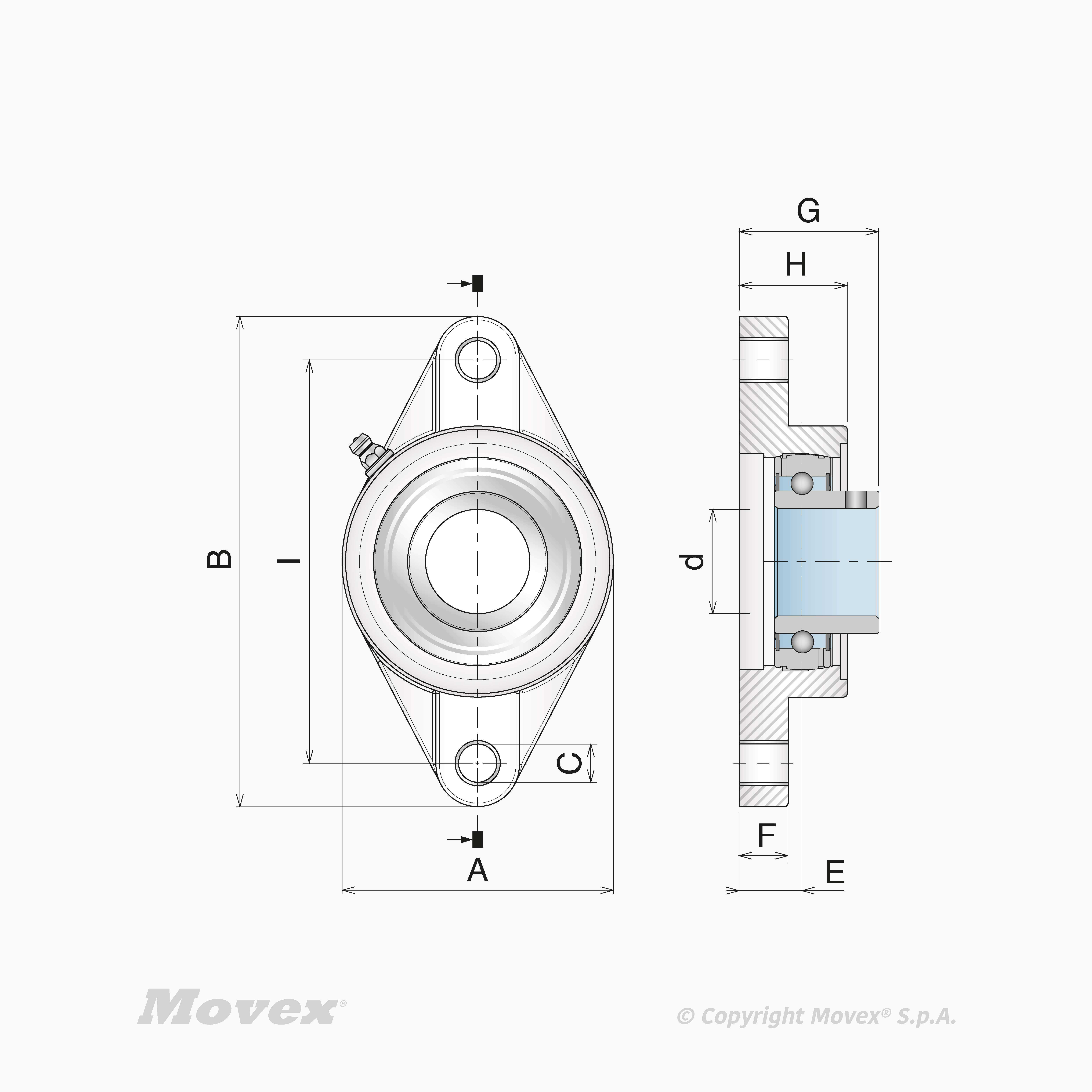

| A | B | Operating Temperature °C | E | Color | C | F | G | H | Bearing material | Shaft diameter | I (holes distance) | Shaft adjustment | Housing | Bearing | Spacers | Grease nipple | Washers | Cap | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||||||||
| P81300 | 64 mm | 113 mm | 0÷80 °C | 15.4 mm | White | 11 mm | 11.4 mm | 33.4 mm | 22.5 mm | Stainless steel | 20 mm | 90 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89801; Open cap: P89851 |
|
| P81300B | 64 mm | 113 mm | 0÷80 °C | 15.4 mm | Blue | 11 mm | 11.4 mm | 33.4 mm | 22.5 mm | Stainless steel | 20 mm | 90 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89801; Open cap: P89851 |
|
| P81301 | 70 mm | 131 mm | 0÷80 °C | 17 mm | White | 11 mm | 14 mm | 36.5 mm | 29.5 mm | Stainless steel | 25 mm | 99 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89802; Open cap: P89852 |
|
| P81301B | 70 mm | 131 mm | 0÷80 °C | 17 mm | Blue | 11 mm | 14 mm | 36.5 mm | 29.5 mm | Stainless steel | 25 mm | 99 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89802; Open cap: P89852 |
|
| P81302 | 80 mm | 148 mm | 0÷80 °C | 18 mm | White | 11 mm | 14 mm | 40 mm | 30.5 mm | Stainless steel | 30 mm | 117 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89803; Open cap: P89853 |
|
| P81302B | 80 mm | 148 mm | 0÷80 °C | 18 mm | Blue | 11 mm | 14 mm | 40 mm | 30.5 mm | Stainless steel | 30 mm | 117 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89803; Open cap: P89853 |
|
| P81303 | 90 mm | 164 mm | 0÷80 °C | 18 mm | White | 13 mm | 16.1 mm | 41.5 mm | 32.8 mm | Stainless steel | 35 mm | 130 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89804; Open cap: P89854 |
|
| P81303B | 90 mm | 164 mm | 0÷80 °C | 18 mm | Blue | 13 mm | 16.1 mm | 41.5 mm | 32.8 mm | Stainless steel | 35 mm | 130 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89804; Open cap: P89854 |
|
| P81304 | 100 mm | 176 mm | 0÷80 °C | 21.5 mm | White | 14 mm | 20 mm | 46.5 mm | 37.5 mm | Stainless steel | 40 mm | 144 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89805; Open cap: P89855 |
|
| P81304B | 100 mm | 176 mm | 0÷80 °C | 21.5 mm | Blue | 14 mm | 20 mm | 46.5 mm | 37.5 mm | Stainless steel | 40 mm | 144 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89805; Open cap: P89855 |
|
| P81305 | 84 mm | 112.5 mm | 0÷80 °C | 11.5 mm | White | 11 mm | 20.5 mm | 33.5 mm | 23.3 mm | Stainless steel | 30 mm | 90.5 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89803; Open cap: P89853 |
|
| P81305B | 84 mm | 112.5 mm | 0÷80 °C | 11.5 mm | Blue | 11 mm | 20.5 mm | 33.5 mm | 23.3 mm | Stainless steel | 30 mm | 90.5 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89803; Open cap: P89853 |
|
| P81306 | 99 mm | 150 mm | 0÷80 °C | 13.5 mm | White | 14 mm | 24.5 mm | 38.5 mm | 27.5 mm | Stainless steel | 40 mm | 119 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89805; Open cap: P89855 |
|
| P81306B | 99 mm | 150 mm | 0÷80 °C | 13.5 mm | Blue | 14 mm | 24.5 mm | 38.5 mm | 27.5 mm | Stainless steel | 40 mm | 119 mm | 2.5° | Additive-enhanced PBT | Stainless steel ball bearing (pre-lubricated) | Stainless steel mounting hole spacers | Stainless steel grease nipple M6 conical | Washer for grease nipple in PE | Closed cap: P89805; Open cap: P89855 |
|
