FHV

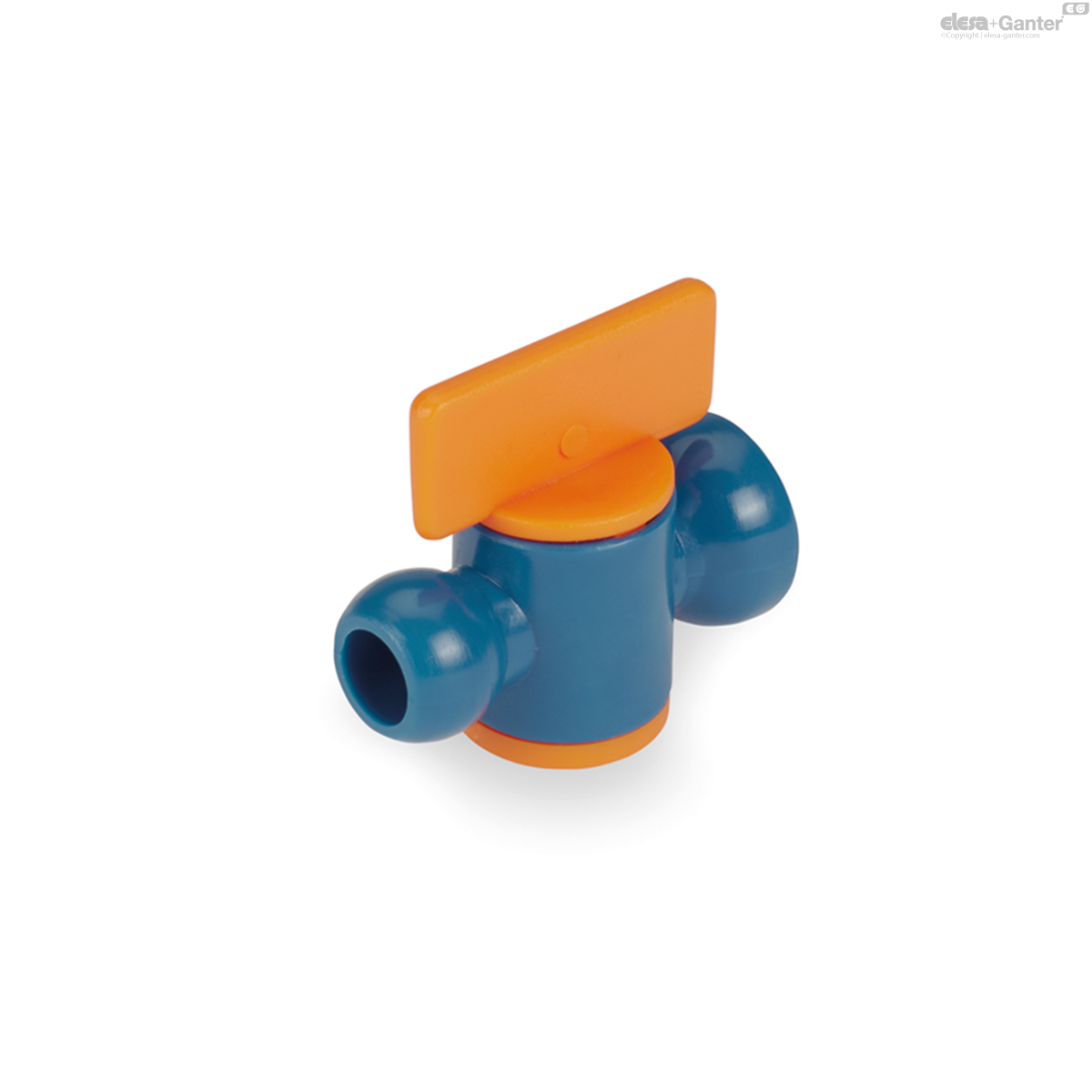

Ball valve

for flexible coolant hoses, technopolymer

Enquire Now

Description

Main specifications

Acetal-based technopolymer (POM), blue and orange.

General information

Indicated when the flow needs to be separated or interrupted within the system.

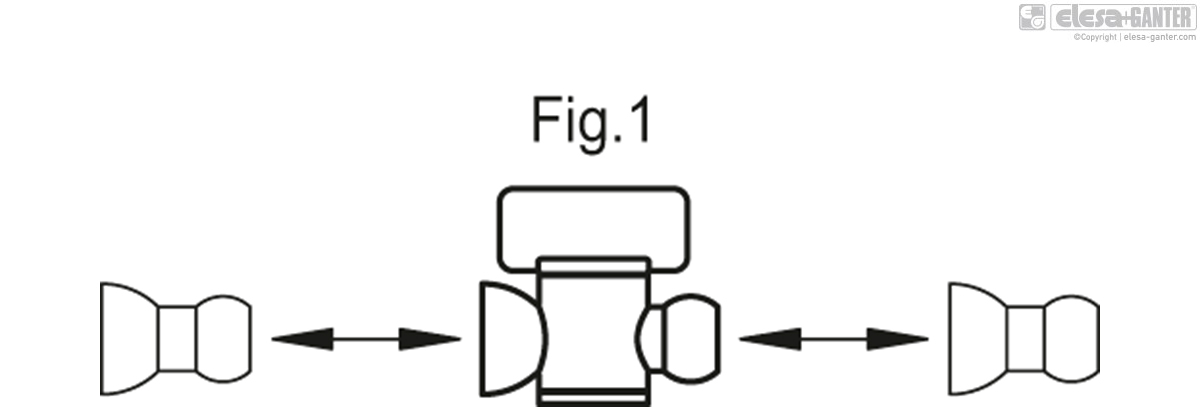

Fitting to be implemented by means of snap coupling (Fig.1) with modular tubes FHT.

Material resistant to detergents, lubricants and oils, avoid contact with strong acids and bases.

To use fluids other than those listed, contact Elesa+Ganter’s technical department.

In any case we suggest to verify the suitability of the product under the actual working conditions.

Other executions

Valve made from raw materials suitable for contact with food (FDA CFR.21 and EU 10/2011).

Accessories

Pliers to assemble the components.

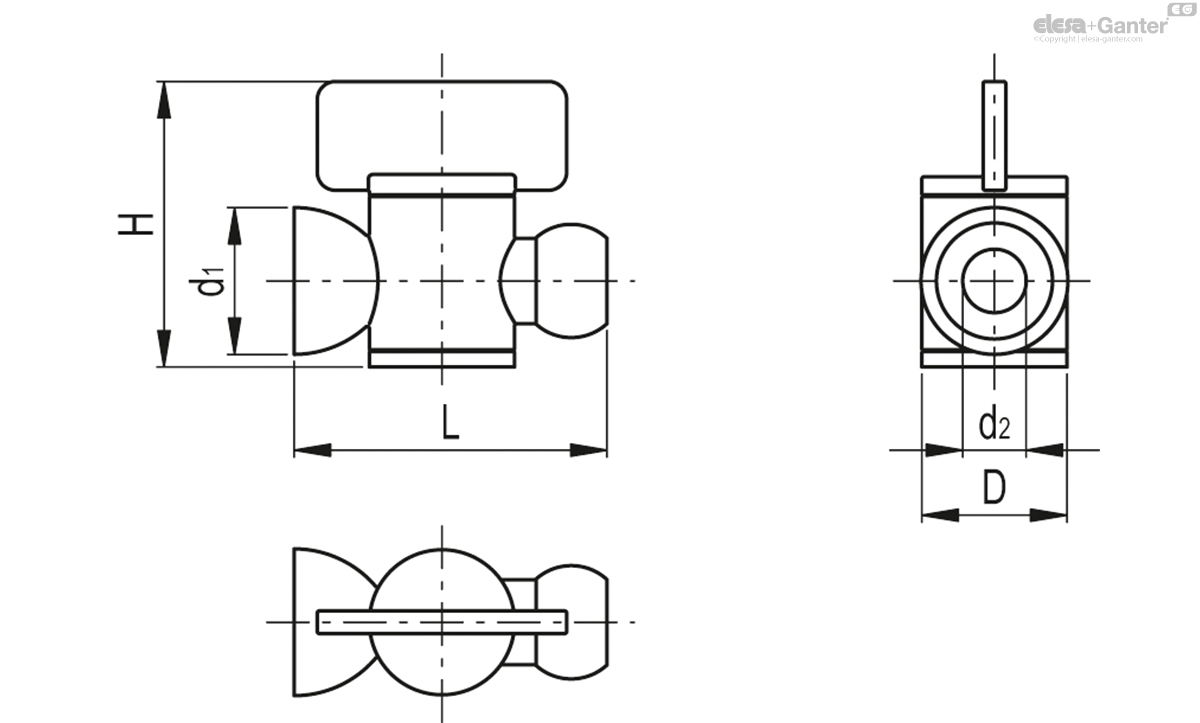

		D	L	H	d₁	d₂	For modular system
Code	Description								Actions
471301	FHV.1/4-POM	16	34.5	31.5	16	7	1/4	8
