FHS

Sockets

for flexible coolant hoses, technopolymer

Enquire Now

Description

Main specifications

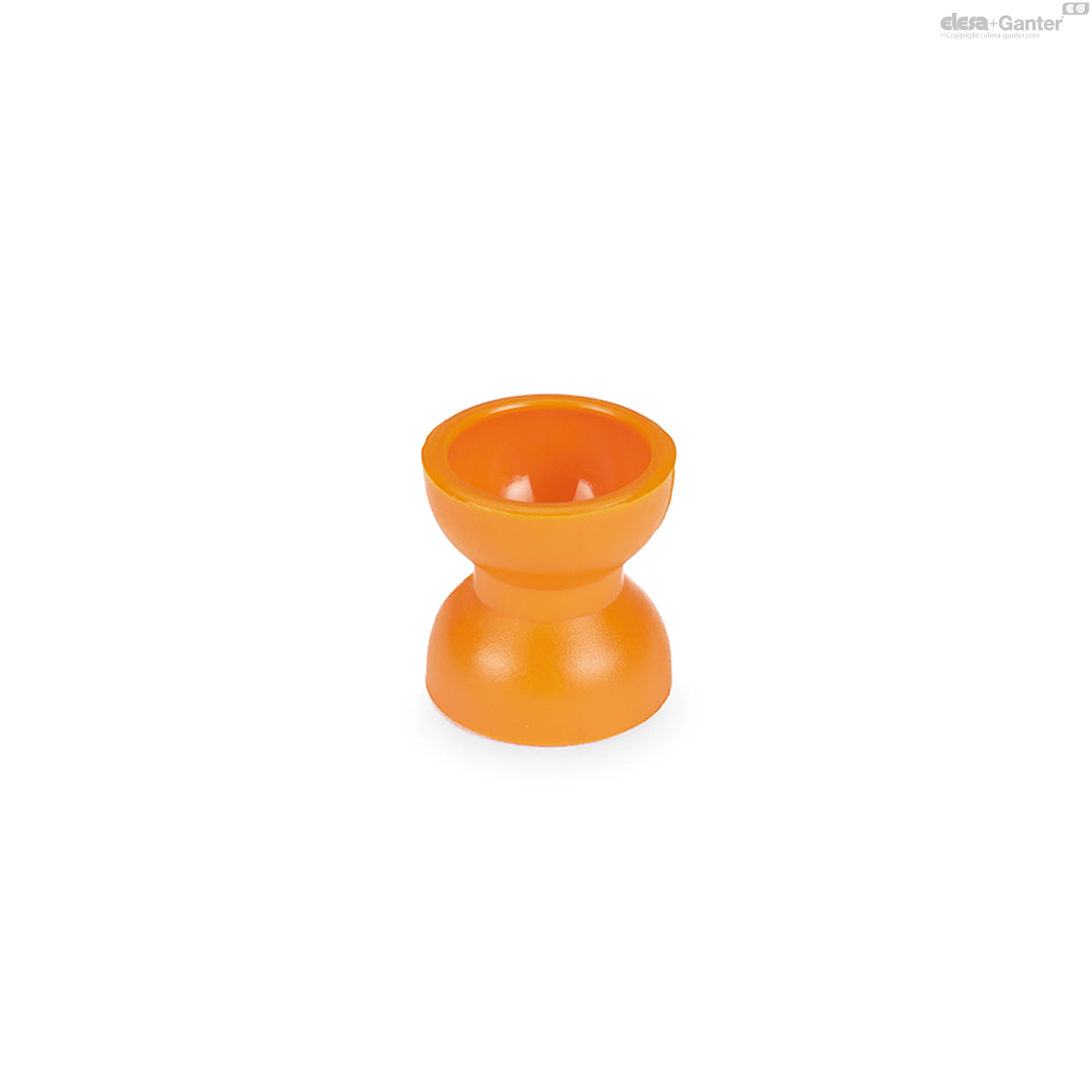

Acetal-based technopolymer (POM), orange.

General information

Recommended for equipping a lubrication system with a threaded fitting both at the inlet and outlet of the modular tube.

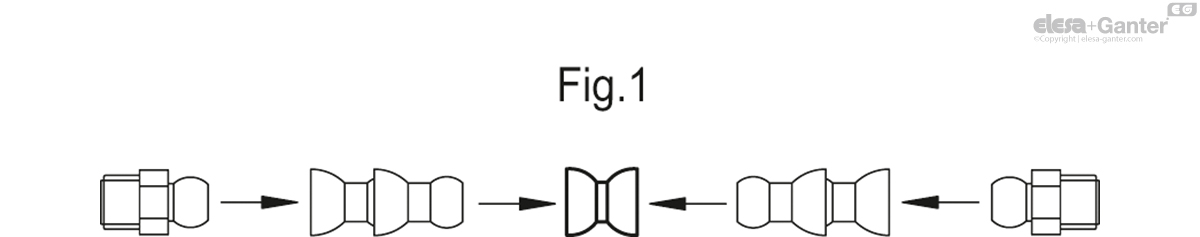

Fitting to be implemented by means of snap coupling (Fig.1) with modular tubes FHT.

Material resistant to detergents, lubricants and oils, avoid contact with strong acids and bases.

To use fluids other than those listed, contact Elesa’s technical department.

In any case we suggest to verify the suitability of the product under the actual working conditions.

Other executions

Sockets made from raw materials suitable for contact with food (FDA CFR.21 and EU 10/2011).

Pliers to assemble the components.

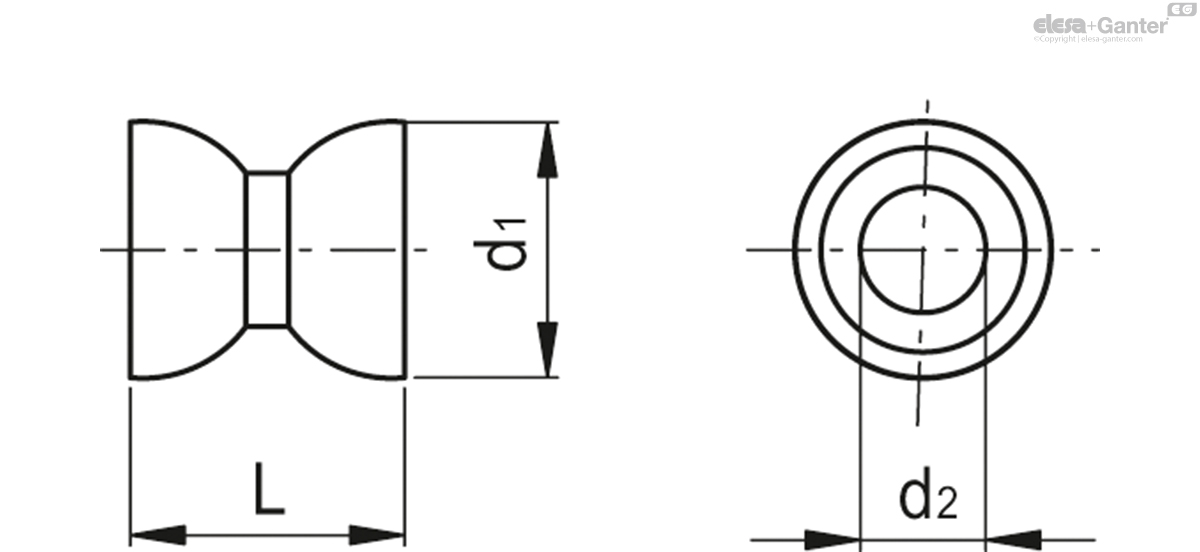

		L	d₁	d₂	For modular system
Code	Description						Actions
471171	FHS.1/4	20	16	7	1/4	2
471176	FHS.1/2	28.5	26	13	1/2	4
