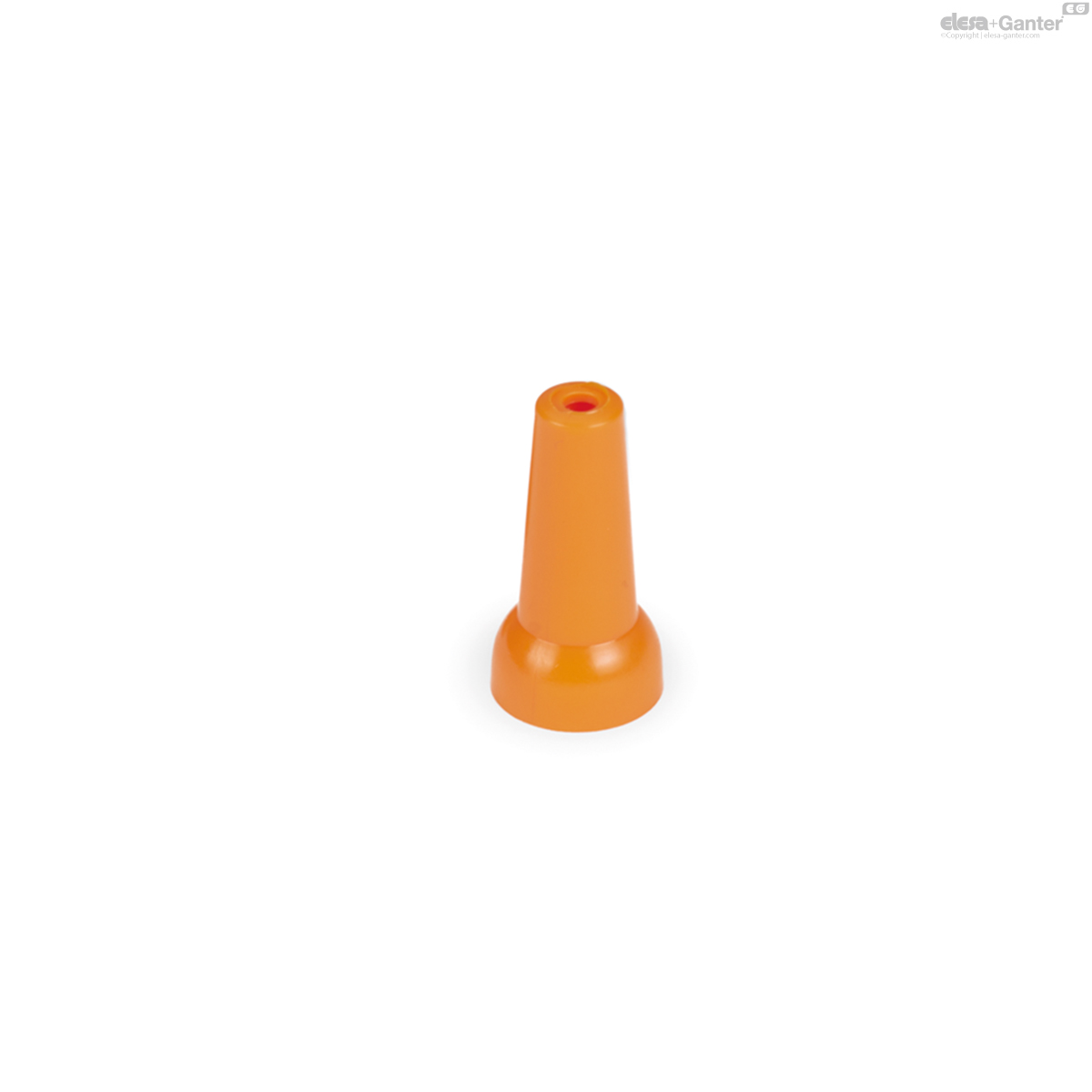

FHN

Nozzles

for flexible coolant hoses, technopolymer

Enquire Now

Description

Main specifications

Acetal-based technopolymer (POM), orange.

General information

The use of nozzles allows the lubricating spray to be adjusted, concentrating it or distributing it on the surface concerned.

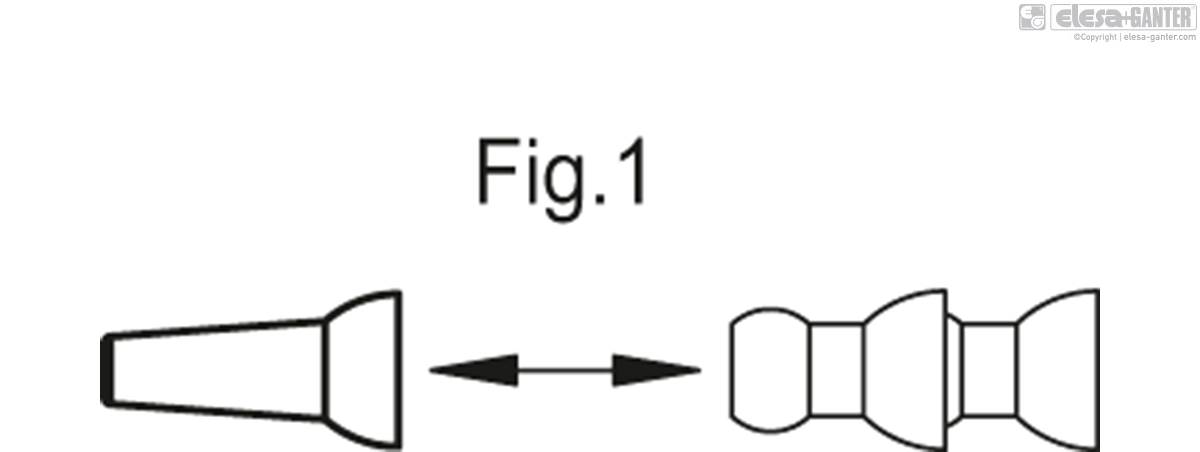

Fitting to be implemented by means of snap coupling (Fig.1) with modular tubes FHT.

Material resistant to detergents, lubricants and oils, avoid contact with strong acids and bases.

To use fluids other than those listed, contact Elesa+Ganter’s technical department.

In any case we suggest to verify the suitability of the product under the actual working conditions.

Other executions

Nozzles made from raw materials suitable for contact with food (FDA CFR.21 and EU 10/2011).

Accessories

Pliers to assemble the components.

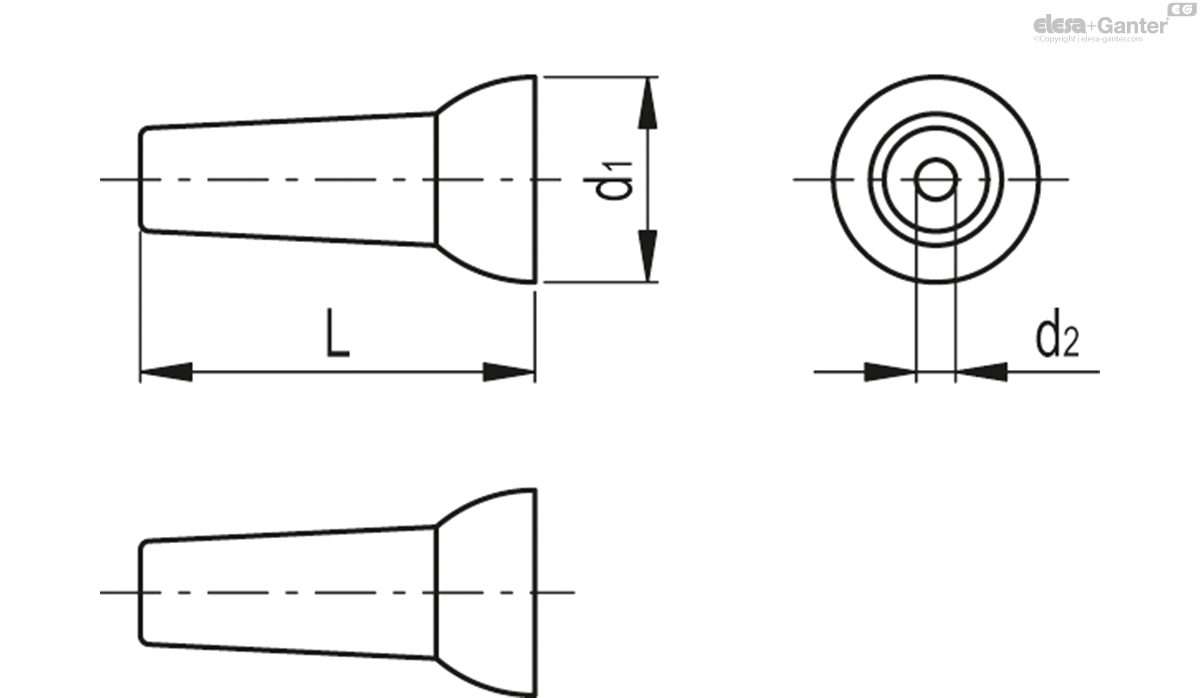

		L	d₁	d₂	For modular system
Code	Description						Actions
471101	FHN.1/4-1	30	16	1.5	1/4	2
471106	FHN.1/4-3	30	16	3	1/4	2
471111	FHN.1/4-5	30	16	5	1/4	3
471126	FHN.1/2-5	49.5	26	5	1/2	6
471131	FHN.1/2-8	49.5	26	8	1/2	7
471136	FHN.1/2-11	49.5	26	11	1/2	6
