Description

The FB hygienic bearings - solid version are made of additive-enhanced PBT for improved thermal expansion resistance and working temperature. Bearings are made in stainless steel, with 2,5° adjustment. They can be used at temperature between 0°C and +80°C.

Basic features

Series:	Hygienic
Type:	Standard (no cap)
Fixation:	3-holes
Material:	Plastic
Version:	Solid
Fixing method:	Grub screw
Unit of measure:	Ea
Box:	-

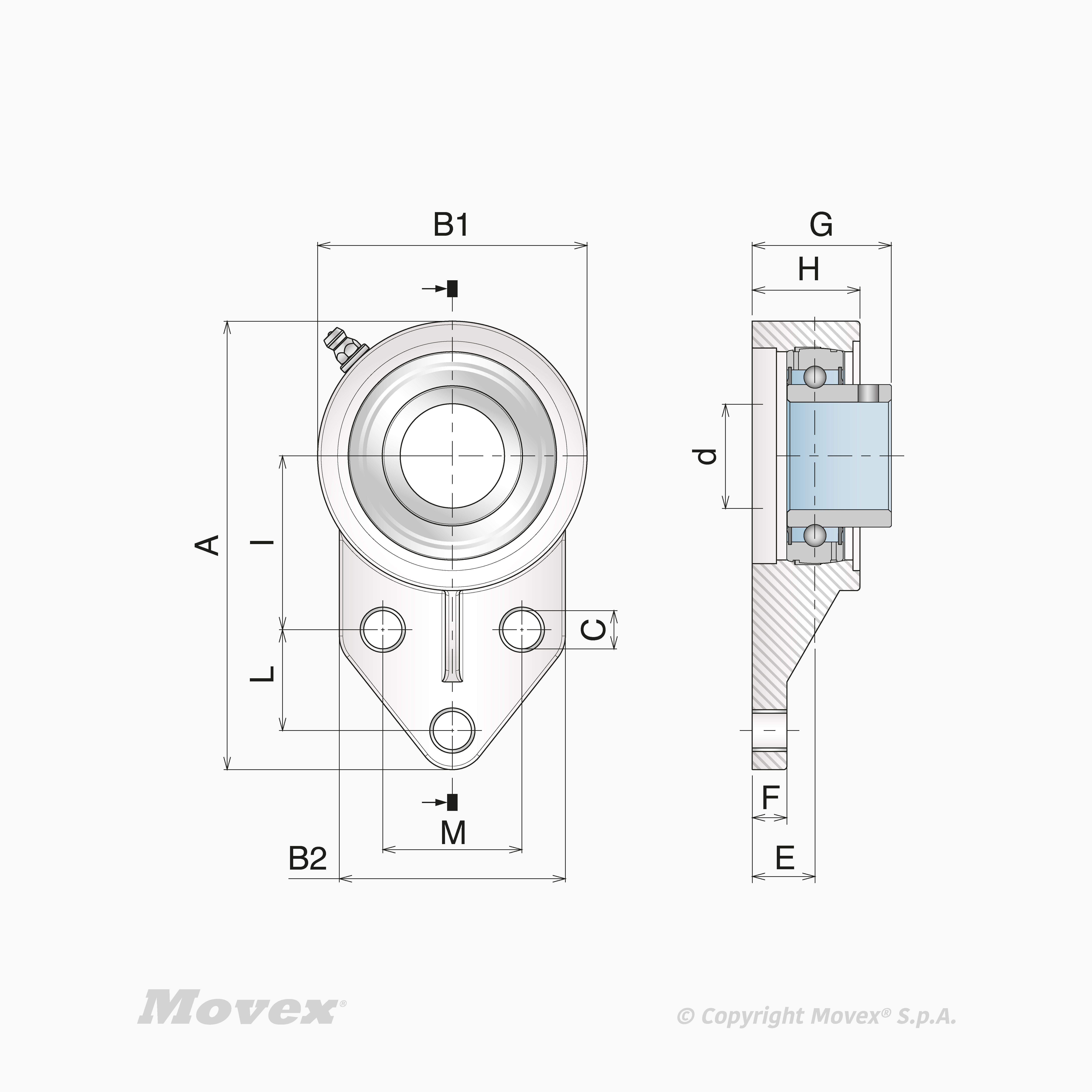

FB Hygienic Grub screw Standard Solid

	A	Operating Temperature °C	E	Color	C	F	G	H	L	Bearing material	Shaft diameter	I (holes distance)	B1	B2	M	Shaft adjustment	Housing	Bearing	Spacers	Grease nipple	Washers	Cap
Code																							Actions
P81500	108.5 mm	0÷80 °C	15.4 mm	White	11 mm	12 mm	33.4 mm	26.2 mm	22.2 mm	Stainless steel	20 mm	42.9 mm	62 mm	62 mm	38.1 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Closed cap: P89801; Open cap: P89851
P81500B	108.5 mm	0÷80 °C	15.4 mm	Blue	11 mm	12 mm	33.4 mm	26.2 mm	22.2 mm	Stainless steel	20 mm	42.9 mm	62 mm	62 mm	38.1 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Closed cap: P89801; Open cap: P89851
P81501	120.6 mm	0÷80 °C	21 mm	White	11 mm	12 mm	40.5 mm	33.5 mm	28.6 mm	Stainless steel	25 mm	46 mm	68.2 mm	68.2 mm	41.3 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Closed cap: P89802; Open cap: P89852
P81501B	120.6 mm	0÷80 °C	21 mm	Blue	11 mm	12 mm	40.5 mm	33.5 mm	28.6 mm	Stainless steel	25 mm	46 mm	68.2 mm	68.2 mm	41.3 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Closed cap: P89802; Open cap: P89852
P81502	140 mm	0÷80 °C	19 mm	White	11 mm	14 mm	41 mm	31.5 mm	31.8 mm	Stainless steel	30 mm	52.4 mm	82 mm	75 mm	47.6 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Closed cap: P89803; Open cap: P89853
P81502B	140 mm	0÷80 °C	19 mm	Blue	11 mm	14 mm	41 mm	31.5 mm	31.8 mm	Stainless steel	30 mm	52.4 mm	82 mm	75 mm	47.6 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Closed cap: P89803; Open cap: P89853
P81503	158 mm	0÷80 °C	21.4 mm	White	13 mm	17 mm	44.9 mm	36.5 mm	31.8 mm	Stainless steel	35 mm	60.3 mm	94 mm	89 mm	50.8 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Closed cap: P89804; Open cap: P89854
P81503B	158 mm	0÷80 °C	21.4 mm	Blue	13 mm	17 mm	44.9 mm	36.5 mm	31.8 mm	Stainless steel	35 mm	60.3 mm	94 mm	89 mm	50.8 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Closed cap: P89804; Open cap: P89854
P81504	164 mm	0÷80 °C	21.4 mm	White	13 mm	18 mm	46.4 mm	35.7 mm	41.3 mm	Stainless steel	40 mm	60.3 mm	100 mm	78 mm	50 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Closed cap: P89805; Open cap: P89855
P81504B	164 mm	0÷80 °C	21.4 mm	Blue	13 mm	18 mm	46.4 mm	35.7 mm	41.3 mm	Stainless steel	40 mm	60.3 mm	100 mm	78 mm	50 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Closed cap: P89805; Open cap: P89855
