Description

Main specifications

Material

Glass-fibre reinforced polypropylene based (PP) technopolymer, black colour, matte finish.

Boss cap

ECB.I: polyester based technopolymer (PBT) in Elecolors colours, glossy finish, press-fit assembly. Supplied.

Available also as accessory sold separately (see table).

Standard execution

Black-oxide steel boss, H7 reamed hole.

Revolving handle EBS+xseries_EBS+x in technopolymer, not removable.

Special executions on request

Special execution on request

Black-oxide steel bosses with hole and keyway in compliance with DIN 6885/1 tolerance P9-.

To order the handwheel with keyway add the index -K after the code and the description (i.e. 208311-K- EYK.400+I A-20-K-).

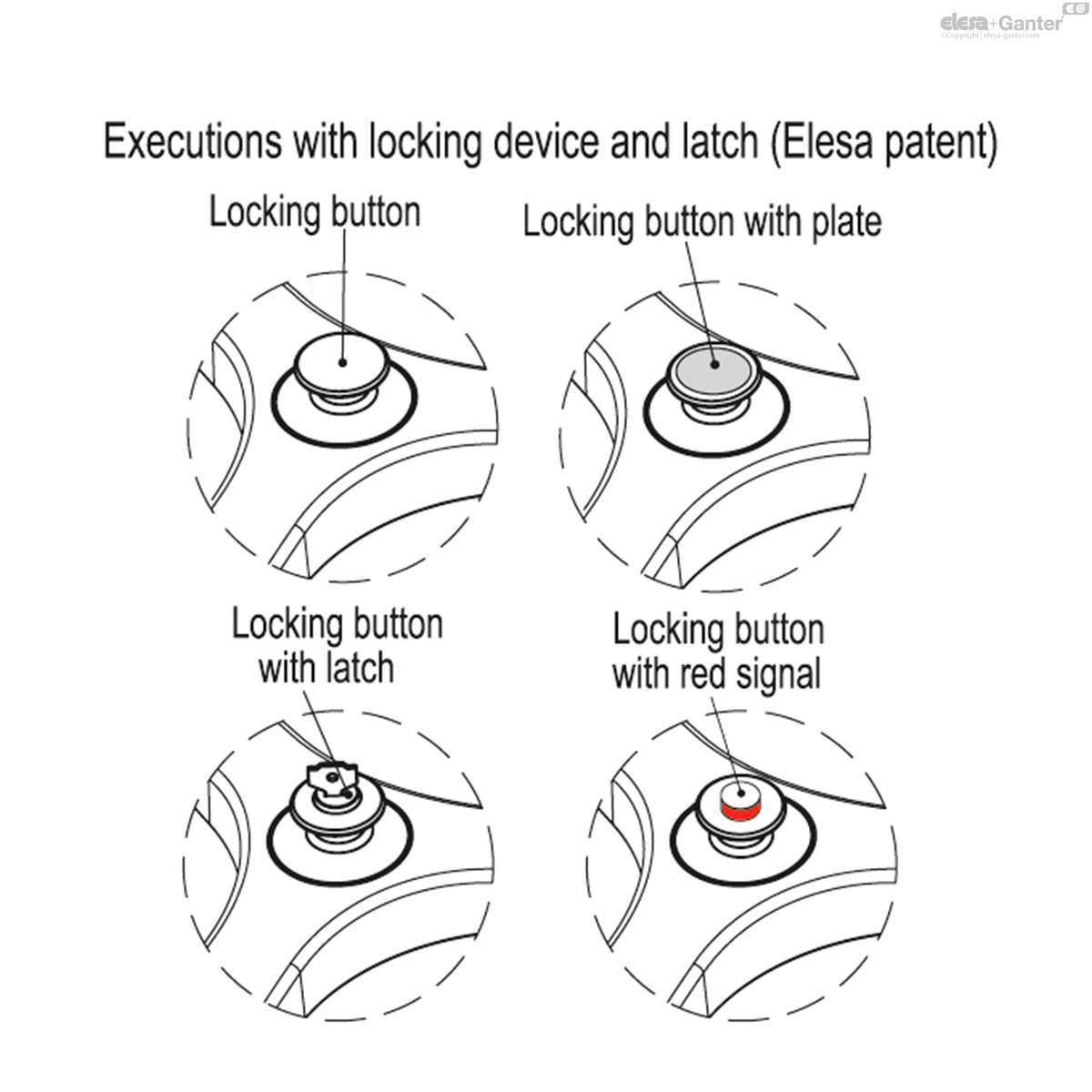

For sufficient quantities: executions with locking device (Elesa patent)-.

The three-arm handwheels can be customised with marks, logo or special graphics (tampoprinting). The handwheels or handles can be supplied also in special coloured technopolymer.

Accessories on request

GN 184: axial retaining washer in black-oxide steel.
ECB.I: polyester based technopolymer (PBT) boss cap, in Elecolors colours, glossy finish, press-fit assembly (see table).

General information

Ergonomy and design

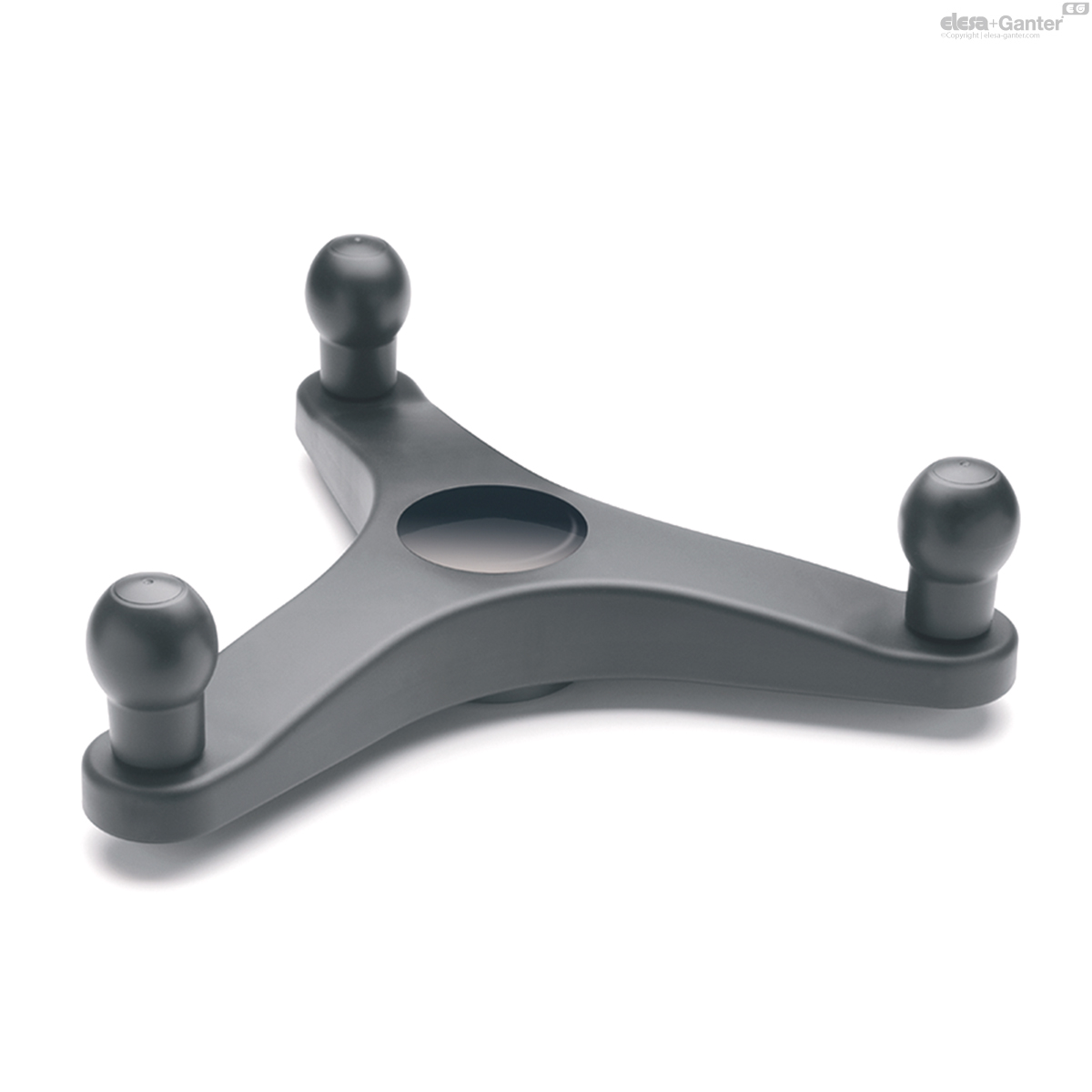

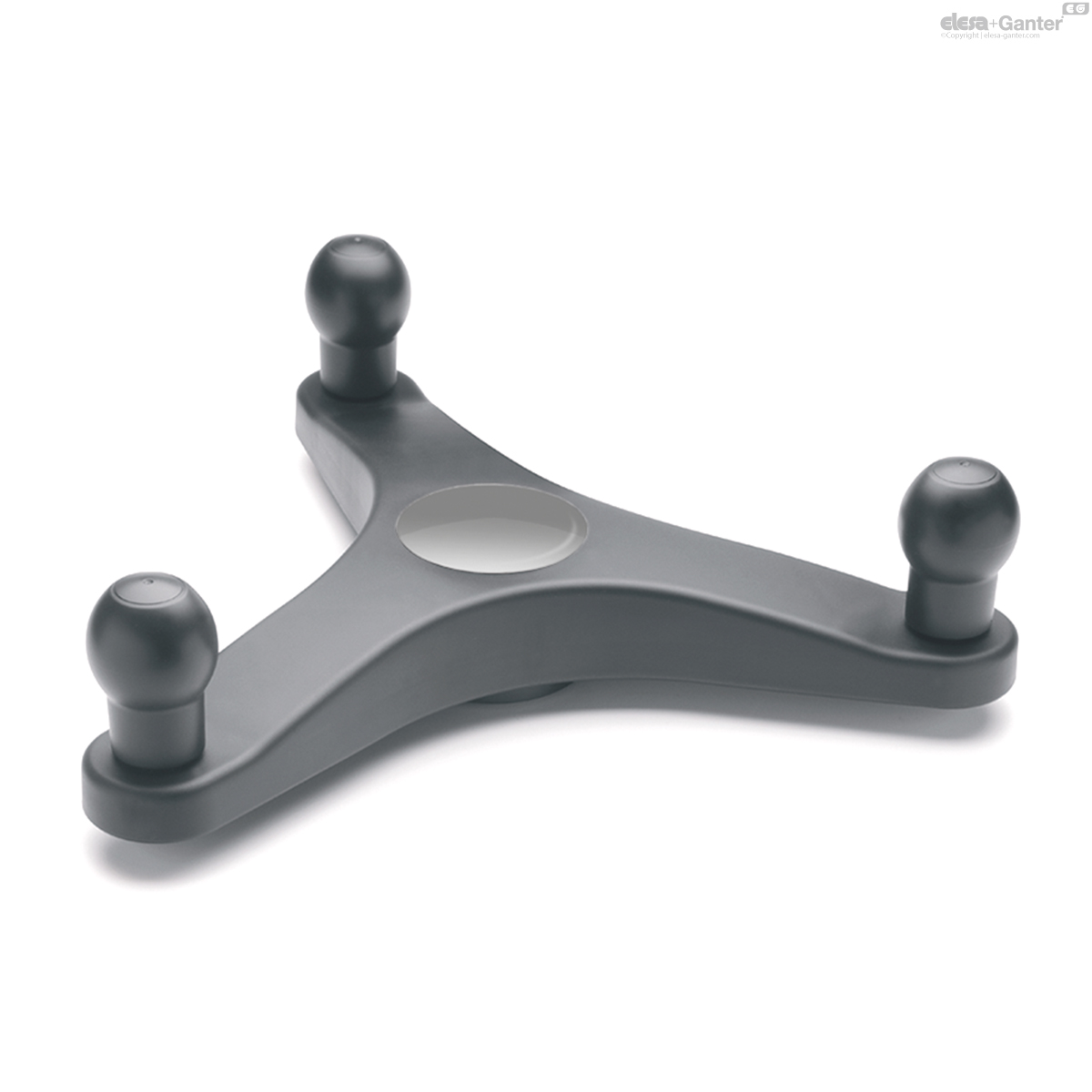

The three equidistant arms (120°) offer a perfect grip and the greatest operational easiness, also to disable people. The rounded lines, the special compact and ergonomic shape of EYK. handwheel design together with the absence of cavities offer an excellent level of safety for hands during the steering operations.

EYK.

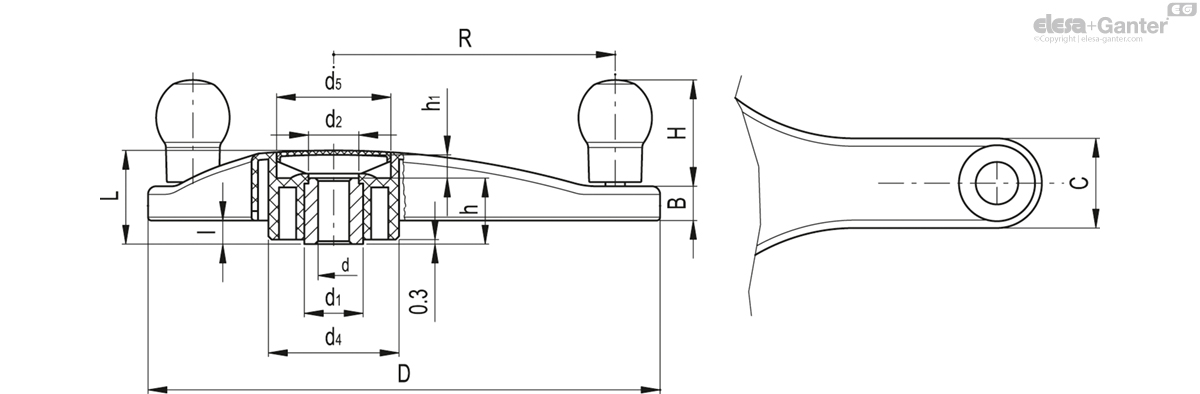

		Color	D	d_H7	L	B	d₁	d₂	d₄	d₅	h	h₁	l	C	H	R	C# [Nm]	L# [J]
Code	Description																			Actions
208111-C1	EYK.275+EBS A-20-C1	C1 - RAL 7021	275	20	54	21	35	33	76	70	38	14	19.5	50	65	112.5	270	12	850
208111-C2	EYK.275+EBS A-20-C2	C2 - RAL 2004	275	20	54	21	35	33	76	70	38	14	19.5	50	65	112.5	270	12	850
208111-C3	EYK.275+EBS A-20-C3	C3 - RAL 7035	275	20	54	21	35	33	76	70	38	14	19.5	50	65	112.5	270	12	850
208111-C4	EYK.275+EBS A-20-C4	C4 - RAL 1021	275	20	54	21	35	33	76	70	38	14	19.5	50	65	112.5	270	12	850
208111-C5	EYK.275+EBS A-20-C5	C5 - RAL 5024	275	20	54	21	35	33	76	70	38	14	19.5	50	65	112.5	270	12	850
208111-C6	EYK.275+EBS A-20-C6	C6 - RAL 3000	275	20	54	21	35	33	76	70	38	14	19.5	50	65	112.5	270	12	850
208311-C1	EYK.400+EBS A-20-C1	C1 - RAL 7021	400	20	54	21	35	33	80	70	38	14	12	55	65	172.5	270	16	930
208311-C2	EYK.400+EBS A-20-C2	C2 - RAL 2004	400	20	54	21	35	33	80	70	38	14	12	55	65	172.5	270	16	930
208311-C3	EYK.400+EBS A-20-C3	C3 - RAL 7035	400	20	54	21	35	33	80	70	38	14	12	55	65	172.5	270	16	930
208311-C4	EYK.400+EBS A-20-C4	C4 - RAL 1021	400	20	54	21	35	33	80	70	38	14	12	55	65	172.5	270	16	930
208311-C5	EYK.400+EBS A-20-C5	C5 - RAL 5024	400	20	54	21	35	33	80	70	38	14	12	55	65	172.5	270	16	930
208311-C6	EYK.400+EBS A-20-C6	C6 - RAL 3000	400	20	54	21	35	33	80	70	38	14	12	55	65	172.5	270	16	930
