EWNM-SST

Wing knobs

Stainless steel

Enquire Now

Description

Main specifications

AISI 304 stainless steel, sandblasted matte finish.

General information

These wing nuts allow high tightening torque values.

The slightly concave marks on the wings help to position the fingers in order to apply the maximum force when tightening.

Special executions on request

Different threadings.

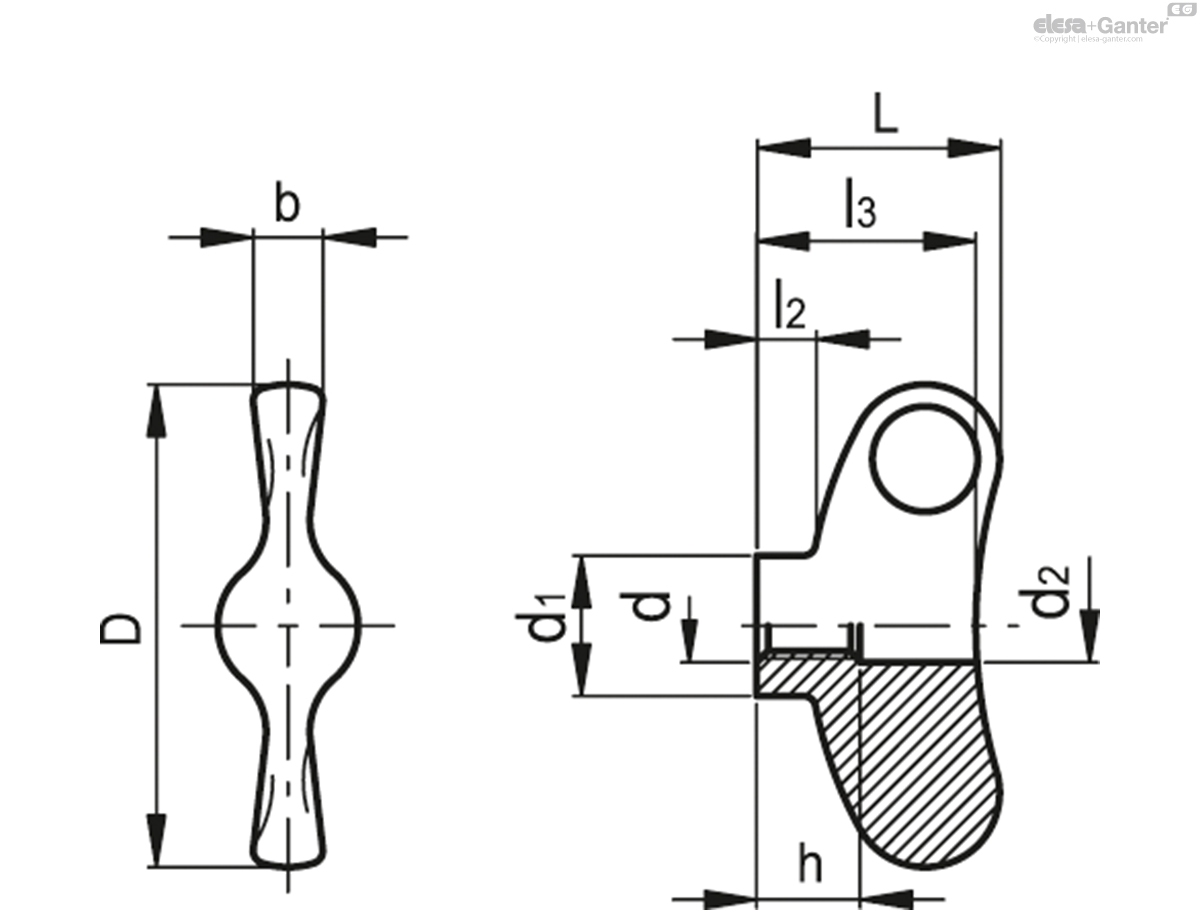

		D	d	d_{2 H13}	L	d₁	l₂	l₃	b	h
Code	Description											Actions
222001	EWNM-SST-40-FP-M5	40	M5	5.3	21	13.5	5.5	19	6.5	8	31
222003	EWNM-SST-40-FP-M6	40	M6	6.4	21	13.5	5.5	19	6.5	10	29
222011	EWNM-SST-48-FP-M6	48	M6	6.4	24	13.5	6	22	7	10	39
222013	EWNM-SST-48-FP-M8	48	M8	8.4	24	13.5	6	22	7	13	36
222021	EWNM-SST-55-FP-M8	55	M8	8.4	28	16	7	25	8	13	60
222023	EWNM-SST-55-FP-M10	55	M10	10.5	28	16	7	25	8	16	54
