EWN.

Wing knobs

Technopolymer

__logo__ERGO__

__logo__Design9697__

__logo__IF95__

__logo__INOX__

__logo__RoHS__

__logo__PA__

__logo__g13030__

Enquire Now

product image

Brass boss, threaded hole, with cap

product image

Stainless steel boss, threaded hole, with cap

product image

Brass boss, threaded hole, without cap

product image

Stainless steel boss, threaded hole, without cap

product image

Zinc-plated steel threaded stud

product image

Stainless steel threaded stud

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Boss cap

ECA.W: glass-fibre reinforced polyamide based (PA) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied, removable by a screwdriver.

Available also as accessory sold separately (see table).

Standard executions

EWN-B: brass boss, threaded pass-through hole, with cap.
EWN-SST: AISI 303 stainless steel boss, threaded-pass hole, with cap.
EWN-FP: brass boss, threaded pass-through hole, without cap.
EWN-SST-FP: AISI 303 stainless steel boss, threaded pass-through hole without cap.

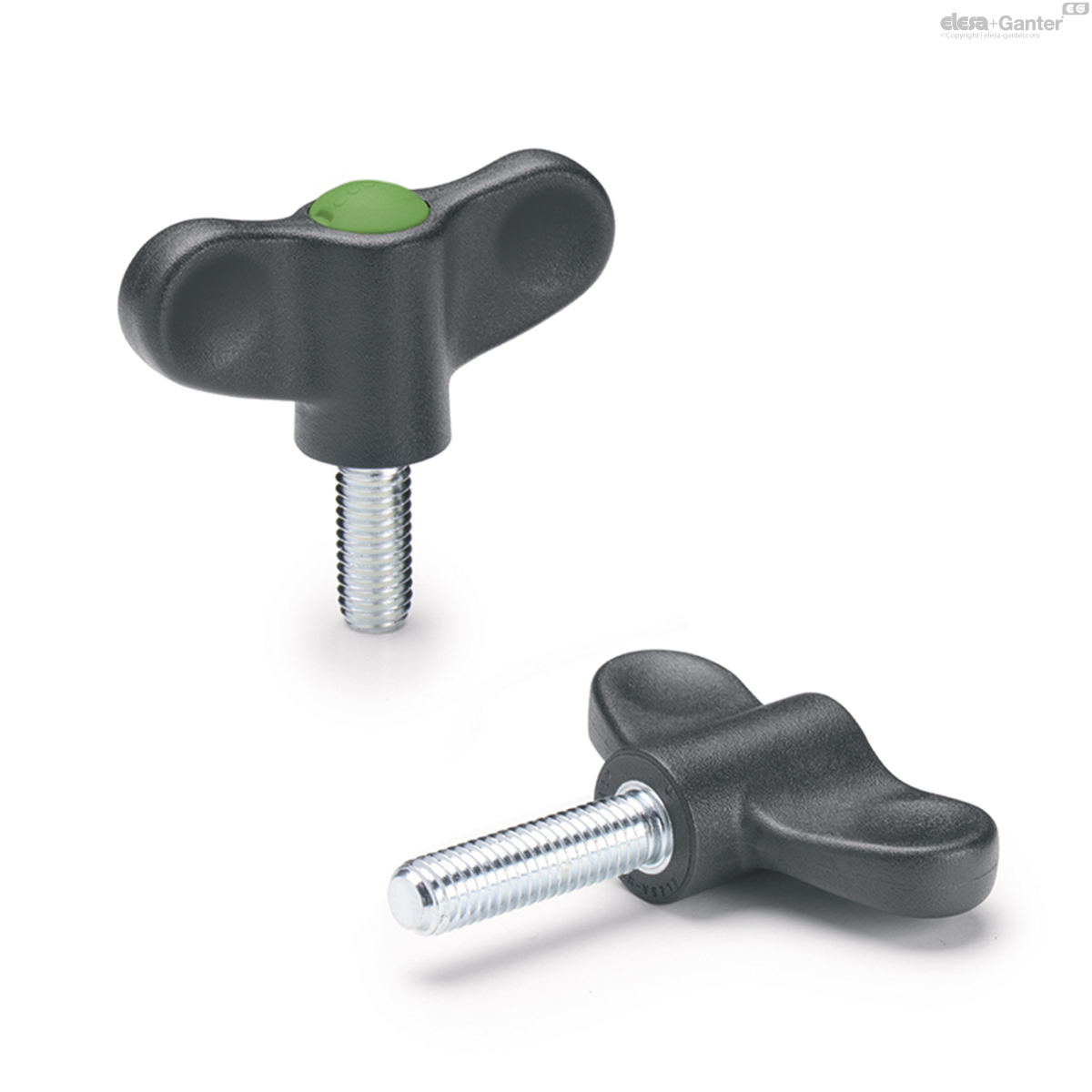

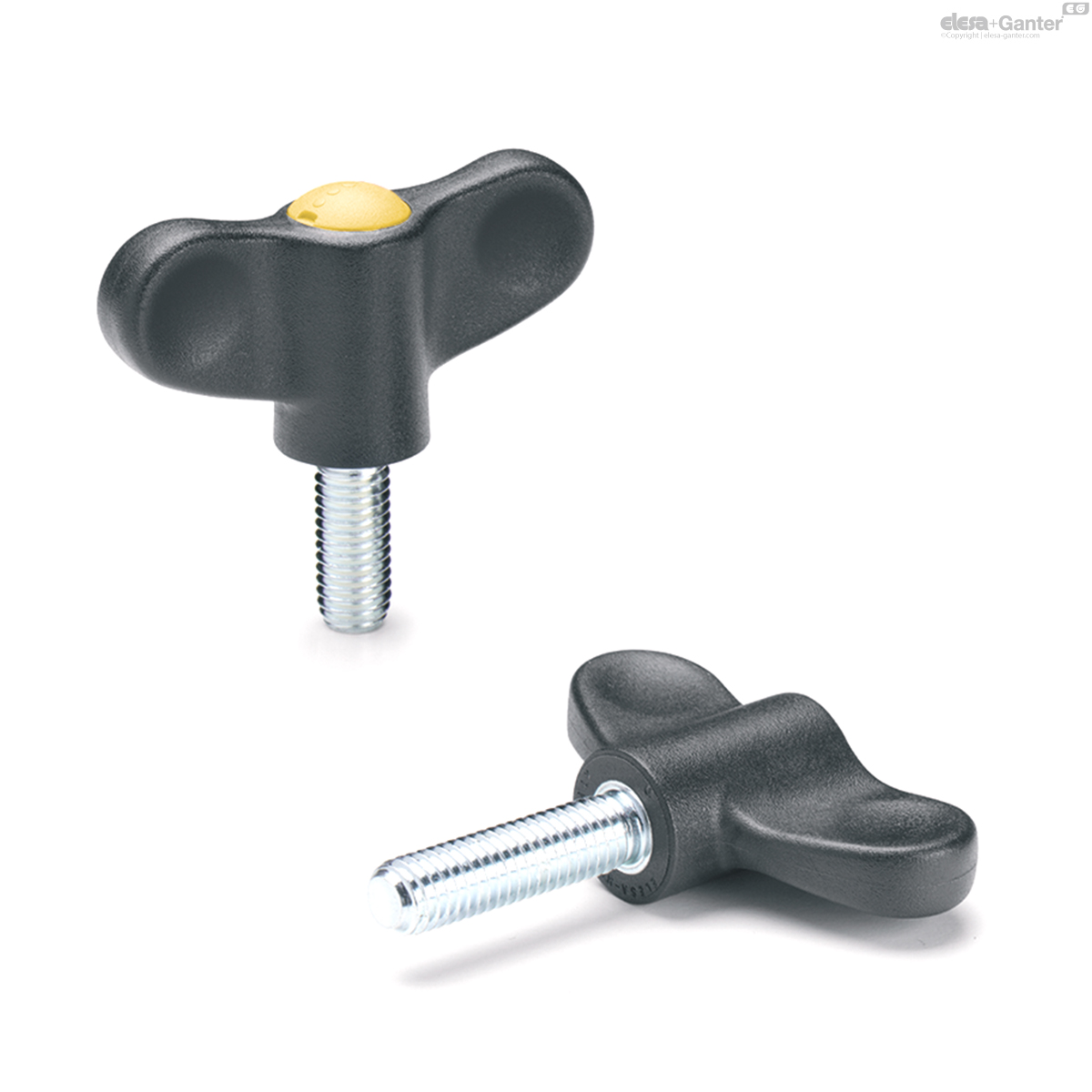

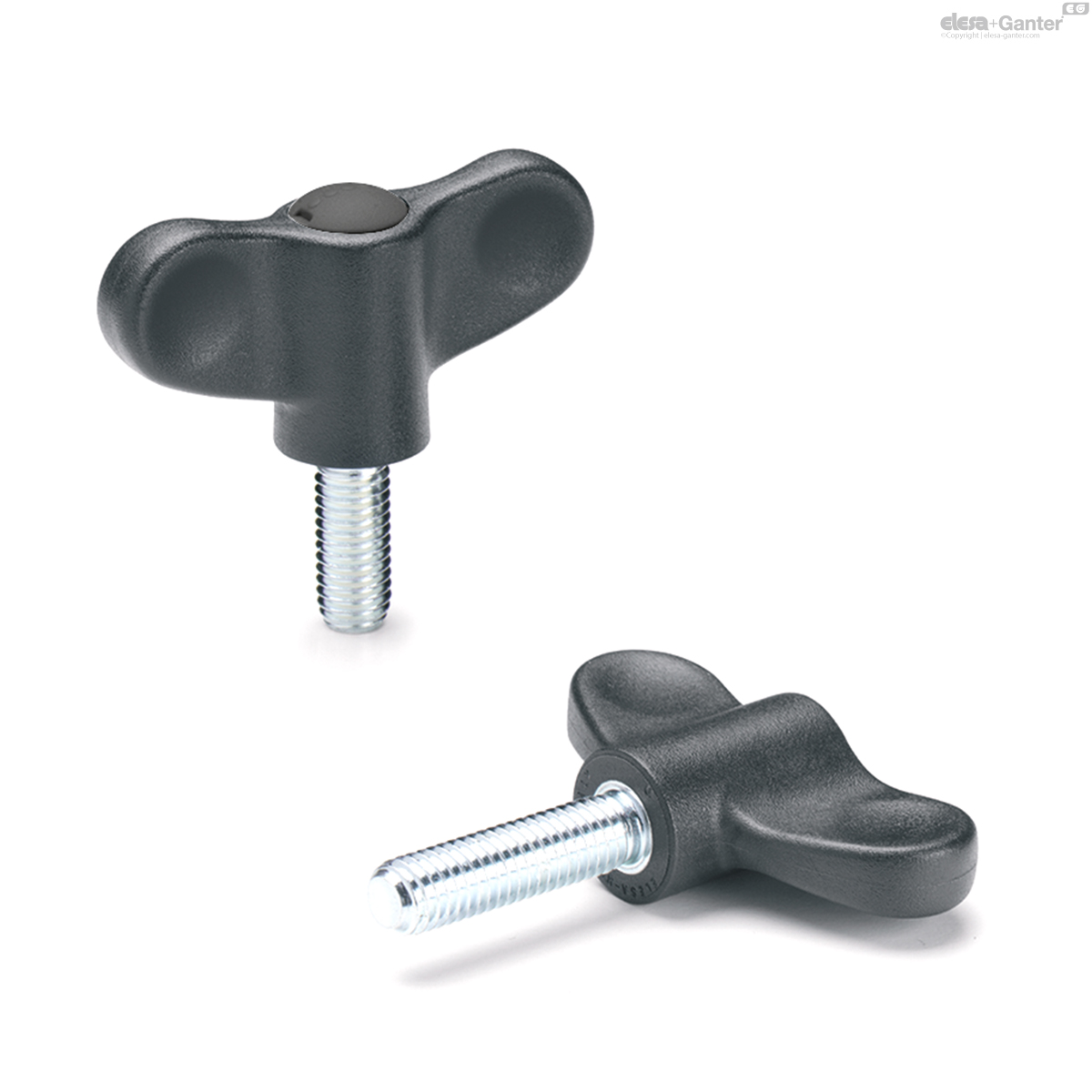

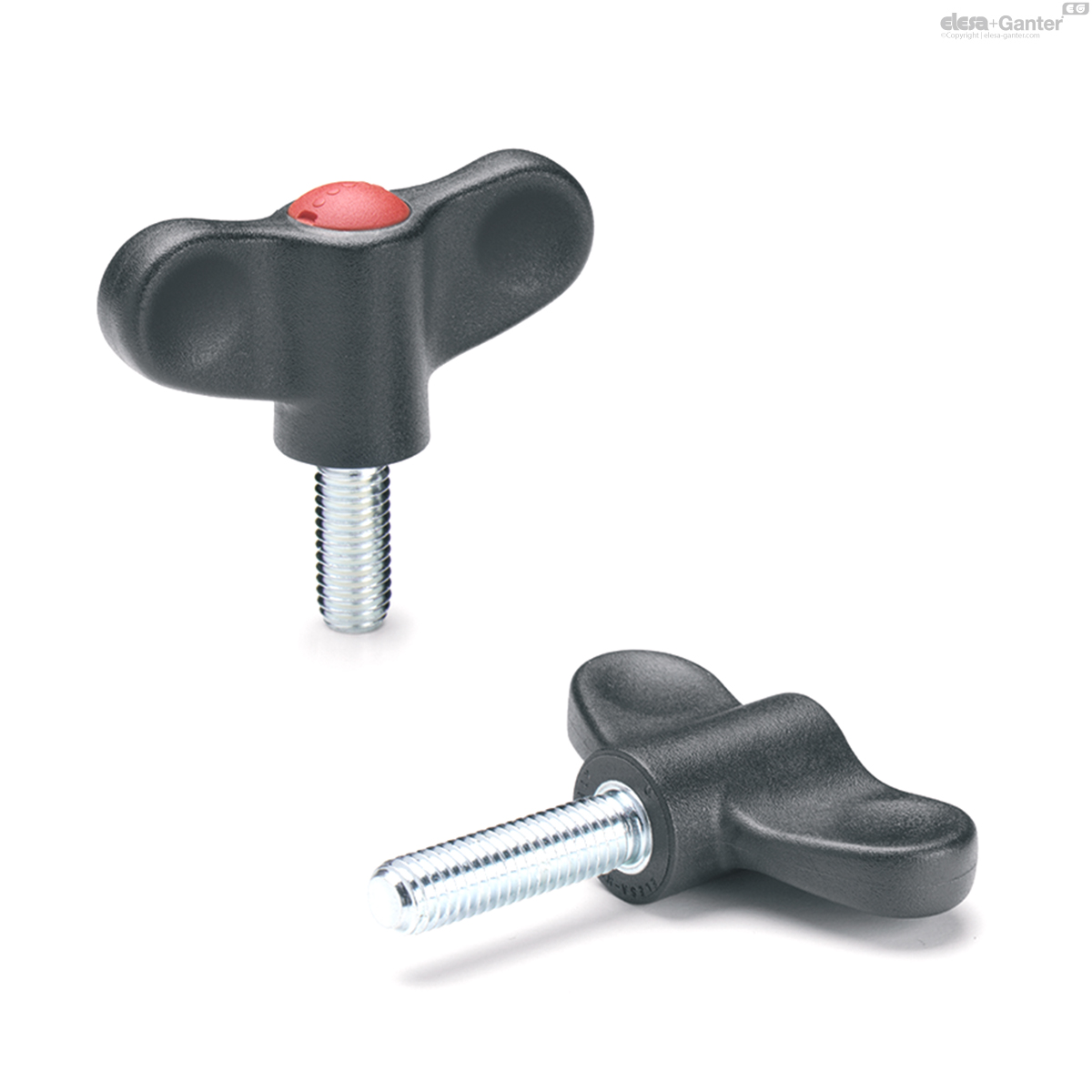

EWN-p: zinc-plated steel threaded stud with chamfered flat end as in UNI 947 : ISO 4753 (see Technical data), with closing cap.
EWN-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data), with closing cap.

Accessories on request

Accessories on request

ECA.W: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly (see table).

EWN-p

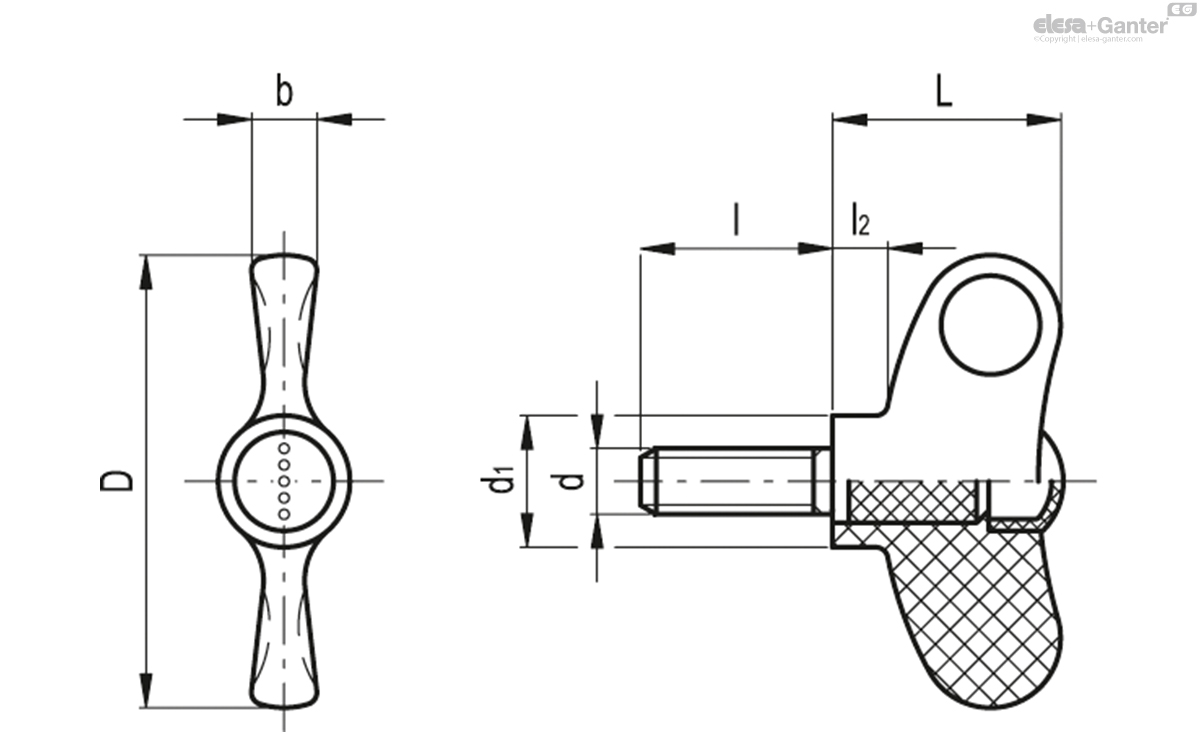

		Color	D	d_6g	L	d₁	l	l₂	b	C# [Nm]
Code	Description											Actions
223441-C1	EWN.40 p-M5x16-C1	C1 - RAL 7021	40	M5	20	13.5	16	4	6	9	11
223441-C2	EWN.40 p-M5x16-C2	C2 - RAL 2004	40	M5	20	13.5	16	4	6	9	11
223441-C3	EWN.40 p-M5x16-C3	C3 - RAL 7035	40	M5	20	13.5	16	4	6	9	11
223441-C4	EWN.40 p-M5x16-C4	C4 - RAL 1021	40	M5	20	13.5	16	4	6	9	11
223441-C5	EWN.40 p-M5x16-C5	C5 - RAL 5024	40	M5	20	13.5	16	4	6	9	11
223441-C6	EWN.40 p-M5x16-C6	C6 - RAL 3000	40	M5	20	13.5	16	4	6	9	11
223441-C17	EWN.40 p-M5x16-C17	C17 - RAL 6017	40	M5	20	13.5	16	4	6	9	11
223443-C1	EWN.40 p-M5x20-C1	C1 - RAL 7021	40	M5	20	13.5	20	4	6	9	11
223443-C2	EWN.40 p-M5x20-C2	C2 - RAL 2004	40	M5	20	13.5	20	4	6	9	11
223443-C3	EWN.40 p-M5x20-C3	C3 - RAL 7035	40	M5	20	13.5	20	4	6	9	11
223443-C4	EWN.40 p-M5x20-C4	C4 - RAL 1021	40	M5	20	13.5	20	4	6	9	11
223443-C5	EWN.40 p-M5x20-C5	C5 - RAL 5024	40	M5	20	13.5	20	4	6	9	11
223443-C6	EWN.40 p-M5x20-C6	C6 - RAL 3000	40	M5	20	13.5	20	4	6	9	11
223443-C17	EWN.40 p-M5x20-C17	C17 - RAL 6017	40	M5	20	13.5	20	4	6	9	11
223447-C1	EWN.40 p-M5x30-C1	C1 - RAL 7021	40	M5	20	13.5	30	4	6	9	17
223447-C2	EWN.40 p-M5x30-C2	C2 - RAL 2004	40	M5	20	13.5	30	4	6	9	17
223447-C3	EWN.40 p-M5x30-C3	C3 - RAL 7035	40	M5	20	13.5	30	4	6	9	17
223447-C4	EWN.40 p-M5x30-C4	C4 - RAL 1021	40	M5	20	13.5	30	4	6	9	17
223447-C5	EWN.40 p-M5x30-C5	C5 - RAL 5024	40	M5	20	13.5	30	4	6	9	17
223447-C6	EWN.40 p-M5x30-C6	C6 - RAL 3000	40	M5	20	13.5	30	4	6	9	17
223447-C17	EWN.40 p-M5x30-C17	C17 - RAL 6017	40	M5	20	13.5	30	4	6	9	17
223451-C1	EWN.40 p-M6x16-C1	C1 - RAL 7021	40	M6	20	13.5	16	4	6	12	13
223451-C2	EWN.40 p-M6x16-C2	C2 - RAL 2004	40	M6	20	13.5	16	4	6	12	13
223451-C3	EWN.40 p-M6x16-C3	C3 - RAL 7035	40	M6	20	13.5	16	4	6	12	13
223451-C4	EWN.40 p-M6x16-C4	C4 - RAL 1021	40	M6	20	13.5	16	4	6	12	13
223451-C5	EWN.40 p-M6x16-C5	C5 - RAL 5024	40	M6	20	13.5	16	4	6	12	13
223451-C6	EWN.40 p-M6x16-C6	C6 - RAL 3000	40	M6	20	13.5	16	4	6	12	13
223451-C17	EWN.40 p-M6x16-C17	C17 - RAL 6017	40	M6	20	13.5	16	4	6	12	13
223453-C1	EWN.40 p-M6x20-C1	C1 - RAL 7021	40	M6	20	13.5	20	4	6	12	13
223453-C2	EWN.40 p-M6x20-C2	C2 - RAL 2004	40	M6	20	13.5	20	4	6	12	13
223453-C3	EWN.40 p-M6x20-C3	C3 - RAL 7035	40	M6	20	13.5	20	4	6	12	13
223453-C4	EWN.40 p-M6x20-C4	C4 - RAL 1021	40	M6	20	13.5	20	4	6	12	13
223453-C5	EWN.40 p-M6x20-C5	C5 - RAL 5024	40	M6	20	13.5	20	4	6	12	13
223453-C6	EWN.40 p-M6x20-C6	C6 - RAL 3000	40	M6	20	13.5	20	4	6	12	13
223453-C17	EWN.40 p-M6x20-C17	C17 - RAL 6017	40	M6	20	13.5	20	4	6	12	13
223455-C1	EWN.40 p-M6x25-C1	C1 - RAL 7021	40	M6	20	13.5	25	4	6	12	13
223455-C2	EWN.40 p-M6x25-C2	C2 - RAL 2004	40	M6	20	13.5	25	4	6	12	13
223455-C3	EWN.40 p-M6x25-C3	C3 - RAL 7035	40	M6	20	13.5	25	4	6	12	13
223455-C4	EWN.40 p-M6x25-C4	C4 - RAL 1021	40	M6	20	13.5	25	4	6	12	13
223455-C5	EWN.40 p-M6x25-C5	C5 - RAL 5024	40	M6	20	13.5	25	4	6	12	13
223455-C6	EWN.40 p-M6x25-C6	C6 - RAL 3000	40	M6	20	13.5	25	4	6	12	13
223455-C17	EWN.40 p-M6x25-C17	C17 - RAL 6017	40	M6	20	13.5	25	4	6	12	13
223457-C1	EWN.40 p-M6x30-C1	C1 - RAL 7021	40	M6	20	13.5	30	4	6	12	14
223457-C2	EWN.40 p-M6x30-C2	C2 - RAL 2004	40	M6	20	13.5	30	4	6	12	14
223457-C3	EWN.40 p-M6x30-C3	C3 - RAL 7035	40	M6	20	13.5	30	4	6	12	14
223457-C4	EWN.40 p-M6x30-C4	C4 - RAL 1021	40	M6	20	13.5	30	4	6	12	14
223457-C5	EWN.40 p-M6x30-C5	C5 - RAL 5024	40	M6	20	13.5	30	4	6	12	14
223457-C6	EWN.40 p-M6x30-C6	C6 - RAL 3000	40	M6	20	13.5	30	4	6	12	14
223457-C17	EWN.40 p-M6x30-C17	C17 - RAL 6017	40	M6	20	13.5	30	4	6	12	14
223459-C1	EWN.40 p-M6x40-C1	C1 - RAL 7021	40	M6	20	13.5	40	4	6	12	16
223459-C2	EWN.40 p-M6x40-C2	C2 - RAL 2004	40	M6	20	13.5	40	4	6	12	16
223459-C3	EWN.40 p-M6x40-C3	C3 - RAL 7035	40	M6	20	13.5	40	4	6	12	16
223459-C4	EWN.40 p-M6x40-C4	C4 - RAL 1021	40	M6	20	13.5	40	4	6	12	16
223459-C5	EWN.40 p-M6x40-C5	C5 - RAL 5024	40	M6	20	13.5	40	4	6	12	15
223459-C6	EWN.40 p-M6x40-C6	C6 - RAL 3000	40	M6	20	13.5	40	4	6	12	16
223459-C17	EWN.40 p-M6x40-C17	C17 - RAL 6017	40	M6	20	13.5	40	4	6	12	16
223461-C1	EWN.40 p-M8x16-C1	C1 - RAL 7021	40	M8	20	13.5	16	4	6	12	14
223461-C2	EWN.40 p-M8x16-C2	C2 - RAL 2004	40	M8	20	13.5	16	4	6	12	14
223461-C3	EWN.40 p-M8x16-C3	C3 - RAL 7035	40	M8	20	13.5	16	4	6	12	14
223461-C4	EWN.40 p-M8x16-C4	C4 - RAL 1021	40	M8	20	13.5	16	4	6	12	14
223461-C5	EWN.40 p-M8x16-C5	C5 - RAL 5024	40	M8	20	13.5	16	4	6	12	14
223461-C6	EWN.40 p-M8x16-C6	C6 - RAL 3000	40	M8	20	13.5	16	4	6	12	14
223461-C17	EWN.40 p-M8x16-C17	C17 - RAL 6017	40	M8	20	13.5	16	4	6	12	14
223463-C1	EWN.40 p-M8x20-C1	C1 - RAL 7021	40	M8	20	13.5	20	4	6	12	14
223463-C2	EWN.40 p-M8x20-C2	C2 - RAL 2004	40	M8	20	13.5	20	4	6	12	14
223463-C3	EWN.40 p-M8x20-C3	C3 - RAL 7035	40	M8	20	13.5	20	4	6	12	14
223463-C4	EWN.40 p-M8x20-C4	C4 - RAL 1021	40	M8	20	13.5	20	4	6	12	14
223463-C5	EWN.40 p-M8x20-C5	C5 - RAL 5024	40	M8	20	13.5	20	4	6	12	14
223463-C6	EWN.40 p-M8x20-C6	C6 - RAL 3000	40	M8	20	13.5	20	4	6	12	14
223463-C17	EWN.40 p-M8x20-C17	C17 - RAL 6017	40	M8	20	13.5	20	4	6	12	14
223465-C1	EWN.40 p-M8x25-C1	C1 - RAL 7021	40	M8	20	13.5	25	4	6	12	14
223465-C2	EWN.40 p-M8x25-C2	C2 - RAL 2004	40	M8	20	13.5	25	4	6	12	14
223465-C3	EWN.40 p-M8x25-C3	C3 - RAL 7035	40	M8	20	13.5	25	4	6	12	14
223465-C4	EWN.40 p-M8x25-C4	C4 - RAL 1021	40	M8	20	13.5	25	4	6	12	14
223465-C5	EWN.40 p-M8x25-C5	C5 - RAL 5024	40	M8	20	13.5	25	4	6	12	14
223465-C6	EWN.40 p-M8x25-C6	C6 - RAL 3000	40	M8	20	13.5	25	4	6	12	14
223465-C17	EWN.40 p-M8x25-C17	C17 - RAL 6017	40	M8	20	13.5	25	4	6	12	14
223467-C1	EWN.40 p-M8x30-C1	C1 - RAL 7021	40	M8	20	13.5	30	4	6	12	16
223467-C2	EWN.40 p-M8x30-C2	C2 - RAL 2004	40	M8	20	13.5	30	4	6	12	16
223467-C3	EWN.40 p-M8x30-C3	C3 - RAL 7035	40	M8	20	13.5	30	4	6	12	16
223467-C4	EWN.40 p-M8x30-C4	C4 - RAL 1021	40	M8	20	13.5	30	4	6	12	16
223467-C5	EWN.40 p-M8x30-C5	C5 - RAL 5024	40	M8	20	13.5	30	4	6	12	16
223467-C6	EWN.40 p-M8x30-C6	C6 - RAL 3000	40	M8	20	13.5	30	4	6	12	16
223467-C17	EWN.40 p-M8x30-C17	C17 - RAL 6017	40	M8	20	13.5	30	4	6	12	16
223469-C1	EWN.40 p-M8x40-C1	C1 - RAL 7021	40	M8	20	13.5	40	4	6	12	18
223469-C2	EWN.40 p-M8x40-C2	C2 - RAL 2004	40	M8	20	13.5	40	4	6	12	16
223469-C3	EWN.40 p-M8x40-C3	C3 - RAL 7035	40	M8	20	13.5	40	4	6	12	16
223469-C4	EWN.40 p-M8x40-C4	C4 - RAL 1021	40	M8	20	13.5	40	4	6	12	16
223469-C5	EWN.40 p-M8x40-C5	C5 - RAL 5024	40	M8	20	13.5	40	4	6	12	16
223469-C6	EWN.40 p-M8x40-C6	C6 - RAL 3000	40	M8	20	13.5	40	4	6	12	16
223469-C17	EWN.40 p-M8x40-C17	C17 - RAL 6017	40	M8	20	13.5	40	4	6	12	16
223511-C1	EWN.48 p-M5x16-C1	C1 - RAL 7021	47	M5	24	13.5	16	5.5	7	9	11
223511-C2	EWN.48 p-M5x16-C2	C2 - RAL 2004	47	M5	24	13.5	16	5.5	7	9	11
223511-C3	EWN.48 p-M5x16-C3	C3 - RAL 7035	47	M5	24	13.5	16	5.5	7	9	11
223511-C4	EWN.48 p-M5x16-C4	C4 - RAL 1021	47	M5	24	13.5	16	5.5	7	9	11
223511-C5	EWN.48 p-M5x16-C5	C5 - RAL 5024	47	M5	24	13.5	16	5.5	7	9	11
223511-C6	EWN.48 p-M5x16-C6	C6 - RAL 3000	47	M5	24	13.5	16	5.5	7	9	11
223511-C17	EWN.48 p-M5x16-C17	C17 - RAL 6017	47	M5	24	13.5	16	5.5	7	9	11
223516-C1	EWN.48 p-M5x20-C1	C1 - RAL 7021	47	M5	24	13.5	20	5.5	7	9	11
223516-C2	EWN.48 p-M5x20-C2	C2 - RAL 2004	47	M5	24	13.5	20	5.5	7	9	11
223516-C3	EWN.48 p-M5x20-C3	C3 - RAL 7035	47	M5	24	13.5	20	5.5	7	9	11
223516-C4	EWN.48 p-M5x20-C4	C4 - RAL 1021	47	M5	24	13.5	20	5.5	7	9	11
223516-C5	EWN.48 p-M5x20-C5	C5 - RAL 5024	47	M5	24	13.5	20	5.5	7	9	11
223516-C6	EWN.48 p-M5x20-C6	C6 - RAL 3000	47	M5	24	13.5	20	5.5	7	9	11
223516-C17	EWN.48 p-M5x20-C17	C17 - RAL 6017	47	M5	24	13.5	20	5.5	7	9	11
223519-C1	EWN.48 p-M5x30-C1	C1 - RAL 7021	47	M5	24	13.5	30	5.5	7	9	13
223519-C2	EWN.48 p-M5x30-C2	C2 - RAL 2004	47	M5	24	13.5	30	5.5	7	9	13
223519-C3	EWN.48 p-M5x30-C3	C3 - RAL 7035	47	M5	24	13.5	30	5.5	7	9	13
223519-C4	EWN.48 p-M5x30-C4	C4 - RAL 1021	47	M5	24	13.5	30	5.5	7	9	13
223519-C5	EWN.48 p-M5x30-C5	C5 - RAL 5024	47	M5	24	13.5	30	5.5	7	9	13
223519-C6	EWN.48 p-M5x30-C6	C6 - RAL 3000	47	M5	24	13.5	30	5.5	7	9	13
223519-C17	EWN.48 p-M5x30-C17	C17 - RAL 6017	47	M5	24	13.5	30	5.5	7	9	13
223526-C1	EWN.48 p-M6x10-C1	C1 - RAL 7021	47	M6	24	13.5	10	5.5	7	12	13
223526-C2	EWN.48 p-M6x10-C2	C2 - RAL 2004	47	M6	24	13.5	10	5.5	7	12	13
223526-C3	EWN.48 p-M6x10-C3	C3 - RAL 7035	47	M6	24	13.5	10	5.5	7	12	13
223526-C4	EWN.48 p-M6x10-C4	C4 - RAL 1021	47	M6	24	13.5	10	5.5	7	12	13
223526-C5	EWN.48 p-M6x10-C5	C5 - RAL 5024	47	M6	24	13.5	10	5.5	7	12	13
223526-C6	EWN.48 p-M6x10-C6	C6 - RAL 3000	47	M6	24	13.5	10	5.5	7	12	13
223526-C17	EWN.48 p-M6x10-C17	C17 - RAL 6017	47	M6	24	13.5	10	5.5	7	12	13
223531-C1	EWN.48 p-M6x16-C1	C1 - RAL 7021	47	M6	24	13.5	16	5.5	7	12	12
223531-C2	EWN.48 p-M6x16-C2	C2 - RAL 2004	47	M6	24	13.5	16	5.5	7	12	12
223531-C3	EWN.48 p-M6x16-C3	C3 - RAL 7035	47	M6	24	13.5	16	5.5	7	12	12
223531-C4	EWN.48 p-M6x16-C4	C4 - RAL 1021	47	M6	24	13.5	16	5.5	7	12	12
223531-C5	EWN.48 p-M6x16-C5	C5 - RAL 5024	47	M6	24	13.5	16	5.5	7	12	12
223531-C6	EWN.48 p-M6x16-C6	C6 - RAL 3000	47	M6	24	13.5	16	5.5	7	12	12
223531-C17	EWN.48 p-M6x16-C17	C17 - RAL 6017	47	M6	24	13.5	16	5.5	7	12	12
223536-C1	EWN.48 p-M6x20-C1	C1 - RAL 7021	47	M6	24	13.5	20	5.5	7	12	13
223536-C2	EWN.48 p-M6x20-C2	C2 - RAL 2004	47	M6	24	13.5	20	5.5	7	12	13
223536-C3	EWN.48 p-M6x20-C3	C3 - RAL 7035	47	M6	24	13.5	20	5.5	7	12	13
223536-C4	EWN.48 p-M6x20-C4	C4 - RAL 1021	47	M6	24	13.5	20	5.5	7	12	13
223536-C5	EWN.48 p-M6x20-C5	C5 - RAL 5024	47	M6	24	13.5	20	5.5	7	12	13
223536-C6	EWN.48 p-M6x20-C6	C6 - RAL 3000	47	M6	24	13.5	20	5.5	7	12	13
223536-C17	EWN.48 p-M6x20-C17	C17 - RAL 6017	47	M6	24	13.5	20	5.5	7	12	13
223541-C1	EWN.48 p-M6x25-C1	C1 - RAL 7021	47	M6	24	13.5	25	5.5	7	12	14
223541-C2	EWN.48 p-M6x25-C2	C2 - RAL 2004	47	M6	24	13.5	25	5.5	7	12	14
223541-C3	EWN.48 p-M6x25-C3	C3 - RAL 7035	47	M6	24	13.5	25	5.5	7	12	14
223541-C4	EWN.48 p-M6x25-C4	C4 - RAL 1021	47	M6	24	13.5	25	5.5	7	12	14
223541-C5	EWN.48 p-M6x25-C5	C5 - RAL 5024	47	M6	24	13.5	25	5.5	7	12	14
223541-C6	EWN.48 p-M6x25-C6	C6 - RAL 3000	47	M6	24	13.5	25	5.5	7	12	14
223541-C17	EWN.48 p-M6x25-C17	C17 - RAL 6017	47	M6	24	13.5	25	5.5	7	12	14
223546-C1	EWN.48 p-M6x30-C1	C1 - RAL 7021	47	M6	24	13.5	30	5.5	7	12	15
223546-C2	EWN.48 p-M6x30-C2	C2 - RAL 2004	47	M6	24	13.5	30	5.5	7	12	15
223546-C3	EWN.48 p-M6x30-C3	C3 - RAL 7035	47	M6	24	13.5	30	5.5	7	12	15
223546-C4	EWN.48 p-M6x30-C4	C4 - RAL 1021	47	M6	24	13.5	30	5.5	7	12	15
223546-C5	EWN.48 p-M6x30-C5	C5 - RAL 5024	47	M6	24	13.5	30	5.5	7	12	15
223546-C6	EWN.48 p-M6x30-C6	C6 - RAL 3000	47	M6	24	13.5	30	5.5	7	12	15
223546-C17	EWN.48 p-M6x30-C17	C17 - RAL 6017	47	M6	24	13.5	30	5.5	7	12	15
223556-C1	EWN.48 p-M6x40-C1	C1 - RAL 7021	47	M6	24	13.5	40	5.5	7	12	16
223556-C2	EWN.48 p-M6x40-C2	C2 - RAL 2004	47	M6	24	13.5	40	5.5	7	12	16
223556-C3	EWN.48 p-M6x40-C3	C3 - RAL 7035	47	M6	24	13.5	40	5.5	7	12	16
223556-C4	EWN.48 p-M6x40-C4	C4 - RAL 1021	47	M6	24	13.5	40	5.5	7	12	16
223556-C5	EWN.48 p-M6x40-C5	C5 - RAL 5024	47	M6	24	13.5	40	5.5	7	12	16
223556-C6	EWN.48 p-M6x40-C6	C6 - RAL 3000	47	M6	24	13.5	40	5.5	7	12	16
223556-C17	EWN.48 p-M6x40-C17	C17 - RAL 6017	47	M6	24	13.5	40	5.5	7	12	16
223565-C1	EWN.48 p-M8x16-C1	C1 - RAL 7021	47	M8	24	13.5	16	5.5	7	12	15
223565-C2	EWN.48 p-M8x16-C2	C2 - RAL 2004	47	M8	24	13.5	16	5.5	7	12	15
223565-C3	EWN.48 p-M8x16-C3	C3 - RAL 7035	47	M8	24	13.5	16	5.5	7	12	15
223565-C4	EWN.48 p-M8x16-C4	C4 - RAL 1021	47	M8	24	13.5	16	5.5	7	12	15
223565-C5	EWN.48 p-M8x16-C5	C5 - RAL 5024	47	M8	24	13.5	16	5.5	7	12	15
223565-C6	EWN.48 p-M8x16-C6	C6 - RAL 3000	47	M8	24	13.5	16	5.5	7	12	15
223565-C17	EWN.48 p-M8x16-C17	C17 - RAL 6017	47	M8	24	13.5	16	5.5	7	12	15
223571-C1	EWN.48 p-M8x20-C1	C1 - RAL 7021	47	M8	24	13.5	20	5.5	7	12	17
223571-C2	EWN.48 p-M8x20-C2	C2 - RAL 2004	47	M8	24	13.5	20	5.5	7	12	13
223571-C3	EWN.48 p-M8x20-C3	C3 - RAL 7035	47	M8	24	13.5	20	5.5	7	12	14
223571-C4	EWN.48 p-M8x20-C4	C4 - RAL 1021	47	M8	24	13.5	20	5.5	7	12	14
223571-C5	EWN.48 p-M8x20-C5	C5 - RAL 5024	47	M8	24	13.5	20	5.5	7	12	14
223571-C6	EWN.48 p-M8x20-C6	C6 - RAL 3000	47	M8	24	13.5	20	5.5	7	12	14
223571-C17	EWN.48 p-M8x20-C17	C17 - RAL 6017	47	M8	24	13.5	20	5.5	7	12	14
223572-C1	EWN.48 p-M8x25-C1	C1 - RAL 7021	47	M8	24	13.5	25	5.5	7	12	18
223572-C2	EWN.48 p-M8x25-C2	C2 - RAL 2004	47	M8	24	13.5	25	5.5	7	12	18
223572-C3	EWN.48 p-M8x25-C3	C3 - RAL 7035	47	M8	24	13.5	25	5.5	7	12	18
223572-C4	EWN.48 p-M8x25-C4	C4 - RAL 1021	47	M8	24	13.5	25	5.5	7	12	18
223572-C5	EWN.48 p-M8x25-C5	C5 - RAL 5024	47	M8	24	13.5	25	5.5	7	12	18
223572-C6	EWN.48 p-M8x25-C6	C6 - RAL 3000	47	M8	24	13.5	25	5.5	7	12	18
223572-C17	EWN.48 p-M8x25-C17	C17 - RAL 6017	47	M8	24	13.5	25	5.5	7	12	18
223573-C1	EWN.48 p-M8x30-C1	C1 - RAL 7021	47	M8	24	13.5	30	5.5	7	12	20
223573-C2	EWN.48 p-M8x30-C2	C2 - RAL 2004	47	M8	24	13.5	30	5.5	7	12	20
223573-C3	EWN.48 p-M8x30-C3	C3 - RAL 7035	47	M8	24	13.5	30	5.5	7	12	20
223573-C4	EWN.48 p-M8x30-C4	C4 - RAL 1021	47	M8	24	13.5	30	5.5	7	12	20
223573-C5	EWN.48 p-M8x30-C5	C5 - RAL 5024	47	M8	24	13.5	30	5.5	7	12	20
223573-C6	EWN.48 p-M8x30-C6	C6 - RAL 3000	47	M8	24	13.5	30	5.5	7	12	20
223573-C17	EWN.48 p-M8x30-C17	C17 - RAL 6017	47	M8	24	13.5	30	5.5	7	12	20
223576-C1	EWN.48 p-M8x40-C1	C1 - RAL 7021	47	M8	24	13.5	40	5.5	7	12	23
223576-C2	EWN.48 p-M8x40-C2	C2 - RAL 2004	47	M8	24	13.5	40	5.5	7	12	23
223576-C3	EWN.48 p-M8x40-C3	C3 - RAL 7035	47	M8	24	13.5	40	5.5	7	12	23
223576-C4	EWN.48 p-M8x40-C4	C4 - RAL 1021	47	M8	24	13.5	40	5.5	7	12	23
223576-C5	EWN.48 p-M8x40-C5	C5 - RAL 5024	47	M8	24	13.5	40	5.5	7	12	23
223576-C6	EWN.48 p-M8x40-C6	C6 - RAL 3000	47	M8	24	13.5	40	5.5	7	12	23
223576-C17	EWN.48 p-M8x40-C17	C17 - RAL 6017	47	M8	24	13.5	40	5.5	7	12	23
223616-C1	EWN.55 p-M8x10-C1	C1 - RAL 7021	55	M8	28	16	10	6.5	8	22	24
223616-C2	EWN.55 p-M8x10-C2	C2 - RAL 2004	55	M8	28	16	10	6.5	8	22	26
223616-C3	EWN.55 p-M8x10-C3	C3 - RAL 7035	55	M8	28	16	10	6.5	8	22	26
223616-C4	EWN.55 p-M8x10-C4	C4 - RAL 1021	55	M8	28	16	10	6.5	8	22	26
223616-C5	EWN.55 p-M8x10-C5	C5 - RAL 5024	55	M8	28	16	10	6.5	8	22	26
223616-C6	EWN.55 p-M8x10-C6	C6 - RAL 3000	55	M8	28	16	10	6.5	8	22	26
223616-C17	EWN.55 p-M8x10-C17	C17 - RAL 6017	55	M8	28	16	10	6.5	8	22	26
223621-C1	EWN.55 p-M8x16-C1	C1 - RAL 7021	55	M8	28	16	16	6.5	8	22	24
223621-C2	EWN.55 p-M8x16-C2	C2 - RAL 2004	55	M8	28	16	16	6.5	8	22	26
223621-C3	EWN.55 p-M8x16-C3	C3 - RAL 7035	55	M8	28	16	16	6.5	8	22	26
223621-C4	EWN.55 p-M8x16-C4	C4 - RAL 1021	55	M8	28	16	16	6.5	8	22	26
223621-C5	EWN.55 p-M8x16-C5	C5 - RAL 5024	55	M8	28	16	16	6.5	8	22	26
223621-C6	EWN.55 p-M8x16-C6	C6 - RAL 3000	55	M8	28	16	16	6.5	8	22	26
223621-C17	EWN.55 p-M8x16-C17	C17 - RAL 6017	55	M8	28	16	16	6.5	8	22	26
223626-C1	EWN.55 p-M8x20-C1	C1 - RAL 7021	55	M8	28	16	20	6.5	8	22	23
223626-C2	EWN.55 p-M8x20-C2	C2 - RAL 2004	55	M8	28	16	20	6.5	8	22	23
223626-C3	EWN.55 p-M8x20-C3	C3 - RAL 7035	55	M8	28	16	20	6.5	8	22	23
223626-C4	EWN.55 p-M8x20-C4	C4 - RAL 1021	55	M8	28	16	20	6.5	8	22	23
223626-C5	EWN.55 p-M8x20-C5	C5 - RAL 5024	55	M8	28	16	20	6.5	8	22	23
223626-C6	EWN.55 p-M8x20-C6	C6 - RAL 3000	55	M8	28	16	20	6.5	8	22	23
223626-C17	EWN.55 p-M8x20-C17	C17 - RAL 6017	55	M8	28	16	20	6.5	8	22	23
223636-C1	EWN.55 p-M8x30-C1	C1 - RAL 7021	55	M8	28	16	30	6.5	8	22	26
223636-C2	EWN.55 p-M8x30-C2	C2 - RAL 2004	55	M8	28	16	30	6.5	8	22	26
223636-C3	EWN.55 p-M8x30-C3	C3 - RAL 7035	55	M8	28	16	30	6.5	8	22	26
223636-C4	EWN.55 p-M8x30-C4	C4 - RAL 1021	55	M8	28	16	30	6.5	8	22	26
223636-C5	EWN.55 p-M8x30-C5	C5 - RAL 5024	55	M8	28	16	30	6.5	8	22	26
223636-C6	EWN.55 p-M8x30-C6	C6 - RAL 3000	55	M8	28	16	30	6.5	8	22	26
223636-C17	EWN.55 p-M8x30-C17	C17 - RAL 6017	55	M8	28	16	30	6.5	8	22	26
223646-C1	EWN.55 p-M8x40-C1	C1 - RAL 7021	55	M8	28	16	40	6.5	8	22	29
223646-C2	EWN.55 p-M8x40-C2	C2 - RAL 2004	55	M8	28	16	40	6.5	8	22	29
223646-C3	EWN.55 p-M8x40-C3	C3 - RAL 7035	55	M8	28	16	40	6.5	8	22	29
223646-C4	EWN.55 p-M8x40-C4	C4 - RAL 1021	55	M8	28	16	40	6.5	8	22	29
223646-C5	EWN.55 p-M8x40-C5	C5 - RAL 5024	55	M8	28	16	40	6.5	8	22	29
223646-C6	EWN.55 p-M8x40-C6	C6 - RAL 3000	55	M8	28	16	40	6.5	8	22	29
223646-C17	EWN.55 p-M8x40-C17	C17 - RAL 6017	55	M8	28	16	40	6.5	8	22	29
223666-C1	EWN.55 p-M10x20-C1	C1 - RAL 7021	55	M10	28	16	20	6.5	8	25	30
223666-C2	EWN.55 p-M10x20-C2	C2 - RAL 2004	55	M10	28	16	20	6.5	8	25	30
223666-C3	EWN.55 p-M10x20-C3	C3 - RAL 7035	55	M10	28	16	20	6.5	8	25	30
223666-C4	EWN.55 p-M10x20-C4	C4 - RAL 1021	55	M10	28	16	20	6.5	8	25	30
223666-C5	EWN.55 p-M10x20-C5	C5 - RAL 5024	55	M10	28	16	20	6.5	8	25	30
223666-C6	EWN.55 p-M10x20-C6	C6 - RAL 3000	55	M10	28	16	20	6.5	8	25	30
223666-C17	EWN.55 p-M10x20-C17	C17 - RAL 6017	55	M10	28	16	20	6.5	8	25	30
223676-C1	EWN.55 p-M10x30-C1	C1 - RAL 7021	55	M10	28	16	30	6.5	8	25	35
223676-C2	EWN.55 p-M10x30-C2	C2 - RAL 2004	55	M10	28	16	30	6.5	8	25	35
223676-C3	EWN.55 p-M10x30-C3	C3 - RAL 7035	55	M10	28	16	30	6.5	8	25	35
223676-C4	EWN.55 p-M10x30-C4	C4 - RAL 1021	55	M10	28	16	30	6.5	8	25	35
223676-C5	EWN.55 p-M10x30-C5	C5 - RAL 5024	55	M10	28	16	30	6.5	8	25	35
223676-C6	EWN.55 p-M10x30-C6	C6 - RAL 3000	55	M10	28	16	30	6.5	8	25	35
223676-C17	EWN.55 p-M10x30-C17	C17 - RAL 6017	55	M10	28	16	30	6.5	8	25	35
223686-C1	EWN.55 p-M10x40-C1	C1 - RAL 7021	55	M10	28	16	40	6.5	8	25	40
223686-C2	EWN.55 p-M10x40-C2	C2 - RAL 2004	55	M10	28	16	40	6.5	8	25	40
223686-C3	EWN.55 p-M10x40-C3	C3 - RAL 7035	55	M10	28	16	40	6.5	8	25	40
223686-C4	EWN.55 p-M10x40-C4	C4 - RAL 1021	55	M10	28	16	40	6.5	8	25	40
223686-C5	EWN.55 p-M10x40-C5	C5 - RAL 5024	55	M10	28	16	40	6.5	8	25	40
223686-C6	EWN.55 p-M10x40-C6	C6 - RAL 3000	55	M10	28	16	40	6.5	8	25	40
223686-C17	EWN.55 p-M10x40-C17	C17 - RAL 6017	55	M10	28	16	40	6.5	8	25	40
223726-C1	EWN.63 p-M8x20-C1	C1 - RAL 7021	63	M8	32	19	20	7.5	9	32	24
223726-C2	EWN.63 p-M8x20-C2	C2 - RAL 2004	63	M8	32	19	20	7.5	9	32	24
223726-C3	EWN.63 p-M8x20-C3	C3 - RAL 7035	63	M8	32	19	20	7.5	9	32	24
223726-C4	EWN.63 p-M8x20-C4	C4 - RAL 1021	63	M8	32	19	20	7.5	9	32	24
223726-C5	EWN.63 p-M8x20-C5	C5 - RAL 5024	63	M8	32	19	20	7.5	9	32	24
223726-C6	EWN.63 p-M8x20-C6	C6 - RAL 3000	63	M8	32	19	20	7.5	9	32	24
223726-C17	EWN.63 p-M8x20-C17	C17 - RAL 6017	63	M8	32	19	20	7.5	9	32	24
223736-C1	EWN.63 p-M8x30-C1	C1 - RAL 7021	63	M8	32	19	30	7.5	9	32	32
223736-C2	EWN.63 p-M8x30-C2	C2 - RAL 2004	63	M8	32	19	30	7.5	9	32	32
223736-C3	EWN.63 p-M8x30-C3	C3 - RAL 7035	63	M8	32	19	30	7.5	9	32	32
223736-C4	EWN.63 p-M8x30-C4	C4 - RAL 1021	63	M8	32	19	30	7.5	9	32	32
223736-C5	EWN.63 p-M8x30-C5	C5 - RAL 5024	63	M8	32	19	30	7.5	9	32	32
223736-C6	EWN.63 p-M8x30-C6	C6 - RAL 3000	63	M8	32	19	30	7.5	9	32	32
223736-C17	EWN.63 p-M8x30-C17	C17 - RAL 6017	63	M8	32	19	30	7.5	9	32	32
223746-C1	EWN.63 p-M8x40-C1	C1 - RAL 7021	63	M8	32	19	40	7.5	9	32	26
223746-C2	EWN.63 p-M8x40-C2	C2 - RAL 2004	63	M8	32	19	40	7.5	9	32	26
223746-C3	EWN.63 p-M8x40-C3	C3 - RAL 7035	63	M8	32	19	40	7.5	9	32	26
223746-C4	EWN.63 p-M8x40-C4	C4 - RAL 1021	63	M8	32	19	40	7.5	9	32	26
223746-C5	EWN.63 p-M8x40-C5	C5 - RAL 5024	63	M8	32	19	40	7.5	9	32	26
223746-C6	EWN.63 p-M8x40-C6	C6 - RAL 3000	63	M8	32	19	40	7.5	9	32	26
223746-C17	EWN.63 p-M8x40-C17	C17 - RAL 6017	63	M8	32	19	40	7.5	9	32	26
223756-C1	EWN.63 p-M10x20-C1	C1 - RAL 7021	63	M10	32	19	20	7.5	9	48	30
223756-C2	EWN.63 p-M10x20-C2	C2 - RAL 2004	63	M10	32	19	20	7.5	9	48	30
223756-C3	EWN.63 p-M10x20-C3	C3 - RAL 7035	63	M10	32	19	20	7.5	9	48	30
223756-C4	EWN.63 p-M10x20-C4	C4 - RAL 1021	63	M10	32	19	20	7.5	9	48	30
223756-C5	EWN.63 p-M10x20-C5	C5 - RAL 5024	63	M10	32	19	20	7.5	9	48	30
223756-C6	EWN.63 p-M10x20-C6	C6 - RAL 3000	63	M10	32	19	20	7.5	9	48	30
223756-C17	EWN.63 p-M10x20-C17	C17 - RAL 6017	63	M10	32	19	20	7.5	9	48	30
223766-C1	EWN.63 p-M10x30-C1	C1 - RAL 7021	63	M10	32	19	30	7.5	9	48	35
223766-C2	EWN.63 p-M10x30-C2	C2 - RAL 2004	63	M10	32	19	30	7.5	9	48	35
223766-C3	EWN.63 p-M10x30-C3	C3 - RAL 7035	63	M10	32	19	30	7.5	9	48	35
223766-C4	EWN.63 p-M10x30-C4	C4 - RAL 1021	63	M10	32	19	30	7.5	9	48	35
223766-C5	EWN.63 p-M10x30-C5	C5 - RAL 5024	63	M10	32	19	30	7.5	9	48	35
223766-C6	EWN.63 p-M10x30-C6	C6 - RAL 3000	63	M10	32	19	30	7.5	9	48	35
223766-C17	EWN.63 p-M10x30-C17	C17 - RAL 6017	63	M10	32	19	30	7.5	9	48	35
223776-C1	EWN.63 p-M10x40-C1	C1 - RAL 7021	63	M10	32	19	40	7.5	9	48	40
223776-C2	EWN.63 p-M10x40-C2	C2 - RAL 2004	63	M10	32	19	40	7.5	9	48	40
223776-C3	EWN.63 p-M10x40-C3	C3 - RAL 7035	63	M10	32	19	40	7.5	9	48	40
223776-C4	EWN.63 p-M10x40-C4	C4 - RAL 1021	63	M10	32	19	40	7.5	9	48	40
223776-C5	EWN.63 p-M10x40-C5	C5 - RAL 5024	63	M10	32	19	40	7.5	9	48	40
223776-C6	EWN.63 p-M10x40-C6	C6 - RAL 3000	63	M10	32	19	40	7.5	9	48	40
223776-C17	EWN.63 p-M10x40-C17	C17 - RAL 6017	63	M10	32	19	40	7.5	9	48	40
223806-C1	EWN.70 p-M8x20-C1	C1 - RAL 7021	70	M8	36	20	20	8	10	32	34
223806-C2	EWN.70 p-M8x20-C2	C2 - RAL 2004	70	M8	36	20	20	8	10	32	34
223806-C3	EWN.70 p-M8x20-C3	C3 - RAL 7035	70	M8	36	20	20	8	10	32	34
223806-C4	EWN.70 p-M8x20-C4	C4 - RAL 1021	70	M8	36	20	20	8	10	32	34
223806-C5	EWN.70 p-M8x20-C5	C5 - RAL 5024	70	M8	36	20	20	8	10	32	34
223806-C6	EWN.70 p-M8x20-C6	C6 - RAL 3000	70	M8	36	20	20	8	10	32	34
223806-C17	EWN.70 p-M8x20-C17	C17 - RAL 6017	70	M8	36	20	20	8	10	32	34
223816-C1	EWN.70 p-M8x30-C1	C1 - RAL 7021	70	M8	36	20	30	8	10	32	37
223816-C2	EWN.70 p-M8x30-C2	C2 - RAL 2004	70	M8	36	20	30	8	10	32	41
223816-C3	EWN.70 p-M8x30-C3	C3 - RAL 7035	70	M8	36	20	30	8	10	32	41
223816-C4	EWN.70 p-M8x30-C4	C4 - RAL 1021	70	M8	36	20	30	8	10	32	41
223816-C5	EWN.70 p-M8x30-C5	C5 - RAL 5024	70	M8	36	20	30	8	10	32	41
223816-C6	EWN.70 p-M8x30-C6	C6 - RAL 3000	70	M8	36	20	30	8	10	32	41
223816-C17	EWN.70 p-M8x30-C17	C17 - RAL 6017	70	M8	36	20	30	8	10	32	41
223826-C1	EWN.70 p-M8x40-C1	C1 - RAL 7021	70	M8	36	20	40	8	10	32	38
223826-C2	EWN.70 p-M8x40-C2	C2 - RAL 2004	70	M8	36	20	40	8	10	32	41
223826-C3	EWN.70 p-M8x40-C3	C3 - RAL 7035	70	M8	36	20	40	8	10	32	41
223826-C4	EWN.70 p-M8x40-C4	C4 - RAL 1021	70	M8	36	20	40	8	10	32	41
223826-C5	EWN.70 p-M8x40-C5	C5 - RAL 5024	70	M8	36	20	40	8	10	32	41
223826-C6	EWN.70 p-M8x40-C6	C6 - RAL 3000	70	M8	36	20	40	8	10	32	41
223826-C17	EWN.70 p-M8x40-C17	C17 - RAL 6017	70	M8	36	20	40	8	10	32	41
223856-C1	EWN.70 p-M10x20-C1	C1 - RAL 7021	70	M10	36	20	20	8	10	48	42
223856-C2	EWN.70 p-M10x20-C2	C2 - RAL 2004	70	M10	36	20	20	8	10	48	41
223856-C3	EWN.70 p-M10x20-C3	C3 - RAL 7035	70	M10	36	20	20	8	10	48	43
223856-C4	EWN.70 p-M10x20-C4	C4 - RAL 1021	70	M10	36	20	20	8	10	48	44
223856-C5	EWN.70 p-M10x20-C5	C5 - RAL 5024	70	M10	36	20	20	8	10	48	41
223856-C6	EWN.70 p-M10x20-C6	C6 - RAL 3000	70	M10	36	20	20	8	10	48	41
223856-C17	EWN.70 p-M10x20-C17	C17 - RAL 6017	70	M10	36	20	20	8	10	48	41
223866-C1	EWN.70 p-M10x30-C1	C1 - RAL 7021	70	M10	36	20	30	8	10	48	47
223866-C2	EWN.70 p-M10x30-C2	C2 - RAL 2004	70	M10	36	20	30	8	10	48	47
223866-C3	EWN.70 p-M10x30-C3	C3 - RAL 7035	70	M10	36	20	30	8	10	48	47
223866-C4	EWN.70 p-M10x30-C4	C4 - RAL 1021	70	M10	36	20	30	8	10	48	47
223866-C5	EWN.70 p-M10x30-C5	C5 - RAL 5024	70	M10	36	20	30	8	10	48	47
223866-C6	EWN.70 p-M10x30-C6	C6 - RAL 3000	70	M10	36	20	30	8	10	48	47
223866-C17	EWN.70 p-M10x30-C17	C17 - RAL 6017	70	M10	36	20	30	8	10	48	47
223876-C1	EWN.70 p-M10x40-C1	C1 - RAL 7021	70	M10	36	20	40	8	10	48	52
223876-C2	EWN.70 p-M10x40-C2	C2 - RAL 2004	70	M10	36	20	40	8	10	48	51
223876-C3	EWN.70 p-M10x40-C3	C3 - RAL 7035	70	M10	36	20	40	8	10	48	51
223876-C4	EWN.70 p-M10x40-C4	C4 - RAL 1021	70	M10	36	20	40	8	10	48	51
223876-C5	EWN.70 p-M10x40-C5	C5 - RAL 5024	70	M10	36	20	40	8	10	48	51
223876-C6	EWN.70 p-M10x40-C6	C6 - RAL 3000	70	M10	36	20	40	8	10	48	51
223876-C17	EWN.70 p-M10x40-C17	C17 - RAL 6017	70	M10	36	20	40	8	10	48	51

form-enquire-bg

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.

Related Products
