EWN.
Wing knobs
Technopolymer

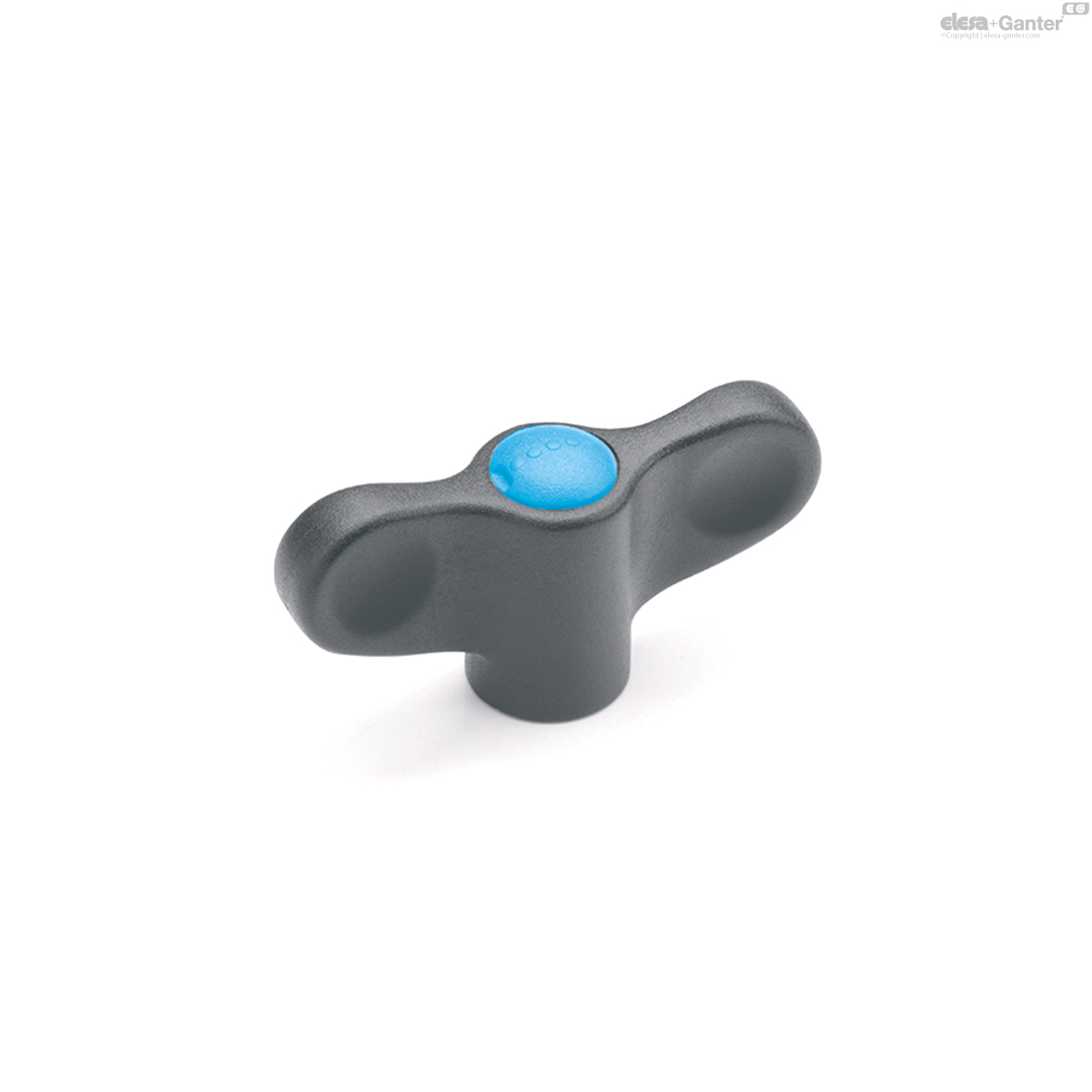

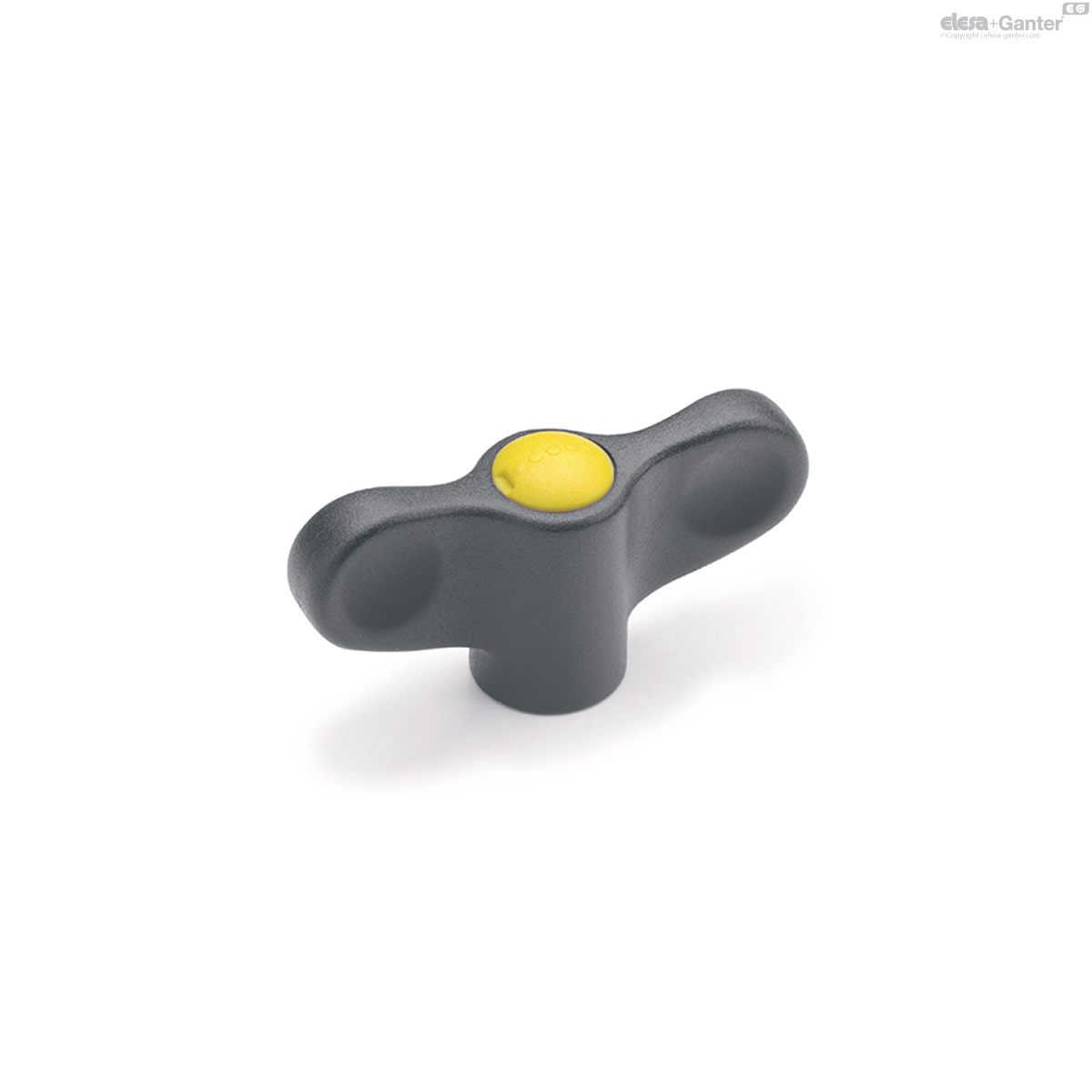

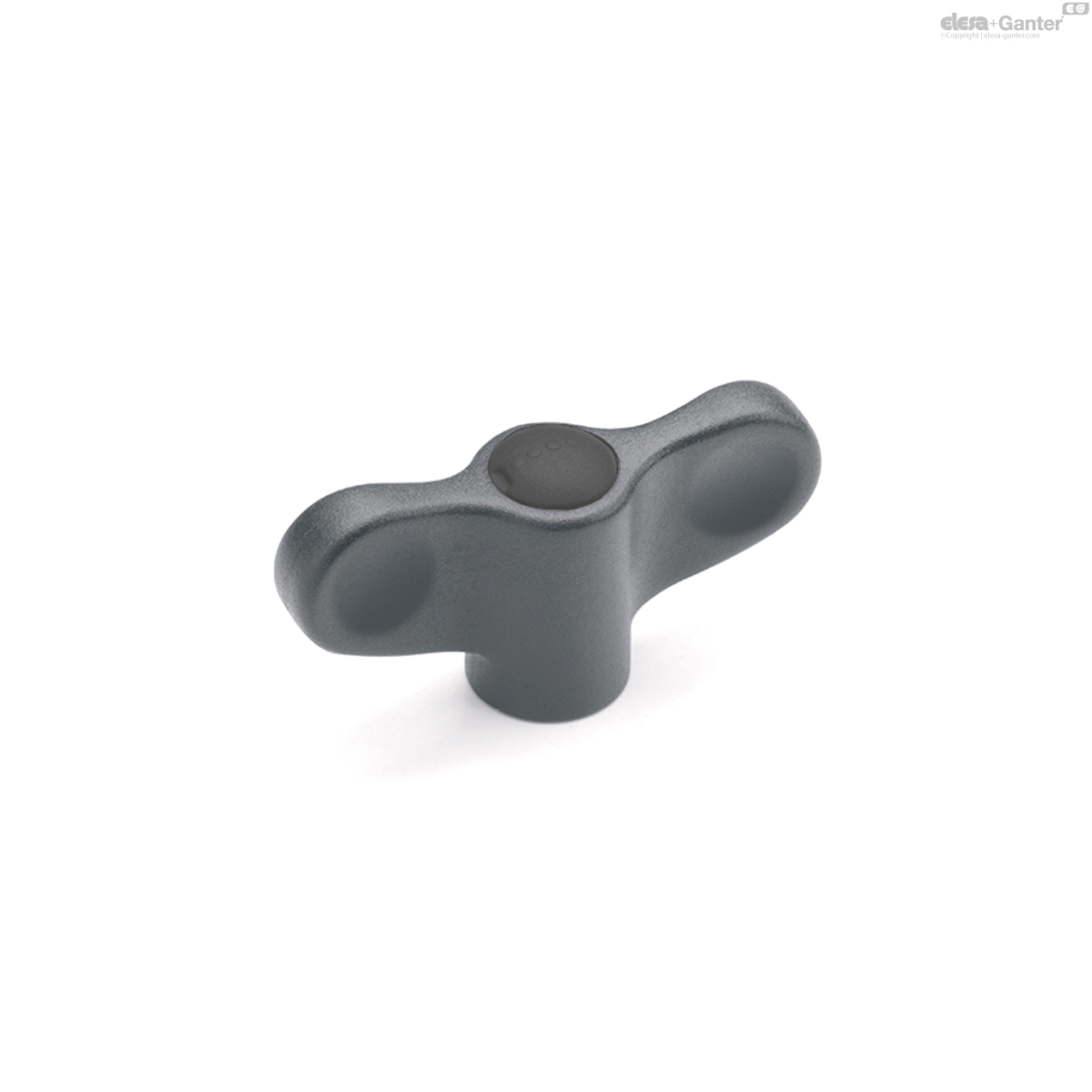

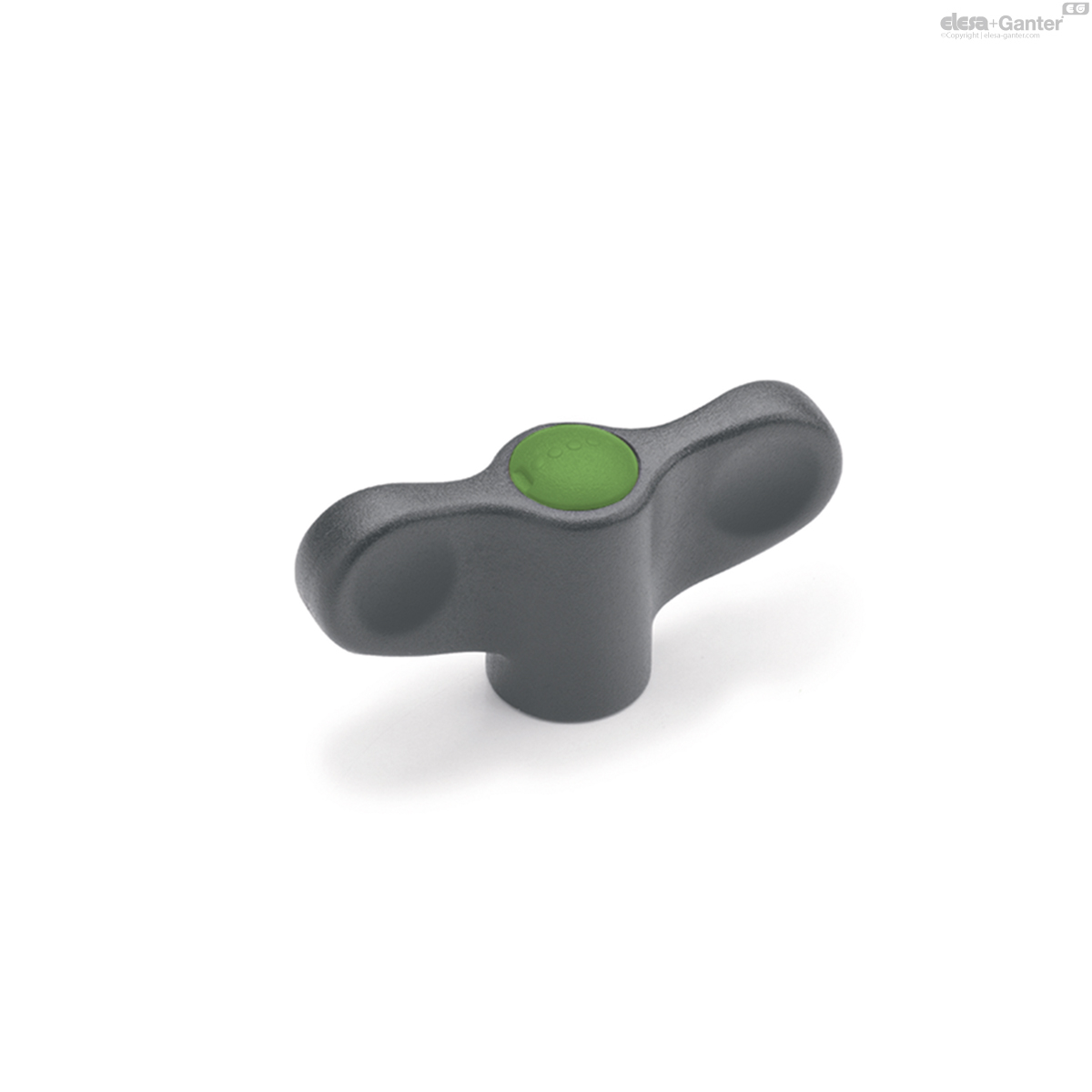

EWN-B
Wing knobs
Brass boss, threaded hole, with cap
EWN-SST
Wing knobs
Stainless steel boss, threaded hole, with cap

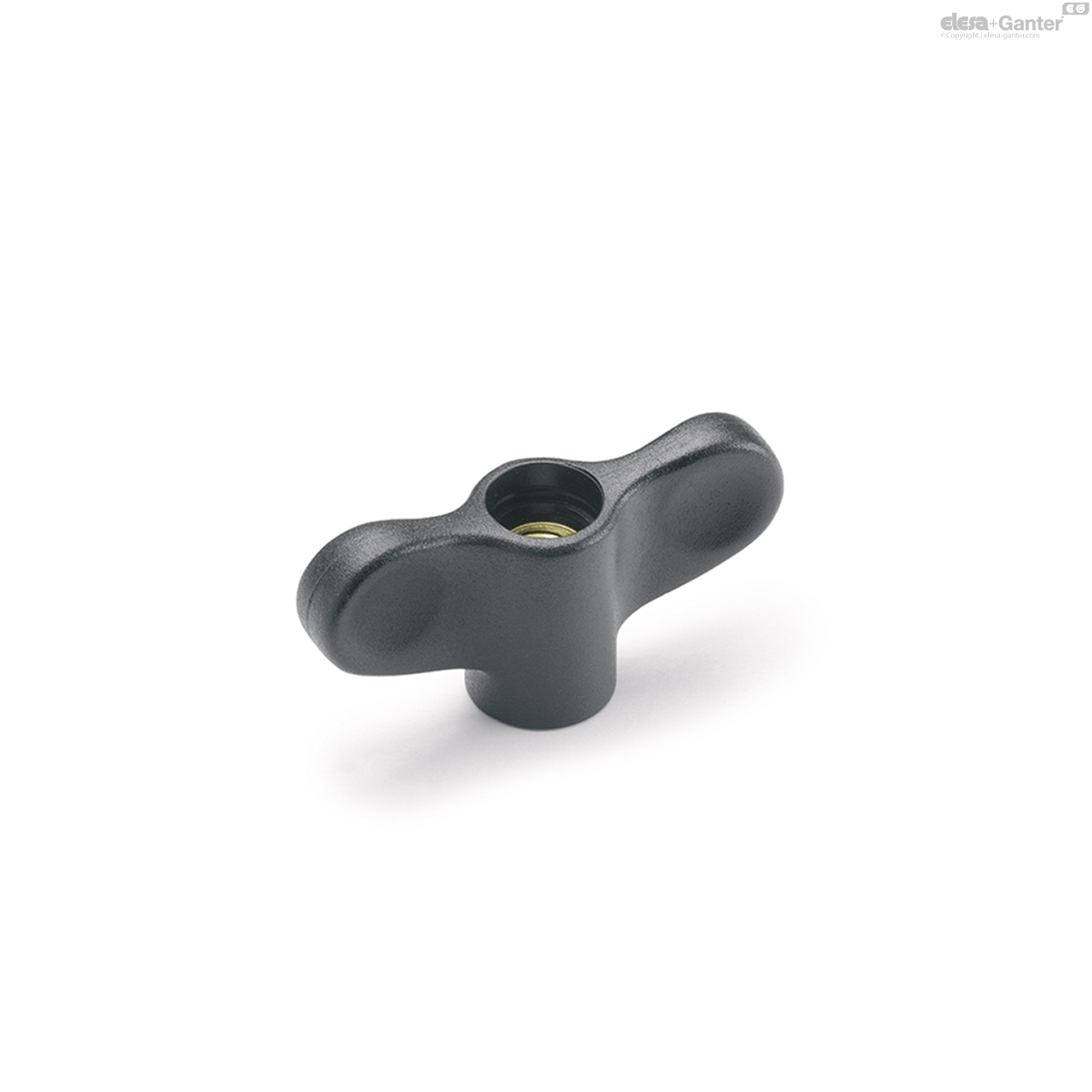

EWN-FP
Wing knobs
Brass boss, threaded hole, without cap
EWN-SST-FP
Wing knobs
Stainless steel boss, threaded hole, without cap

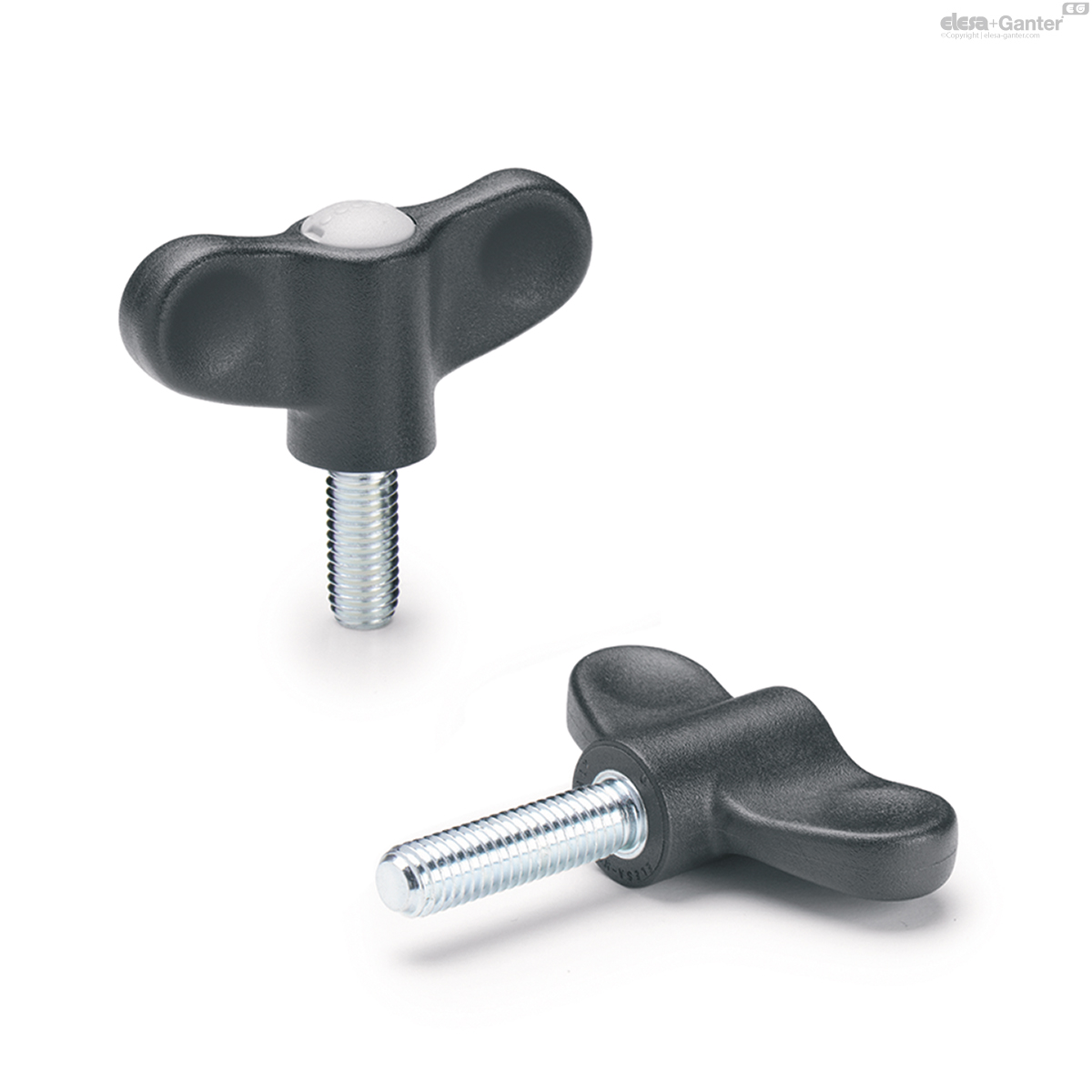

EWN-p
Wing knobs
Zinc-plated steel threaded stud

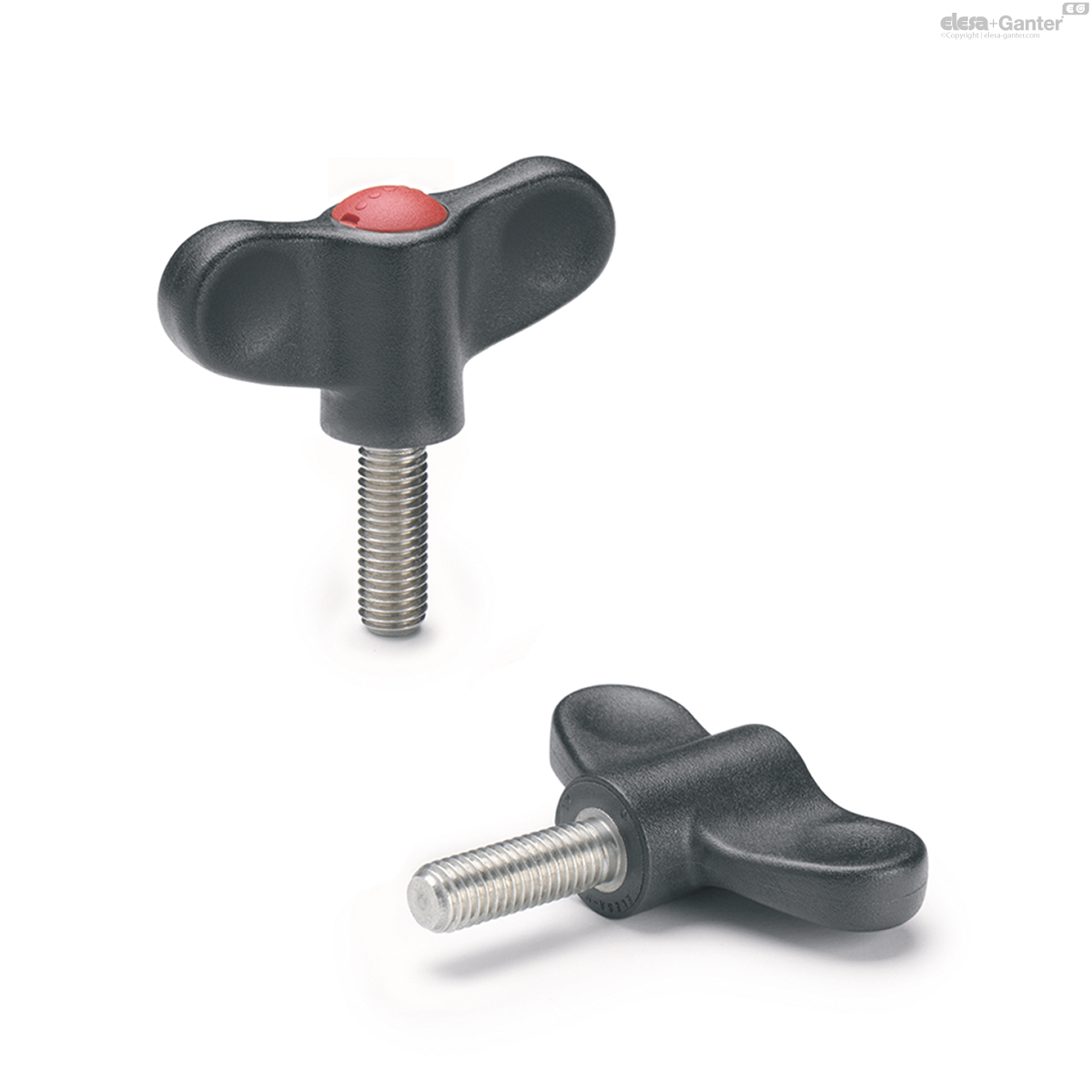

EWN-SST-p
Wing knobs
Stainless steel threaded stud
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.
Boss cap
- ECA.W:Â glass-fibre reinforced polyamide based (PA) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied, removable by a screwdriver.
Available also as accessory sold separately (see table).
Standard executions
- EWN-B: brass boss, threaded pass-through hole, with cap.
- EWN-SST: AISI 303 stainless steel boss, threaded-pass hole, with cap.
- EWN-FP: brass boss, threaded pass-through hole, without cap.
- EWN-SST-FP: AISI 303 stainless steel boss, threaded pass-through hole without cap.
- EWN-p: zinc-plated steel threaded stud with chamfered flat end as in UNI 947 : ISO 4753 (see Technical data), with closing cap.
- EWN-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data), with closing cap.
Accessories on request
Accessories on request
- ECA.W:Â glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly (see table).

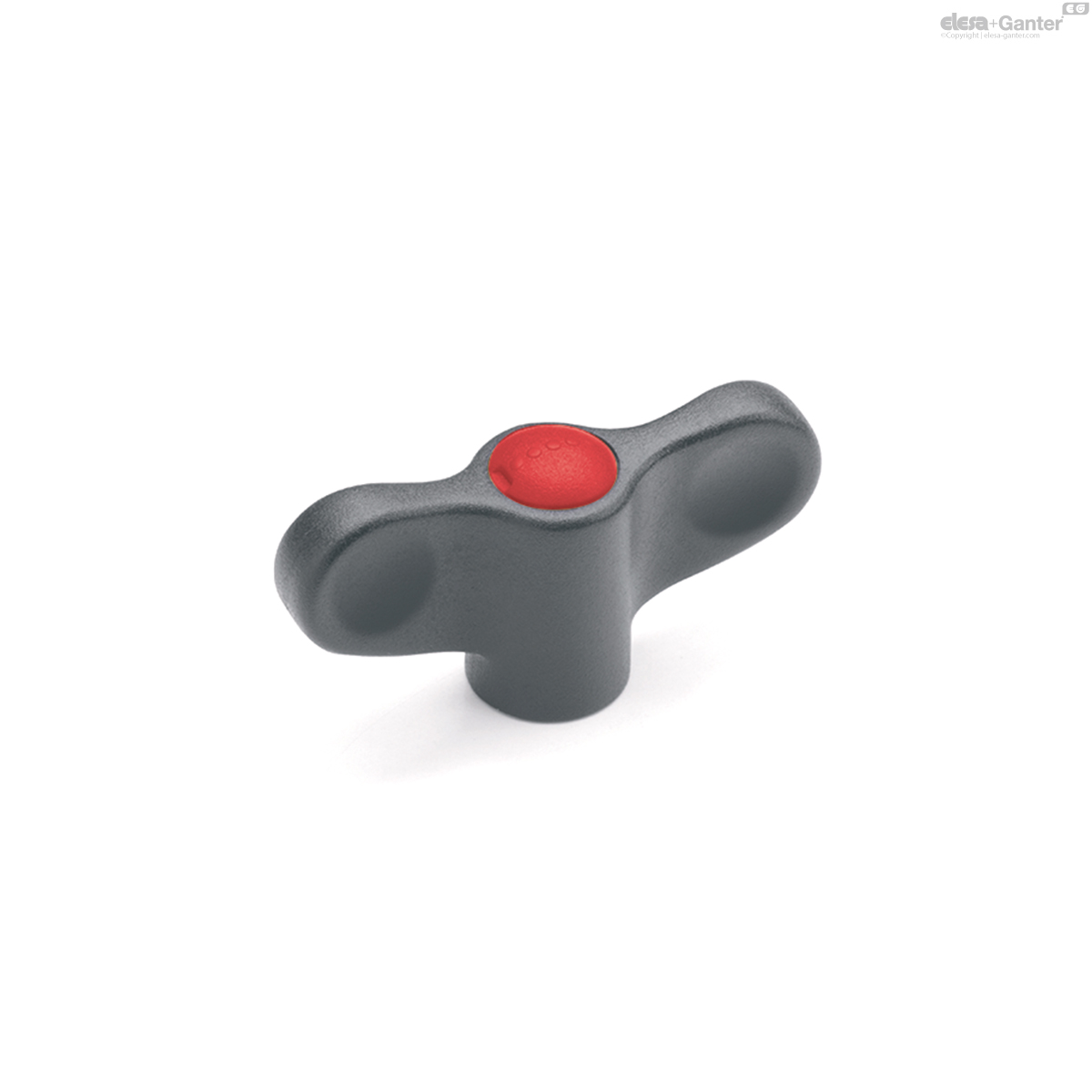

EWN-B

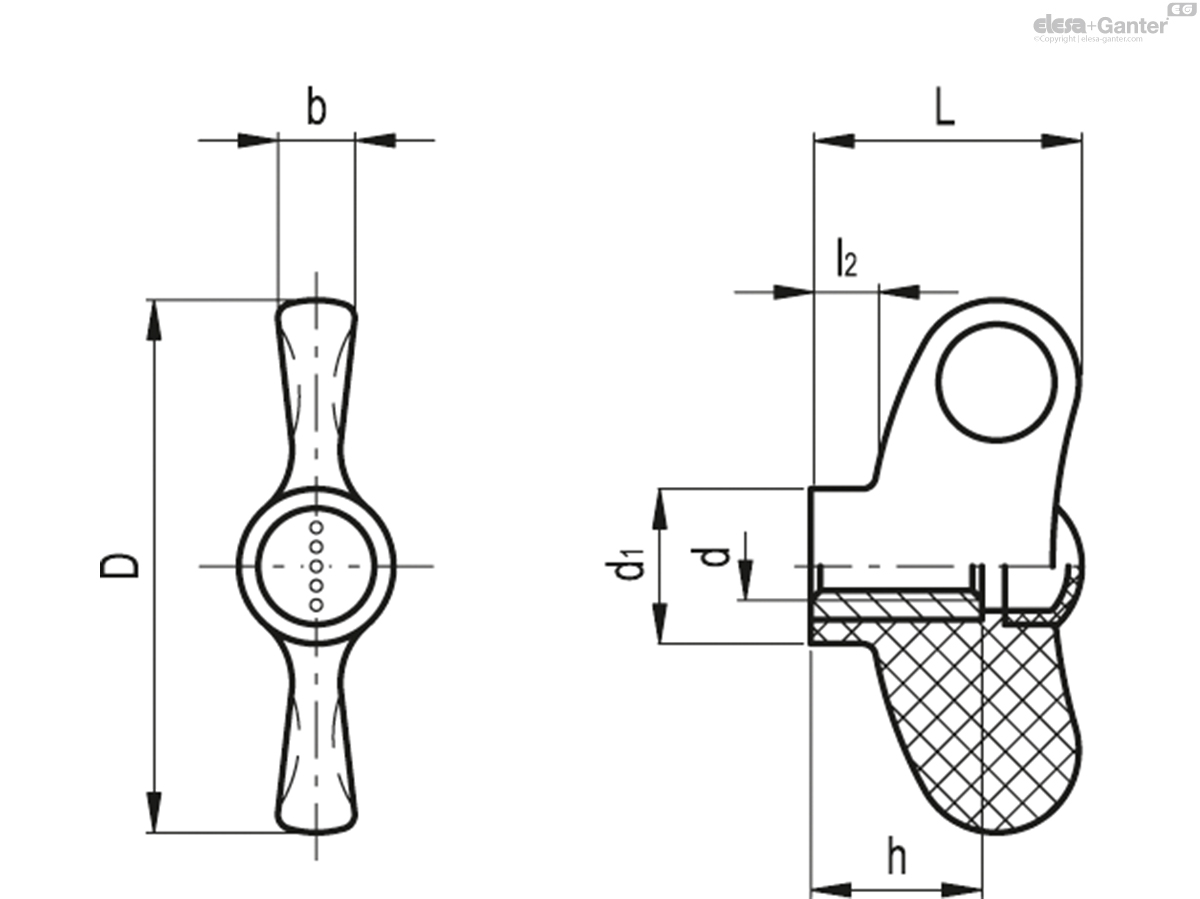

| Color | D | d6H | L | d1 | l2 | b | h | C# [Nm] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||
| 223201-C1 | EWN.40 B-M5-C1 | C1 - RAL 7021 | 40 | M5 | 20 | 13.5 | 4 | 6 | 12 | 10 | 10 |
|
| 223201-C2 | EWN.40 B-M5-C2 | C2 - RAL 2004 | 40 | M5 | 20 | 13.5 | 4 | 6 | 12 | 10 | 10 |
|
| 223201-C3 | EWN.40 B-M5-C3 | C3 - RAL 7035 | 40 | M5 | 20 | 13.5 | 4 | 6 | 12 | 10 | 10 |
|
| 223201-C4 | EWN.40 B-M5-C4 | C4 - RAL 1021 | 40 | M5 | 20 | 13.5 | 4 | 6 | 12 | 10 | 10 |
|
| 223201-C5 | EWN.40 B-M5-C5 | C5 - RAL 5024 | 40 | M5 | 20 | 13.5 | 4 | 6 | 12 | 10 | 10 |
|
| 223201-C6 | EWN.40 B-M5-C6 | C6 - RAL 3000 | 40 | M5 | 20 | 13.5 | 4 | 6 | 12 | 10 | 10 |
|
| 223201-C17 | EWN.40 B-M5-C17 | C17 - RAL 6017 | 40 | M5 | 20 | 13.5 | 4 | 6 | 12 | 10 | 10 |
|
| 223206-C1 | EWN.40 B-M6-C1 | C1 - RAL 7021 | 40 | M6 | 20 | 13.5 | 4 | 6 | 12 | 11 | 10 |
|
| 223206-C2 | EWN.40 B-M6-C2 | C2 - RAL 2004 | 40 | M6 | 20 | 13.5 | 4 | 6 | 12 | 11 | 10 |
|
| 223206-C3 | EWN.40 B-M6-C3 | C3 - RAL 7035 | 40 | M6 | 20 | 13.5 | 4 | 6 | 12 | 11 | 10 |
|
| 223206-C4 | EWN.40 B-M6-C4 | C4 - RAL 1021 | 40 | M6 | 20 | 13.5 | 4 | 6 | 12 | 11 | 10 |
|
| 223206-C5 | EWN.40 B-M6-C5 | C5 - RAL 5024 | 40 | M6 | 20 | 13.5 | 4 | 6 | 12 | 11 | 10 |
|
| 223206-C6 | EWN.40 B-M6-C6 | C6 - RAL 3000 | 40 | M6 | 20 | 13.5 | 4 | 6 | 12 | 11 | 10 |
|
| 223206-C17 | EWN.40 B-M6-C17 | C17 - RAL 6017 | 40 | M6 | 20 | 13.5 | 4 | 6 | 12 | 11 | 10 |
|
| 223211-C1 | EWN.40 B-M8-C1 | C1 - RAL 7021 | 40 | M8 | 20 | 13.5 | 4 | 6 | 12 | 13 | 9 |
|
| 223211-C2 | EWN.40 B-M8-C2 | C2 - RAL 2004 | 40 | M8 | 20 | 13.5 | 4 | 6 | 12 | 13 | 9 |
|
| 223211-C3 | EWN.40 B-M8-C3 | C3 - RAL 7035 | 40 | M8 | 20 | 13.5 | 4 | 6 | 12 | 13 | 9 |
|
| 223211-C4 | EWN.40 B-M8-C4 | C4 - RAL 1021 | 40 | M8 | 20 | 13.5 | 4 | 6 | 12 | 13 | 9 |
|
| 223211-C5 | EWN.40 B-M8-C5 | C5 - RAL 5024 | 40 | M8 | 20 | 13.5 | 4 | 6 | 12 | 13 | 9 |
|
| 223211-C6 | EWN.40 B-M8-C6 | C6 - RAL 3000 | 40 | M8 | 20 | 13.5 | 4 | 6 | 12 | 13 | 9 |
|
| 223211-C17 | EWN.40 B-M8-C17 | C17 - RAL 6017 | 40 | M8 | 20 | 13.5 | 4 | 6 | 12 | 13 | 9 |
|
| 223216-C1 | EWN.48 B-M5-C1 | C1 - RAL 7021 | 47 | M5 | 24 | 13.5 | 5.5 | 7 | 12 | 10 | 10 |
|
| 223216-C2 | EWN.48 B-M5-C2 | C2 - RAL 2004 | 47 | M5 | 24 | 13.5 | 5.5 | 7 | 12 | 10 | 10 |
|
| 223216-C3 | EWN.48 B-M5-C3 | C3 - RAL 7035 | 47 | M5 | 24 | 13.5 | 5.5 | 7 | 12 | 10 | 10 |
|
| 223216-C4 | EWN.48 B-M5-C4 | C4 - RAL 1021 | 47 | M5 | 24 | 13.5 | 5.5 | 7 | 12 | 10 | 10 |
|
| 223216-C5 | EWN.48 B-M5-C5 | C5 - RAL 5024 | 47 | M5 | 24 | 13.5 | 5.5 | 7 | 12 | 10 | 10 |
|
| 223216-C6 | EWN.48 B-M5-C6 | C6 - RAL 3000 | 47 | M5 | 24 | 13.5 | 5.5 | 7 | 12 | 10 | 10 |
|
| 223216-C17 | EWN.48 B-M5-C17 | C17 - RAL 6017 | 47 | M5 | 24 | 13.5 | 5.5 | 7 | 12 | 10 | 10 |
|
| 223221-C1 | EWN.48 B-M6-C1 | C1 - RAL 7021 | 47 | M6 | 24 | 13.5 | 5.5 | 7 | 12 | 11 | 9 |
|
| 223221-C2 | EWN.48 B-M6-C2 | C2 - RAL 2004 | 47 | M6 | 24 | 13.5 | 5.5 | 7 | 12 | 11 | 9 |
|
| 223221-C3 | EWN.48 B-M6-C3 | C3 - RAL 7035 | 47 | M6 | 24 | 13.5 | 5.5 | 7 | 12 | 11 | 9 |
|
| 223221-C4 | EWN.48 B-M6-C4 | C4 - RAL 1021 | 47 | M6 | 24 | 13.5 | 5.5 | 7 | 12 | 11 | 9 |
|
| 223221-C5 | EWN.48 B-M6-C5 | C5 - RAL 5024 | 47 | M6 | 24 | 13.5 | 5.5 | 7 | 12 | 11 | 9 |
|
| 223221-C6 | EWN.48 B-M6-C6 | C6 - RAL 3000 | 47 | M6 | 24 | 13.5 | 5.5 | 7 | 12 | 11 | 9 |
|
| 223221-C17 | EWN.48 B-M6-C17 | C17 - RAL 6017 | 47 | M6 | 24 | 13.5 | 5.5 | 7 | 12 | 11 | 9 |
|
| 223226-C1 | EWN.48 B-M8-C1 | C1 - RAL 7021 | 47 | M8 | 24 | 13.5 | 5.5 | 7 | 12 | 13 | 9 |
|
| 223226-C2 | EWN.48 B-M8-C2 | C2 - RAL 2004 | 47 | M8 | 24 | 13.5 | 5.5 | 7 | 12 | 13 | 9 |
|
| 223226-C3 | EWN.48 B-M8-C3 | C3 - RAL 7035 | 47 | M8 | 24 | 13.5 | 5.5 | 7 | 12 | 13 | 9 |
|
| 223226-C4 | EWN.48 B-M8-C4 | C4 - RAL 1021 | 47 | M8 | 24 | 13.5 | 5.5 | 7 | 12 | 13 | 9 |
|
| 223226-C5 | EWN.48 B-M8-C5 | C5 - RAL 5024 | 47 | M8 | 24 | 13.5 | 5.5 | 7 | 12 | 13 | 9 |
|
| 223226-C6 | EWN.48 B-M8-C6 | C6 - RAL 3000 | 47 | M8 | 24 | 13.5 | 5.5 | 7 | 12 | 13 | 9 |
|
| 223226-C17 | EWN.48 B-M8-C17 | C17 - RAL 6017 | 47 | M8 | 24 | 13.5 | 5.5 | 7 | 12 | 13 | 9 |
|
| 223236-C1 | EWN.55 B-M6-C1 | C1 - RAL 7021 | 55 | M6 | 28 | 16 | 6.5 | 8 | 18 | 20 | 20 |
|
| 223236-C2 | EWN.55 B-M6-C2 | C2 - RAL 2004 | 55 | M6 | 28 | 16 | 6.5 | 8 | 18 | 20 | 20 |
|
| 223236-C3 | EWN.55 B-M6-C3 | C3 - RAL 7035 | 55 | M6 | 28 | 16 | 6.5 | 8 | 18 | 20 | 20 |
|
| 223236-C4 | EWN.55 B-M6-C4 | C4 - RAL 1021 | 55 | M6 | 28 | 16 | 6.5 | 8 | 18 | 20 | 20 |
|
| 223236-C5 | EWN.55 B-M6-C5 | C5 - RAL 5024 | 55 | M6 | 28 | 16 | 6.5 | 8 | 18 | 20 | 20 |
|
| 223236-C6 | EWN.55 B-M6-C6 | C6 - RAL 3000 | 55 | M6 | 28 | 16 | 6.5 | 8 | 18 | 20 | 20 |
|
| 223236-C17 | EWN.55 B-M6-C17 | C17 - RAL 6017 | 55 | M6 | 28 | 16 | 6.5 | 8 | 18 | 20 | 20 |
|
| 223241-C1 | EWN.55 B-M8-C1 | C1 - RAL 7021 | 55 | M8 | 28 | 16 | 6.5 | 8 | 18 | 26 | 17 |
|
| 223241-C2 | EWN.55 B-M8-C2 | C2 - RAL 2004 | 55 | M8 | 28 | 16 | 6.5 | 8 | 18 | 26 | 17 |
|
| 223241-C3 | EWN.55 B-M8-C3 | C3 - RAL 7035 | 55 | M8 | 28 | 16 | 6.5 | 8 | 18 | 26 | 17 |
|
| 223241-C4 | EWN.55 B-M8-C4 | C4 - RAL 1021 | 55 | M8 | 28 | 16 | 6.5 | 8 | 18 | 26 | 17 |
|
| 223241-C5 | EWN.55 B-M8-C5 | C5 - RAL 5024 | 55 | M8 | 28 | 16 | 6.5 | 8 | 18 | 26 | 17 |
|
| 223241-C6 | EWN.55 B-M8-C6 | C6 - RAL 3000 | 55 | M8 | 28 | 16 | 6.5 | 8 | 18 | 26 | 17 |
|
| 223241-C17 | EWN.55 B-M8-C17 | C17 - RAL 6017 | 55 | M8 | 28 | 16 | 6.5 | 8 | 18 | 26 | 17 |
|
| 223251-C1 | EWN.63 B-M8-C1 | C1 - RAL 7021 | 63 | M8 | 32 | 19 | 7.5 | 9 | 20 | 45 | 29 |
|
| 223251-C2 | EWN.63 B-M8-C2 | C2 - RAL 2004 | 63 | M8 | 32 | 19 | 7.5 | 9 | 20 | 45 | 17 |
|
| 223251-C3 | EWN.63 B-M8-C3 | C3 - RAL 7035 | 63 | M8 | 32 | 19 | 7.5 | 9 | 20 | 45 | 17 |
|
| 223251-C4 | EWN.63 B-M8-C4 | C4 - RAL 1021 | 63 | M8 | 32 | 19 | 7.5 | 9 | 20 | 45 | 17 |
|
| 223251-C5 | EWN.63 B-M8-C5 | C5 - RAL 5024 | 63 | M8 | 32 | 19 | 7.5 | 9 | 20 | 45 | 17 |
|
| 223251-C6 | EWN.63 B-M8-C6 | C6 - RAL 3000 | 63 | M8 | 32 | 19 | 7.5 | 9 | 20 | 45 | 17 |
|
| 223251-C17 | EWN.63 B-M8-C17 | C17 - RAL 6017 | 63 | M8 | 32 | 19 | 7.5 | 9 | 20 | 45 | 17 |
|
| 223256-C1 | EWN.63 B-M10-C1 | C1 - RAL 7021 | 63 | M10 | 32 | 19 | 7.5 | 9 | 20 | 58 | 28 |
|
| 223256-C2 | EWN.63 B-M10-C2 | C2 - RAL 2004 | 63 | M10 | 32 | 19 | 7.5 | 9 | 20 | 58 | 20 |
|
| 223256-C3 | EWN.63 B-M10-C3 | C3 - RAL 7035 | 63 | M10 | 32 | 19 | 7.5 | 9 | 20 | 58 | 20 |
|
| 223256-C4 | EWN.63 B-M10-C4 | C4 - RAL 1021 | 63 | M10 | 32 | 19 | 7.5 | 9 | 20 | 58 | 20 |
|
| 223256-C5 | EWN.63 B-M10-C5 | C5 - RAL 5024 | 63 | M10 | 32 | 19 | 7.5 | 9 | 20 | 58 | 20 |
|
| 223256-C6 | EWN.63 B-M10-C6 | C6 - RAL 3000 | 63 | M10 | 32 | 19 | 7.5 | 9 | 20 | 58 | 20 |
|
| 223256-C17 | EWN.63 B-M10-C17 | C17 - RAL 6017 | 63 | M10 | 32 | 19 | 7.5 | 9 | 20 | 58 | 20 |
|
| 223406-C1 | EWN.70 B-M8-C1 | C1 - RAL 7021 | 70 | M8 | 36 | 20 | 8 | 10 | 20 | 45 | 34 |
|
| 223406-C2 | EWN.70 B-M8-C2 | C2 - RAL 2004 | 70 | M8 | 36 | 20 | 8 | 10 | 20 | 45 | 34 |
|
| 223406-C3 | EWN.70 B-M8-C3 | C3 - RAL 7035 | 70 | M8 | 36 | 20 | 8 | 10 | 20 | 45 | 34 |
|
| 223406-C4 | EWN.70 B-M8-C4 | C4 - RAL 1021 | 70 | M8 | 36 | 20 | 8 | 10 | 20 | 45 | 34 |
|
| 223406-C5 | EWN.70 B-M8-C5 | C5 - RAL 5024 | 70 | M8 | 36 | 20 | 8 | 10 | 20 | 45 | 34 |
|
| 223406-C6 | EWN.70 B-M8-C6 | C6 - RAL 3000 | 70 | M8 | 36 | 20 | 8 | 10 | 20 | 45 | 34 |
|
| 223406-C17 | EWN.70 B-M8-C17 | C17 - RAL 6017 | 70 | M8 | 36 | 20 | 8 | 10 | 20 | 45 | 34 |
|
| 223411-C1 | EWN.70 B-M10-C1 | C1 - RAL 7021 | 70 | M10 | 36 | 20 | 8 | 10 | 20 | 58 | 32 |
|
| 223411-C2 | EWN.70 B-M10-C2 | C2 - RAL 2004 | 70 | M10 | 36 | 20 | 8 | 10 | 20 | 58 | 32 |
|
| 223411-C3 | EWN.70 B-M10-C3 | C3 - RAL 7035 | 70 | M10 | 36 | 20 | 8 | 10 | 20 | 58 | 32 |
|
| 223411-C4 | EWN.70 B-M10-C4 | C4 - RAL 1021 | 70 | M10 | 36 | 20 | 8 | 10 | 20 | 58 | 32 |
|
| 223411-C5 | EWN.70 B-M10-C5 | C5 - RAL 5024 | 70 | M10 | 36 | 20 | 8 | 10 | 20 | 58 | 32 |
|
| 223411-C6 | EWN.70 B-M10-C6 | C6 - RAL 3000 | 70 | M10 | 36 | 20 | 8 | 10 | 20 | 58 | 32 |
|
| 223411-C17 | EWN.70 B-M10-C17 | C17 - RAL 6017 | 70 | M10 | 36 | 20 | 8 | 10 | 20 | 58 | 32 |
|
