Tubular handles

Oval cross section, technopolymer and aluminium

Enquire Now

EVH-EP

Tubular handles

Aluminium tube with epoxy resin coating

EVH-AN

Tubular handles

Anodised aluminium tube

Description

Main specifications

Handle shanks

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Covers

ECA.V: polyamide based (PA) technopolymer, in Elecolors colours, glossy finish, press-fit assembly. Supplied, removable by a screwdriver.

Available also as accessory sold separately (see table).

Standard executions

Pass-through holes for cylindrical-head screws with hexagon socket, hexagonal-head screws or standard lock nuts.

EVH-EP: aluminium tube, epoxy resin coating, metalflake graphite colour, matte finish. Highly resistant to wear, scratches and chemical agents. Avoid continuous and prolonged contact with boiling water or steam.

EVH-AN: anodised aluminium tube, natural colour.

Suggested tightening torque:

back mounting with plain holes: 8 [Nm]

front mounting with plain or tapped holes: 15 [Nm].

General information

Ergonomy and design

The large diameter of the tube offers a good and comfortable grip.

Technical data

Tensile stress: F2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Other executions

Special executions on request

Different lengths.

Accessories

Accessories on request

ECA.V: polyamide based (PA) technopolymer closing caps, in Elecolors colours, glossy finish, press-fit assembly.

EVH-AN

		Color	d₃	f_±1	L	d	d₄	h	h₁	h₂	h₄	l₁	l₃	d₂	C	x	F2* [N]	F2# [N]
Code	Description																			Actions

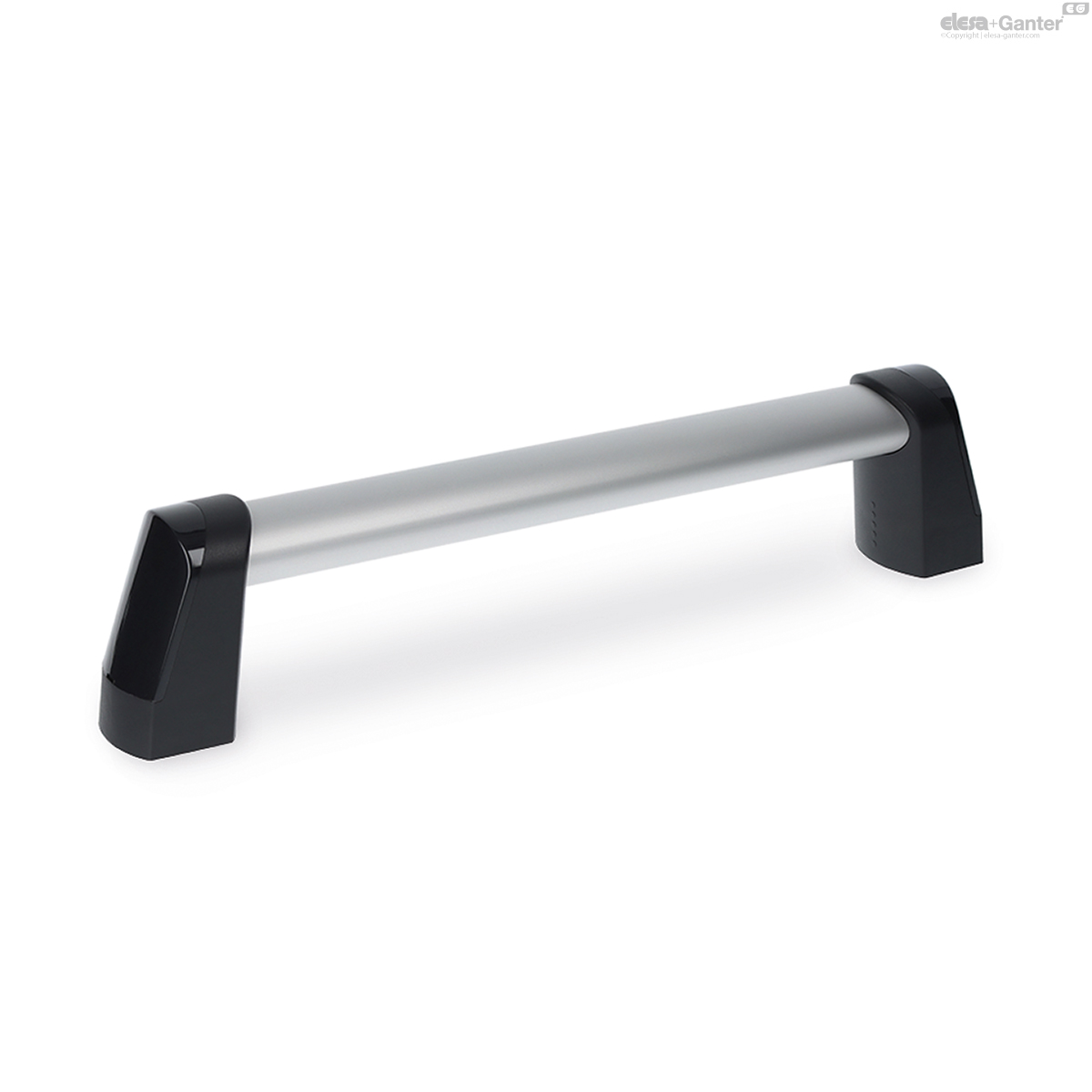

262303-C1	EVH.300-AN-C1	C1 - RAL 7021	25	300	340	10.5	35	74	57.5	20	15	256	16.4	4	42.5	35	3200	4200	310

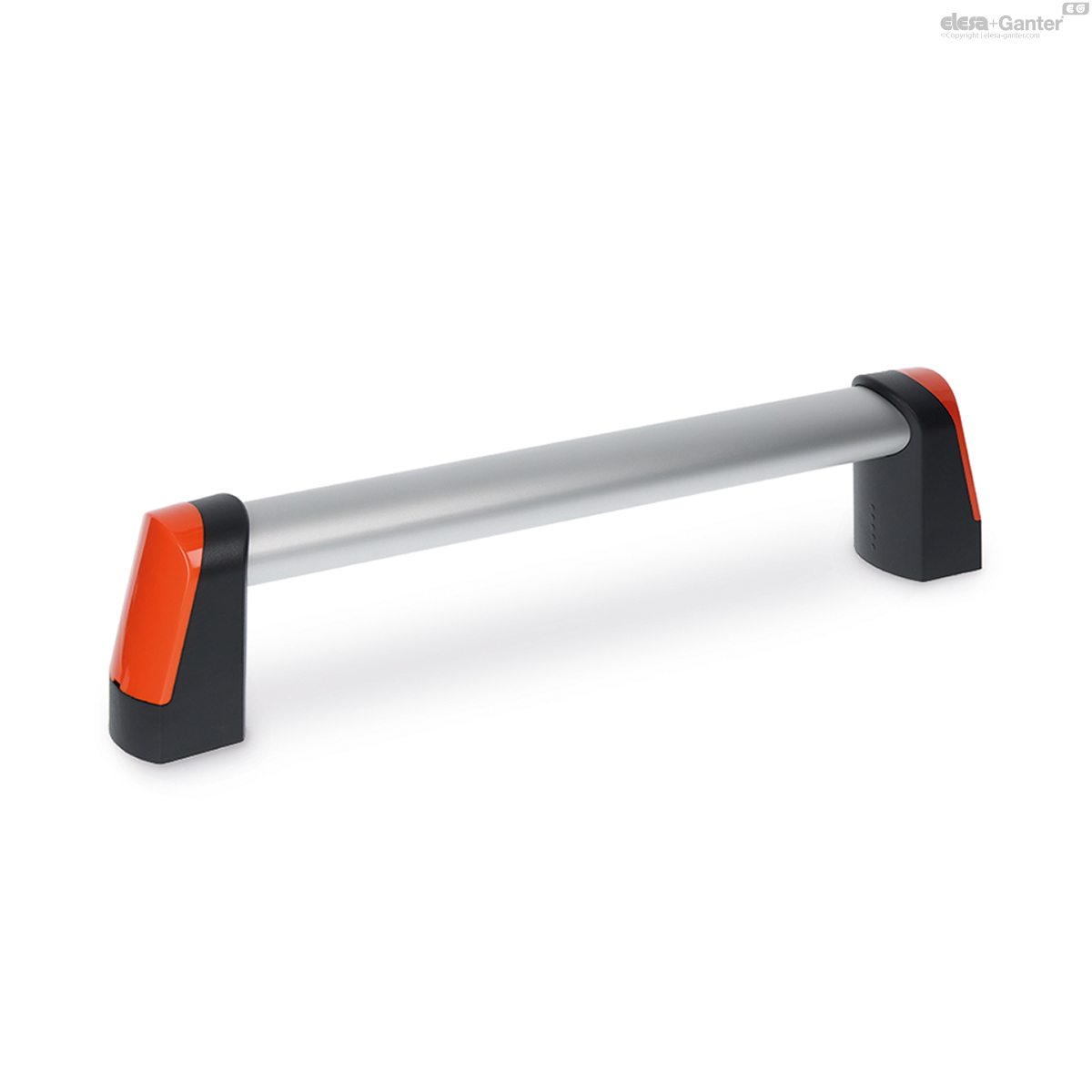

262303-C2	EVH.300-AN-C2	C2 - RAL 2004	25	300	340	10.5	35	74	57.5	20	15	256	16.4	4	42.5	35	3200	4200	310

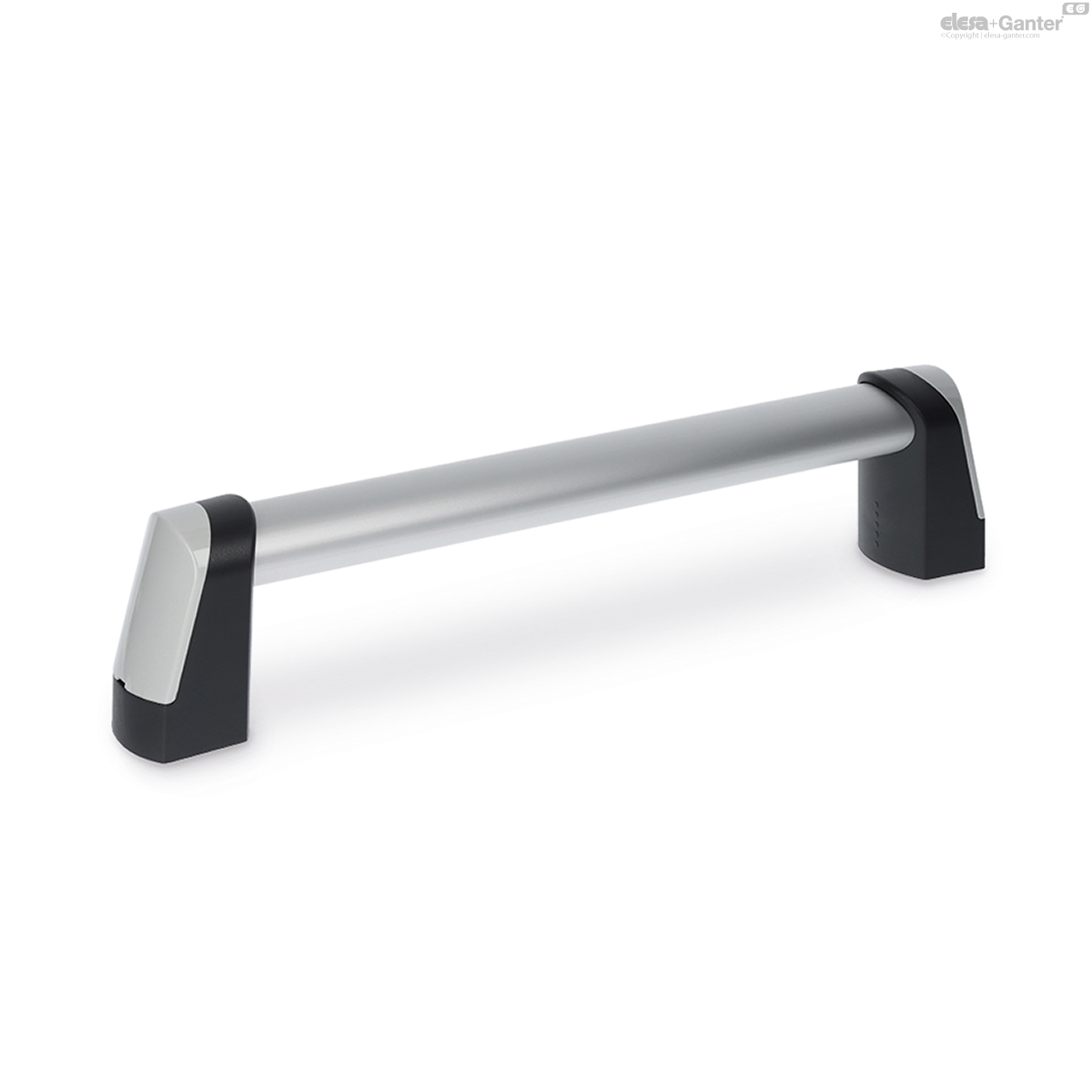

262303-C3	EVH.300-AN-C3	C3 - RAL 7035	25	300	340	10.5	35	74	57.5	20	15	256	16.4	4	42.5	35	3200	4200	310

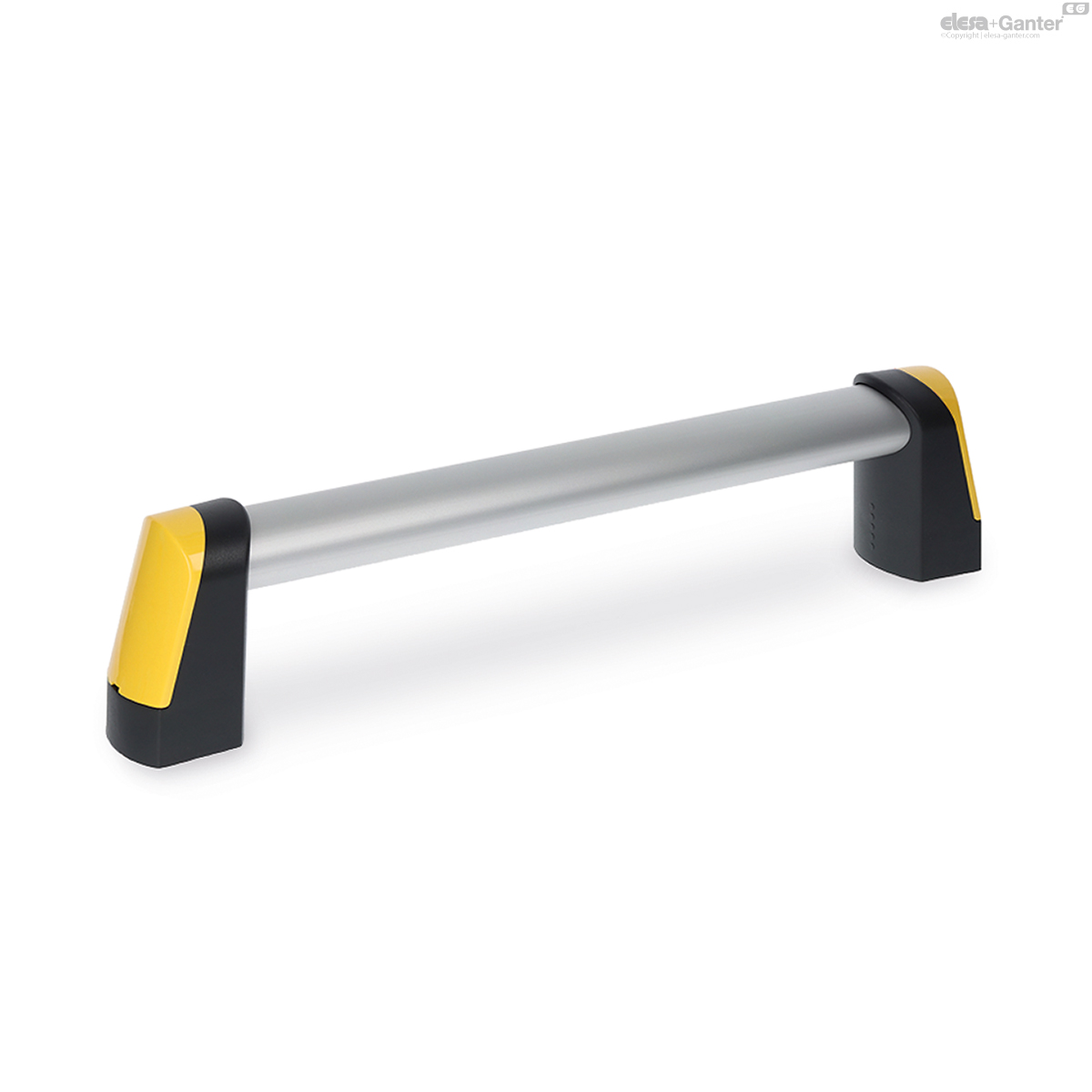

262303-C4	EVH.300-AN-C4	C4 - RAL 1021	25	300	340	10.5	35	74	57.5	20	15	256	16.4	4	42.5	35	3200	4200	310

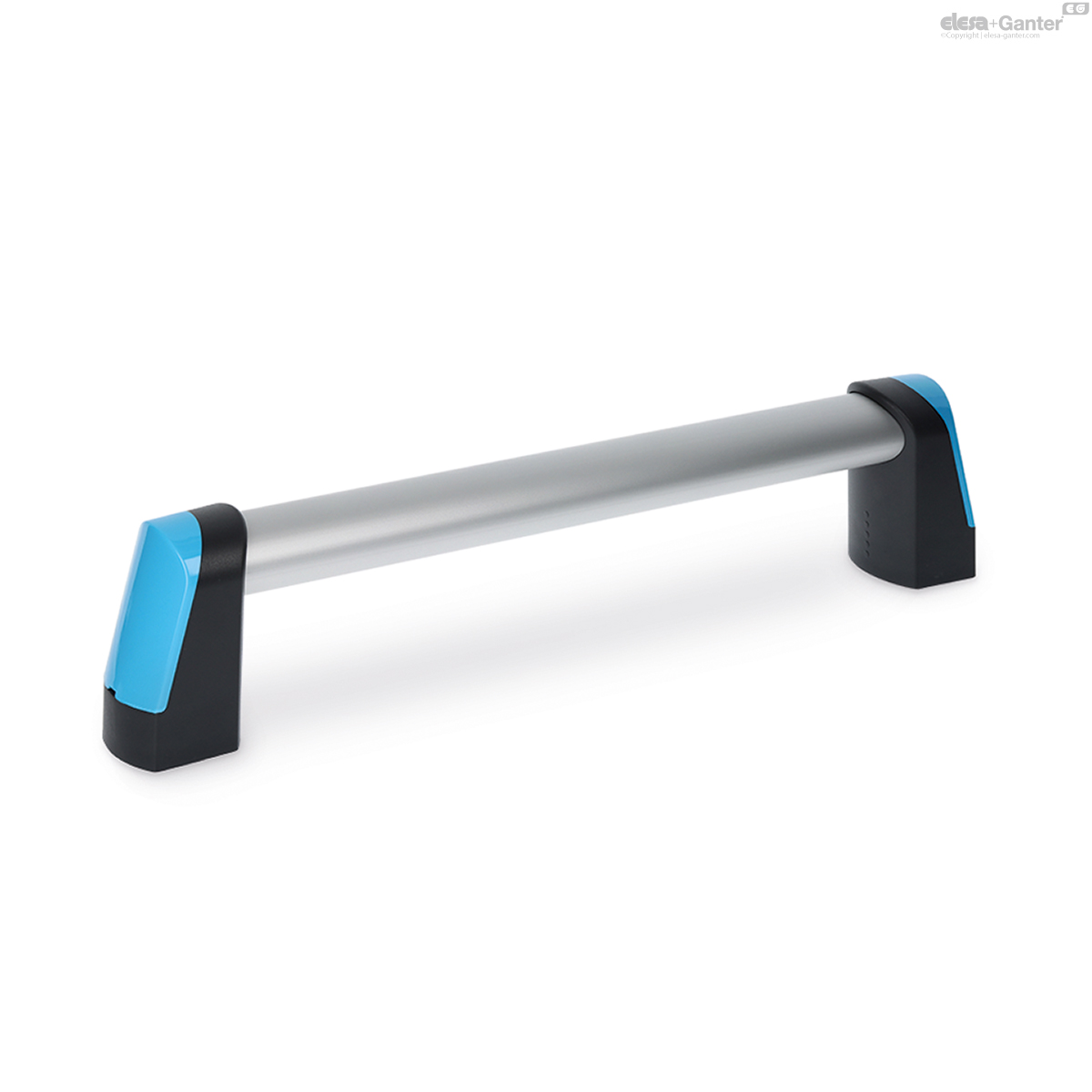

262303-C5	EVH.300-AN-C5	C5 - RAL 5024	25	300	340	10.5	35	74	57.5	20	15	256	16.4	4	42.5	35	3200	4200	310

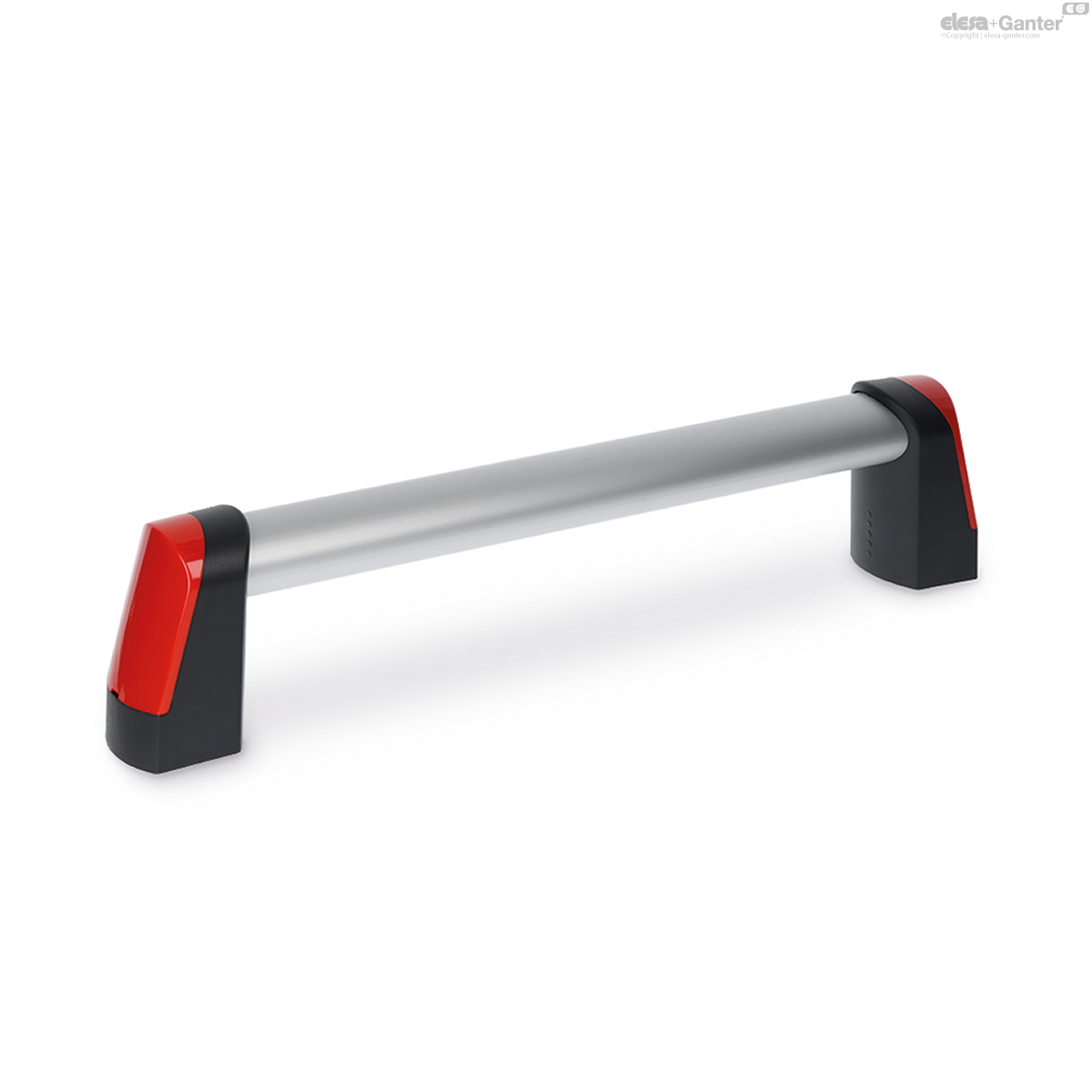

262303-C6	EVH.300-AN-C6	C6 - RAL 3000	25	300	340	10.5	35	74	57.5	20	15	256	16.4	4	42.5	35	3200	4200	310
262303-C17	EVH.300-AN-C17	C17 - RAL 6017	25	300	340	10.5	35	74	57.5	20	15	256	16.4	4	42.5	35	3200	4200	310
262313-C1	EVH.350-AN-C1	C1 - RAL 7021	25	350	390	10.5	35	74	57.5	20	15	306	16.4	4	42.5	35	3000	3500	335
262313-C2	EVH.350-AN-C2	C2 - RAL 2004	25	350	390	10.5	35	74	57.5	20	15	306	16.4	4	42.5	35	3000	3500	335
262313-C3	EVH.350-AN-C3	C3 - RAL 7035	25	350	390	10.5	35	74	57.5	20	15	306	16.4	4	42.5	35	3000	3500	335
262313-C4	EVH.350-AN-C4	C4 - RAL 1021	25	350	390	10.5	35	74	57.5	20	15	306	16.4	4	42.5	35	3000	3500	335
262313-C5	EVH.350-AN-C5	C5 - RAL 5024	25	350	390	10.5	35	74	57.5	20	15	306	16.4	4	42.5	35	3000	3500	335
262313-C6	EVH.350-AN-C6	C6 - RAL 3000	25	350	390	10.5	35	74	57.5	20	15	306	16.4	4	42.5	35	3000	3500	335
262313-C17	EVH.350-AN-C17	C17 - RAL 6017	25	350	390	10.5	35	74	57.5	20	15	306	16.4	4	42.5	35	3000	3500	335
262323-C1	EVH.400-AN-C1	C1 - RAL 7021	25	400	440	10.5	35	74	57.5	20	15	356	16.4	4	42.5	35	2700	3100	360
262323-C2	EVH.400-AN-C2	C2 - RAL 2004	25	400	440	10.5	35	74	57.5	20	15	356	16.4	4	42.5	35	2700	3100	360
262323-C3	EVH.400-AN-C3	C3 - RAL 7035	25	400	440	10.5	35	74	57.5	20	15	356	16.4	4	42.5	35	2700	3100	360
262323-C4	EVH.400-AN-C4	C4 - RAL 1021	25	400	440	10.5	35	74	57.5	20	15	356	16.4	4	42.5	35	2700	3100	360
262323-C5	EVH.400-AN-C5	C5 - RAL 5024	25	400	440	10.5	35	74	57.5	20	15	356	16.4	4	42.5	35	2700	3100	360
262323-C6	EVH.400-AN-C6	C6 - RAL 3000	25	400	440	10.5	35	74	57.5	20	15	356	16.4	4	42.5	35	2700	3100	360
262323-C17	EVH.400-AN-C17	C17 - RAL 6017	25	400	440	10.5	35	74	57.5	20	15	356	16.4	4	42.5	35	2700	3100	360
262333-C1	EVH.500-AN-C1	C1 - RAL 7021	25	500	540	10.5	35	74	57.5	20	15	456	16.4	4	42.5	35	2100	2400	410
262333-C2	EVH.500-AN-C2	C2 - RAL 2004	25	500	540	10.5	35	74	57.5	20	15	456	16.4	4	42.5	35	2100	2400	410
262333-C3	EVH.500-AN-C3	C3 - RAL 7035	25	500	540	10.5	35	74	57.5	20	15	456	16.4	4	42.5	35	2100	2400	410
262333-C4	EVH.500-AN-C4	C4 - RAL 1021	25	500	540	10.5	35	74	57.5	20	15	456	16.4	4	42.5	35	2100	2400	410
262333-C5	EVH.500-AN-C5	C5 - RAL 5024	25	500	540	10.5	35	74	57.5	20	15	456	16.4	4	42.5	35	2100	2400	410
262333-C6	EVH.500-AN-C6	C6 - RAL 3000	25	500	540	10.5	35	74	57.5	20	15	456	16.4	4	42.5	35	2100	2400	410
262333-C17	EVH.500-AN-C17	C17 - RAL 6017	25	500	540	10.5	35	74	57.5	20	15	456	16.4	4	42.5	35	2100	2400	410
262343-C1	EVH.600-AN-C1	C1 - RAL 7021	25	600	640	10.5	35	74	57.5	20	15	556	16.4	4	42.5	35	1300	1900	460
262343-C2	EVH.600-AN-C2	C2 - RAL 2004	25	600	640	10.5	35	74	57.5	20	15	556	16.4	4	42.5	35	1300	1900	460
262343-C3	EVH.600-AN-C3	C3 - RAL 7035	25	600	640	10.5	35	74	57.5	20	15	556	16.4	4	42.5	35	1300	1900	460
262343-C4	EVH.600-AN-C4	C4 - RAL 1021	25	600	640	10.5	35	74	57.5	20	15	556	16.4	4	42.5	35	1300	1900	460
262343-C5	EVH.600-AN-C5	C5 - RAL 5024	25	600	640	10.5	35	74	57.5	20	15	556	16.4	4	42.5	35	1300	1900	460
262343-C6	EVH.600-AN-C6	C6 - RAL 3000	25	600	640	10.5	35	74	57.5	20	15	556	16.4	4	42.5	35	1300	1900	460
262343-C17	EVH.600-AN-C17	C17 - RAL 6017	25	600	640	10.5	35	74	57.5	20	15	556	16.4	4	42.5	35	1300	1900	460
262353-C1	EVH.700-AN-C1	C1 - RAL 7021	25	700	740	10.5	35	74	57.5	20	15	656	16.4	4	42.5	35	1200	1600	510
262353-C2	EVH.700-AN-C2	C2 - RAL 2004	25	700	740	10.5	35	74	57.5	20	15	656	16.4	4	42.5	35	1200	1600	510
262353-C3	EVH.700-AN-C3	C3 - RAL 7035	25	700	740	10.5	35	74	57.5	20	15	656	16.4	4	42.5	35	1200	1600	510
262353-C4	EVH.700-AN-C4	C4 - RAL 1021	25	700	740	10.5	35	74	57.5	20	15	656	16.4	4	42.5	35	1200	1600	510
262353-C5	EVH.700-AN-C5	C5 - RAL 5024	25	700	740	10.5	35	74	57.5	20	15	656	16.4	4	42.5	35	1200	1600	510
262353-C6	EVH.700-AN-C6	C6 - RAL 3000	25	700	740	10.5	35	74	57.5	20	15	656	16.4	4	42.5	35	1200	1600	510
262353-C17	EVH.700-AN-C17	C17 - RAL 6017	25	700	740	10.5	35	74	57.5	20	15	656	16.4	4	42.5	35	1200	1600	510
