ETH-EP

Tubular handles

Aluminium tube with epoxy resin coating

ETH-AN

Tubular handles

Anodised aluminium tube

ETH-CLEAN

Tubular handles

Aluminium tube with white coating

Description

Main specifications

Handle shanks

Glass-fibre reinforced polyamide based (PA) technopolymer, matte finish.

Side caps

ECA.T: polyamide based (PA) technopolymer, in Elecolors colours and white similar to RAL 9002 (CLEAN), glossy finish, press-fit assembly. Supplied, removable by a screwdriver.

Available also as accessory sold seoarately (see table).

Anti-rotation tube assembling system

Special expansion-assembly system between the tube and the handle shanks to prevent rotation during operation.

Standard executions

Pass-through holes for cylindrical-head screws with hexagon socket, hexagonal-head screws or standard lock nuts.

ETH-EP: aluminium tube, epoxy resin coating, metalflake graphite colour, matte finish. Highly resistant to wear, scratches and chemical agents. Avoid continuous and prolonged contact with boiling water or steam. Side shanks in grey-black colour.
ETH-AN: anodised aluminium tube, natural colour. Side shanks in grey-black colour.
ETH-CLEAN: aluminium tube, coating in white colour similar to RAL 9002, glossy finish. Side shanks in white colour similar to RAL 9002.

Suggested tightening torque:

back mounting with plain holes: 8 [Nm]
front mounting with plain or tapped holes: 15 [Nm].

General information

Ergonomy and design

The large diameter of the tube offers a good and comfortable grip; the antirotation assembly system of the handle shanks to the tube has been developed to offer a firm and secure manœuvrability during operations.

Technical data

Tensile stress: F2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Other executions

Special executions on request

Different lengths.

Accessories on request

DS-ETH: spacer sleeves in polyamide based (PA) technopolymer to increase the distance between the handle and the fitting surface.

ECA.T: polyamide based (PA) technopolymer side caps, in Elecolors colours and white similar to RAL 9002 (CLEAN), glossy finish, press-fit assembly.

DS-ETH

Code	Description	d₂	h	h₂	h₄	For handle
15251	DS-ETH.35-16	4	16	101.5	12.5	ETH.35
15253	DS-ETH.35-32	4	32.5	118	15	ETH.35
15256	DS-ETH.35-16-CLEAN	4	16	101.5	12.5	ETH.35
15258	DS-ETH.35-32-CLEAN	4	32.5	118	15	ETH.35

ETH-AN

		Color	d₃	f_±1	L	d	h	h₁	h₂	h₄	l₁	l₃	d₂	C	x	F2* [N]	F2# [N]
Code	Description																		Actions

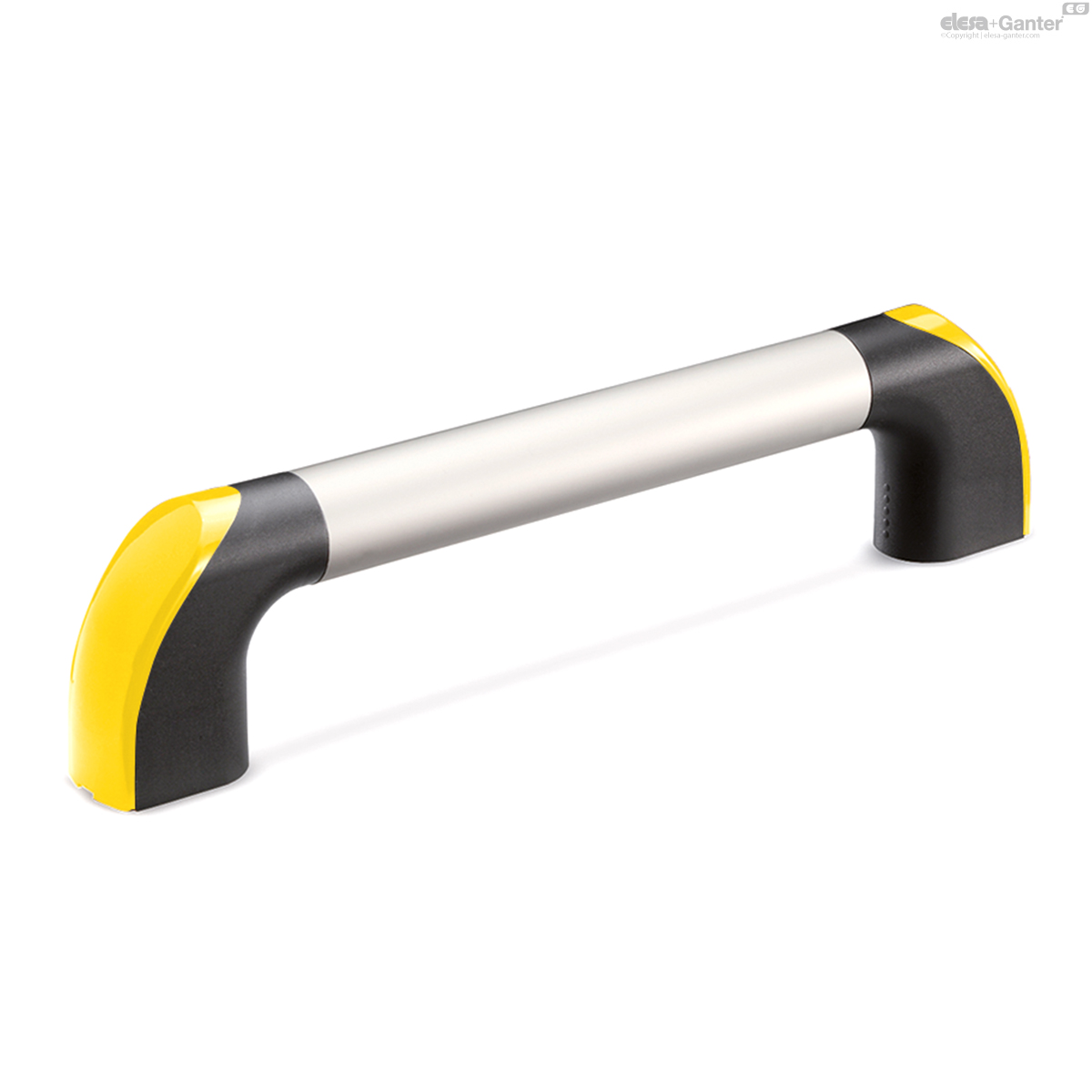

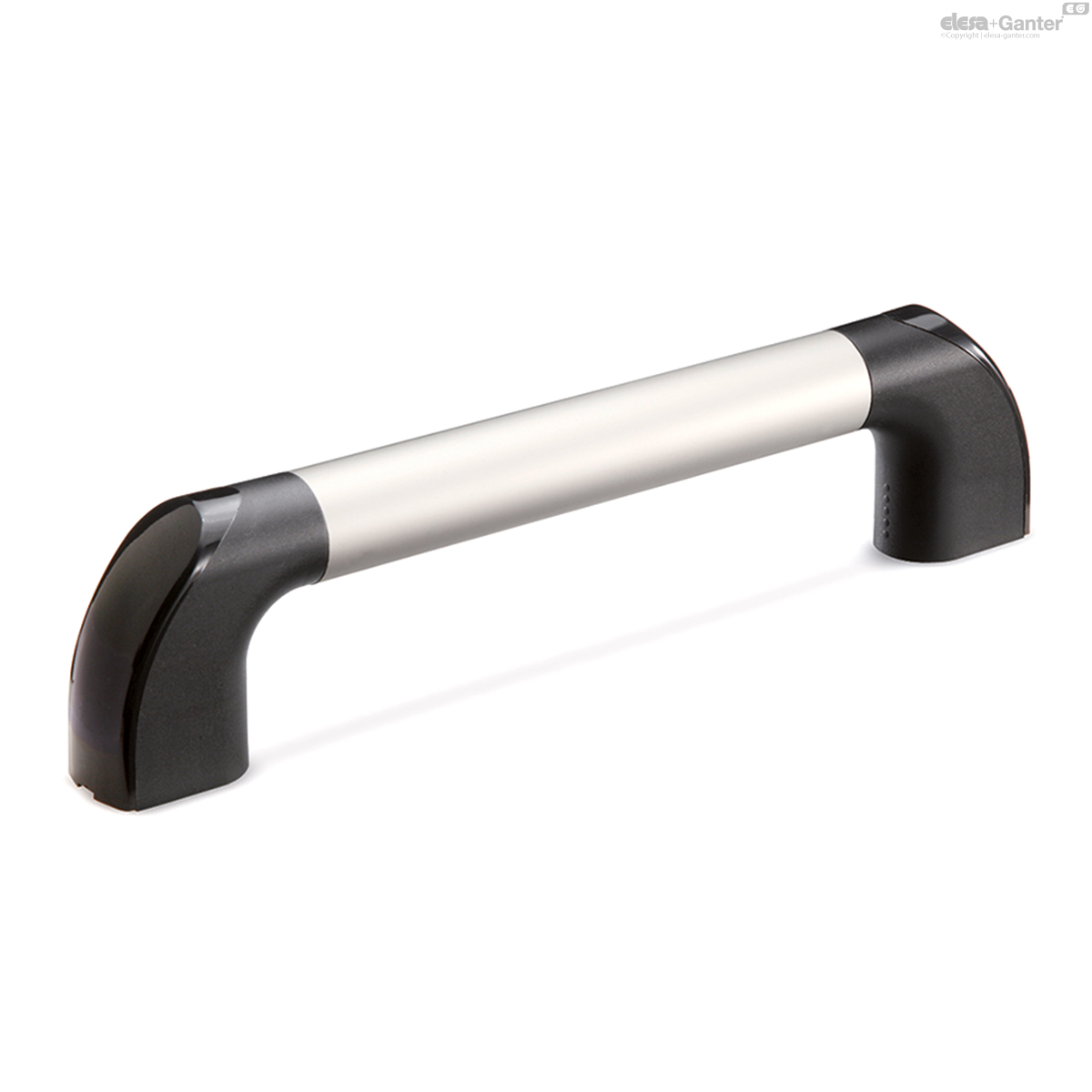

262153-C1	ETH.28-300-AN-C1	C1 - RAL 7021	27.5	300	339	10.5	68	54	20	15	248	20.3	4	28	86	2400	2800	200
262153-C2	ETH.28-300-AN-C2	C2 - RAL 2004	27.5	300	339	10.5	68	54	20	15	248	20.3	4	28	86	2400	2800	200
262153-C3	ETH.28-300-AN-C3	C3 - RAL 7035	27.5	300	339	10.5	68	54	20	15	248	20.3	4	28	86	2400	2800	200
262153-C4	ETH.28-300-AN-C4	C4 - RAL 1021	27.5	300	339	10.5	68	54	20	15	248	20.3	4	28	86	2400	2800	200

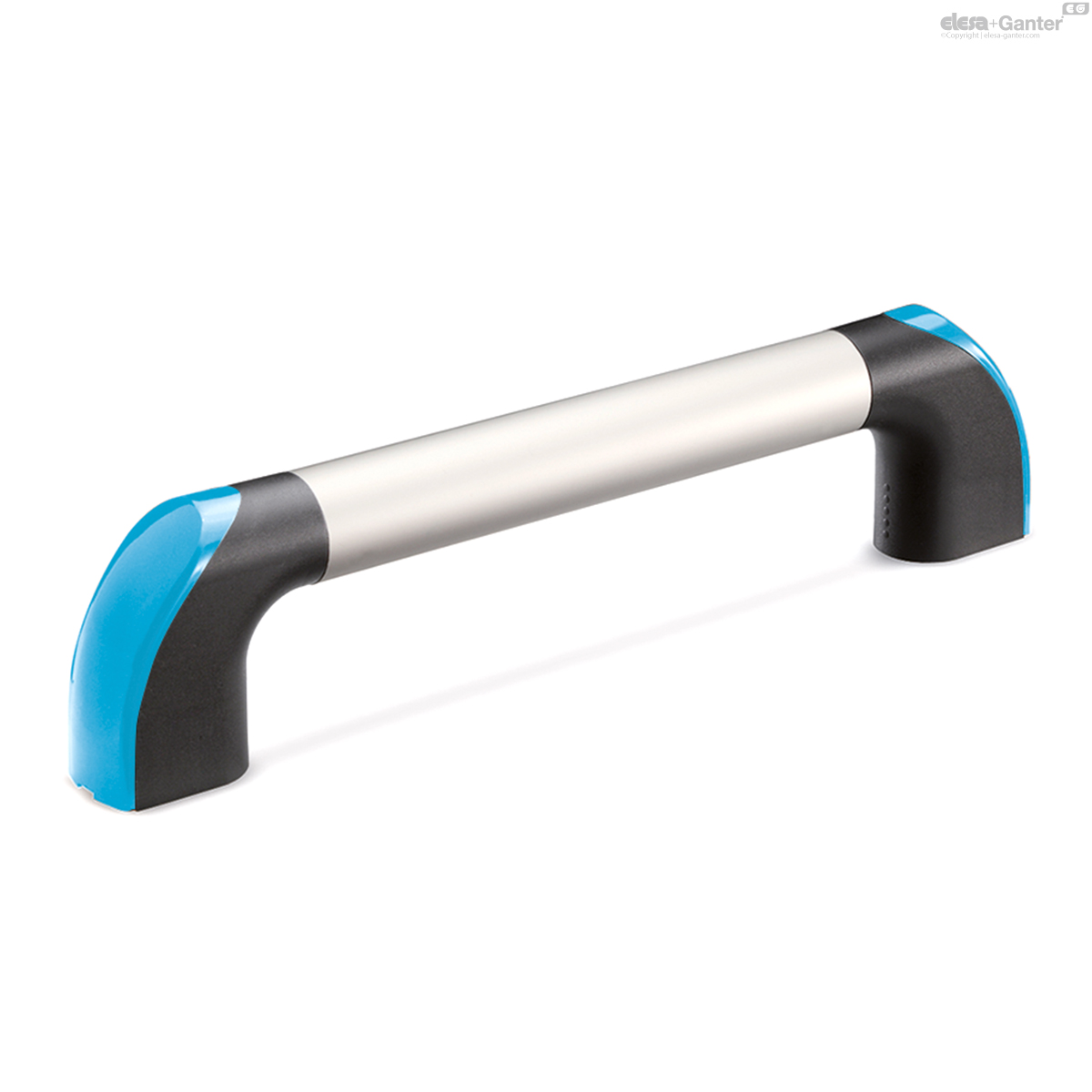

262153-C5	ETH.28-300-AN-C5	C5 - RAL 5024	27.5	300	339	10.5	68	54	20	15	248	20.3	4	28	86	2400	2800	200

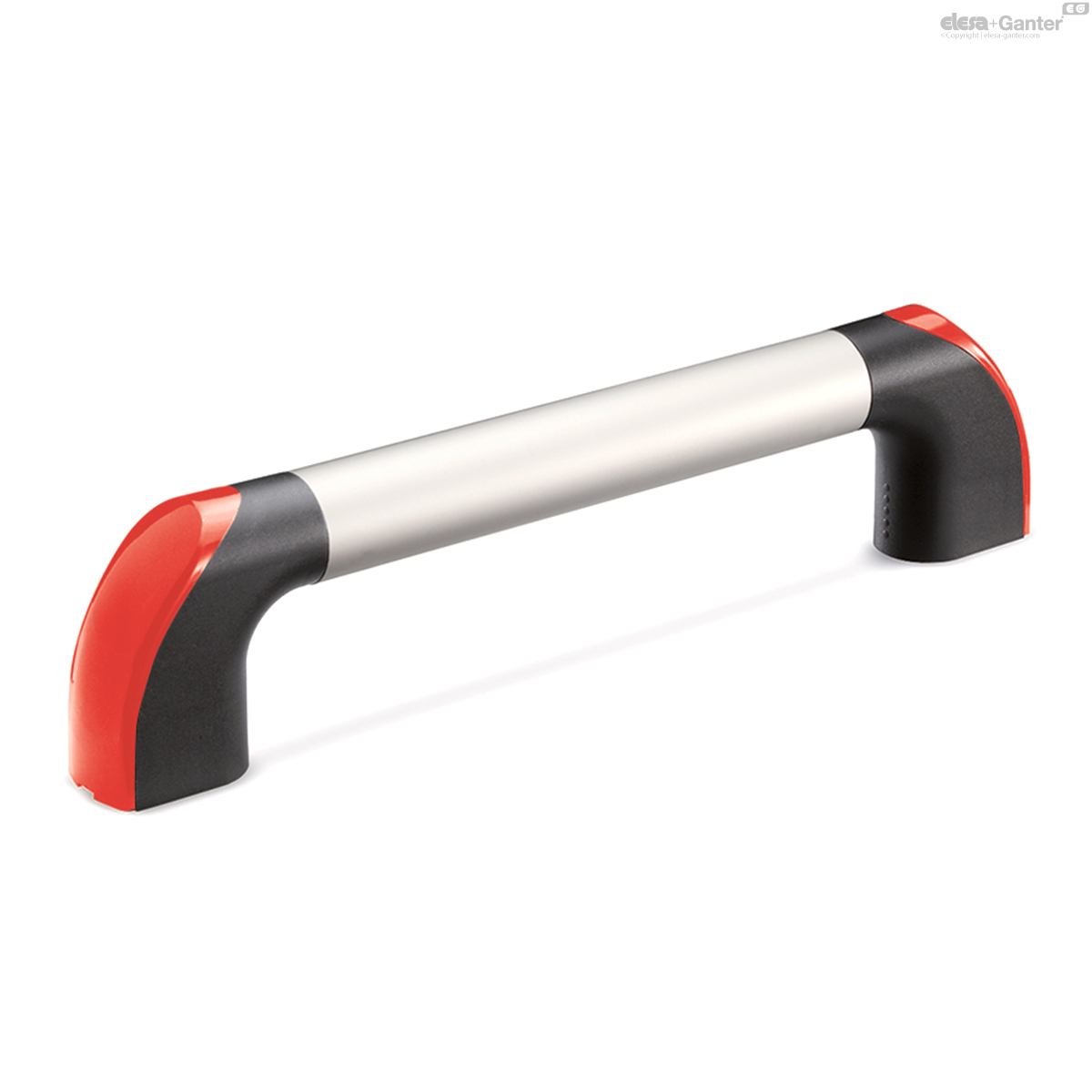

262153-C6	ETH.28-300-AN-C6	C6 - RAL 3000	27.5	300	339	10.5	68	54	20	15	248	20.3	4	28	86	2400	2800	200

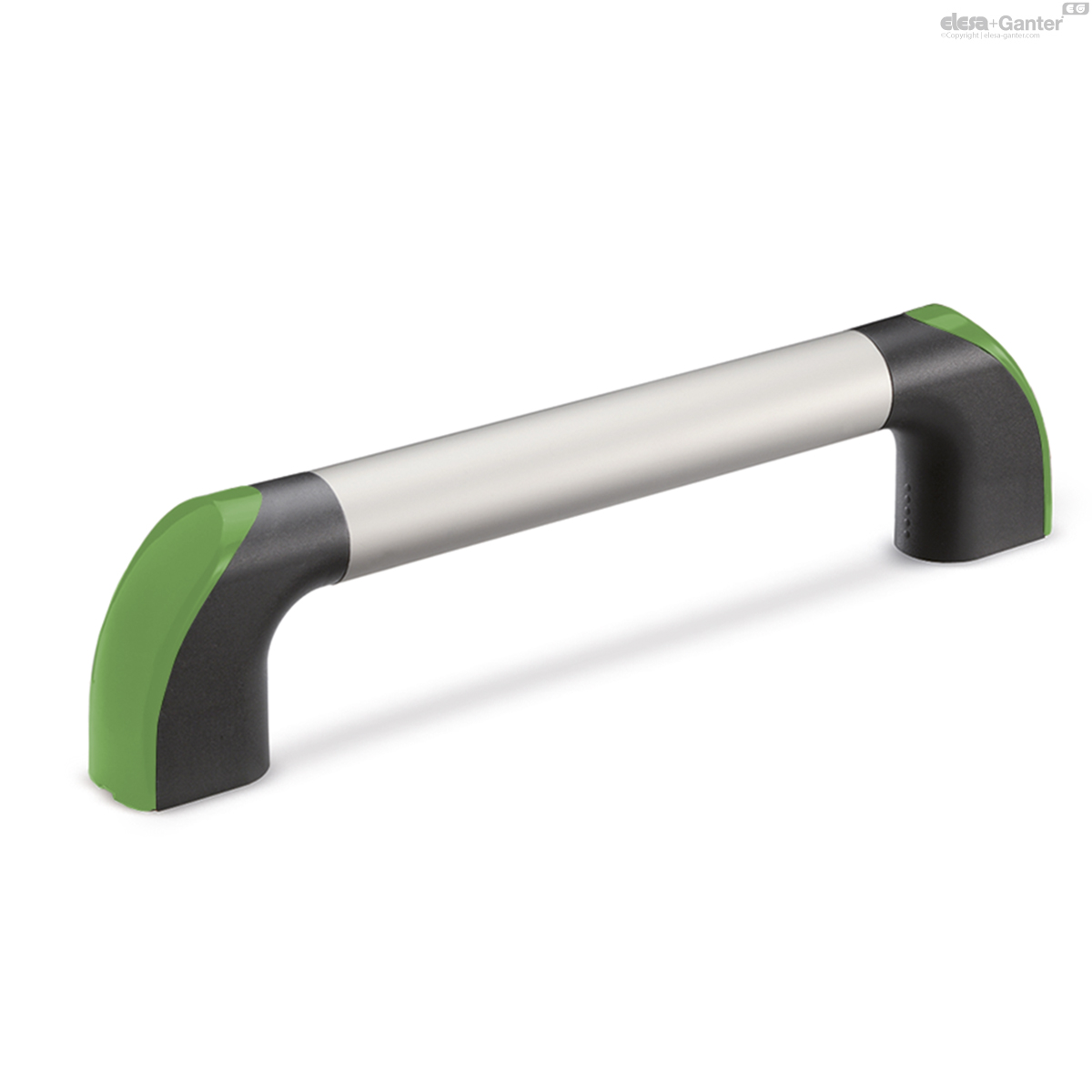

262153-C17	ETH.28-300-AN-C17	C17 - RAL 6017	27.5	300	339	10.5	68	54	20	15	248	20.3	4	28	86	2400	2800	200
262157-C1	ETH.28-400-AN-C1	C1 - RAL 7021	27.5	400	439	10.5	68	54	20	15	348	20.3	4	28	86	2000	2300	250
262157-C2	ETH.28-400-AN-C2	C2 - RAL 2004	27.5	400	439	10.5	68	54	20	15	348	20.3	4	28	86	2000	2300	250
262157-C3	ETH.28-400-AN-C3	C3 - RAL 7035	27.5	400	439	10.5	68	54	20	15	348	20.3	4	28	86	2000	2300	250
262157-C4	ETH.28-400-AN-C4	C4 - RAL 1021	27.5	400	439	10.5	68	54	20	15	348	20.3	4	28	86	2000	2300	250
262157-C5	ETH.28-400-AN-C5	C5 - RAL 5024	27.5	400	439	10.5	68	54	20	15	348	20.3	4	28	86	2000	2300	250
262157-C6	ETH.28-400-AN-C6	C6 - RAL 3000	27.5	400	439	10.5	68	54	20	15	348	20.3	4	28	86	2000	2300	250
262157-C17	ETH.28-400-AN-C17	C17 - RAL 6017	27.5	400	439	10.5	68	54	20	15	348	20.3	4	28	86	2000	2300	250
262163-C1	ETH.28-500-AN-C1	C1 - RAL 7021	27.5	500	539	10.5	68	54	20	15	448	20.3	4	28	86	1800	2000	200
262163-C2	ETH.28-500-AN-C2	C2 - RAL 2004	27.5	500	539	10.5	68	54	20	15	448	20.3	4	28	86	1800	2000	200
262163-C3	ETH.28-500-AN-C3	C3 - RAL 7035	27.5	500	539	10.5	68	54	20	15	448	20.3	4	28	86	1800	2000	200
262163-C4	ETH.28-500-AN-C4	C4 - RAL 1021	27.5	500	539	10.5	68	54	20	15	448	20.3	4	28	86	1800	2000	200
262163-C5	ETH.28-500-AN-C5	C5 - RAL 5024	27.5	500	539	10.5	68	54	20	15	448	20.3	4	28	86	1800	2000	200
262163-C6	ETH.28-500-AN-C6	C6 - RAL 3000	27.5	500	539	10.5	68	54	20	15	448	20.3	4	28	86	1800	2000	200
262163-C17	ETH.28-500-AN-C17	C17 - RAL 6017	27.5	500	539	10.5	68	54	20	15	448	20.3	4	28	86	1800	2000	200
262167-C1	ETH.28-600-AN-C1	C1 - RAL 7021	27.5	600	639	10.5	68	54	20	15	548	20.3	4	28	86	1200	1500	350
262167-C2	ETH.28-600-AN-C2	C2 - RAL 2004	27.5	600	639	10.5	68	54	20	15	548	20.3	4	28	86	1200	1500	350
262167-C3	ETH.28-600-AN-C3	C3 - RAL 7035	27.5	600	639	10.5	68	54	20	15	548	20.3	4	28	86	1200	1500	350
262167-C4	ETH.28-600-AN-C4	C4 - RAL 1021	27.5	600	639	10.5	68	54	20	15	548	20.3	4	28	86	1200	1500	350
262167-C5	ETH.28-600-AN-C5	C5 - RAL 5024	27.5	600	639	10.5	68	54	20	15	548	20.3	4	28	86	1200	1500	350
262167-C6	ETH.28-600-AN-C6	C6 - RAL 3000	27.5	600	639	10.5	68	54	20	15	548	20.3	4	28	86	1200	1500	350
262167-C17	ETH.28-600-AN-C17	C17 - RAL 6017	27.5	600	639	10.5	68	54	20	15	548	20.3	4	28	86	1200	1500	350
262173-C1	ETH.28-700-AN-C1	C1 - RAL 7021	27.5	700	739	10.5	68	54	20	15	648	20.3	4	28	86	900	1200	200
262173-C2	ETH.28-700-AN-C2	C2 - RAL 2004	27.5	700	739	10.5	68	54	20	15	648	20.3	4	28	86	900	1200	200
262173-C3	ETH.28-700-AN-C3	C3 - RAL 7035	27.5	700	739	10.5	68	54	20	15	648	20.3	4	28	86	900	1200	200
262173-C4	ETH.28-700-AN-C4	C4 - RAL 1021	27.5	700	739	10.5	68	54	20	15	648	20.3	4	28	86	900	1200	200
262173-C5	ETH.28-700-AN-C5	C5 - RAL 5024	27.5	700	739	10.5	68	54	20	15	648	20.3	4	28	86	900	1200	200
262173-C6	ETH.28-700-AN-C6	C6 - RAL 3000	27.5	700	739	10.5	68	54	20	15	648	20.3	4	28	86	900	1200	200
262173-C17	ETH.28-700-AN-C17	C17 - RAL 6017	27.5	700	739	10.5	68	54	20	15	648	20.3	4	28	86	900	1200	200
262213-C1	ETH.35-300-AN-C1	C1 - RAL 7021	34.5	300	357	10.5	85	67.5	28	15	251	18.5	4	35	91	3000	3100	255
262213-C2	ETH.35-300-AN-C2	C2 - RAL 2004	34.5	300	357	10.5	85	67.5	28	15	251	18.5	4	35	91	3000	3100	255
262213-C3	ETH.35-300-AN-C3	C3 - RAL 7035	34.5	300	357	10.5	85	67.5	28	15	251	18.5	4	35	91	3000	3100	255
262213-C4	ETH.35-300-AN-C4	C4 - RAL 1021	34.5	300	357	10.5	85	67.5	28	15	251	18.5	4	35	91	3000	3100	255
262213-C5	ETH.35-300-AN-C5	C5 - RAL 5024	34.5	300	357	10.5	85	67.5	28	15	251	18.5	4	35	91	3000	3100	255
262213-C6	ETH.35-300-AN-C6	C6 - RAL 3000	34.5	300	357	10.5	85	67.5	28	15	251	18.5	4	35	91	3000	3100	255
262213-C17	ETH.35-300-AN-C17	C17 - RAL 6017	34.5	300	357	10.5	85	67.5	28	15	251	18.5	4	35	91	3000	3100	255
262217-C1	ETH.35-400-AN-C1	C1 - RAL 7021	34.5	400	457	10.5	85	67.5	28	15	351	18.5	4	35	91	2700	2800	296
262217-C2	ETH.35-400-AN-C2	C2 - RAL 2004	34.5	400	457	10.5	85	67.5	28	15	351	18.5	4	35	91	2700	2800	296
262217-C3	ETH.35-400-AN-C3	C3 - RAL 7035	34.5	400	457	10.5	85	67.5	28	15	351	18.5	4	35	91	2700	2800	296
262217-C4	ETH.35-400-AN-C4	C4 - RAL 1021	34.5	400	457	10.5	85	67.5	28	15	351	18.5	4	35	91	2700	2800	296
262217-C5	ETH.35-400-AN-C5	C5 - RAL 5024	34.5	400	457	10.5	85	67.5	28	15	351	18.5	4	35	91	2700	2800	296
262217-C6	ETH.35-400-AN-C6	C6 - RAL 3000	34.5	400	457	10.5	85	67.5	28	15	351	18.5	4	35	91	2700	2800	296
262217-C17	ETH.35-400-AN-C17	C17 - RAL 6017	34.5	400	457	10.5	85	67.5	28	15	351	18.5	4	35	91	2700	2800	296
262223-C1	ETH.35-500-AN-C1	C1 - RAL 7021	34.5	500	557	10.5	85	67.5	28	15	451	18.5	4	35	91	2500	2600	255
262223-C2	ETH.35-500-AN-C2	C2 - RAL 2004	34.5	500	557	10.5	85	67.5	28	15	451	18.5	4	35	91	2500	2600	255
262223-C3	ETH.35-500-AN-C3	C3 - RAL 7035	34.5	500	557	10.5	85	67.5	28	15	451	18.5	4	35	91	2500	2600	255
262223-C4	ETH.35-500-AN-C4	C4 - RAL 1021	34.5	500	557	10.5	85	67.5	28	15	451	18.5	4	35	91	2500	2600	255
262223-C5	ETH.35-500-AN-C5	C5 - RAL 5024	34.5	500	557	10.5	85	67.5	28	15	451	18.5	4	35	91	2500	2600	255
262223-C6	ETH.35-500-AN-C6	C6 - RAL 3000	34.5	500	557	10.5	85	67.5	28	15	451	18.5	4	35	91	2500	2600	255
262223-C17	ETH.35-500-AN-C17	C17 - RAL 6017	34.5	500	557	10.5	85	67.5	28	15	451	18.5	4	35	91	2500	2600	255
262227-C1	ETH.35-600-AN-C1	C1 - RAL 7021	34.5	600	657	10.5	85	67.5	28	15	551	18.5	4	35	91	1900	2100	377
262227-C2	ETH.35-600-AN-C2	C2 - RAL 2004	34.5	600	657	10.5	85	67.5	28	15	551	18.5	4	35	91	1900	2100	377
262227-C3	ETH.35-600-AN-C3	C3 - RAL 7035	34.5	600	657	10.5	85	67.5	28	15	551	18.5	4	35	91	1900	2100	377
262227-C4	ETH.35-600-AN-C4	C4 - RAL 1021	34.5	600	657	10.5	85	67.5	28	15	551	18.5	4	35	91	1900	2100	377
262227-C5	ETH.35-600-AN-C5	C5 - RAL 5024	34.5	600	657	10.5	85	67.5	28	15	551	18.5	4	35	91	1900	2100	377
262227-C6	ETH.35-600-AN-C6	C6 - RAL 3000	34.5	600	657	10.5	85	67.5	28	15	551	18.5	4	35	91	1900	2100	377
262227-C17	ETH.35-600-AN-C17	C17 - RAL 6017	34.5	600	657	10.5	85	67.5	28	15	551	18.5	4	35	91	1900	2100	377
262233-C1	ETH.35-700-AN-C1	C1 - RAL 7021	34.5	700	757	10.5	85	67.5	28	15	651	18.5	4	35	91	1900	2100	255
262233-C2	ETH.35-700-AN-C2	C2 - RAL 2004	34.5	700	757	10.5	85	67.5	28	15	651	18.5	4	35	91	1900	2100	255
262233-C3	ETH.35-700-AN-C3	C3 - RAL 7035	34.5	700	757	10.5	85	67.5	28	15	651	18.5	4	35	91	1900	2100	255
262233-C4	ETH.35-700-AN-C4	C4 - RAL 1021	34.5	700	757	10.5	85	67.5	28	15	651	18.5	4	35	91	1900	2100	255
262233-C5	ETH.35-700-AN-C5	C5 - RAL 5024	34.5	700	757	10.5	85	67.5	28	15	651	18.5	4	35	91	1900	2100	255
262233-C6	ETH.35-700-AN-C6	C6 - RAL 3000	34.5	700	757	10.5	85	67.5	28	15	651	18.5	4	35	91	1900	2100	255
262233-C17	ETH.35-700-AN-C17	C17 - RAL 6017	34.5	700	757	10.5	85	67.5	28	15	651	18.5	4	35	91	1900	2100	255
262248-C1	ETH.35-1000-AN-C1	C1 - RAL 7021	34.5	1000	1057	10.5	85	67.5	28	15	951	18.5	4	35	91	1200	1400	255
262248-C2	ETH.35-1000-AN-C2	C2 - RAL 2004	34.5	1000	1057	10.5	85	67.5	28	15	951	18.5	4	35	91	1200	1400	255
262248-C3	ETH.35-1000-AN-C3	C3 - RAL 7035	34.5	1000	1057	10.5	85	67.5	28	15	951	18.5	4	35	91	1200	1400	255
262248-C4	ETH.35-1000-AN-C4	C4 - RAL 1021	34.5	1000	1057	10.5	85	67.5	28	15	951	18.5	4	35	91	1200	1400	255
262248-C5	ETH.35-1000-AN-C5	C5 - RAL 5024	34.5	1000	1057	10.5	85	67.5	28	15	951	18.5	4	35	91	1200	1400	255
262248-C6	ETH.35-1000-AN-C6	C6 - RAL 3000	34.5	1000	1057	10.5	85	67.5	28	15	951	18.5	4	35	91	1200	1400	255
262248-C17	ETH.35-1000-AN-C17	C17 - RAL 6017	34.5	1000	1057	10.5	85	67.5	28	15	951	18.5	4	35	91	1200	1400	255
