Home Curves & straight tracks Easy Transfer Curve ETC 879-880-881 M

ETC 879-880-881 M

Easy Transfer Curve

Enquire Now

Description

Magnetic corner tracks are the most effective and reliable system for the table top conveyor design. The magnets provide the correct magnetic field to hold the chain on the corner track and this provides a flat carrying surface for the chain; thus, improving product stability and properly supporting the product.

Basic features

Series:	879-880-881 M
Type:	Magnetic
Box:	-

ETC 879-880-881 M

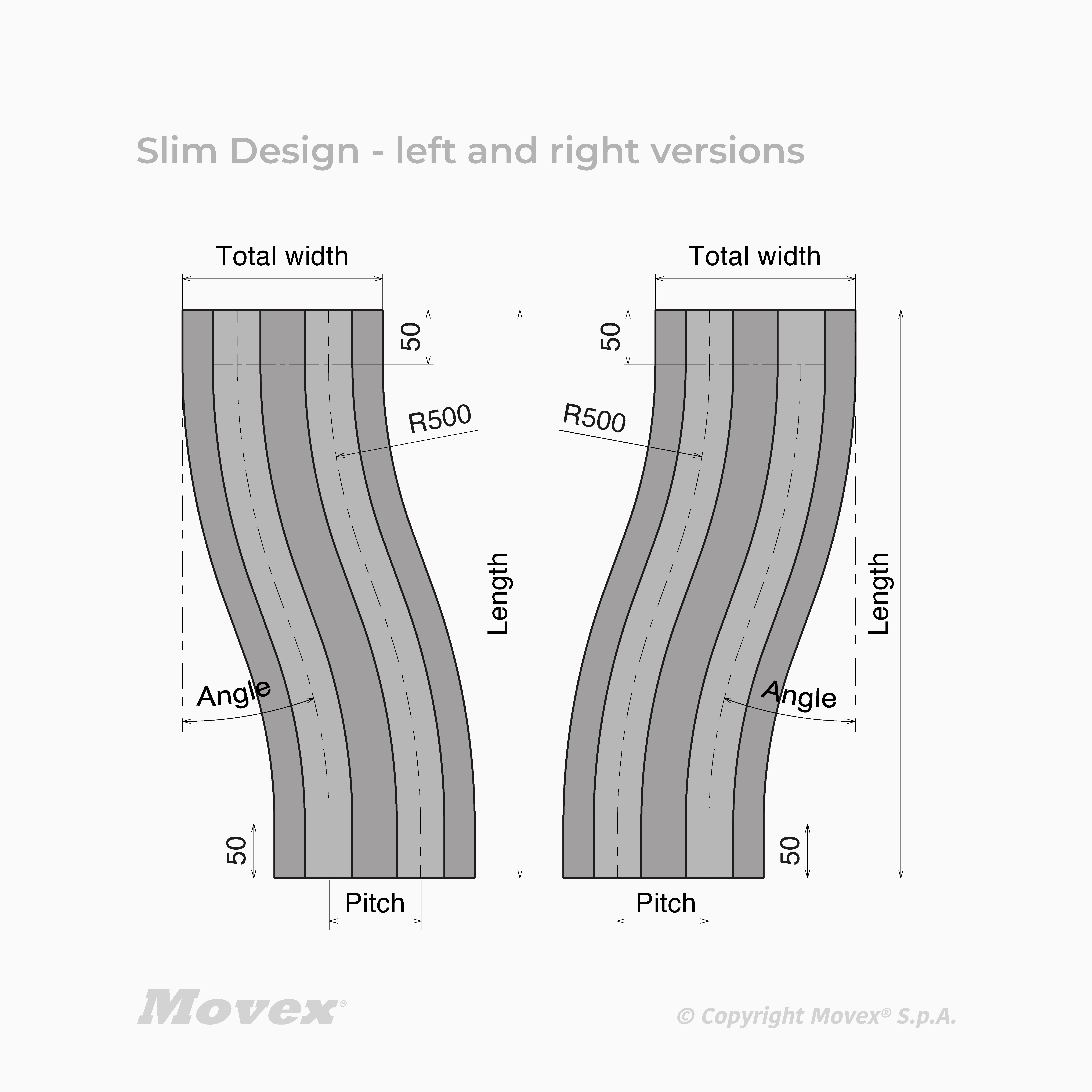

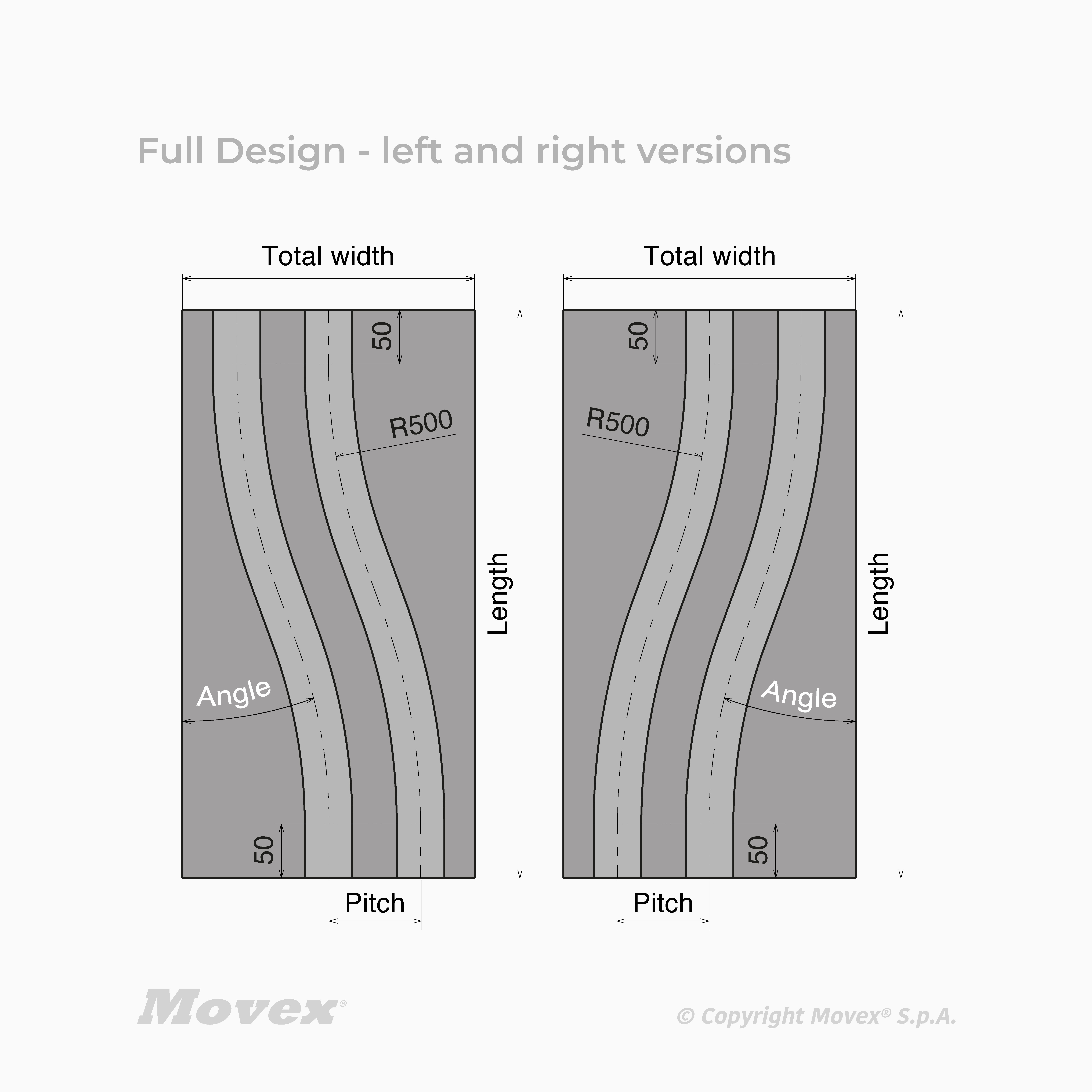

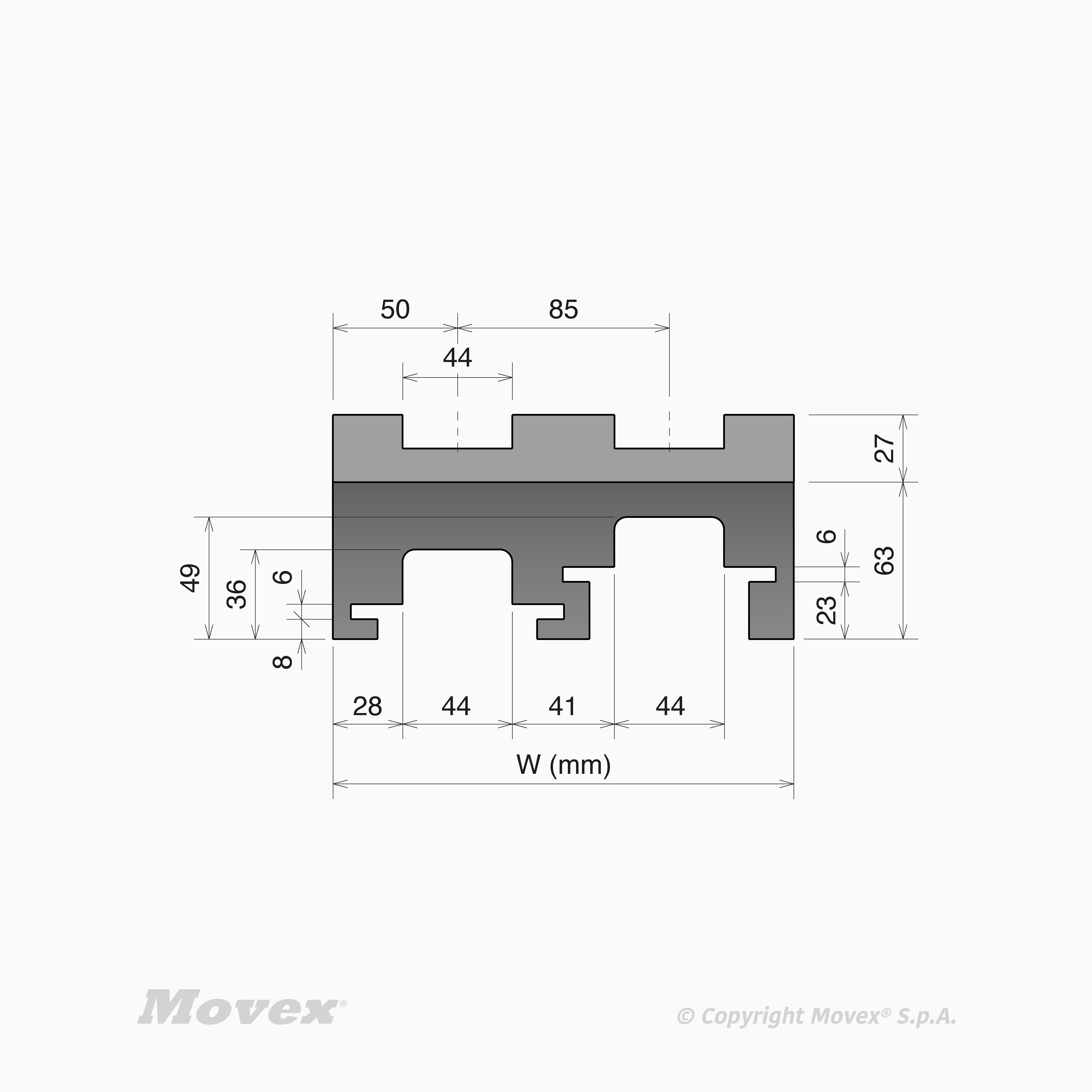

	Chain/Belt Width	Length	Total Height	Angle	Version	Unit of measure	Tracks	Basic width	Pitch	Total width	Infeed / Outfeed	Design	Material UP	Material LW	UP Height	LW Height	Shoe	Temperature range dry
Code																			Actions
P71564120	K 450 (114,30 mm)	606 mm	90 mm	25°	Left version	Ea	2	129 mm	120 mm	249 mm	50	Slim Design	UHMW-PE Grey	UHMW-PE Black	27 mm	63 mm	Included	-40÷80 °C
P71564120B	K 450 (114,30 mm)	606 mm	90 mm	25°	Left version	Ea	2	129 mm	120 mm	249 mm	50	Slim Design	BluLub	UHMW-PE Black	27 mm	63 mm	Included	-40÷50 °C
P71564120C	K 450 (114,30 mm)	606 mm	90 mm	25°	Left version	Ea	2	129 mm	120 mm	249 mm	50	Slim Design	UHMW-PE Abrasive	UHMW-PE Black	27 mm	63 mm	Included	-40÷80 °C
P71564240	K 450 (114,30 mm)	729 mm	90 mm	32°	Left version	Ea	4	129 mm	120 mm	489 mm	50	Slim Design	UHMW-PE Grey	UHMW-PE Black	27 mm	63 mm	Included	-40÷80 °C
P71564240B	K 450 (114,30 mm)	729 mm	90 mm	32°	Left version	Ea	4	129 mm	120 mm	489 mm	50	Slim Design	BluLub	UHMW-PE Black	27 mm	63 mm	Included	-40÷50 °C
P71564240C	K 450 (114,30 mm)	729 mm	90 mm	32°	Left version	Ea	4	129 mm	120 mm	489 mm	50	Slim Design	UHMW-PE Abrasive	UHMW-PE Black	27 mm	63 mm	Included	-40÷80 °C
P71565240C	K 450 (114,30 mm)	874 mm	90 mm	32°	Left version	Ea	4	129 mm	120 mm	729 mm	50	Full Design	UHMW-PE Abrasive	UHMW-PE Black	27 mm	63 mm	Included	-40÷80 °C
P71574120	K 450 (114,30 mm)	606 mm	90 mm	25°	Right version	Ea	2	129 mm	120 mm	249 mm	50	Slim Design	UHMW-PE Grey	UHMW-PE Black	27 mm	63 mm	Included	-40÷80 °C
P71574120B	K 450 (114,30 mm)	606 mm	90 mm	25°	Right version	Ea	2	129 mm	120 mm	249 mm	50	Slim Design	BluLub	UHMW-PE Black	27 mm	63 mm	Included	-40÷50 °C
P71574120C	K 450 (114,30 mm)	606 mm	90 mm	25°	Right version	Ea	2	129 mm	120 mm	249 mm	50	Slim Design	UHMW-PE Abrasive	UHMW-PE Black	27 mm	63 mm	Included	-40÷80 °C
P71574240	K 450 (114,30 mm)	729 mm	90 mm	32°	Right version	Ea	4	129 mm	120 mm	489 mm	50	Slim Design	UHMW-PE Grey	UHMW-PE Black	27 mm	63 mm	Included	-40÷80 °C
P71574240B	K 450 (114,30 mm)	729 mm	90 mm	32°	Right version	Ea	4	129 mm	120 mm	489 mm	50	Slim Design	BluLub	UHMW-PE Black	27 mm	63 mm	Included	-40÷50 °C
P71574240C	K 450 (114,30 mm)	729 mm	90 mm	32°	Right version	Ea	4	129 mm	120 mm	489 mm	50	Slim Design	UHMW-PE Abrasive	UHMW-PE Black	27 mm	63 mm	Included	-40÷80 °C
P71575240	K 450 (114,30 mm)	874 mm	90 mm	32°	Right version	Ea	4	129 mm	120 mm	729 mm	50	Full Design	UHMW-PE Grey	UHMW-PE Black	27 mm	63 mm	Included	-40÷80 °C
P71575240B	K 450 (114,30 mm)	874 mm	90 mm	32°	Right version	Ea	4	129 mm	120 mm	729 mm	50	Full Design	BluLub	UHMW-PE Black	27 mm	63 mm	Included	-40÷50 °C
P71575240C	K 450 (114,30 mm)	874 mm	90 mm	32°	Right version	Ea	4	129 mm	120 mm	729 mm	50	Full Design	UHMW-PE Abrasive	UHMW-PE Black	27 mm	63 mm	Included	-40÷80 °C
