Adjustable handles

Zinc alloy, steel or stainless steel clamping element

Enquire Now

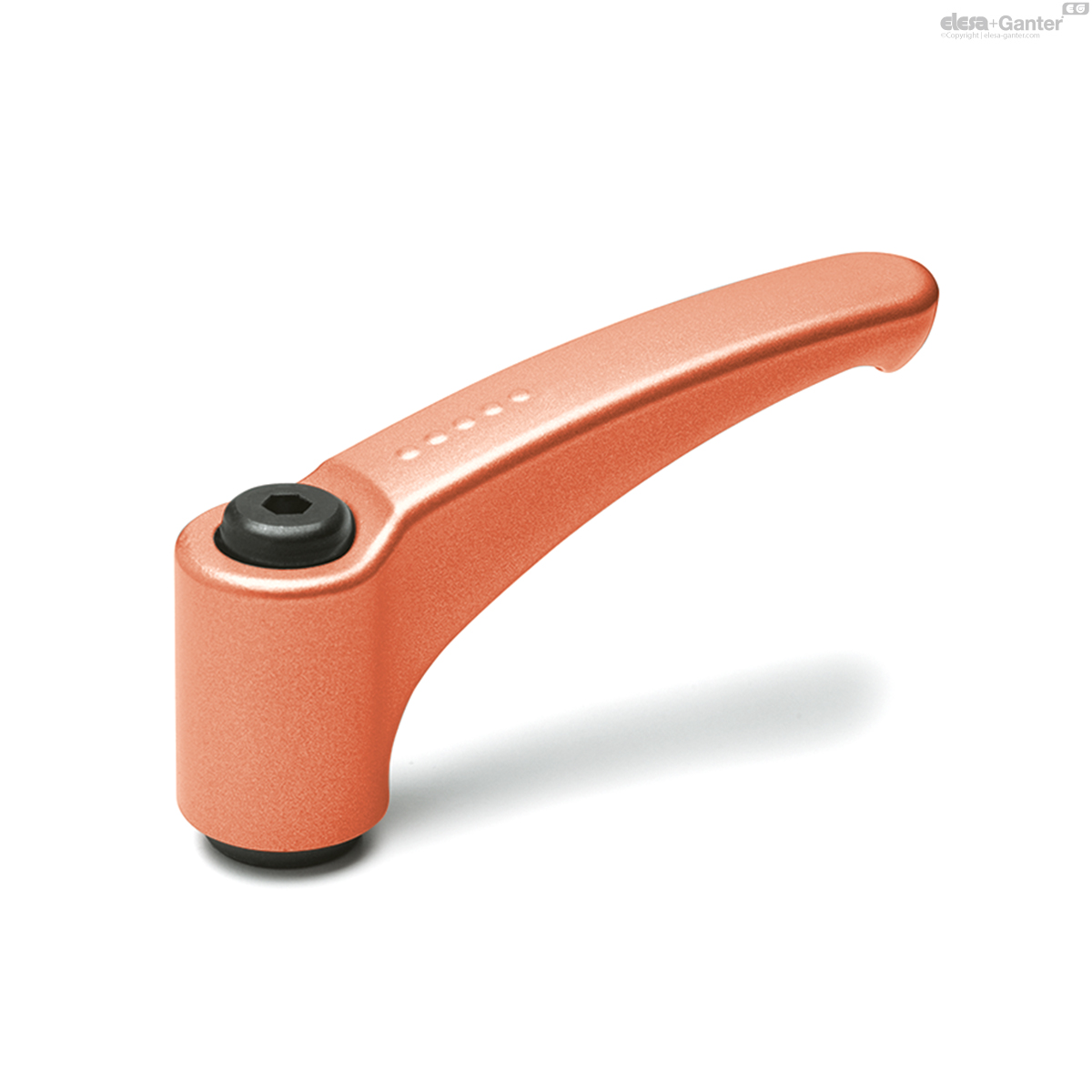

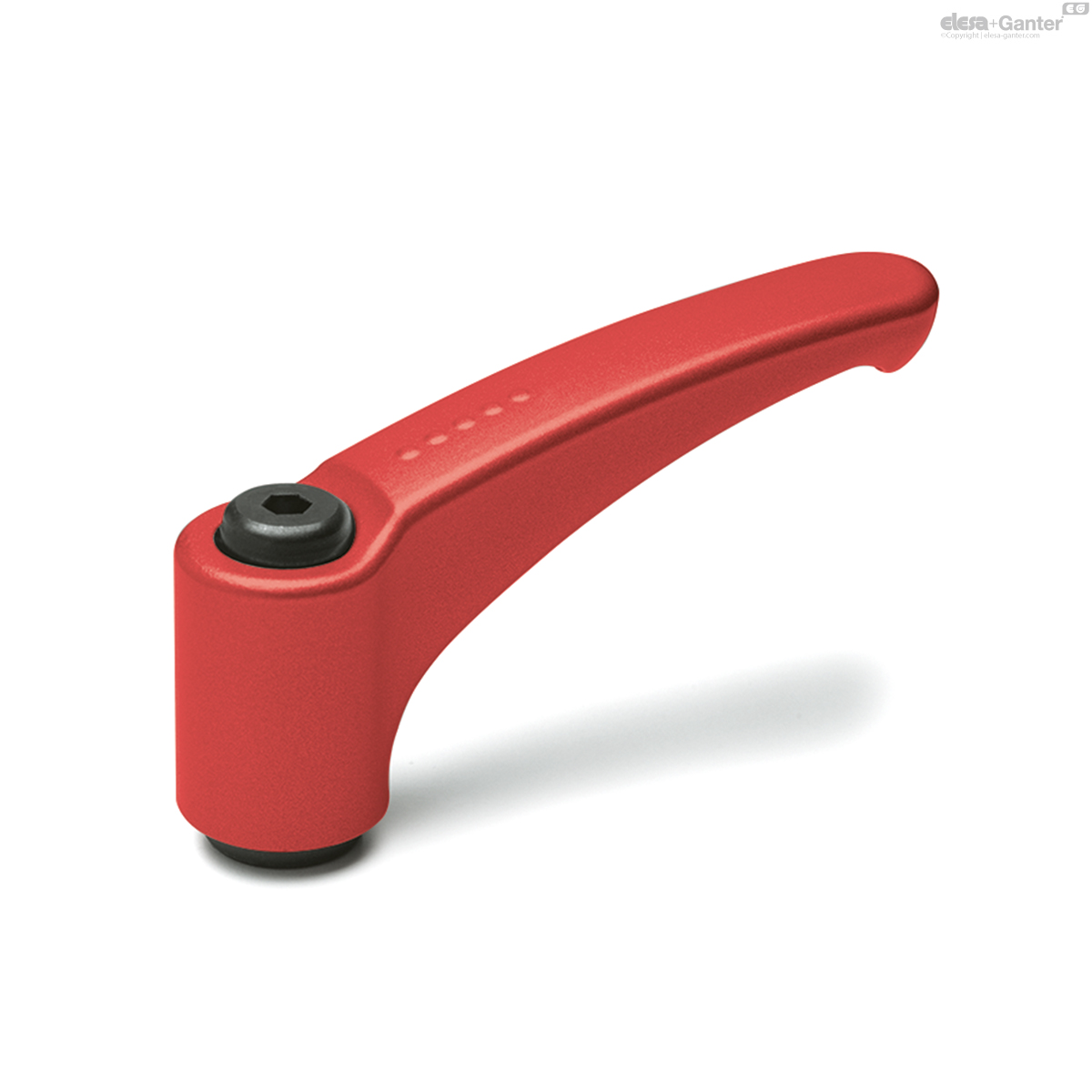

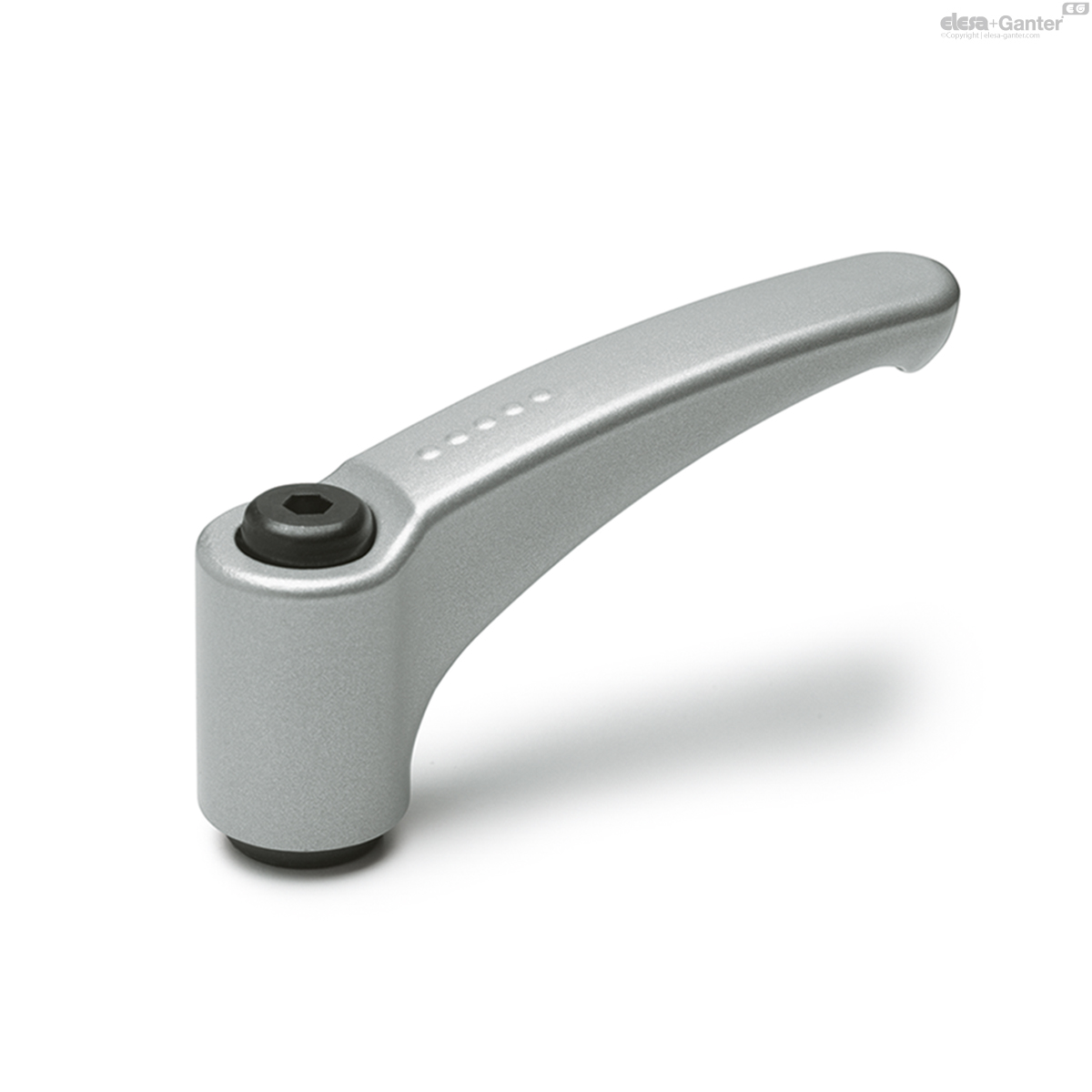

ERM-A

Adjustable handles

Black-oxide steel clamping element, threaded hole

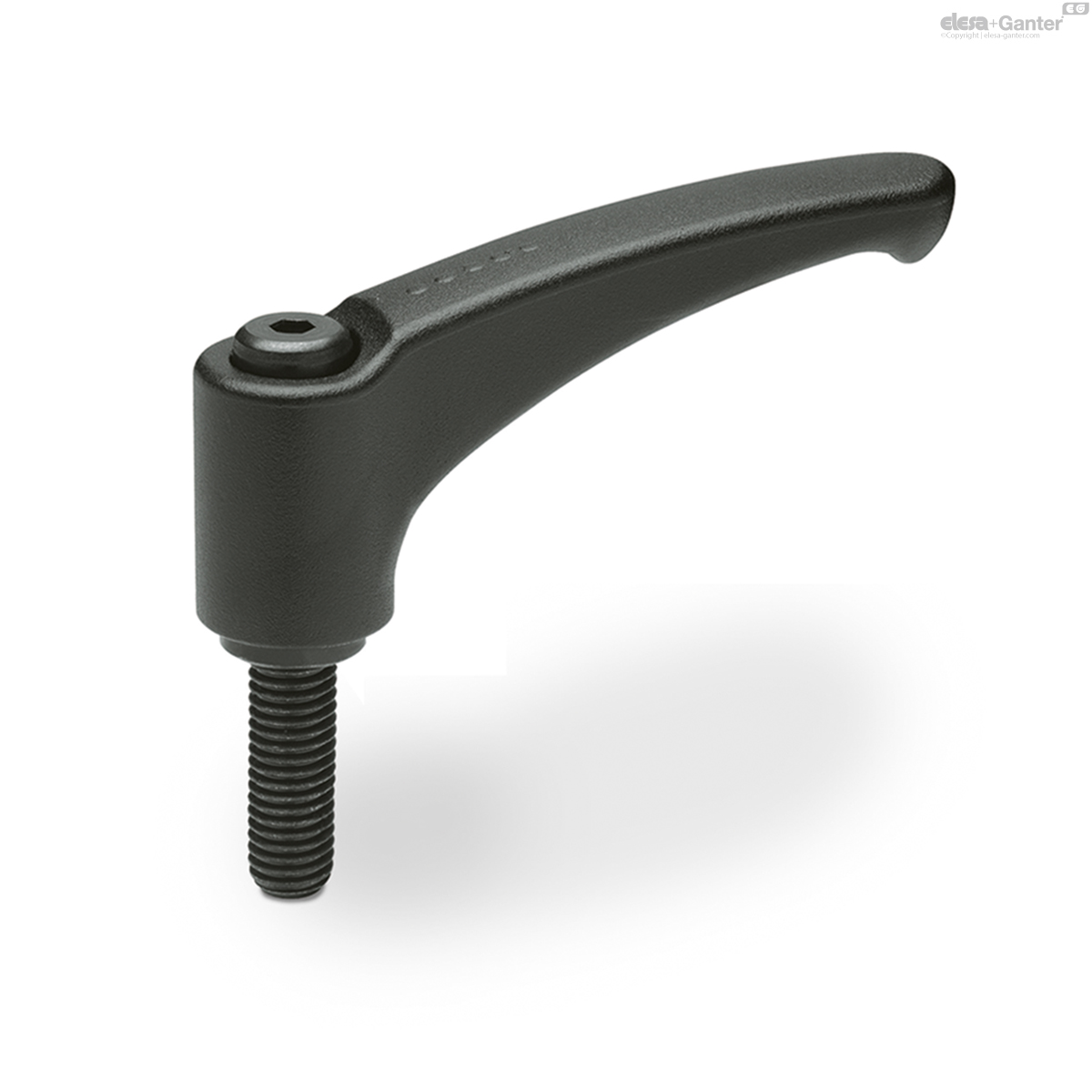

ERM-p

Adjustable handles

Black-oxide steel clamping element, threaded screw

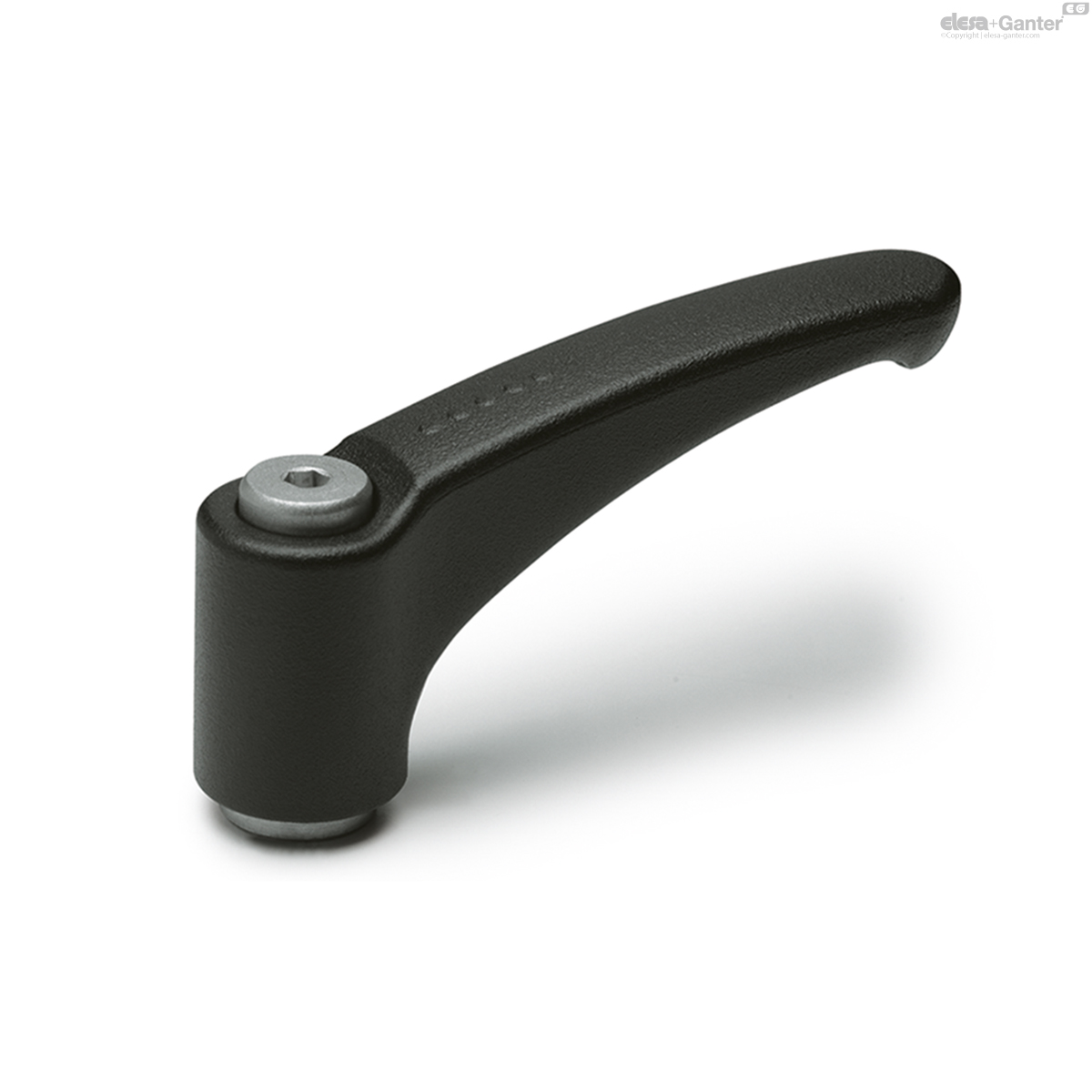

ERM-SST

Adjustable handles

Stainless steel clamping element, threaded hole

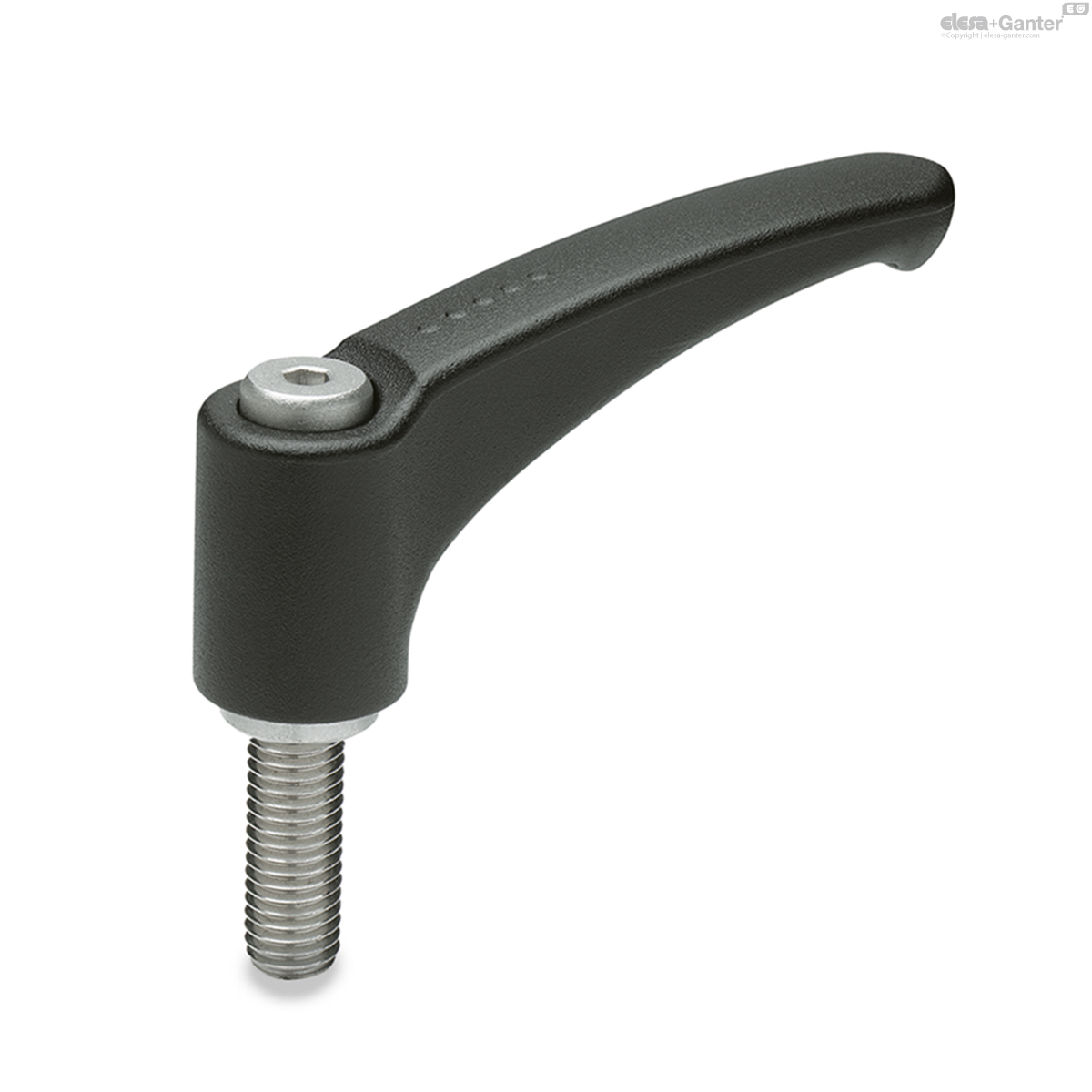

ERM-SST-p

Adjustable handles

Stainless steel clamping element, threaded screw

Description

Main specifications

Lever body

Die cast zinc alloy, epoxy resin coating, orange, red, silver, black colours, matte finish.

Standard executions

ERM-A: black-oxide steel clamping element with threaded hole and retaining screw. Steel return spring.
ERM-SST: AISI 303 stainless steel clamping element with threaded hole and retaining screw. AISI 301 stainless steel return spring.
ERM-p: black-oxide steel clamping element with threaded stud and retaining screw. Steel return spring.
ERM-SST-p: AISI 303 stainless steel clamping element with threaded stud and retaining screw. AISI 301 stainless steel return spring.

Retaining screw with six-lobed socket to fit TORX®.

General information

Features and applications

Particularly suitable when the lever turning angle is limited owing to lack of space.

Special executions on request

Lever body in different colours.
Chrome-plated lever.
Clamping element with plain hole.

Instructions of use

For clamping, lift the lever to disengage the clamping device teeth and bring it back to start position. By releasing the lever, the return spring automatically engages the teeth.

If the lever cannot make a 360° rotation, the clamping element can be easily screwed by means of the six-lobed socket front head screw (after having disengaged the lever).

_{* Registered trademark by TEXTRON INC.}

ERM-A

		Color	R	d	L	D	H	H₁	h	h₁	h₂	h₃	d₁	l₁	Teeth no.
Code	Description																Actions
240002-C2	ERM.44 A-M4-C2	C2 - RAL 2004	44	M4	52	14.5	30	33	8	24.5	3.5	20.5	10	11	18	38
240002-C6	ERM.44 A-M4-C6	C6 - RAL 3000	44	M4	52	14.5	30	33	8	24.5	3.5	20.5	10	11	18	38
240002-C8	ERM.44 A-M4-C8	C8 - RAL 9006	44	M4	52	14.5	30	33	8	24.5	3.5	20.5	10	11	18	37
240002-C9	ERM.44 A-M4-C9	C9 - RAL 9005	44	M4	52	14.5	30	33	8	24.5	3.5	20.5	10	11	18	38
240003-C2	ERM.44 A-M5-C2	C2 - RAL 2004	44	M5	52	14.5	30	33	8	24.5	3.5	20.5	10	11	18	36
240003-C6	ERM.44 A-M5-C6	C6 - RAL 3000	44	M5	52	14.5	30	33	8	24.5	3.5	20.5	10	11	18	36
240003-C8	ERM.44 A-M5-C8	C8 - RAL 9006	44	M5	52	14.5	30	33	8	24.5	3.5	20.5	10	11	18	36
240003-C9	ERM.44 A-M5-C9	C9 - RAL 9005	44	M5	52	14.5	30	33	8	24.5	3.5	20.5	10	11	18	36
240004-C2	ERM.44 A-M6-C2	C2 - RAL 2004	44	M6	52	14.5	30	33	8	24.5	3.5	20.5	10	11	18	37
240004-C6	ERM.44 A-M6-C6	C6 - RAL 3000	44	M6	52	14.5	30	33	8	24.5	3.5	20.5	10	11	18	37
240004-C8	ERM.44 A-M6-C8	C8 - RAL 9006	44	M6	52	14.5	30	33	8	24.5	3.5	20.5	10	11	18	37
240004-C9	ERM.44 A-M6-C9	C9 - RAL 9005	44	M6	52	14.5	30	33	8	24.5	3.5	20.5	10	11	18	36
240014-C2	ERM.63 A-M6-C2	C2 - RAL 2004	63	M6	73.5	18	38	41	10	31	3.5	27	13.5	13.5	24	76
240014-C6	ERM.63 A-M6-C6	C6 - RAL 3000	63	M6	73.5	18	38	41	10	31	3.5	27	13.5	13.5	24	76
240014-C8	ERM.63 A-M6-C8	C8 - RAL 9006	63	M6	73.5	18	38	41	10	31	3.5	27	13.5	13.5	24	76
240014-C9	ERM.63 A-M6-C9	C9 - RAL 9005	63	M6	73.5	18	38	41	10	31	3.5	27	13.5	13.5	24	76
240015-C2	ERM.63 A-M8-C2	C2 - RAL 2004	63	M8	73.5	18	38	41	10	31	3.5	27	13.5	13.5	24	74
240015-C6	ERM.63 A-M8-C6	C6 - RAL 3000	63	M8	73.5	18	38	41	10	31	3.5	27	13.5	13.5	24	74
240015-C8	ERM.63 A-M8-C8	C8 - RAL 9006	63	M8	73.5	18	38	41	10	31	3.5	27	13.5	13.5	24	75
240015-C9	ERM.63 A-M8-C9	C9 - RAL 9005	63	M8	73.5	18	38	41	10	31	3.5	27	13.5	13.5	24	75
240025-C2	ERM.78 A-M8-C2	C2 - RAL 2004	78	M8	90.5	21.5	46	50	14	36	3.5	34.5	16	16	26	139
240025-C6	ERM.78 A-M8-C6	C6 - RAL 3000	78	M8	90.5	21.5	46	50	14	36	3.5	34.5	16	16	26	139
240025-C8	ERM.78 A-M8-C8	C8 - RAL 9006	78	M8	90.5	21.5	46	50	14	36	3.5	34.5	16	16	26	139
240025-C9	ERM.78 A-M8-C9	C9 - RAL 9005	78	M8	90.5	21.5	46	50	14	36	3.5	34.5	16	16	26	139
240026-C2	ERM.78 A-M10-C2	C2 - RAL 2004	78	M10	90.5	21.5	46	50	14	36	3.5	34.5	16	16	26	133
240026-C6	ERM.78 A-M10-C6	C6 - RAL 3000	78	M10	90.5	21.5	46	50	14	36	3.5	34.5	16	16	26	133
240026-C8	ERM.78 A-M10-C8	C8 - RAL 9006	78	M10	90.5	21.5	46	50	14	36	3.5	34.5	16	16	26	133
240026-C9	ERM.78 A-M10-C9	C9 - RAL 9005	78	M10	90.5	21.5	46	50	14	36	3.5	34.5	16	16	26	133
240036-C2	ERM.95 A-M10-C2	C2 - RAL 2004	95	M10	109	25	56	61	17	43	5	42	19.5	18	28	208
240036-C6	ERM.95 A-M10-C6	C6 - RAL 3000	95	M10	109	25	56	61	17	43	5	42	19.5	18	28	208
240036-C8	ERM.95 A-M10-C8	C8 - RAL 9006	95	M10	109	25	56	61	17	43	5	42	19.5	18	28	208
240036-C9	ERM.95 A-M10-C9	C9 - RAL 9005	95	M10	109	25	56	61	17	43	5	42	19.5	18	28	208
240037-C2	ERM.95 A-M12-C2	C2 - RAL 2004	95	M12	109	25	56	61	17	43	5	42	19.5	18	28	203
240037-C6	ERM.95 A-M12-C6	C6 - RAL 3000	95	M12	109	25	56	61	17	43	5	42	19.5	18	28	203
240037-C8	ERM.95 A-M12-C8	C8 - RAL 9006	95	M12	109	25	56	61	17	43	5	42	19.5	18	28	203
240037-C9	ERM.95 A-M12-C9	C9 - RAL 9005	95	M12	109	25	56	61	17	43	5	42	19.5	18	28	203
