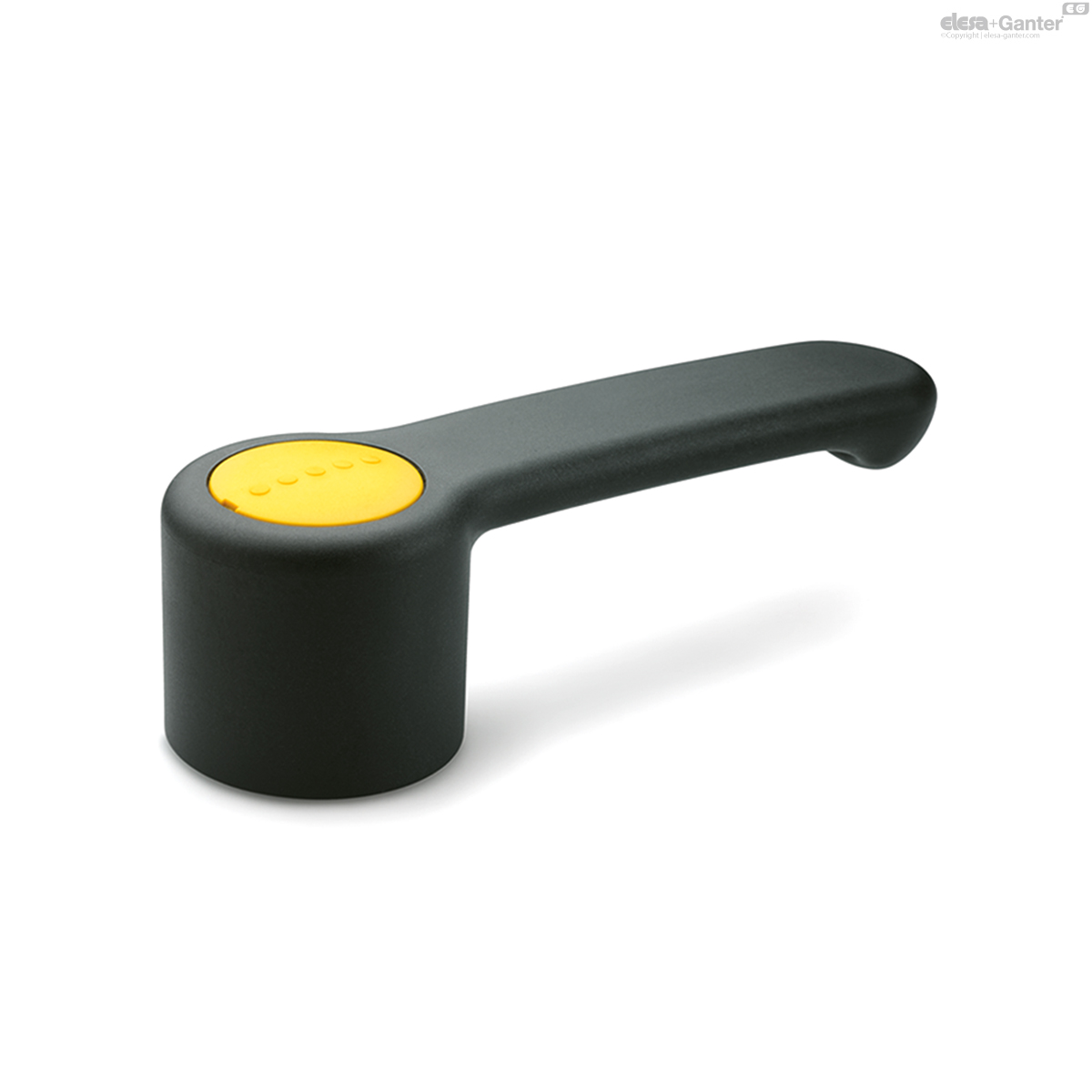

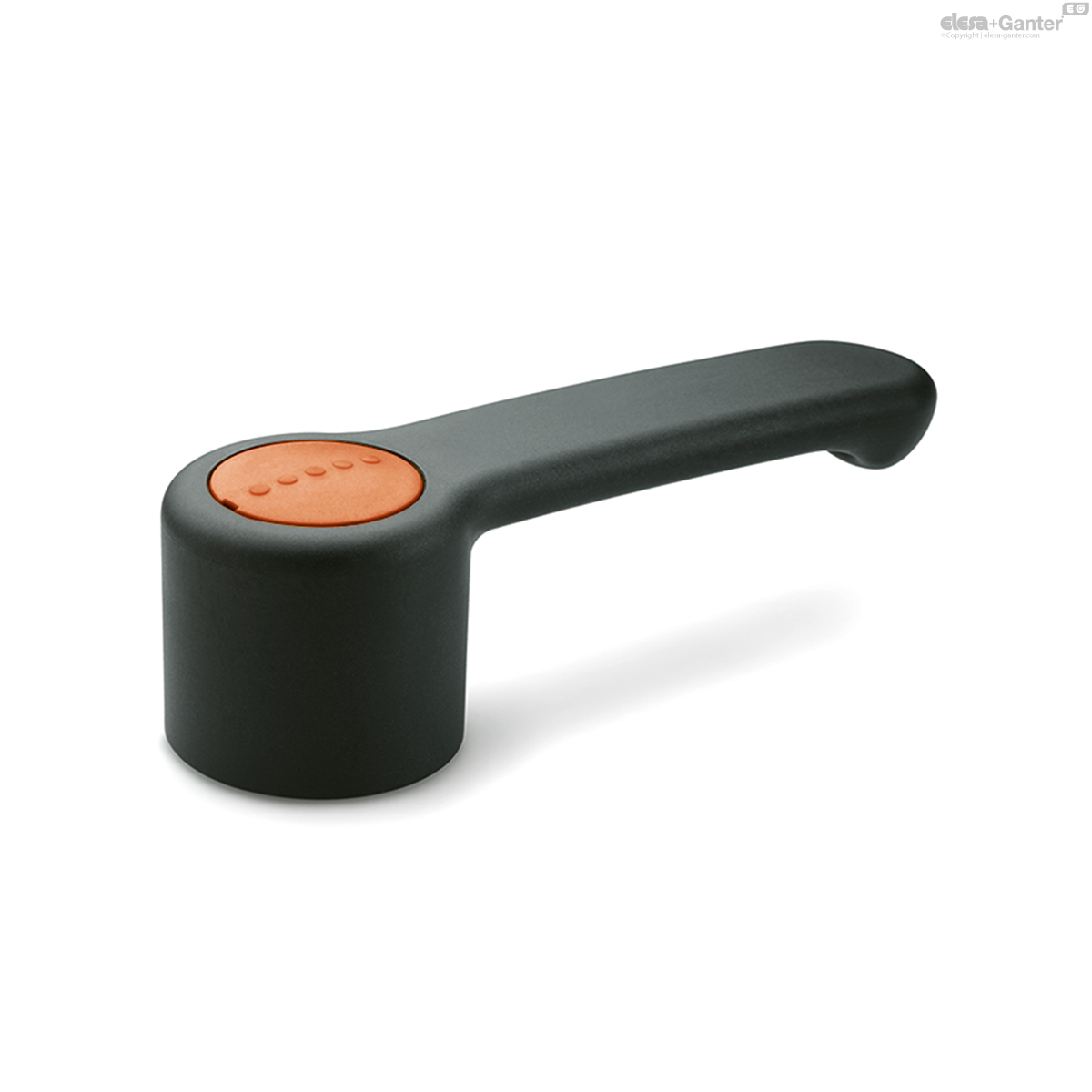

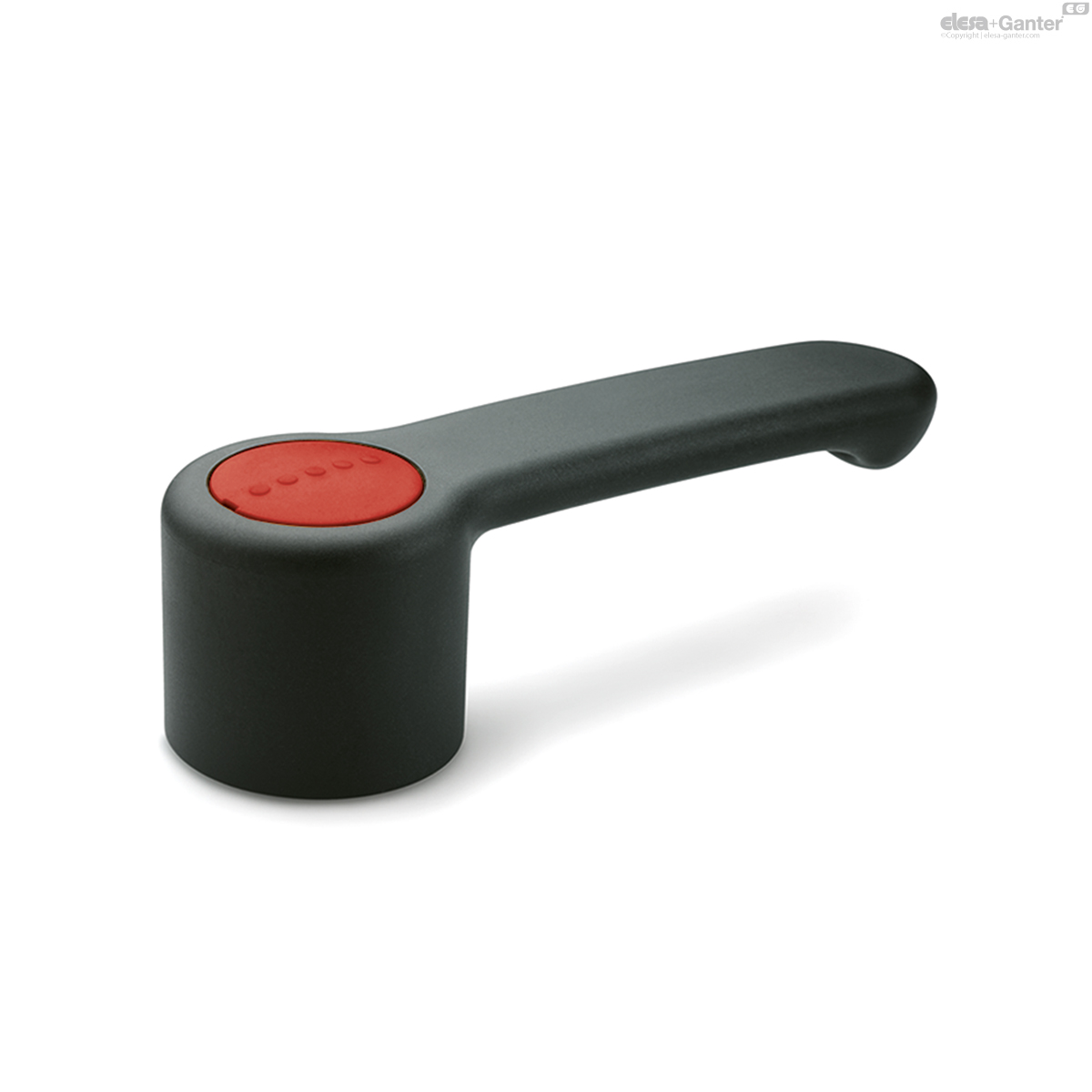

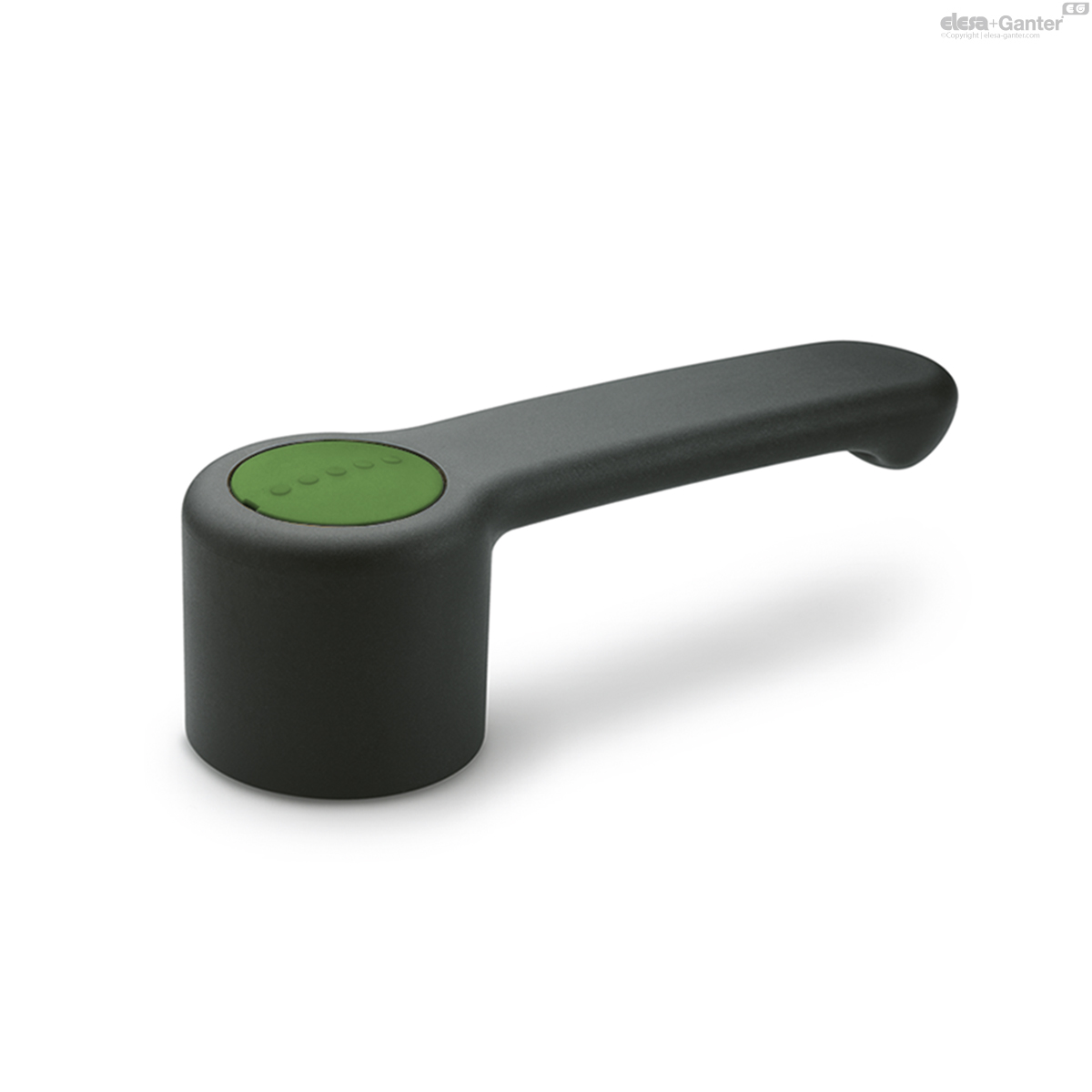

Control lever

arranged for clicking operation, technopolymer

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Boss cap

ECB.T: glass-fibre reinforced polyamide based (PA) technopolymer, in Elecolors colour, matte finish, press-fit assembly. Supplied, removable by a screwdriver.

Available also as accessory sold separately (see table).

Standard execution

Black-oxide steel boss, H7 reamed hole

General information

Features and applications

Control levers ELCR. have a straight lever, parallel to the clamping surface. Particularly suitable when the lever turning angle is limited owing to lack of space.

Ergonomy

Rotations are performed smoothly and powerfully thanks to the heavy-duty arm of the lever, while the enlarged end offers an effective grip.

Manoeuvre angle limitation

A limited manoeuvre angle is possible by fitting stop pins in the rear guide slot.

Accessories on request

GN 184: axial retaining washer in black-oxide steel.

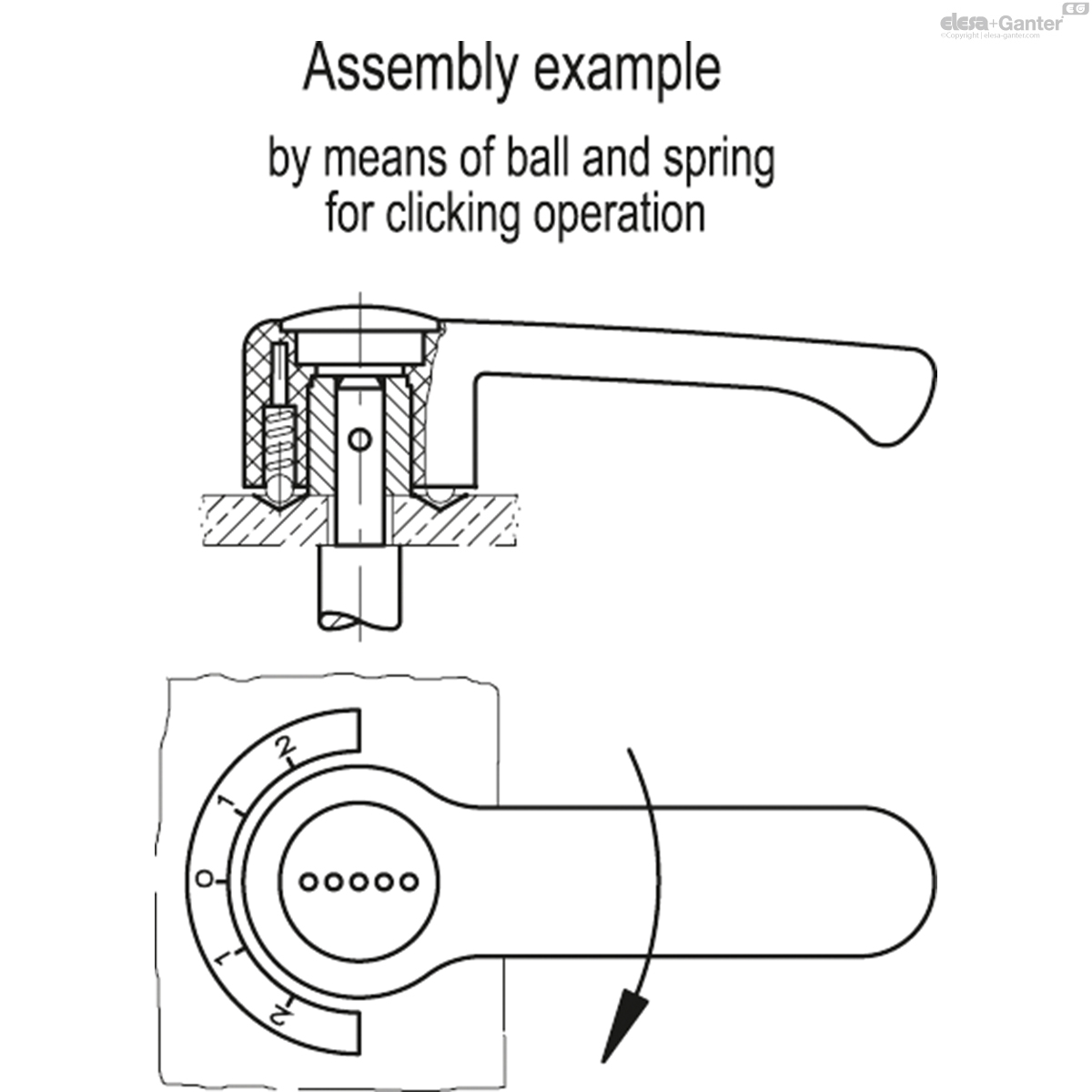

MS.: ball and spring for clicking operation to be fitted into the two holes d3 drilled at 180° (see ball and spring.
ECB.T: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colour, matte finish, press-fit assembly (see table).

ELCR.

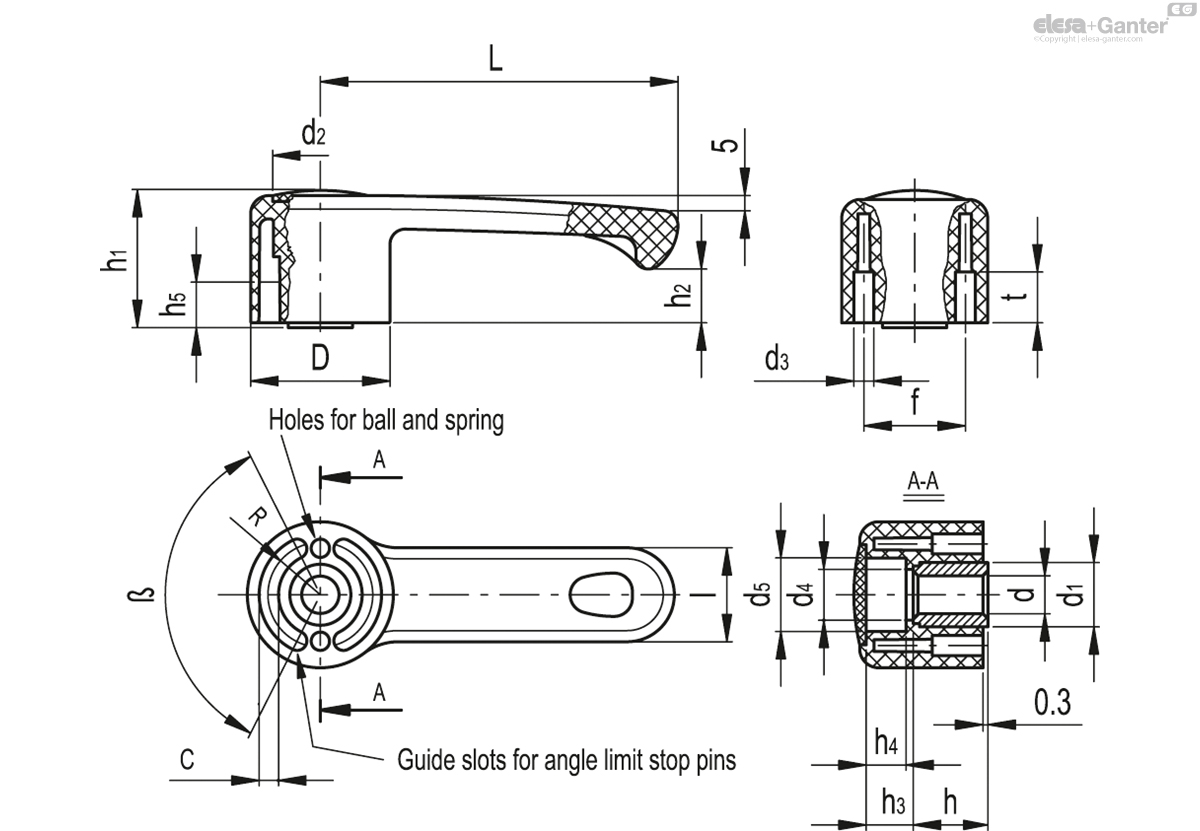

		Color	D	d_H7	L	h	h₁	h₂	h₃	h₄	h₅	d₁	d₂	d₃	d₃*	d₄	d₅	l	R	t	c	β	f
Code	Description																								Actions
212241-C1	ELCR.118 A-12-C1	C1 - RAL 7021	46	12	118	22	44	18.5	19	17	10	22	31.5	6	6	17	25.5	29	17.5	15.5	6.5	125±1°	32	135
212241-C2	ELCR.118 A-12-C2	C2 - RAL 2004	46	12	118	22	44	18.5	19	17	10	22	31.5	6	6	17	25.5	29	17.5	15.5	6.5	125±1°	32	135
212241-C3	ELCR.118 A-12-C3	C3 - RAL 7035	46	12	118	22	44	18.5	19	17	10	22	31.5	6	6	17	25.5	29	17.5	15.5	6.5	125±1°	32	135
212241-C4	ELCR.118 A-12-C4	C4 - RAL 1021	46	12	118	22	44	18.5	19	17	10	22	31.5	6	6	17	25.5	29	17.5	15.5	6.5	125±1°	32	135
212241-C5	ELCR.118 A-12-C5	C5 - RAL 5024	46	12	118	22	44	18.5	19	17	10	22	31.5	6	6	17	25.5	29	17.5	15.5	6.5	125±1°	32	135
212241-C6	ELCR.118 A-12-C6	C6 - RAL 3000	46	12	118	22	44	18.5	19	17	10	22	31.5	6	6	17	25.5	29	17.5	15.5	6.5	125±1°	32	135
212241-C17	ELCR.118 A-12-C17	C17 - RAL 6017	46	12	118	22	44	18.5	19	17	10	22	31.5	6	6	17	25.5	29	17.5	15.5	6.5	125±1°	32	135
