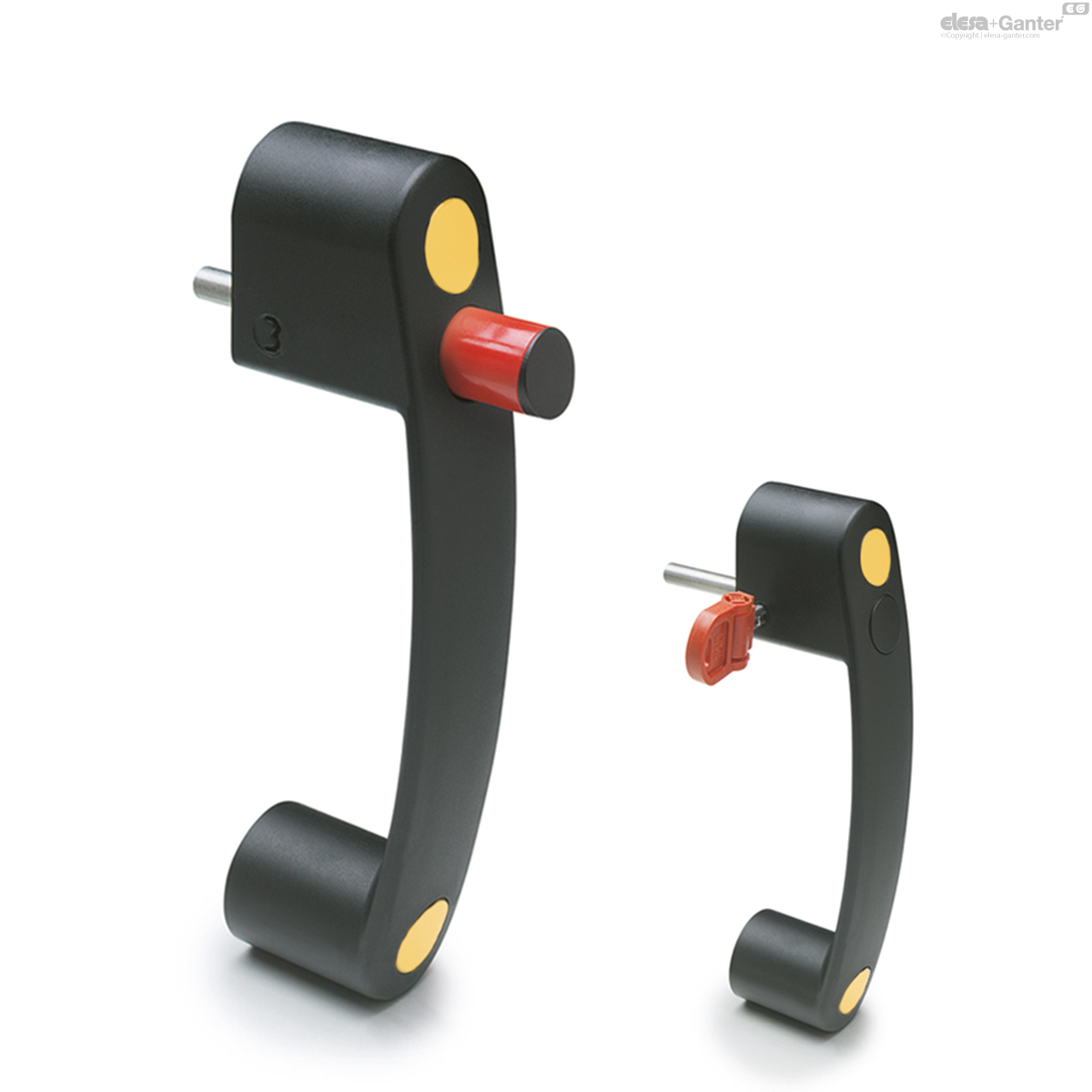

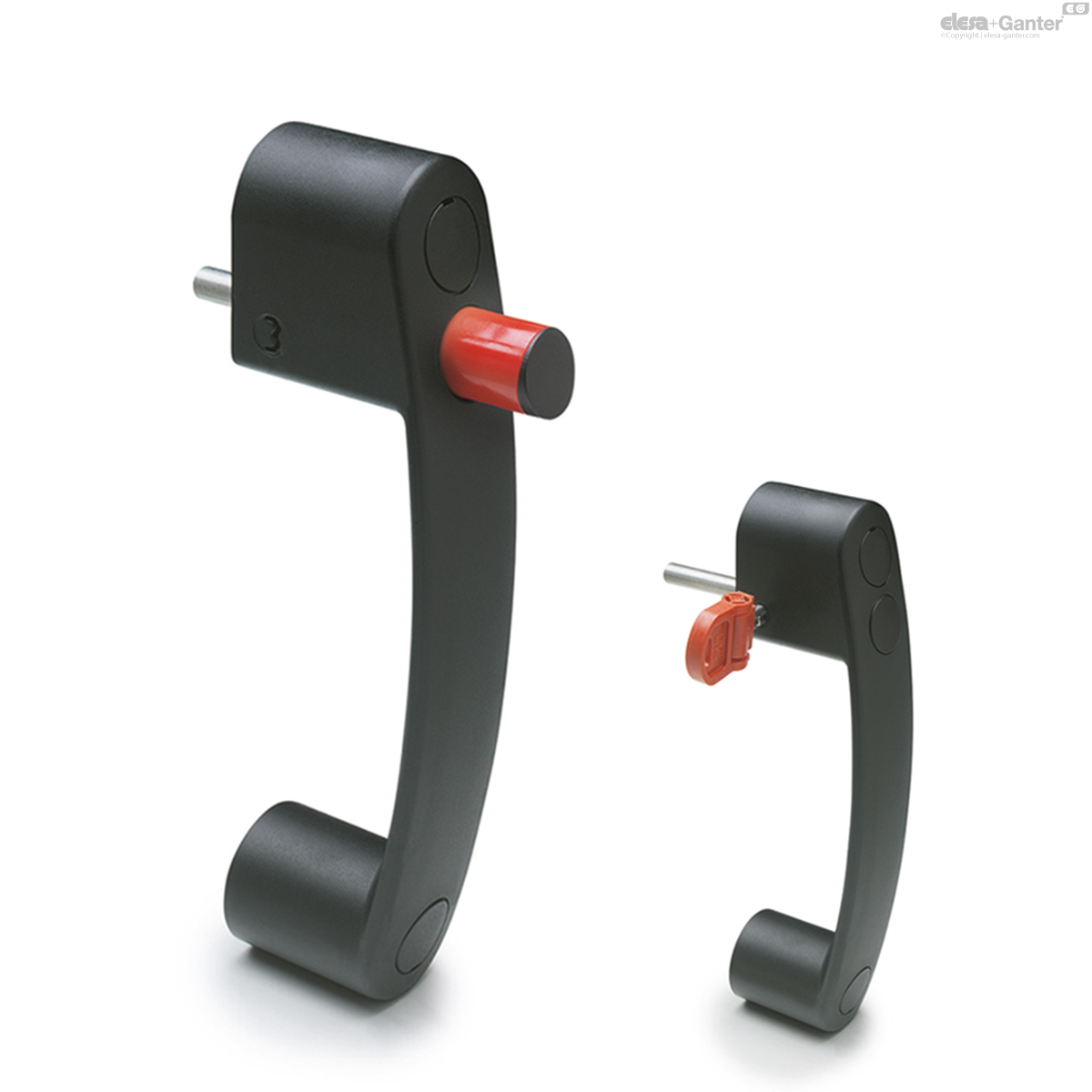

EBR-CH

Handle with safety locking device

For retractable sliding doors, technopolymer

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer with security anti-intrusion-profiled slot, grey-black colour, matte finish.

Push button

Acetal resin based (POM) technopolymer push button with cylindrical part in red colour.

Caps

Technopolymer in Ergostyle colours, glossy finish; supplied with the handle, press-fit assembly, removable by a screwdriver.

Available also as accessories sold separately (see table ECA.).

Standard execution

Pass-through holes for cylindrical-head screws with hexagon socket.

Anti-intrusion profiled security key (to be ordered separately)

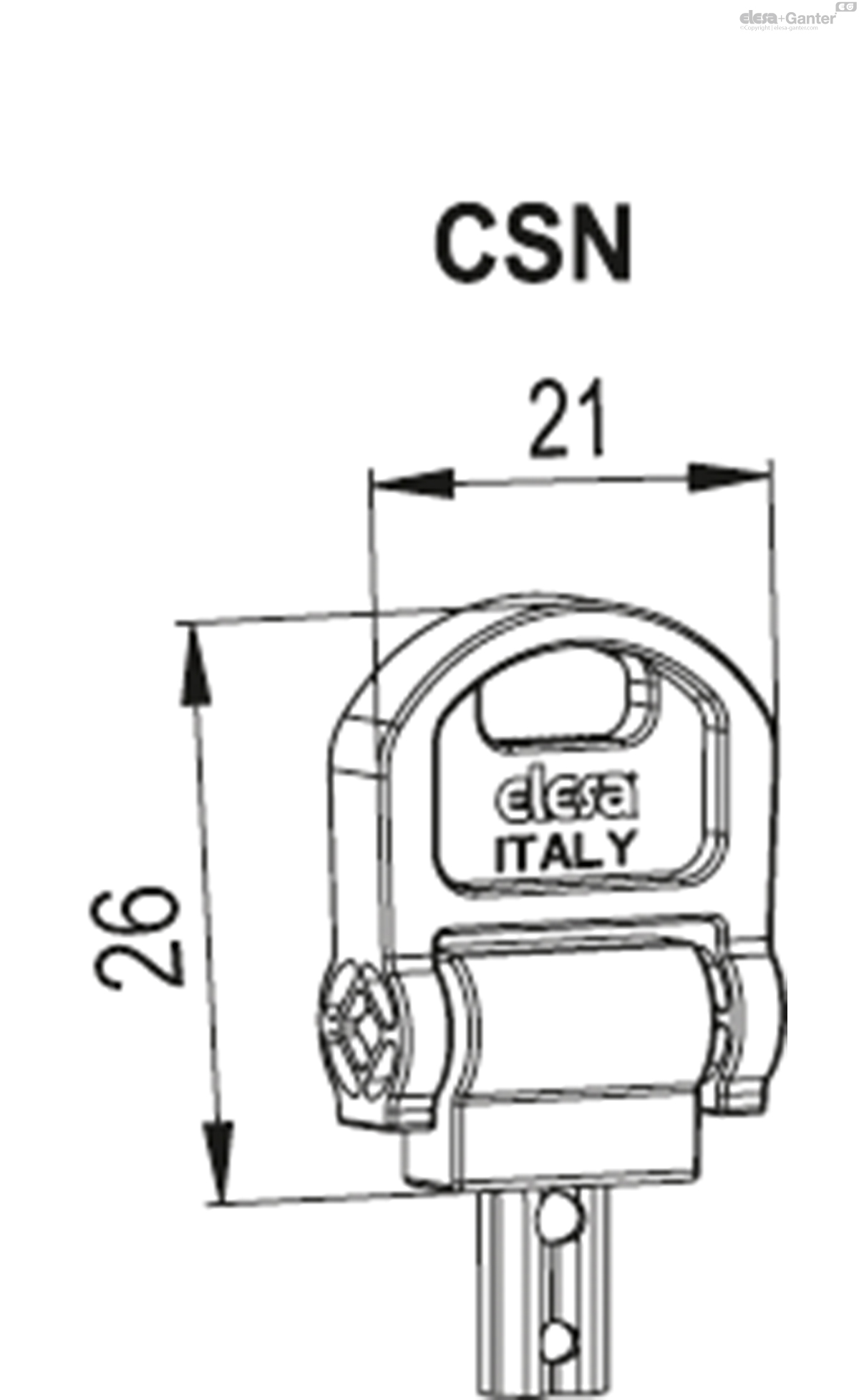

CSN: acetal resin based (POM) technopolymer fold-away key, red colour, stainless steel insert.

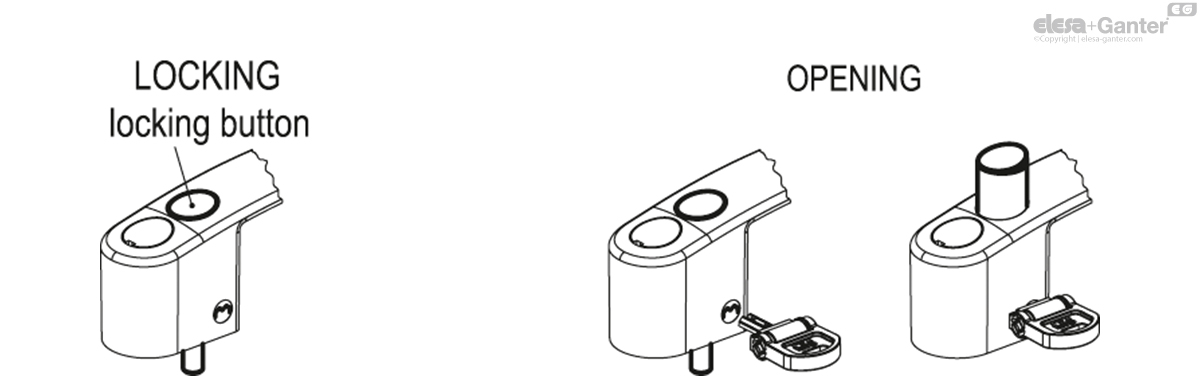

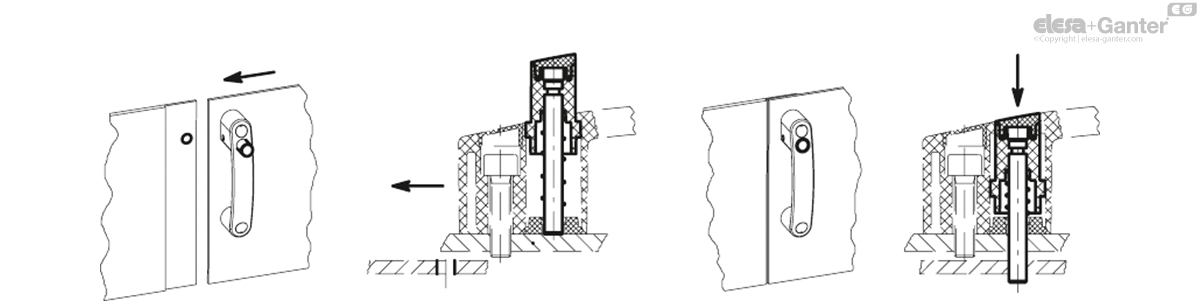

Functioning of the safety device

Doors with EBR-CH handle can be opened only by authorised people, by inserting the anti-intrusion profiled key into its proper slot.

Closing: press the button so that the red cylindrical part of the button completely enters the handle until a click is heard (key must not be inserted during closing).

When the handle is closed, the key must not be in its slot.

Opening: insert the key (without turning it) and push to make the internal device snap.

Force required to release: approx. 50N.

EBR-CH handle can be assembled with EBR neutral handle.

General information

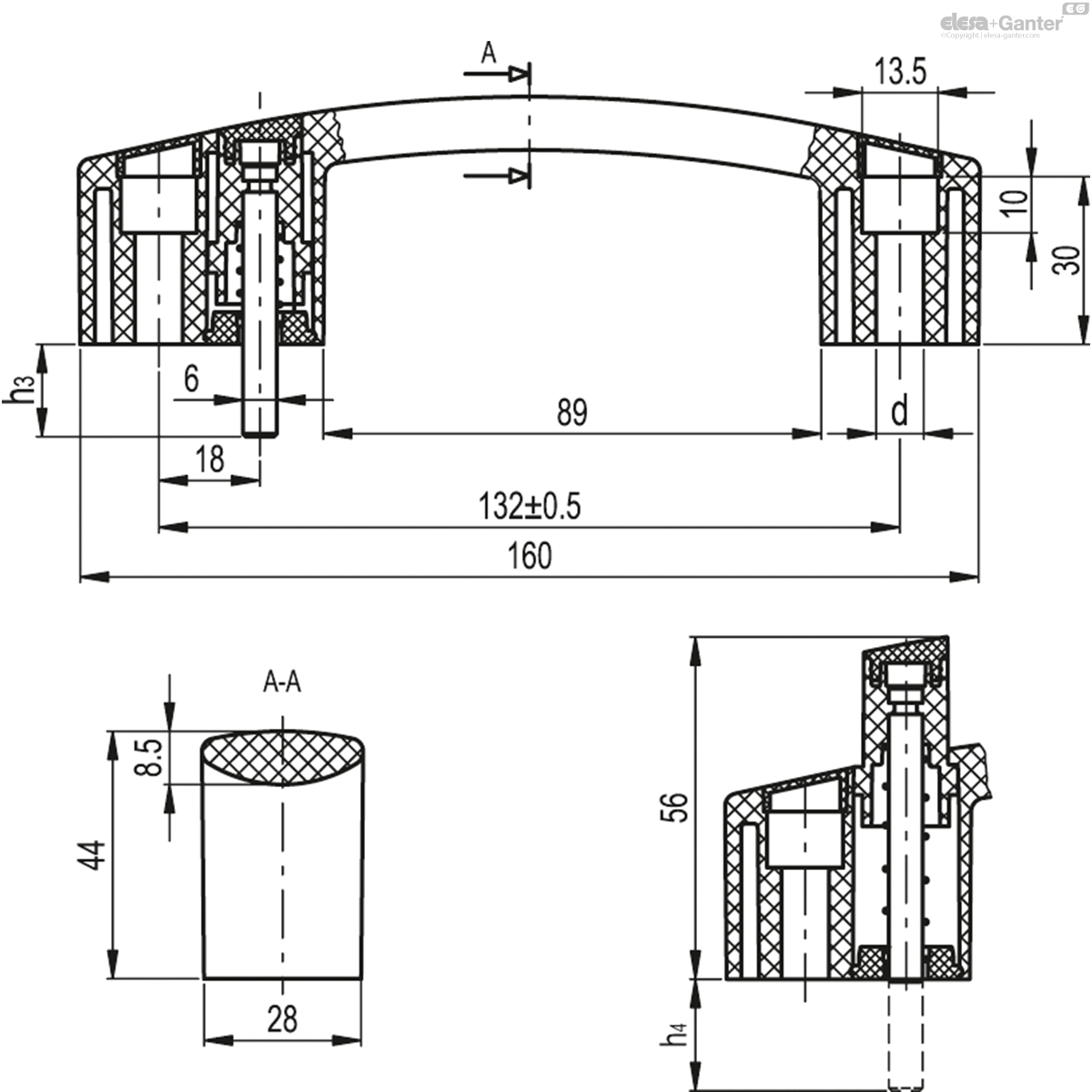

Technical data

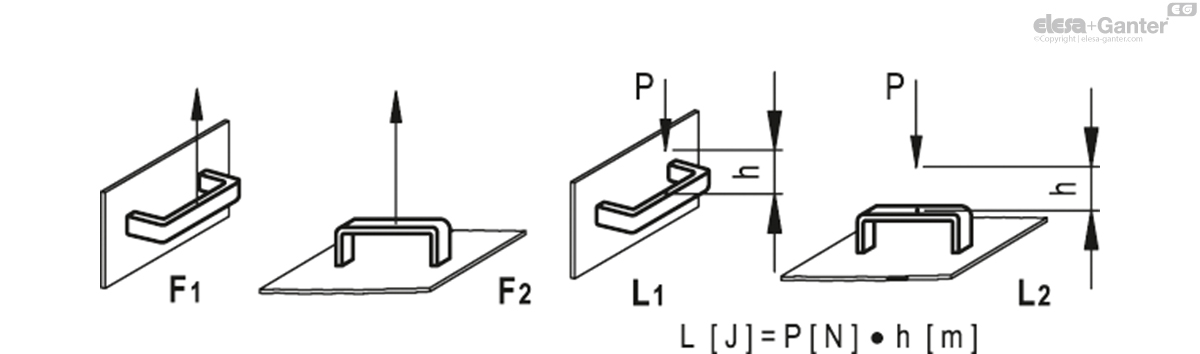

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Other executions

Special executions on request

Captive key device with ball and spring in AISI 316 stainless steel.

A ball and spring retention system ensures that the key cannot be lost if it remains inserted in its slot when the is door opened.

Reduced safety key insertion force (about 30N).

To order this version it is necessary to add the suffix -F30 to the code and the description after selecting the desired version.

EBR-CH

		Color	d	h₃	h₄	F1 [N]	F2 [N]	L1 [J]	L2 [J]
Code	Description										Actions
260521-C1	EBR.150-CH-6-16-C1	C1 - RAL 7021	6.5	16	-	2800	2900	35	8	86
260521-C2	EBR.150-CH-6-16-C2	C2 - RAL 2004	6.5	16	-	2800	2900	35	8	86
260521-C3	EBR.150-CH-6-16-C3	C3 - RAL 7035	6.5	16	-	2800	2900	35	8	86
260521-C4	EBR.150-CH-6-16-C4	C4 - RAL 1021	6.5	16	-	2800	2900	35	8	86
260521-C5	EBR.150-CH-6-16-C5	C5 - RAL 5024	6.5	16	-	2800	2900	35	8	86
260521-C6	EBR.150-CH-6-16-C6	C6 - RAL 3000	6.5	16	-	2800	2900	35	8	86
260523-C1	EBR.150-CH-6-52-C1	C1 - RAL 7021	6.5	52	36	2800	2900	35	8	116
260523-C2	EBR.150-CH-6-52-C2	C2 - RAL 2004	6.5	52	36	2800	2900	35	8	116
260523-C3	EBR.150-CH-6-52-C3	C3 - RAL 7035	6.5	52	36	2800	2900	35	8	116
260523-C4	EBR.150-CH-6-52-C4	C4 - RAL 1021	6.5	52	36	2800	2900	35	8	116
260523-C5	EBR.150-CH-6-52-C5	C5 - RAL 5024	6.5	52	36	2800	2900	35	8	116
260523-C6	EBR.150-CH-6-52-C6	C6 - RAL 3000	6.5	52	36	2800	2900	35	8	116
260525-C1	EBR.150-CH-6-60-C1	C1 - RAL 7021	6.5	60	44	2800	2900	35	8	102
260525-C2	EBR.150-CH-6-60-C2	C2 - RAL 2004	6.5	60	44	2800	2900	35	8	102
260525-C3	EBR.150-CH-6-60-C3	C3 - RAL 7035	6.5	60	44	2800	2900	35	8	102
260525-C4	EBR.150-CH-6-60-C4	C4 - RAL 1021	6.5	60	44	2800	2900	35	8	102
260525-C5	EBR.150-CH-6-60-C5	C5 - RAL 5024	6.5	60	44	2800	2900	35	8	102
260525-C6	EBR.150-CH-6-60-C6	C6 - RAL 3000	6.5	60	44	2800	2900	35	8	102
260527-C1	EBR.150-CH-6-65-C1	C1 - RAL 7021	6.5	65	49	2800	2900	35	8	111
260527-C2	EBR.150-CH-6-65-C2	C2 - RAL 2004	6.5	65	49	2800	2900	35	8	111
260527-C3	EBR.150-CH-6-65-C3	C3 - RAL 7035	6.5	65	49	2800	2900	35	8	111
260527-C4	EBR.150-CH-6-65-C4	C4 - RAL 1021	6.5	65	49	2800	2900	35	8	111
260527-C5	EBR.150-CH-6-65-C5	C5 - RAL 5024	6.5	65	49	2800	2900	35	8	111
260527-C6	EBR.150-CH-6-65-C6	C6 - RAL 3000	6.5	65	49	2800	2900	35	8	111
260529-C1	EBR.150-CH-6-81-C1	C1 - RAL 7021	6.5	81	65	2800	2900	35	8	110
260529-C2	EBR.150-CH-6-81-C2	C2 - RAL 2004	6.5	81	65	2800	2900	35	8	110
260529-C3	EBR.150-CH-6-81-C3	C3 - RAL 7035	6.5	81	65	2800	2900	35	8	110
260529-C4	EBR.150-CH-6-81-C4	C4 - RAL 1021	6.5	81	65	2800	2900	35	8	110
260529-C5	EBR.150-CH-6-81-C5	C5 - RAL 5024	6.5	81	65	2800	2900	35	8	110
260529-C6	EBR.150-CH-6-81-C6	C6 - RAL 3000	6.5	81	65	2800	2900	35	8	110
260531-C1	EBR.150-CH-8-16-C1	C1 - RAL 7021	8.5	16	-	2800	2900	35	8	93
260531-C2	EBR.150-CH-8-16-C2	C2 - RAL 2004	8.5	16	-	2800	2900	35	8	93
260531-C3	EBR.150-CH-8-16-C3	C3 - RAL 7035	8.5	16	-	2800	2900	35	8	93
260531-C4	EBR.150-CH-8-16-C4	C4 - RAL 1021	8.5	16	-	2800	2900	35	8	93
260531-C5	EBR.150-CH-8-16-C5	C5 - RAL 5024	8.5	16	-	2800	2900	35	8	93
260531-C6	EBR.150-CH-8-16-C6	C6 - RAL 3000	8.5	16	-	2800	2900	35	8	93
260533-C1	EBR.150-CH-8-52-C1	C1 - RAL 7021	8.5	52	36	2800	2900	35	8	103
260533-C2	EBR.150-CH-8-52-C2	C2 - RAL 2004	8.5	52	36	2800	2900	35	8	103
260533-C3	EBR.150-CH-8-52-C3	C3 - RAL 7035	8.5	52	36	2800	2900	35	8	103
260533-C4	EBR.150-CH-8-52-C4	C4 - RAL 1021	8.5	52	36	2800	2900	35	8	103
260533-C5	EBR.150-CH-8-52-C5	C5 - RAL 5024	8.5	52	36	2800	2900	35	8	103
260533-C6	EBR.150-CH-8-52-C6	C6 - RAL 3000	8.5	52	36	2800	2900	35	8	103
260535-C1	EBR.150-CH-8-60-C1	C1 - RAL 7021	8.5	60	44	2800	2900	35	8	126
260535-C2	EBR.150-CH-8-60-C2	C2 - RAL 2004	8.5	60	44	2800	2900	35	8	126
260535-C3	EBR.150-CH-8-60-C3	C3 - RAL 7035	8.5	60	44	2800	2900	35	8	126
260535-C4	EBR.150-CH-8-60-C4	C4 - RAL 1021	8.5	60	44	2800	2900	35	8	126
260535-C5	EBR.150-CH-8-60-C5	C5 - RAL 5024	8.5	60	44	2800	2900	35	8	126
260535-C6	EBR.150-CH-8-60-C6	C6 - RAL 3000	8.5	60	44	2800	2900	35	8	126
260537-C1	EBR.150-CH-8-65-C1	C1 - RAL 7021	8.5	65	49	2800	2900	35	8	132
260537-C2	EBR.150-CH-8-65-C2	C2 - RAL 2004	8.5	65	49	2800	2900	35	8	132
260537-C3	EBR.150-CH-8-65-C3	C3 - RAL 7035	8.5	65	49	2800	2900	35	8	132
260537-C4	EBR.150-CH-8-65-C4	C4 - RAL 1021	8.5	65	49	2800	2900	35	8	132
260537-C5	EBR.150-CH-8-65-C5	C5 - RAL 5024	8.5	65	49	2800	2900	35	8	132
260537-C6	EBR.150-CH-8-65-C6	C6 - RAL 3000	8.5	65	49	2800	2900	35	8	132
260539-C1	EBR.150-CH-8-81-C1	C1 - RAL 7021	8.5	81	65	2800	2900	35	8	140
260539-C2	EBR.150-CH-8-81-C2	C2 - RAL 2004	8.5	81	65	2800	2900	35	8	140
260539-C3	EBR.150-CH-8-81-C3	C3 - RAL 7035	8.5	81	65	2800	2900	35	8	140
260539-C4	EBR.150-CH-8-81-C4	C4 - RAL 1021	8.5	81	65	2800	2900	35	8	140
260539-C5	EBR.150-CH-8-81-C5	C5 - RAL 5024	8.5	81	65	2800	2900	35	8	140
260539-C6	EBR.150-CH-8-81-C6	C6 - RAL 3000	8.5	81	65	2800	2900	35	8	140
