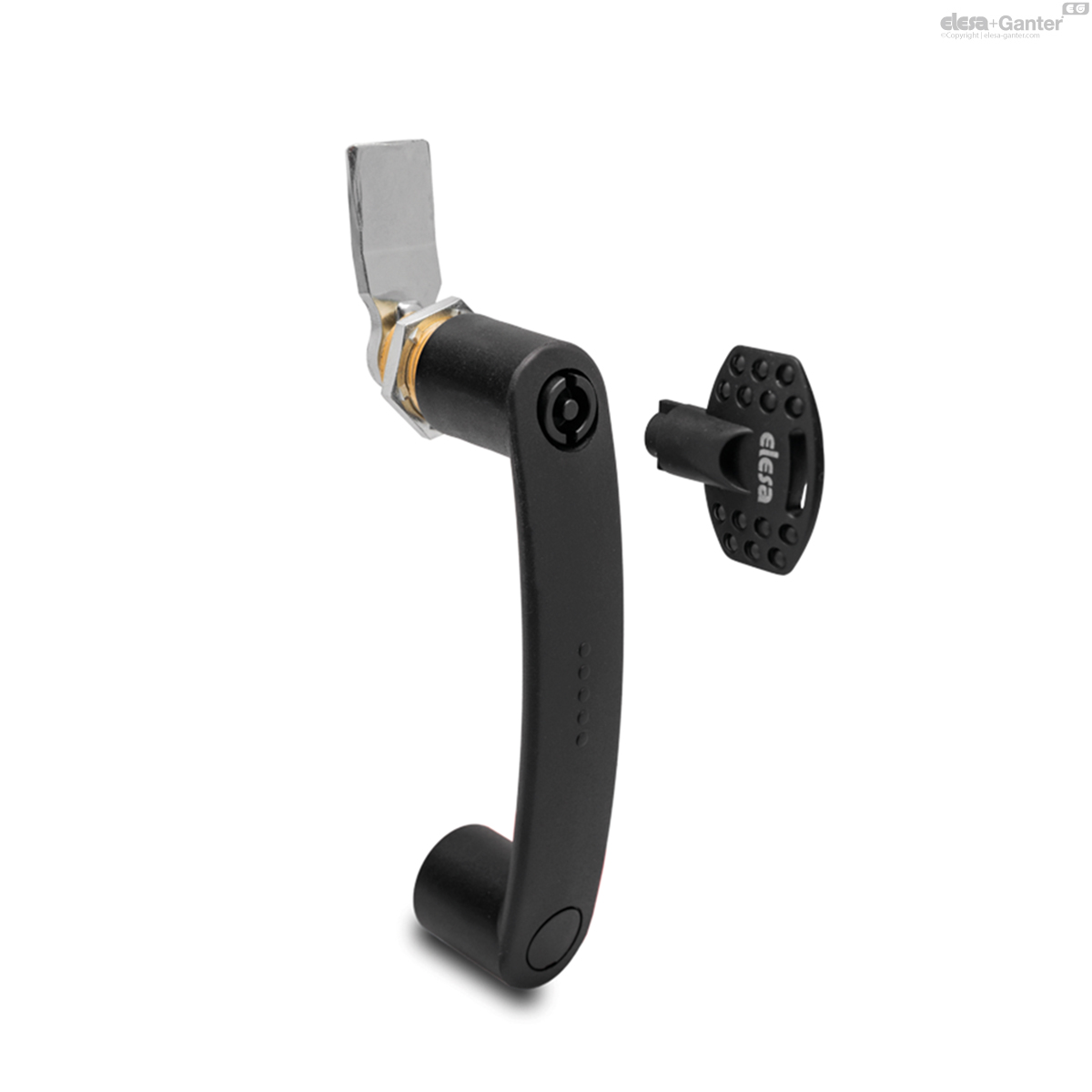

Description

Main specifications

Handle

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Lock

Glass-fibre reinforced polyamide-based (PA) technopolymer rotor, grey-black colour, matte finish. NBR rubber O-Ring.
Brass stator M22x1,5.
Zinc alloy locking nut M22x1,5.
Zinc alloy shaped closing lever, thickness = 4 mm.
Zinc-plated steel toothed washer.
Zinc-plated steel self-tapping screw.

Key

Polyamide based (PA) technopolymer, grey-black colour, matte finish.

Standard execution

Brass boss, threaded blind hole.

EBP-CH-T: triangular groove for key.
EBP-CH-A: two-wing groove for key.

Rotation

90°.

General information

Technical data

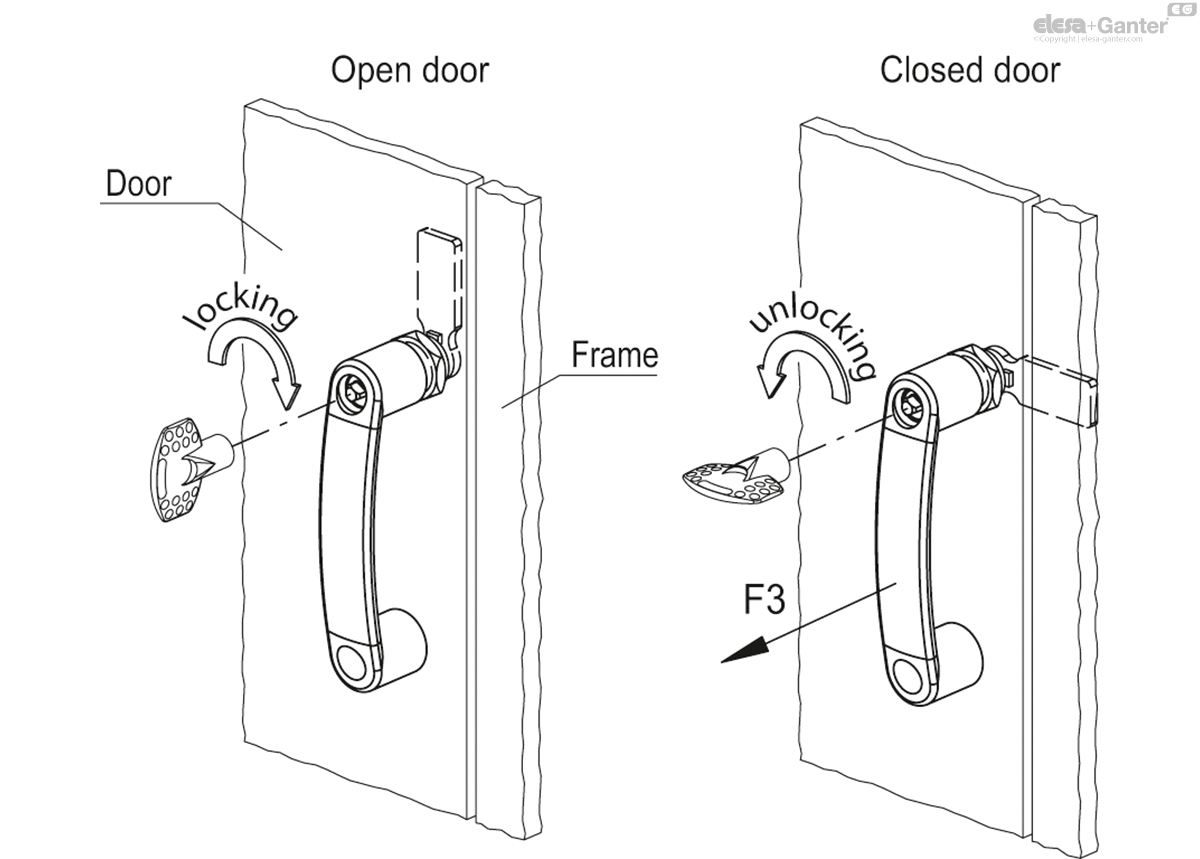

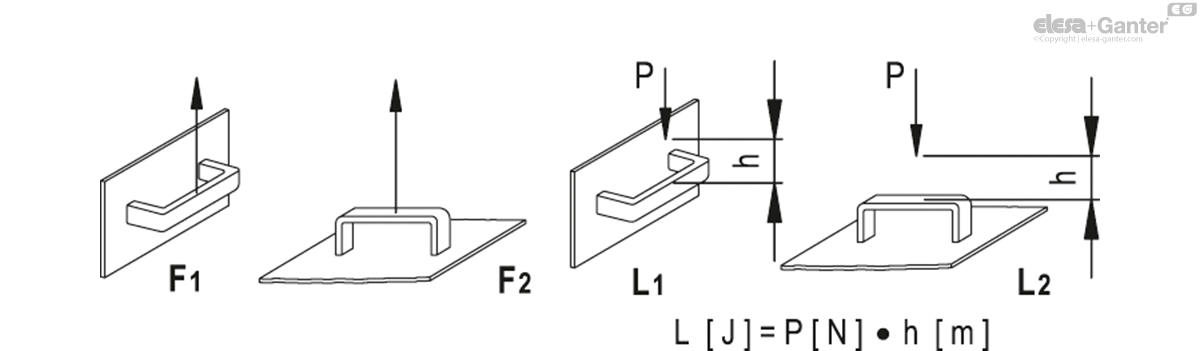

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

The value F3 shown in the table represents the load under traction in the closed condition of the handle.

Instructions of use

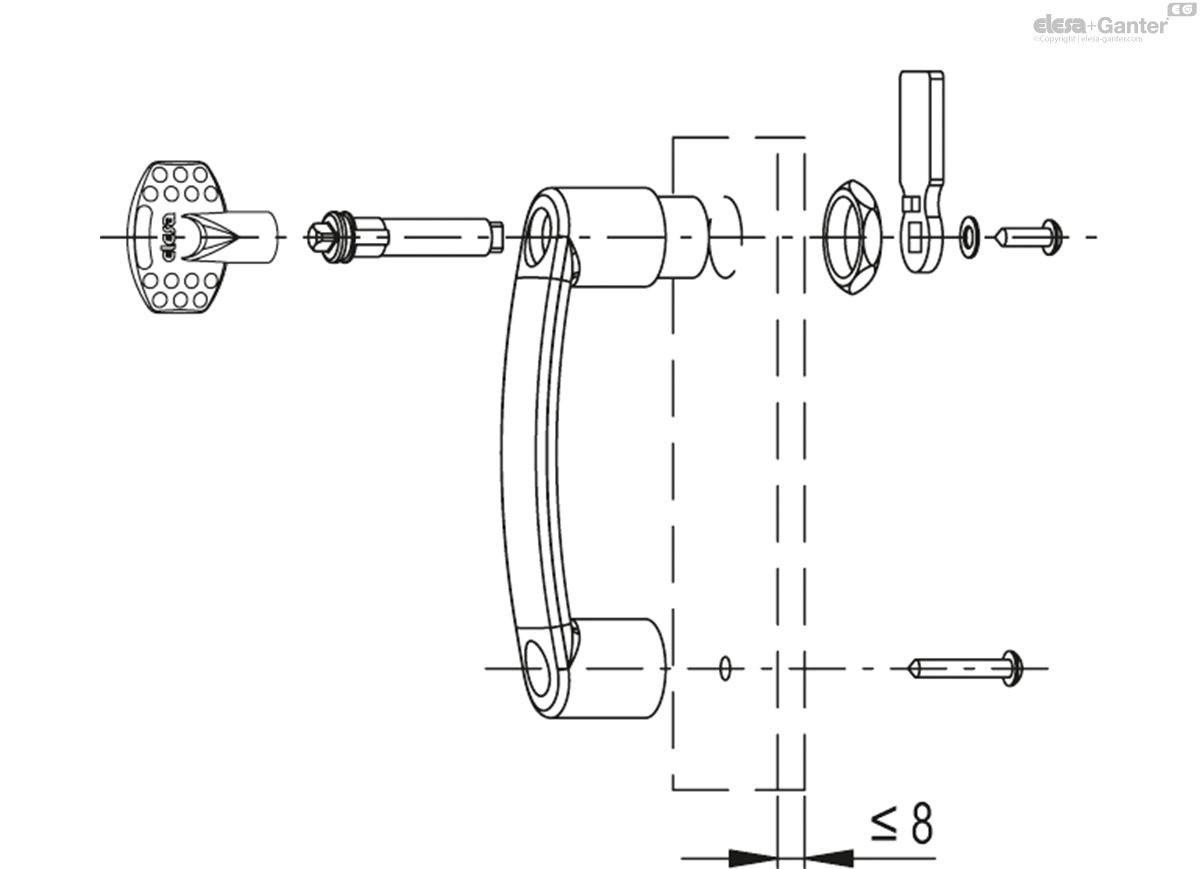

Assembly instructions

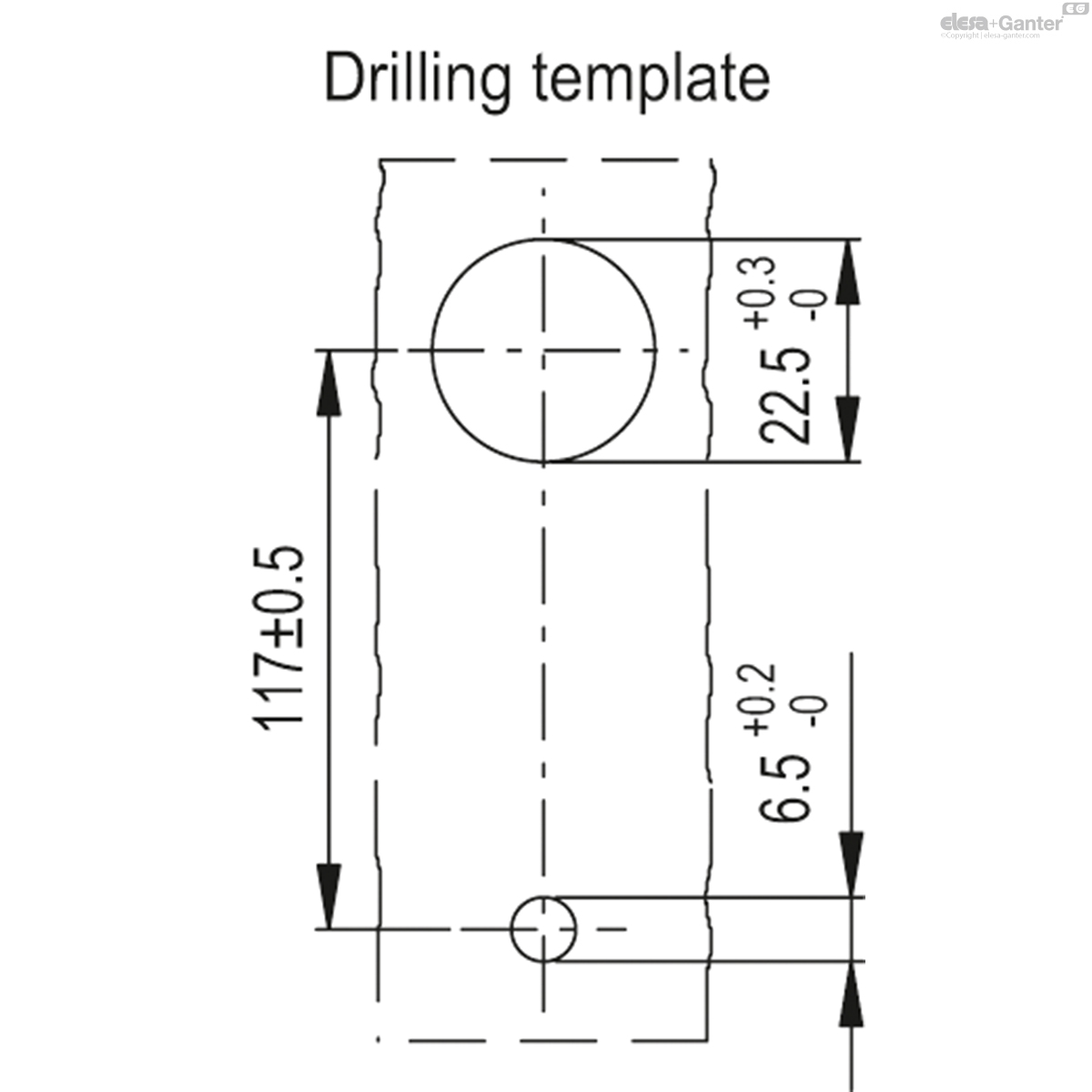

Drill the holes in the door following the supplied template.
Fit the handle.
Screw the nut on the stator and the screw in the tapped boss to secure the handle to the door.
Fit the rotor into the handle seat.
Fix the lever to the end of the rotor by means of a washer and a threaded screw.

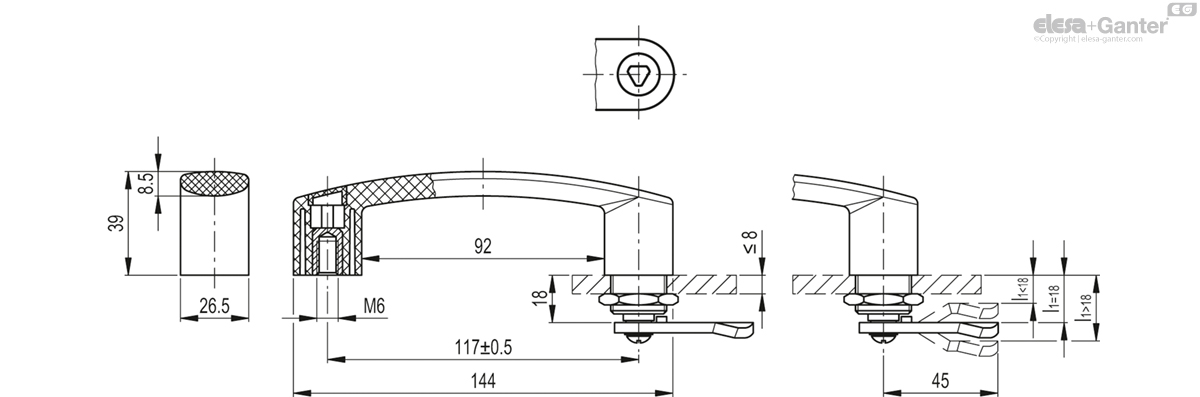

EBP-CH-T

		l₁	F1 [N]	F2 [N]	F3 [N]	L1 [J]	L2 [J]
Code	Description								Actions
260266-C1	EBP.140-CH-T-L6-B M6-C1	6	2700	1800	1000	10	4	180
260267-C1	EBP.140-CH-T-L10-B M6-C1	10	2700	1800	1000	10	4	173
260268-C1	EBP.140-CH-T-L14-B M6-C1	14	2700	1800	1000	10	4	174
260269-C1	EBP.140-CH-T-L16-B M6-C1	16	2700	1800	1000	10	4	75
260270-C1	EBP.140-CH-T-L18-B M6-C1	18	2700	1800	1000	10	4	176
260271-C1	EBP.140-CH-T-L20-B M6-C1	20	2700	1800	1000	10	4	175
260272-C1	EBP.140-CH-T-L22-B M6-C1	22	2700	1800	1000	10	4	75
260273-C1	EBP.140-CH-T-L24-B M6-C1	24	2700	1800	1000	10	4	177
260274-C1	EBP.140-CH-T-L26-B M6-C1	26	2700	1800	1000	10	4	175
260275-C1	EBP.140-CH-T-L28-B M6-C1	28	2700	1800	1000	10	4	75
260276-C1	EBP.140-CH-T-L30-B M6-C1	30	2700	1800	1000	10	4	180
260277-C1	EBP.140-CH-T-L32-B M6-C1	32	2700	1800	1000	10	4	75
260278-C1	EBP.140-CH-T-L34-B M6-C1	34	2700	1800	1000	10	4	181
260279-C1	EBP.140-CH-T-L36-B M6-C1	36	2700	1800	1000	10	4	75
260280-C1	EBP.140-CH-T-L38-B M6-C1	38	2700	1800	1000	10	4	75
260281-C1	EBP.140-CH-T-L40-B M6-C1	40	2700	1800	1000	10	4	75
260282-C1	EBP.140-CH-T-L42-B M6-C1	42	2700	1800	1000	10	4	185
