DVG

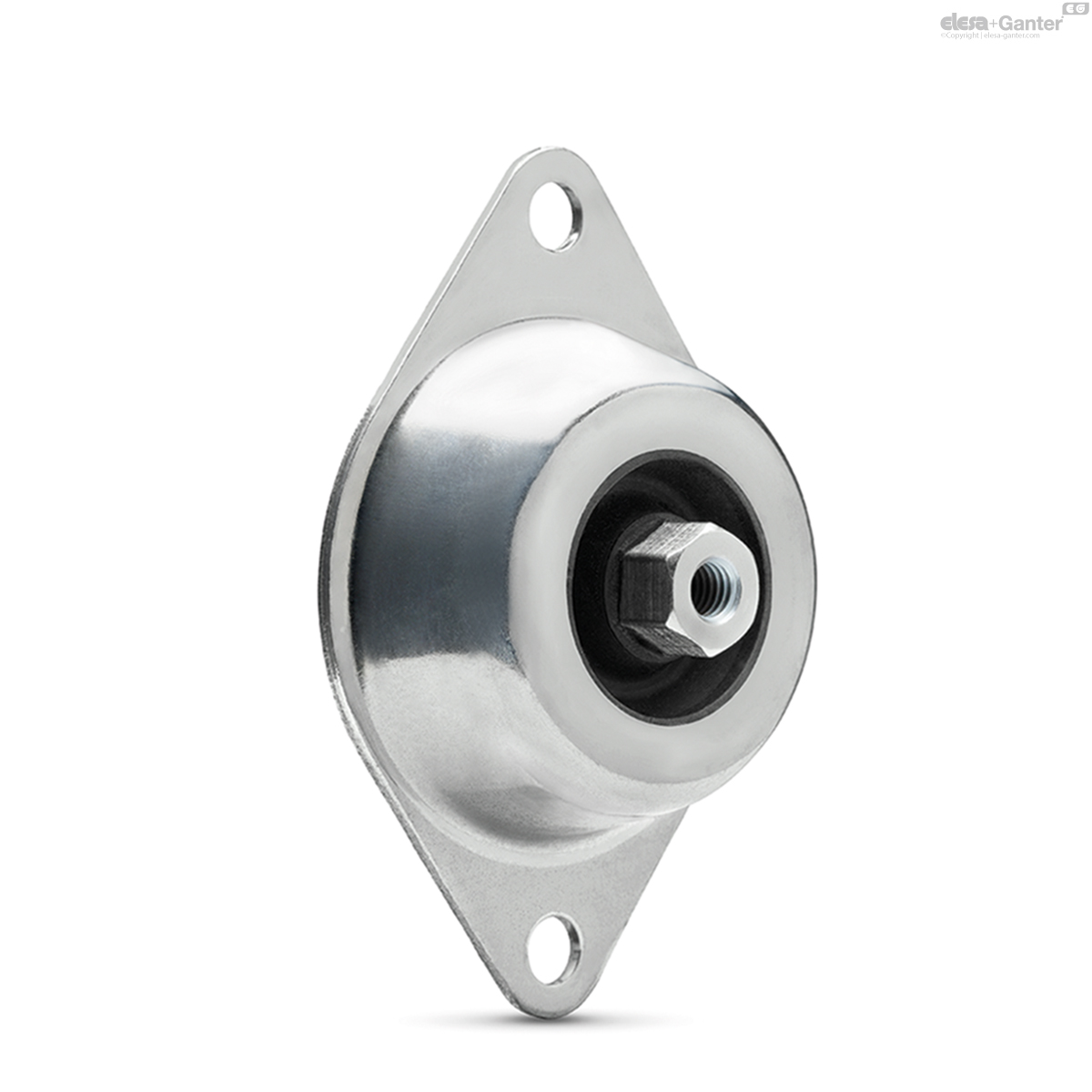

Vibration-damping elements
for wall or ceiling mounting, rubber and steel
Description
Main specifications
Oval mounting flange and tapped boss
Zinc-plated steel.
Vibration-damping body
Natural rubber NR, black colour.
Hardness 40 and 60 Shore A ±5.
General information
Features and applications
DVG vibration-damping elements are generally used in combination with DVI vibration-damping elements to protect the electrical panel from surrounding vibrations (Fig.1).
Particularly suitable for the support of fans or other wall mounted vibrating equipment.
They can be used to support tubes or ceiling mounted equipment (Fig.2).
 Special executions on request
Special executions on request
NR natural rubber executions with different hardness.

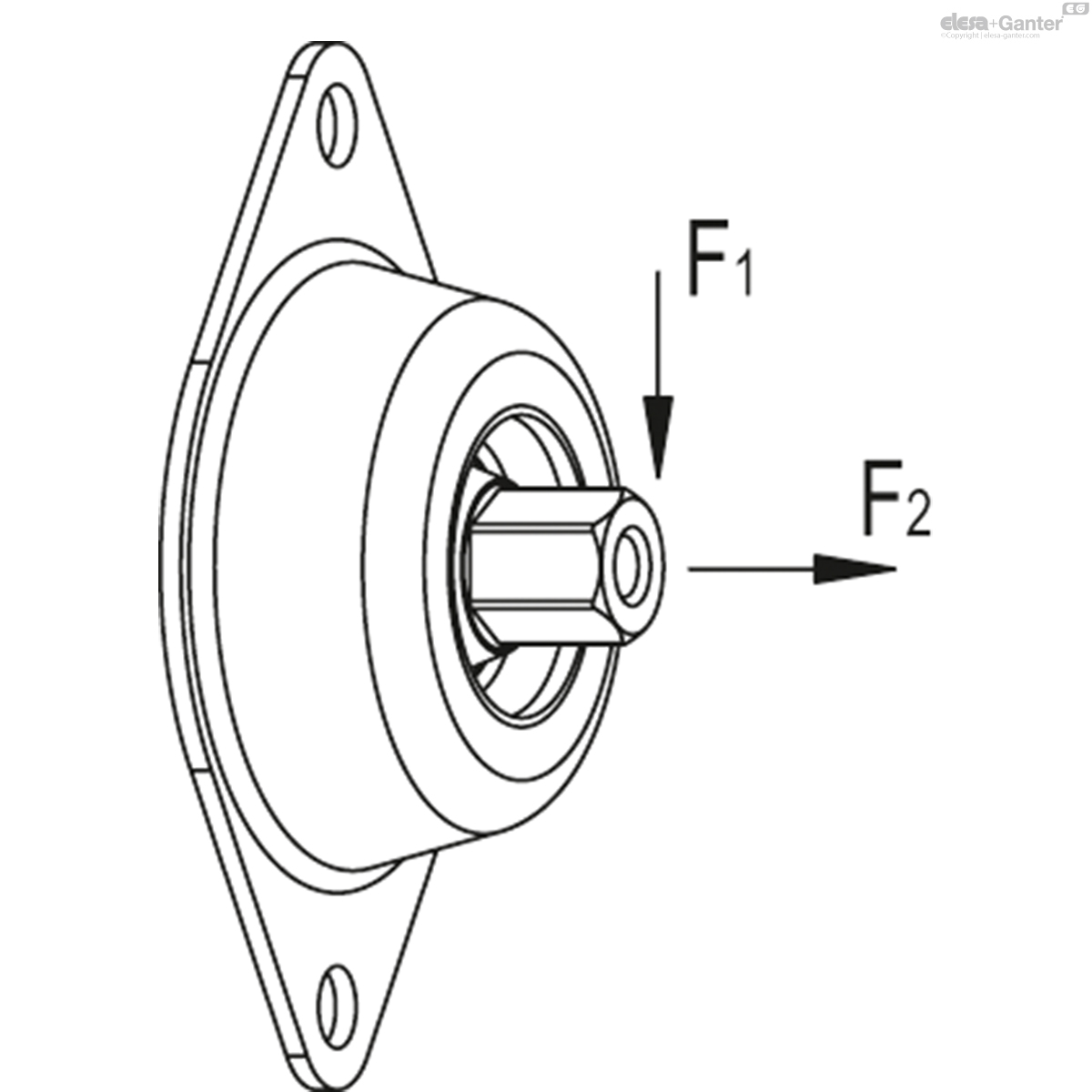

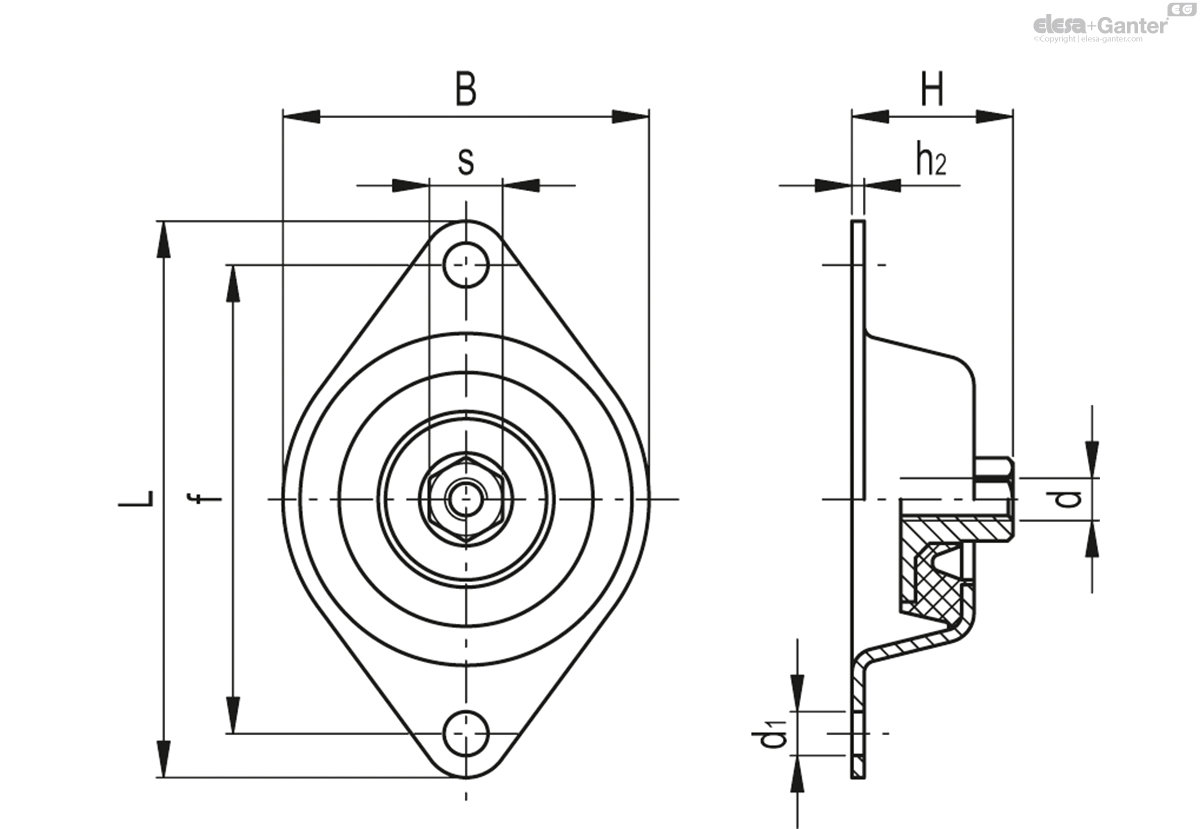

| B | L | H | d | d1 | h2 | s | f | F1 [N] |
F2 [N] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||||
| 436001 | DVG-M8-A-40 | 75 | 114 | 33 | M8 | 9 | 2.5 | 15 | 96 | 80 | 800 | 213 |
|
| 436006 | DVG-M8-A-60 | 75 | 114 | 33 | M8 | 9 | 2.5 | 15 | 96 | 200 | 1800 | 214 |
|
