DIN 99

Clamping levers

Steel / Stainless Steel

Enquire Now

Description

Specification

* only Steel version.

Stainless Steel AISI 303 NI

matt shot-blasted

Information

The official DIN standard sheet specifies additional sizes 40 - M5 / B5.

On request

Stainless Steel-Lever handles with straight lever

Technical information

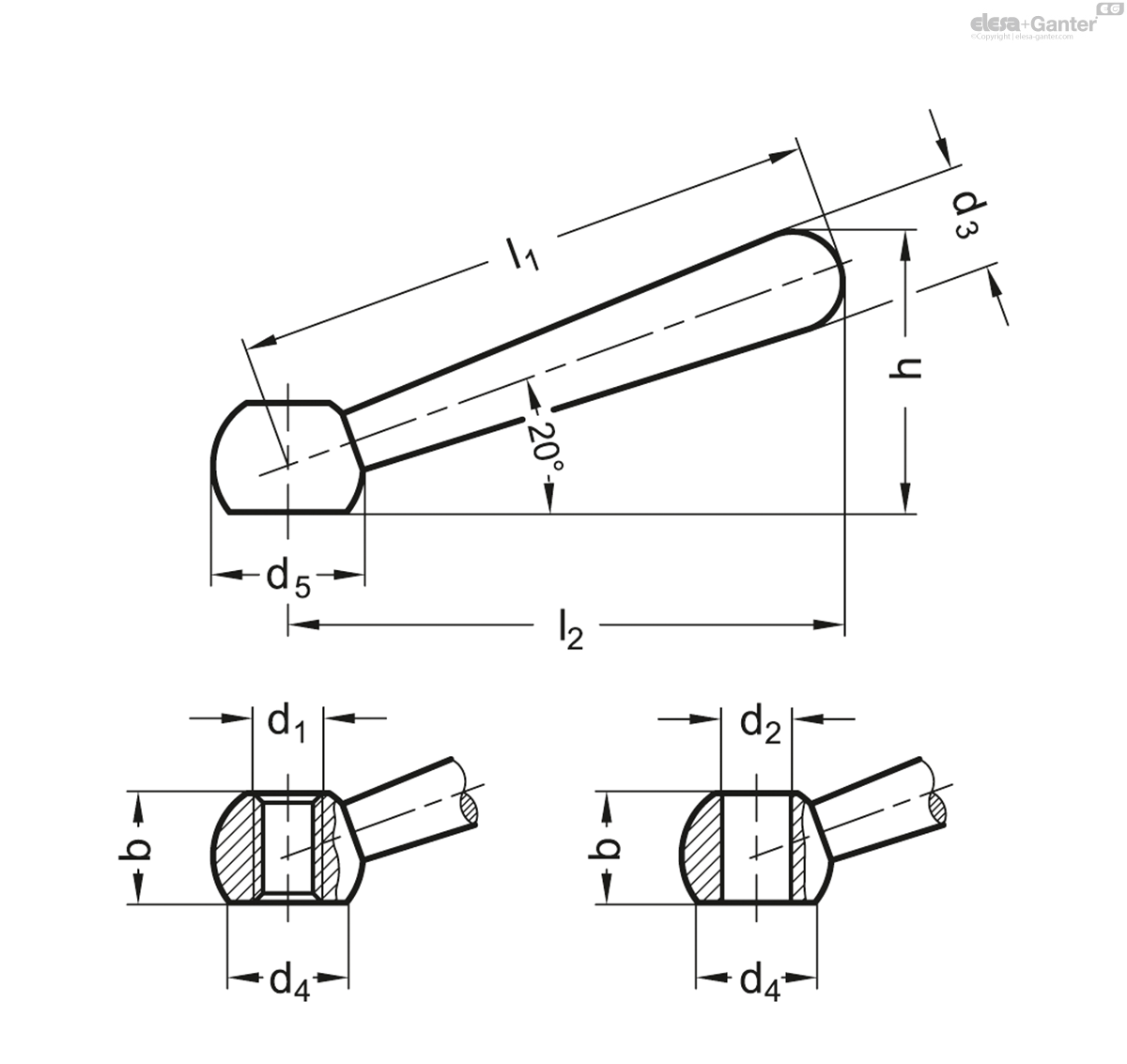

	l₁	d₁	d₂ H7	b	d₃	d₄ ≈	d₅ -0.2	h ≈	l₂ ≈
Code											Actions
DIN 99-50-M6-N-NI	50	M 6	-	9.5	8	7.5	12	24	48	17
DIN 99-63-B8-L-NI	63	-	B 8	12	10	11	16	30.5	60	36
DIN 99-63-M8-N-NI	63	M 8	-	12	10	11	16	30.5	60	37
DIN 99-80-B10-L-NI	80	-	B 10	14.5	13	15	20	38	76	74
DIN 99-80-M10-N-NI	80	M 10	-	14.5	13	15	20	38	76	70
DIN 99-100-B12-L-NI	100	-	B 12	18.5	16	19	25	47	95	139
DIN 99-100-M12-N-NI	100	M 12	-	18.5	16	19	25	47	95	141
DIN 99-125-M16-N-NI	125	M 16	-	24	20	23.5	32	59.5	119	287
