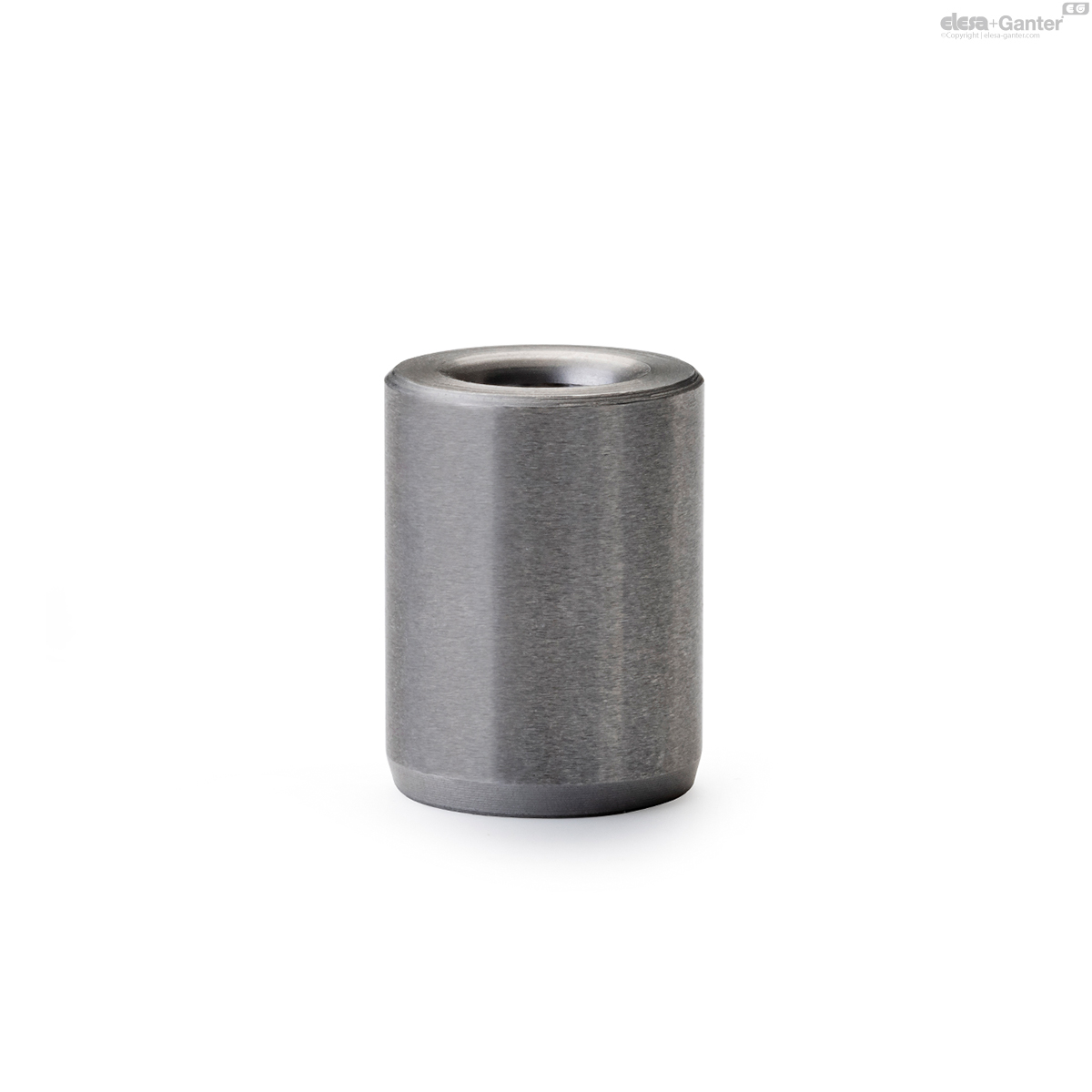

DIN 9845
Guide Bushings
Steel, Punch Guide Bushings
Description
Specification
Type
- Type C: Without collar
Steel ST
- Hardened (HRC 62 +2)

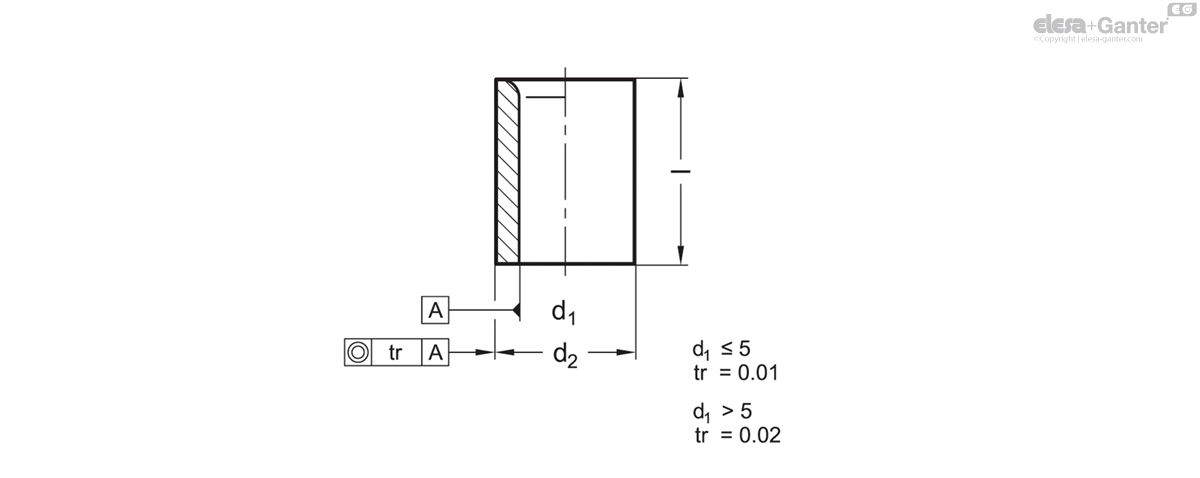

- Fit surfaces d1 and d2 ground
Information
Guide bushings DIN 9845 are characterized by the tight dimensional and positional tolerances in connection with the hardened and finely machined surface. As a result, they are suitable for extremely universal use in many applications.
Bores with tolerance H7 are recommended to accomodate the bushings. In conjunction with the outer diameter of the guide bushing tolerated to n6, this results in a preferred transition fit.
On request
- Other bores d1
Technical information
- ISO-Fundamental Tolerances
DIN 9845
| d1 H7 | Length l | d2 n6 |  |
||
|---|---|---|---|---|---|
| Code | Actions | ||||
| DIN 9845-2-12-C-ST | 2 | 12 | 6 | 2 |
|
| DIN 9845-3-12-C-ST | 3 | 12 | 7 | 3 |
|
| DIN 9845-4-12-C-ST | 4 | 12 | 8 | 4 |
|
| DIN 9845-5-16-C-ST | 5 | 16 | 10 | 7 |
|
| DIN 9845-6-16-C-ST | 6 | 16 | 12 | 10 |
|
| DIN 9845-8-20-C-ST | 8 | 20 | 15 | 20 |
|
| DIN 9845-10-20-C-ST | 10 | 20 | 18 | 28 |
|
| DIN 9845-12-28-C-ST | 12 | 28 | 22 | 58 |
|
| DIN 9845-16-36-C-ST | 16 | 36 | 30 | 141 |
|
