DIN 98

Revolving Handles

Steel / Aluminum / Plastic, Spindle Steel

Enquire Now

Description

Specification

Types

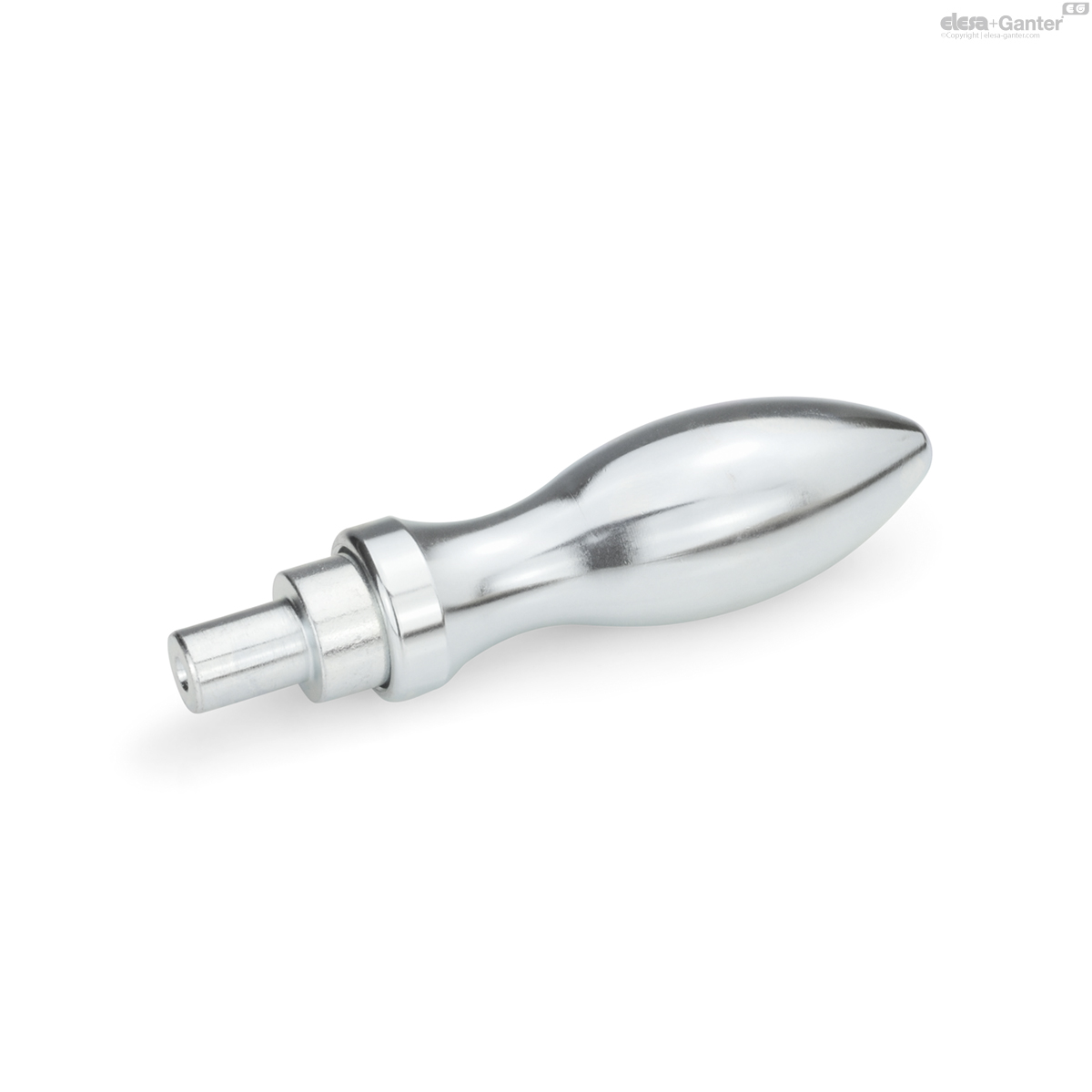

Type D: With plain shaft

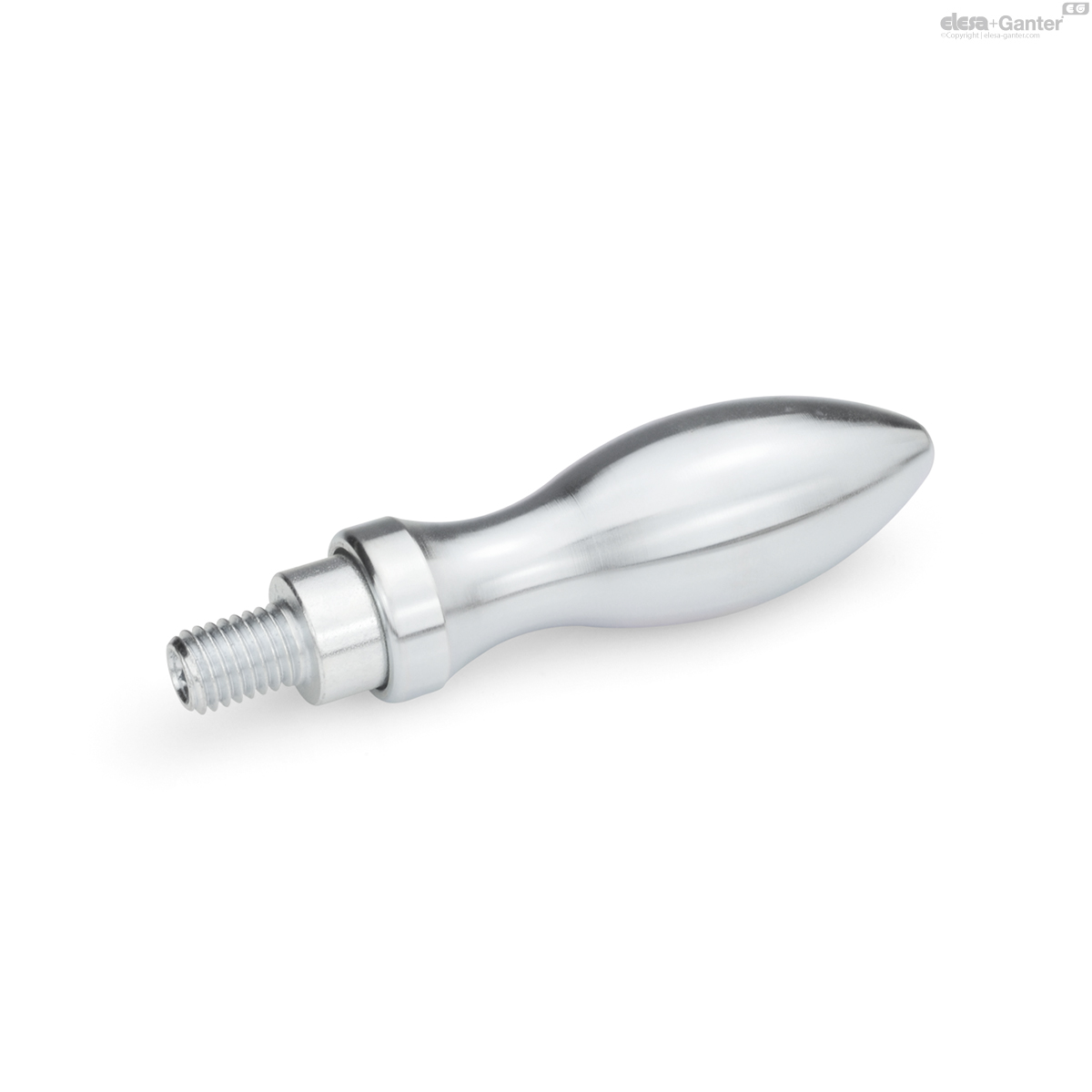

Type E: With threaded stud

Handle

Steel ST

Zinc plated, blue passivated

Aluminum AL

Glossy finish

Plastic, Polyamide (PA) KT

Operating temperature up to 110 °C

Black, matte finish

Spindle

Steel

Zinc plated, blue passivated

Information

Revolving handles DIN 98 type D are supplied unassembled so that the shaft can be press fitted or screwed into a tapped blind bore prior to assembly.

Light taps with a soft-head hammer in the axial direction affix the handle to the axle with sufficient firmness that it is held in place axially while still remaining turnable.

Technical information

ISO-Fundamental Tolerances
Plastic Characteristics

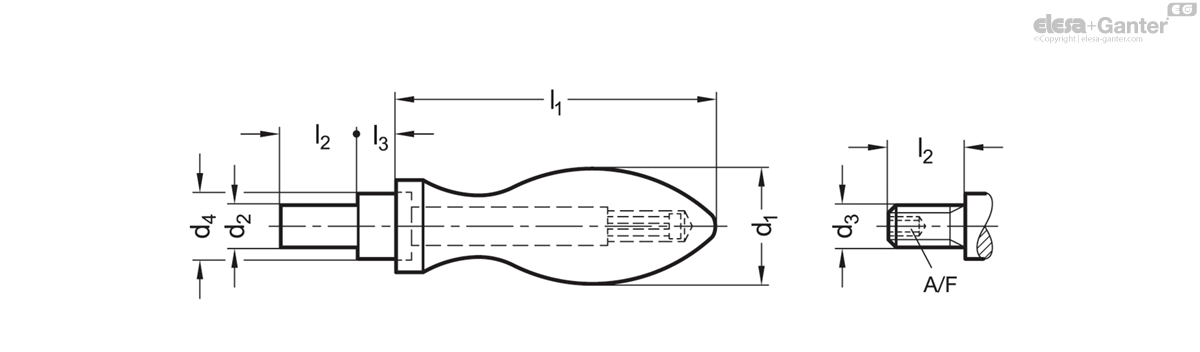

DIN 98-D

	d₁	d₂ h8	d₄ h13	l₁ ≈	l₂	l₃	A/F
Code									Actions
DIN 98-AL-16-D	16	7	10	49	11	5.5	3	33
DIN 98-AL-20-D	20	8	13	61	13	6	4	63
DIN 98-AL-25-D	25	10	16	75	14	8	5	110
DIN 98-AL-32-D	32	13	20	95	21	10.5	6	217
DIN 98-AL-36-D	36	16	22	106	26	11	8	321
DIN 98-KT-16-D	16	7	10	49	11	5.5	3	23
DIN 98-KT-20-D	20	8	13	61	13	6	4	43
DIN 98-KT-25-D	25	10	16	75	14	8	5	74
DIN 98-KT-32-D	32	13	20	95	21	10.5	6	154
DIN 98-ST-16-D	16	7	10	49	11	5.5	3	53
DIN 98-ST-20-D	20	8	13	61	13	6	4	106
DIN 98-ST-25-D	25	10	16	75	14	8	5	192
DIN 98-ST-32-D	32	13	20	95	21	10.5	6	390
DIN 98-ST-36-D	36	16	22	106	26	11	8	551
