DIN 950-GG-B

Handwheels

Cast iron, without keyway

DIN 950-GG-K

Handwheels

Cast iron, with keyway DIN 6885-1 P9

DIN 950-GG-V

Handwheels

Cast iron, with square

DIN 950-AL-B

Handwheels

Aluminum, without keyway

DIN 950-AL-K

Handwheels

Aluminum, with keyway DIN 6885-1 P9

DIN 950-AL-V

Handwheels

Aluminum, with square

Description

Specification

Bore codes

Version B: Without keyway
Version K: With keyway DIN 6885-1 P9
Version V: With square

Types

Type A: Without handle

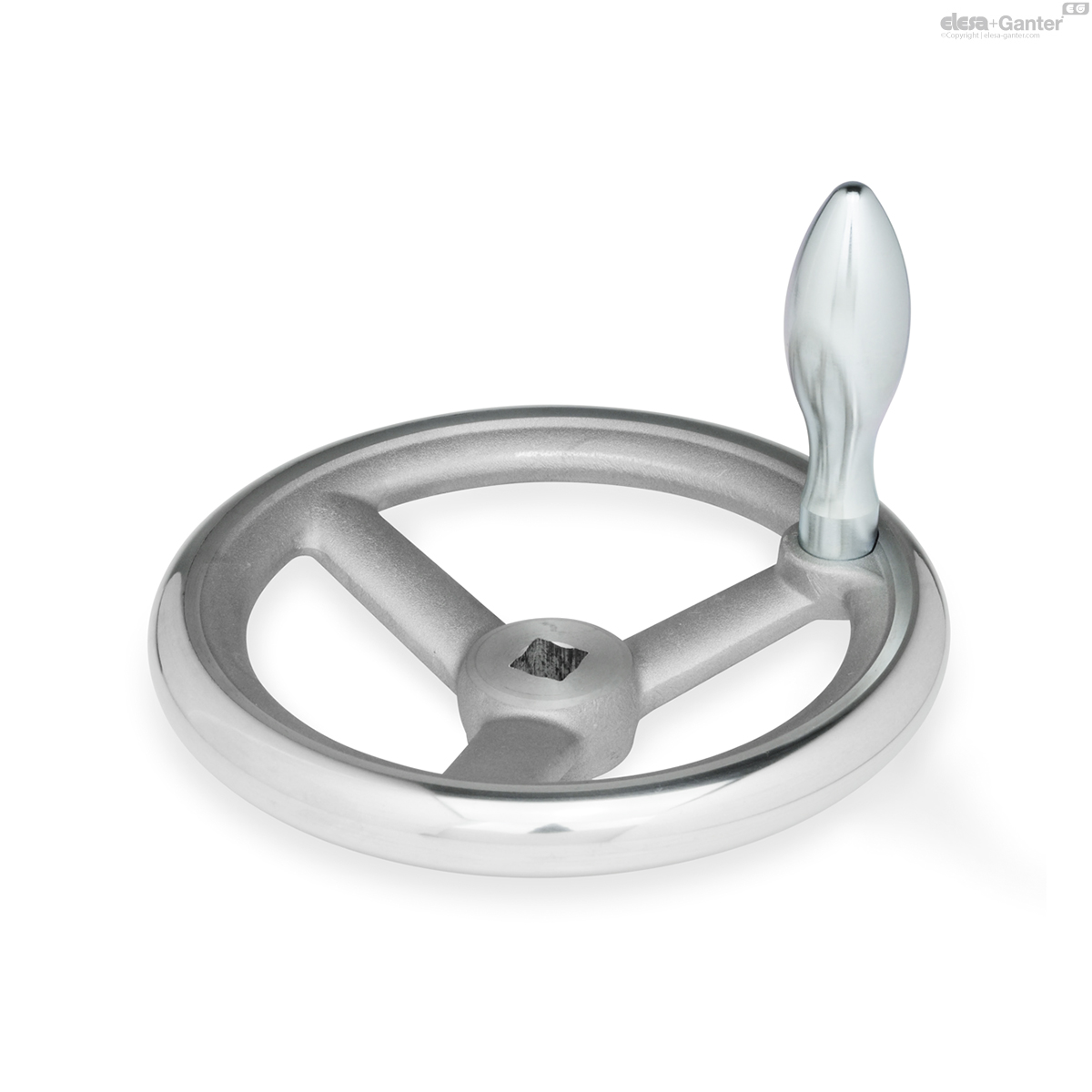

Type F: With fixed handle

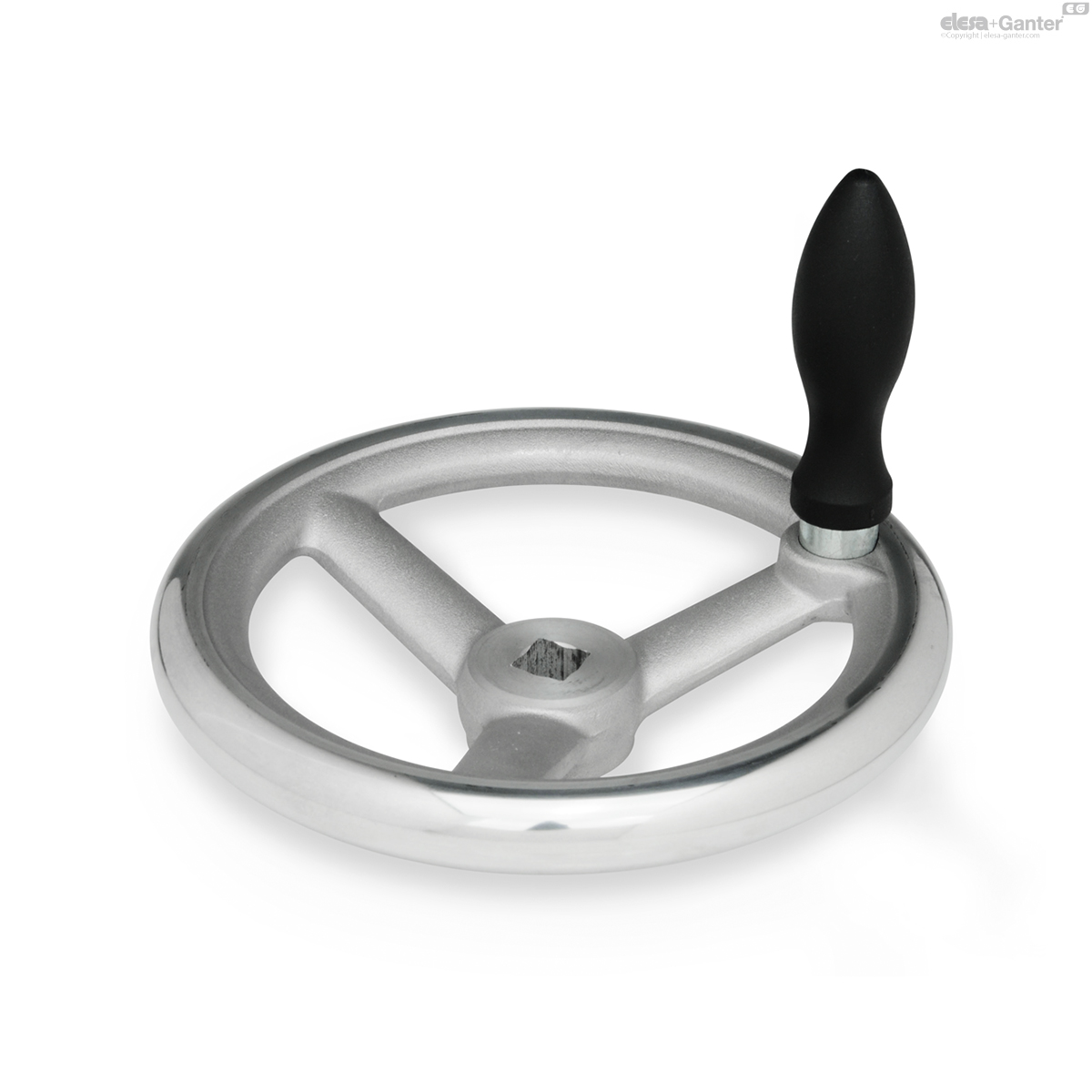

Type D: With revolving handle

Cast iron GG

Hub machined

Rim turned and polished

Concentricity and axial runout deviation < 0.4

Handles

DIN 39

DIN 98

Steel, zinc plated, blue passivated

Aluminum AL

Hub machined

Rim turned and polished

Concentricity and axial runout deviation < 0.4

Unmachined body shot-blasted

Fixed handle DIN 39

Steel, zinc plated, blue passivated

Revolving handle DIN 98

Plastic, polyamide (PA), black

Spindle steel, zinc plated, blue passivated

Information

Going beyond the DIN standard, handwheels DIN 950 are also available with Ø d₁ = 180 and in types F and D with fixed or revolving handle.

Accessory

GN 184 Countersunk Washers (for Axial Fixing)

Technical information

Keyway P9 DIN 6885-1
Squares DIN 79
ISO-Fundamental Tolerances
Cross Holes GN 110

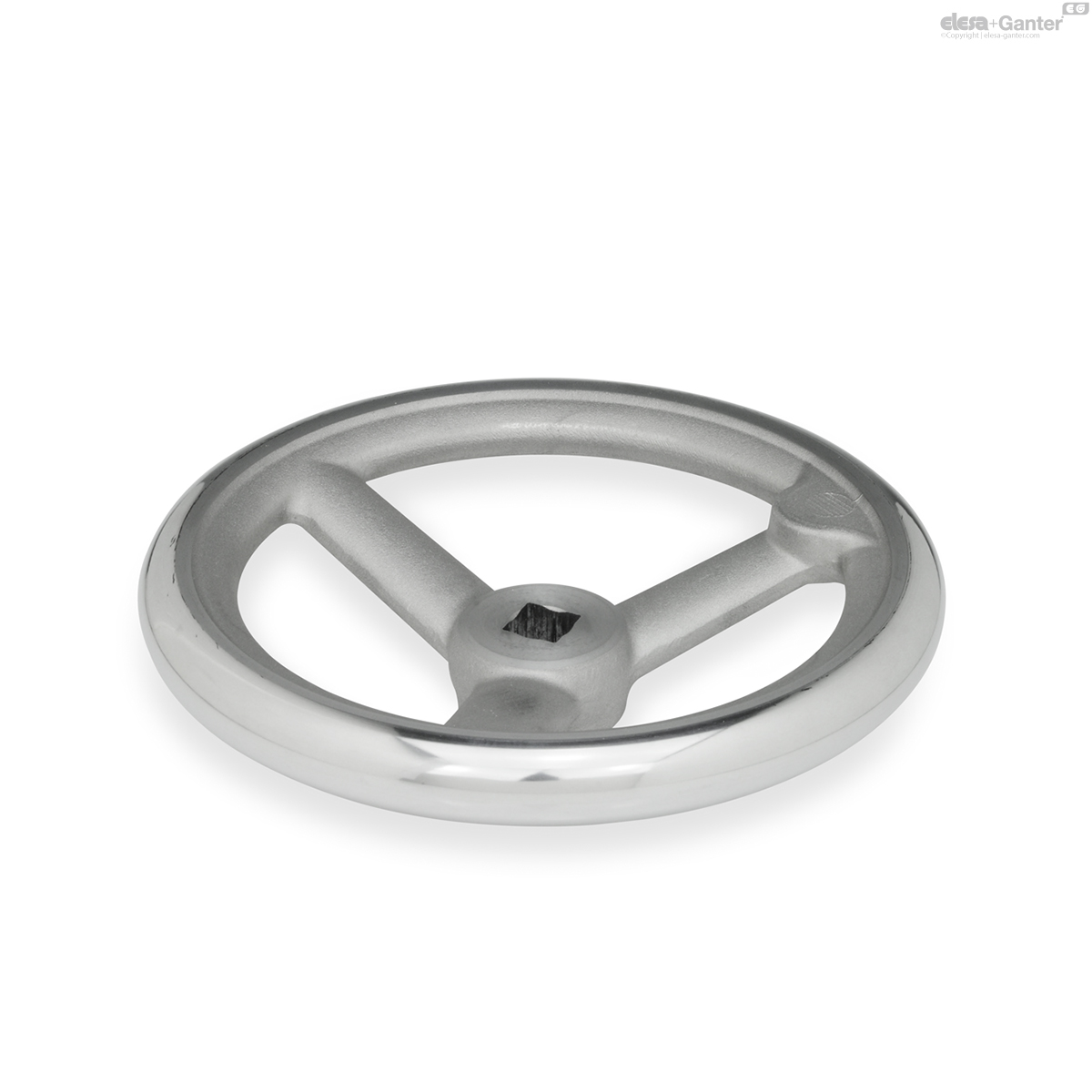

DIN 950-AL-V

	Color	d₁	s H11 Square	b	d₃ ≈	d₄	l₁	l₂ ≈	l₃ ≈	r	Ø Handle	Spokes no.
Code														Actions
DIN 950-AL-80-V9-A	A	80	V 9	14	24	-	16	29	-	-	-	3	120
DIN 950-AL-80-V9-D	D	80	V 9	14	24	M 6	16	29	53	27	16	3	156
DIN 950-AL-80-V9-F	F	80	V 9	14	24	M 6	16	29	48.5	27	16	3	146
DIN 950-AL-100-V9-A	A	100	V 9	15	26	-	17	33	-	-	-	3	186
DIN 950-AL-100-V9-D	D	100	V 9	15	26	M 6	17	33	53	36	16	3	237
DIN 950-AL-100-V9-F	F	100	V 9	15	26	M 6	17	33	48.5	36	16	3	227
DIN 950-AL-125-V11-A	A	125	V 11	16	28	-	18	36	-	-	-	3	265
DIN 950-AL-125-V11-D	D	125	V 11	16	28	M 8	18	36	65	47	20	3	344
DIN 950-AL-125-V11-F	F	125	V 11	16	28	M 8	18	36	62	47	20	3	325
DIN 950-AL-160-V12-A	A	160	V 12	18	33	-	20	40	-	-	-	3	400
DIN 950-AL-160-V12-D	D	160	V 12	18	33	M 10	20	40	80	62	25	3	500
DIN 950-AL-160-V12-F	F	160	V 12	18	33	M 10	20	40	77	62	25	3	591
DIN 950-AL-200-V14-A	A	200	V 14	22	38	-	24	45	-	-	-	3	830
DIN 950-AL-200-V14-D	D	200	V 14	22	38	M 10	24	45	80	80	25	3	970
DIN 950-AL-200-V14-F	F	200	V 14	22	38	M 10	24	45	77	80	25	3	961
DIN 950-AL-250-V17-A	A	250	V 17	26	48	-	28	50	-	-	-	5	1420
DIN 950-AL-250-V17-D	D	250	V 17	26	48	M 12	28	50	102	101	32	5	1800
DIN 950-AL-250-V17-F	F	250	V 17	26	48	M 12	28	50	96.5	101	32	5	1788
DIN 950-AL-315-V19-A	A	315	V 19	28	53	-	33	56	-	-	-	5	2300
DIN 950-AL-315-V19-D	D	315	V 19	28	53	M 12	33	56	102	132	32	5	2300
DIN 950-AL-315-V19-F	F	315	V 19	28	53	M 12	33	56	96.5	132	32	5	2695
DIN 950-AL-400-V24-A	A	400	V 24	32	65	-	38	63	-	-	-	5	3640
DIN 950-AL-400-V24-D	D	400	V 24	32	65	M 12	38	63	102	171	32	5	4000
DIN 950-AL-400-V24-F	F	400	V 24	32	65	M 12	38	63	96.5	171	32	5	4190
DIN 950-AL-500-V27-A	A	500	V 27	34	78	-	45	72	-	-	-	5	5500
DIN 950-AL-500-V27-D	D	500	V 27	34	78	M 12	45	72	102	220	32	5	6000
DIN 950-AL-500-V27-F	F	500	V 27	34	78	M 12	45	72	96.5	220	32	5	6009
