DIN 950
Handwheels
Cast Iron / Aluminum
DIN 950-GG-B
Handwheels
Cast iron, without keyway
DIN 950-GG-K
Handwheels
Cast iron, with keyway DIN 6885-1 P9
DIN 950-GG-V
Handwheels
Cast iron, with square
DIN 950-AL-B
Handwheels
Aluminum, without keyway
DIN 950-AL-K
Handwheels
Aluminum, with keyway DIN 6885-1 P9
DIN 950-AL-V
Handwheels
Aluminum, with square
Description
Specification
Bore codes
- Version B: Without keyway
- Version K: With keyway DIN 6885-1 P9
- Version V: With square
Types

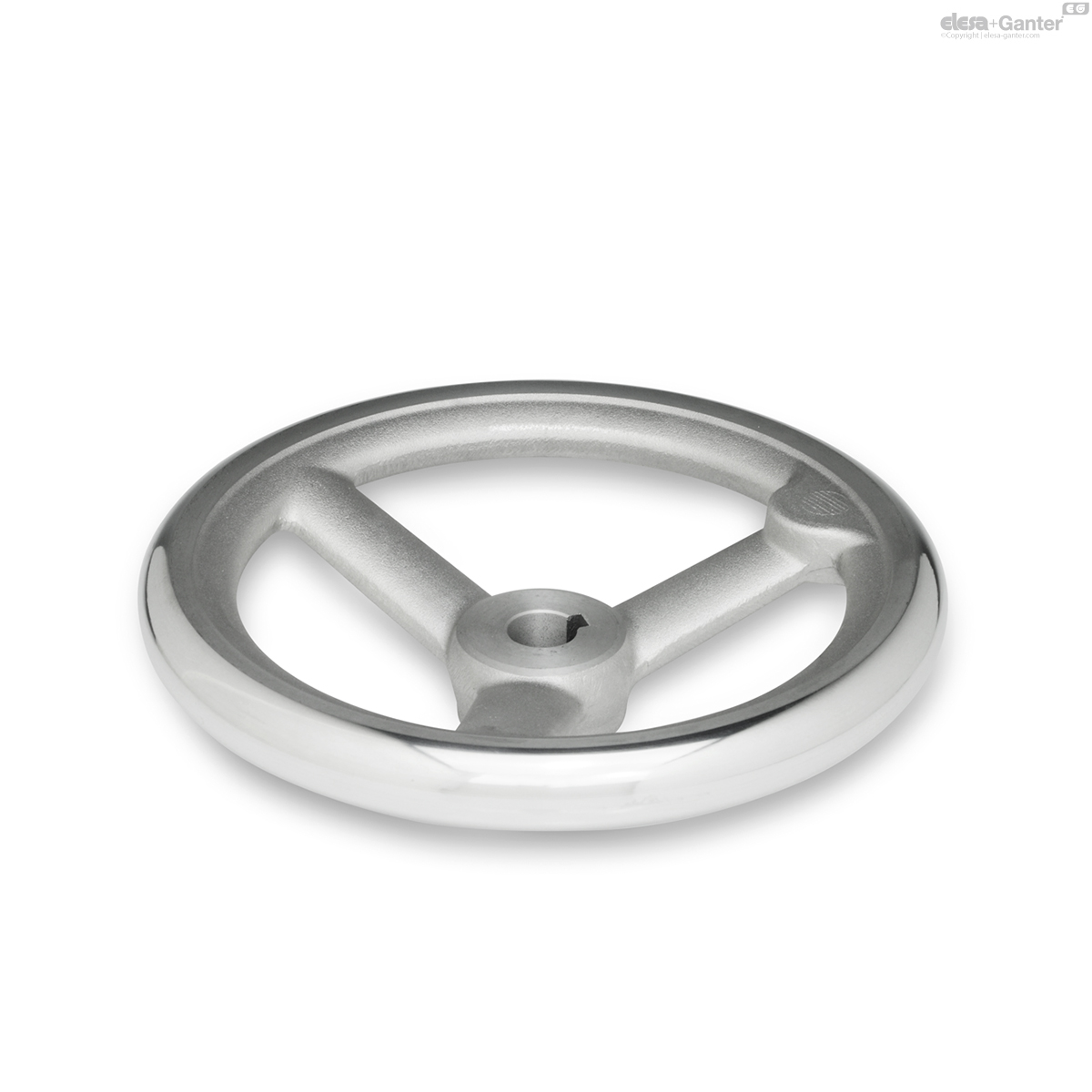

- Type A: Without handle

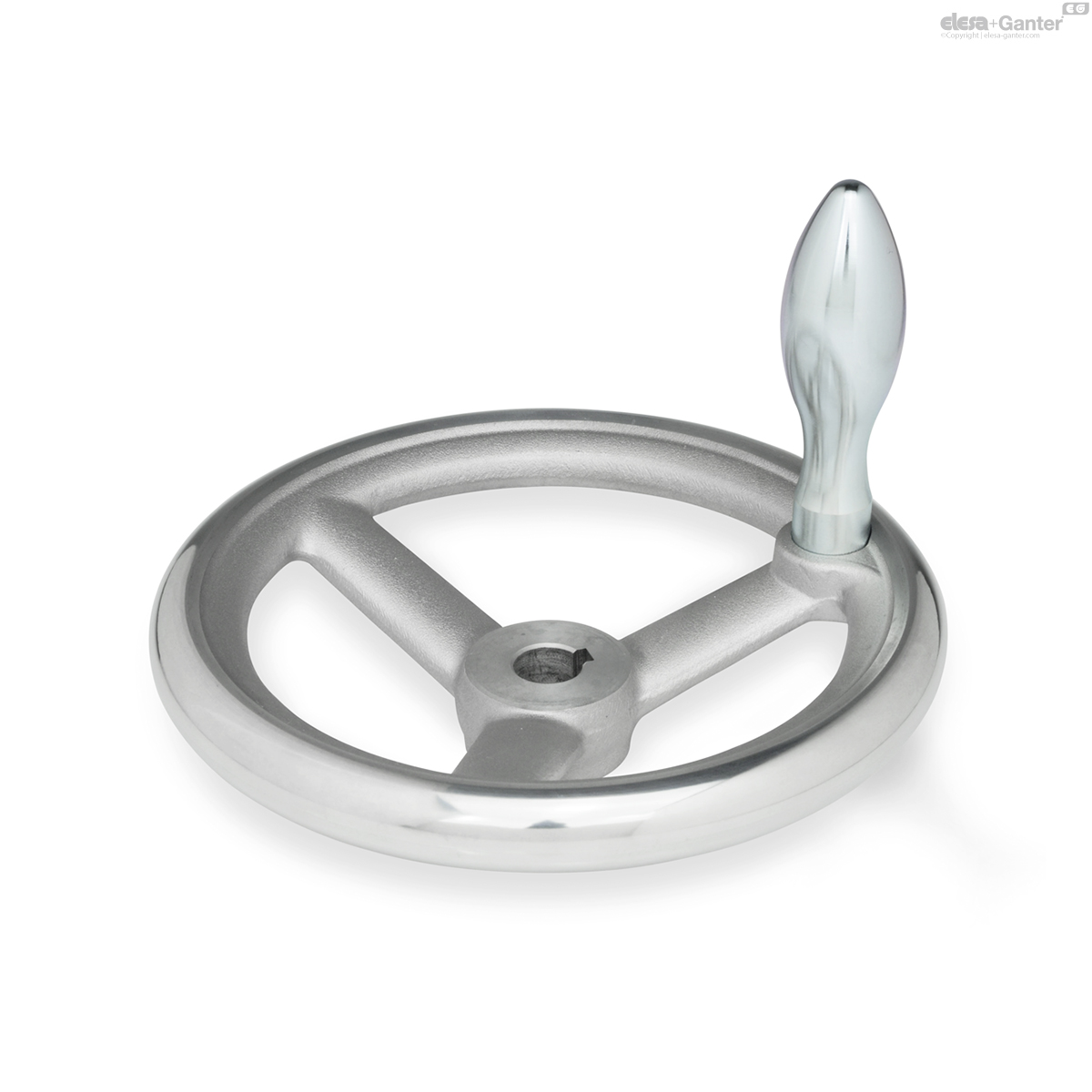

- Type F: With fixed handle

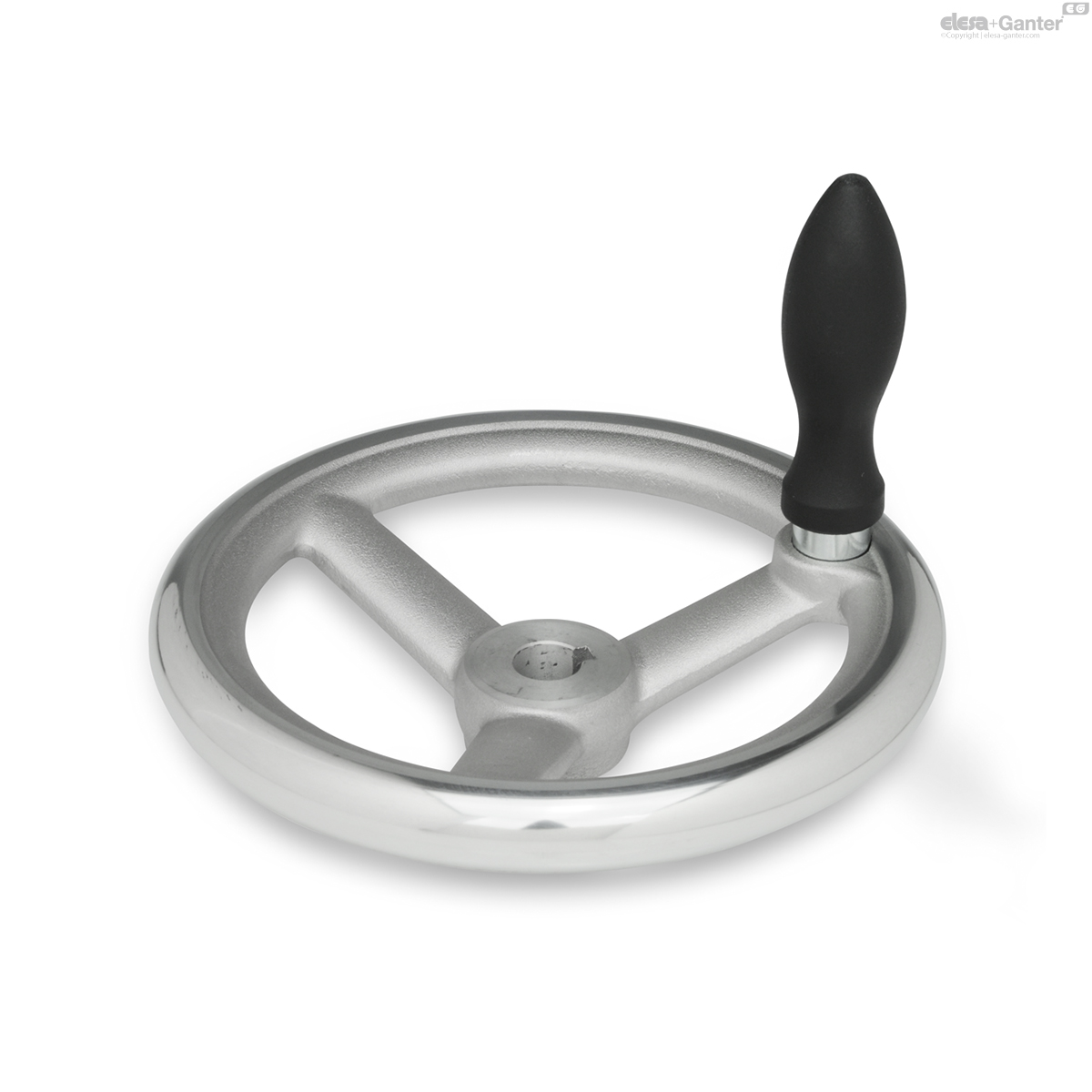

- Type D: With revolving handle
Cast iron GG
- Hub machined
- Rim turned and polished
- Concentricity and axial runout deviation < 0.4
- HandlesÂ
- DIN 39
- DIN 98
- Steel, zinc plated, blue passivated
Aluminum AL
- Hub machined
- Rim turned and polished
- Concentricity and axial runout deviation < 0.4
- Unmachined body shot-blasted
- Fixed handle DIN 39
- Steel, zinc plated, blue passivated
- Revolving handle DIN 98
- Plastic, polyamide (PA), black
- Spindle steel, zinc plated, blue passivated
Information
Going beyond the DIN standard, handwheels DIN 950 are also available with Ø d1 = 180 and in types F and D with fixed or revolving handle.
Accessory
- GN 184Â Countersunk Washers (for Axial Fixing)
Technical information
- Keyway P9 DIN 6885-1Â
- Squares DIN 79
- ISO-Fundamental TolerancesÂ
- Cross Holes GN 110
DIN 950-AL-K
| Color | d1 | d2 H7 Bore |
b | d3 ≈ | d4 | l1 | l2 ≈ | l3 ≈ | r | Ø Handle | Spokes no. |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| DIN 950-AL-80-K10-A | A | 80 | 10 | 14 | 24 | - | 16 | 29 | - | - | - | 3 | 103 |
|
| DIN 950-AL-80-K10-D | D | 80 | 10 | 14 | 24 | M 6 | 16 | 29 | 53 | 27 | 16 | 3 | 136 |
|
| DIN 950-AL-80-K10-F | F | 80 | 10 | 14 | 24 | M 6 | 16 | 29 | 48.5 | 27 | 16 | 3 | 146 |
|
| DIN 950-AL-80-K12-A | A | 80 | 12 | 14 | 24 | - | 16 | 29 | - | - | - | 3 | 100 |
|
| DIN 950-AL-80-K12-D | D | 80 | 12 | 14 | 24 | M 6 | 16 | 29 | 53 | 27 | 16 | 3 | 140 |
|
| DIN 950-AL-80-K12-F | F | 80 | 12 | 14 | 24 | M 6 | 16 | 29 | 48.5 | 27 | 16 | 3 | 160 |
|
| DIN 950-AL-100-K10-A | A | 100 | 10 | 15 | 26 | - | 17 | 33 | - | - | - | 3 | 185 |
|
| DIN 950-AL-100-K10-D | D | 100 | 10 | 15 | 26 | M 6 | 17 | 33 | 53 | 36 | 16 | 3 | 220 |
|
| DIN 950-AL-100-K10-F | F | 100 | 10 | 15 | 26 | M 6 | 17 | 33 | 48.5 | 36 | 16 | 3 | 225 |
|
| DIN 950-AL-100-K12-A | A | 100 | 12 | 15 | 26 | - | 17 | 33 | - | - | - | 3 | 183 |
|
| DIN 950-AL-100-K12-D | D | 100 | 12 | 15 | 26 | M 6 | 17 | 33 | 53 | 36 | 16 | 3 | 200 |
|
| DIN 950-AL-100-K12-F | F | 100 | 12 | 15 | 26 | M 6 | 17 | 33 | 48.5 | 36 | 16 | 3 | 210 |
|
| DIN 950-AL-125-K12-A | A | 125 | 12 | 16 | 28 | - | 18 | 36 | - | - | - | 3 | 264 |
|
| DIN 950-AL-125-K12-D | D | 125 | 12 | 16 | 28 | M 8 | 18 | 36 | 65 | 47 | 20 | 3 | 342 |
|
| DIN 950-AL-125-K12-F | F | 125 | 12 | 16 | 28 | M 8 | 18 | 36 | 62 | 47 | 20 | 3 | 326 |
|
| DIN 950-AL-125-K14-A | A | 125 | 14 | 16 | 28 | - | 18 | 36 | - | - | - | 3 | 257 |
|
| DIN 950-AL-125-K14-D | D | 125 | 14 | 16 | 28 | M 8 | 18 | 36 | 65 | 47 | 20 | 3 | 339 |
|
| DIN 950-AL-125-K14-F | F | 125 | 14 | 16 | 28 | M 8 | 18 | 36 | 62 | 47 | 20 | 3 | 322 |
|
| DIN 950-AL-140-K14-A | A | 140 | 14 | 17 | 30 | - | 19 | 39 | - | - | - | 3 | 337 |
|
| DIN 950-AL-140-K14-D | D | 140 | 14 | 17 | 30 | M 8 | 19 | 39 | 65 | 52 | 20 | 3 | 368 |
|
| DIN 950-AL-140-K14-F | F | 140 | 14 | 17 | 30 | M 8 | 19 | 39 | 62 | 52 | 20 | 3 | 424 |
|
| DIN 950-AL-140-K16-A | A | 140 | 16 | 17 | 30 | - | 19 | 39 | - | - | - | 3 | 325 |
|
| DIN 950-AL-140-K16-D | D | 140 | 16 | 17 | 30 | M 8 | 19 | 39 | 65 | 52 | 20 | 3 | 340 |
|
| DIN 950-AL-140-K16-F | F | 140 | 16 | 17 | 30 | M 8 | 19 | 39 | 62 | 52 | 20 | 3 | 422 |
|
| DIN 950-AL-160-K14-A | A | 160 | 14 | 18 | 33 | - | 20 | 40 | - | - | - | 3 | 400 |
|
| DIN 950-AL-160-K14-D | D | 160 | 14 | 18 | 33 | M 10 | 20 | 40 | 80 | 62 | 25 | 3 | 590 |
|
| DIN 950-AL-160-K14-F | F | 160 | 14 | 18 | 33 | M 10 | 20 | 40 | 77 | 62 | 25 | 3 | 590 |
|
| DIN 950-AL-160-K15-A | A | 160 | 15 | 18 | 33 | - | 20 | 40 | - | - | - | 3 | 398 |
|
| DIN 950-AL-160-K15-D | D | 160 | 15 | 18 | 33 | M 10 | 20 | 40 | 80 | 62 | 25 | 3 | 570 |
|
| DIN 950-AL-160-K15-F | F | 160 | 15 | 18 | 33 | M 10 | 20 | 40 | 77 | 62 | 25 | 3 | 588 |
|
| DIN 950-AL-160-K16-A | A | 160 | 16 | 18 | 33 | - | 20 | 40 | - | - | - | 3 | 387 |
|
| DIN 950-AL-160-K16-D | D | 160 | 16 | 18 | 33 | M 10 | 20 | 40 | 80 | 62 | 25 | 3 | 540 |
|
| DIN 950-AL-160-K16-F | F | 160 | 16 | 18 | 33 | M 10 | 20 | 40 | 77 | 62 | 25 | 3 | 585 |
|
| DIN 950-AL-180-K16-A | A | 180 | 16 | 20 | 35 | - | 22 | 43 | - | - | - | 3 | 611 |
|
| DIN 950-AL-180-K16-D | D | 180 | 16 | 20 | 35 | M 10 | 22 | 43 | 80 | 72 | 25 | 3 | 756 |
|
| DIN 950-AL-180-K16-F | F | 180 | 16 | 20 | 35 | M 10 | 22 | 43 | 77 | 72 | 25 | 3 | 746 |
|
| DIN 950-AL-180-K18-A | A | 180 | 18 | 20 | 35 | - | 22 | 43 | - | - | - | 3 | 600 |
|
| DIN 950-AL-180-K18-D | D | 180 | 18 | 20 | 35 | M 10 | 22 | 43 | 80 | 72 | 25 | 3 | 751 |
|
| DIN 950-AL-180-K18-F | F | 180 | 18 | 20 | 35 | M 10 | 22 | 43 | 77 | 72 | 25 | 3 | 742 |
|
| DIN 950-AL-200-K18-A | A | 200 | 18 | 22 | 38 | - | 24 | 45 | - | - | - | 3 | 760 |
|
| DIN 950-AL-200-K18-D | D | 200 | 18 | 22 | 38 | M 10 | 24 | 45 | 80 | 80 | 25 | 3 | 840 |
|
| DIN 950-AL-200-K18-F | F | 200 | 18 | 22 | 38 | M 10 | 24 | 45 | 77 | 80 | 25 | 3 | 941 |
|
| DIN 950-AL-200-K20-A | A | 200 | 20 | 22 | 38 | - | 24 | 45 | - | - | - | 3 | 700 |
|
| DIN 950-AL-200-K20-D | D | 200 | 20 | 22 | 38 | M 10 | 24 | 45 | 80 | 80 | 25 | 3 | 820 |
|
| DIN 950-AL-200-K20-F | F | 200 | 20 | 22 | 38 | M 10 | 24 | 45 | 77 | 80 | 25 | 3 | 921 |
|
| DIN 950-AL-200-K22-A | A | 200 | 22 | 22 | 38 | - | 24 | 45 | - | - | - | 3 | 699 |
|
| DIN 950-AL-200-K22-D | D | 200 | 22 | 22 | 38 | M 10 | 24 | 45 | 80 | 80 | 25 | 3 | 800 |
|
| DIN 950-AL-200-K22-F | F | 200 | 22 | 22 | 38 | M 10 | 24 | 45 | 77 | 80 | 25 | 3 | 906 |
|
| DIN 950-AL-250-K22-A | A | 250 | 22 | 26 | 48 | - | 28 | 50 | - | - | - | 5 | 1424 |
|
| DIN 950-AL-250-K22-D | D | 250 | 22 | 26 | 48 | M 12 | 28 | 50 | 102 | 101 | 32 | 5 | 1740 |
|
| DIN 950-AL-250-K22-F | F | 250 | 22 | 26 | 48 | M 12 | 28 | 50 | 96.5 | 101 | 32 | 5 | 1779 |
|
| DIN 950-AL-250-K24-A | A | 250 | 24 | 26 | 48 | - | 28 | 50 | - | - | - | 5 | 1414 |
|
| DIN 950-AL-250-K24-D | D | 250 | 24 | 26 | 48 | M 12 | 28 | 50 | 102 | 101 | 32 | 5 | 1604 |
|
| DIN 950-AL-250-K24-F | F | 250 | 24 | 26 | 48 | M 12 | 28 | 50 | 96.5 | 101 | 32 | 5 | 1769 |
|
| DIN 950-AL-250-K26-A | A | 250 | 26 | 26 | 48 | - | 28 | 50 | - | - | - | 5 | 1393 |
|
| DIN 950-AL-250-K26-D | D | 250 | 26 | 26 | 48 | M 12 | 28 | 50 | 102 | 101 | 32 | 5 | 1495 |
|
| DIN 950-AL-250-K26-F | F | 250 | 26 | 26 | 48 | M 12 | 28 | 50 | 96.5 | 101 | 32 | 5 | 1748 |
|
| DIN 950-AL-315-K26-A | A | 315 | 26 | 28 | 53 | - | 33 | 56 | - | - | - | 5 | 2100 |
|
| DIN 950-AL-315-K26-D | D | 315 | 26 | 28 | 53 | M 12 | 33 | 56 | 102 | 132 | 32 | 5 | 2350 |
|
| DIN 950-AL-315-K26-F | F | 315 | 26 | 28 | 53 | M 12 | 33 | 56 | 96.5 | 132 | 32 | 5 | 2677 |
|
| DIN 950-AL-315-K28-A | A | 315 | 28 | 28 | 53 | - | 33 | 56 | - | - | - | 5 | 1950 |
|
| DIN 950-AL-315-K28-D | D | 315 | 28 | 28 | 53 | M 12 | 33 | 56 | 102 | 132 | 32 | 5 | 2300 |
|
| DIN 950-AL-315-K28-F | F | 315 | 28 | 28 | 53 | M 12 | 33 | 56 | 96.5 | 132 | 32 | 5 | 2500 |
|
| DIN 950-AL-315-K30-A | A | 315 | 30 | 28 | 53 | - | 33 | 56 | - | - | - | 5 | 1940 |
|
| DIN 950-AL-315-K30-D | D | 315 | 30 | 28 | 53 | M 12 | 33 | 56 | 102 | 132 | 32 | 5 | 2200 |
|
| DIN 950-AL-315-K30-F | F | 315 | 30 | 28 | 53 | M 12 | 33 | 56 | 96.5 | 132 | 32 | 5 | 2400 |
|
| DIN 950-AL-400-K30-A | A | 400 | 30 | 32 | 65 | - | 38 | 63 | - | - | - | 5 | 3644 |
|
| DIN 950-AL-400-K30-D | D | 400 | 30 | 32 | 65 | M 12 | 38 | 63 | 102 | 171 | 32 | 5 | 3880 |
|
| DIN 950-AL-400-K30-F | F | 400 | 30 | 32 | 65 | M 12 | 38 | 63 | 96.5 | 171 | 32 | 5 | 4164 |
|
| DIN 950-AL-400-K32-A | A | 400 | 32 | 32 | 65 | - | 38 | 63 | - | - | - | 5 | 3629 |
|
| DIN 950-AL-400-K32-D | D | 400 | 32 | 32 | 65 | M 12 | 38 | 63 | 102 | 171 | 32 | 5 | 3780 |
|
| DIN 950-AL-400-K32-F | F | 400 | 32 | 32 | 65 | M 12 | 38 | 63 | 96.5 | 171 | 32 | 5 | 4149 |
|
| DIN 950-AL-400-K34-A | A | 400 | 34 | 32 | 65 | - | 38 | 63 | - | - | - | 5 | 3610 |
|
| DIN 950-AL-400-K34-D | D | 400 | 34 | 32 | 65 | M 12 | 38 | 63 | 102 | 171 | 32 | 5 | 3740 |
|
| DIN 950-AL-400-K34-F | F | 400 | 34 | 32 | 65 | M 12 | 38 | 63 | 96.5 | 171 | 32 | 5 | 4130 |
|
| DIN 950-AL-500-K34-A | A | 500 | 34 | 34 | 78 | - | 45 | 72 | - | - | - | 5 | 5460 |
|
| DIN 950-AL-500-K34-D | D | 500 | 34 | 34 | 78 | M 12 | 45 | 72 | 102 | 220 | 32 | 5 | 5500 |
|
| DIN 950-AL-500-K34-F | F | 500 | 34 | 34 | 78 | M 12 | 45 | 72 | 96.5 | 220 | 32 | 5 | 5974 |
|
| DIN 950-AL-500-K36-A | A | 500 | 36 | 34 | 78 | - | 45 | 72 | - | - | - | 5 | 5430 |
|
| DIN 950-AL-500-K36-D | D | 500 | 36 | 34 | 78 | M 12 | 45 | 72 | 102 | 220 | 32 | 5 | 5500 |
|
| DIN 950-AL-500-K36-F | F | 500 | 36 | 34 | 78 | M 12 | 45 | 72 | 96.5 | 220 | 32 | 5 | 5942 |
|
| DIN 950-AL-500-K40-A | A | 500 | 40 | 34 | 78 | - | 45 | 72 | - | - | - | 5 | 5600 |
|
| DIN 950-AL-500-K40-D | D | 500 | 40 | 34 | 78 | M 12 | 45 | 72 | 102 | 220 | 32 | 5 | 5700 |
|
| DIN 950-AL-500-K40-F | F | 500 | 40 | 34 | 78 | M 12 | 45 | 72 | 96.5 | 220 | 32 | 5 | 5904 |
|
