DIN 71802

Angled Ball Joints

Steel / Stainless Steel, with Threaded Ball Shank and Rivet Ball Shank

Enquire Now

Description

Specification

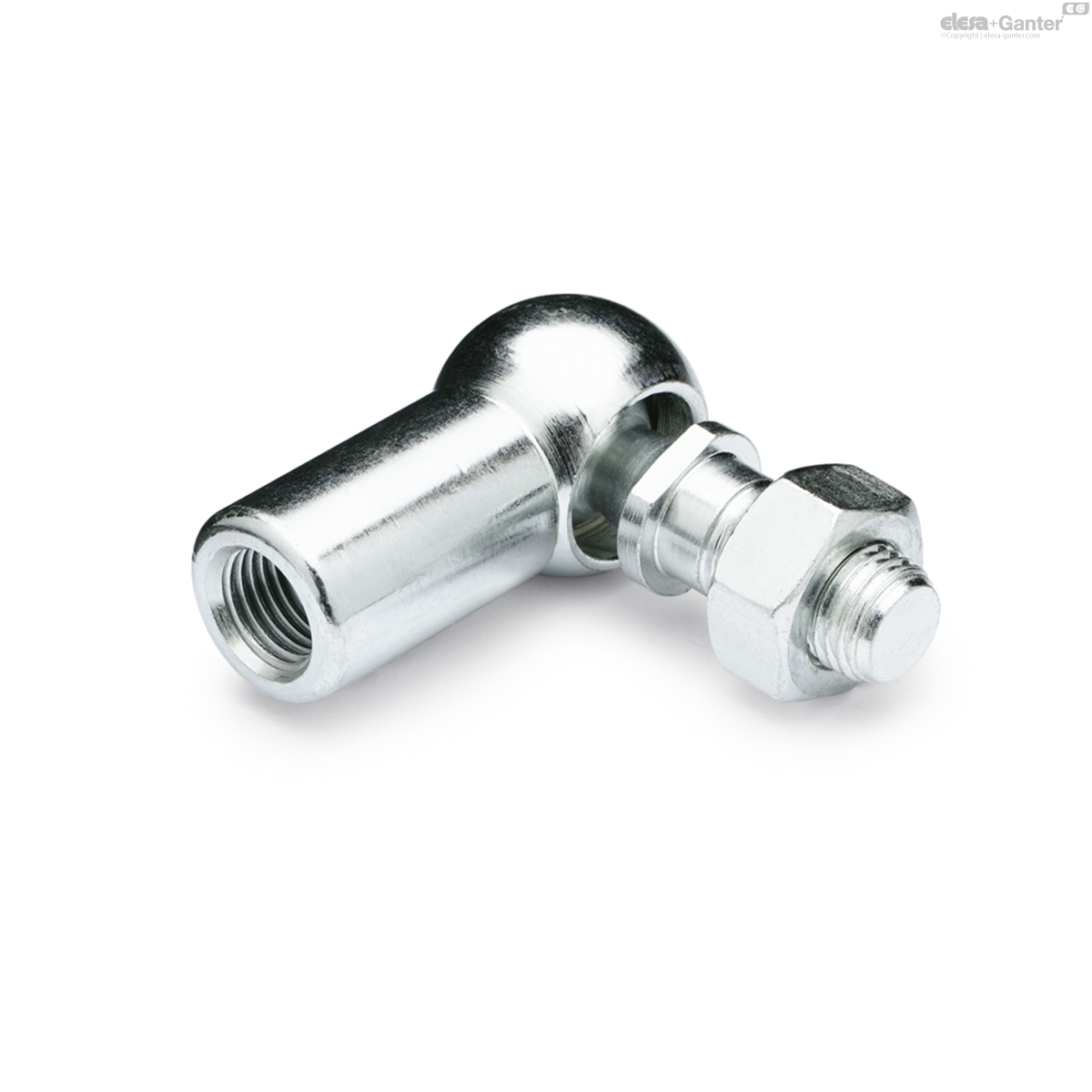

Version in Steel

Types

Type CS: with threaded ball shank with safety catch

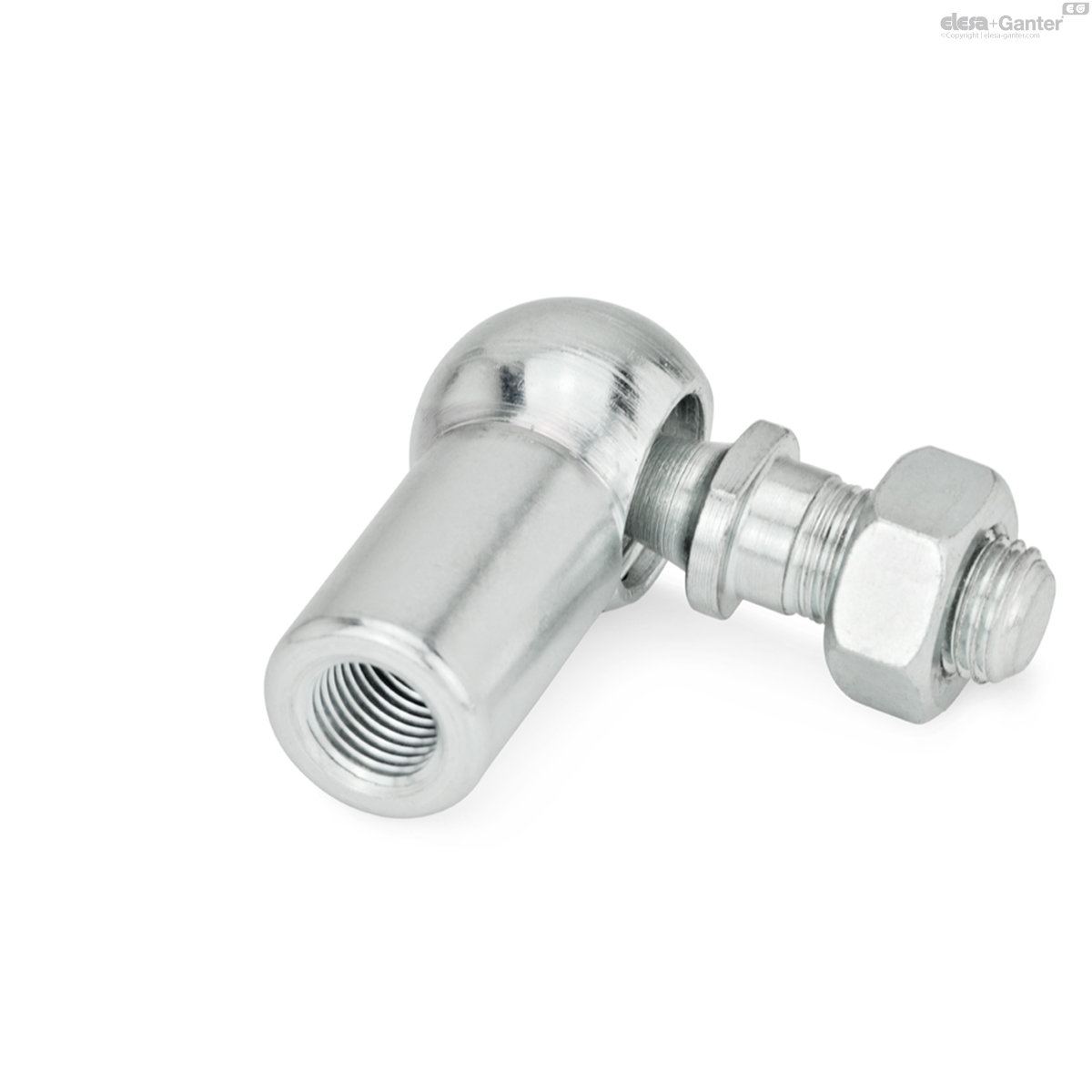

Type C: with threaded ball shank without safety catch

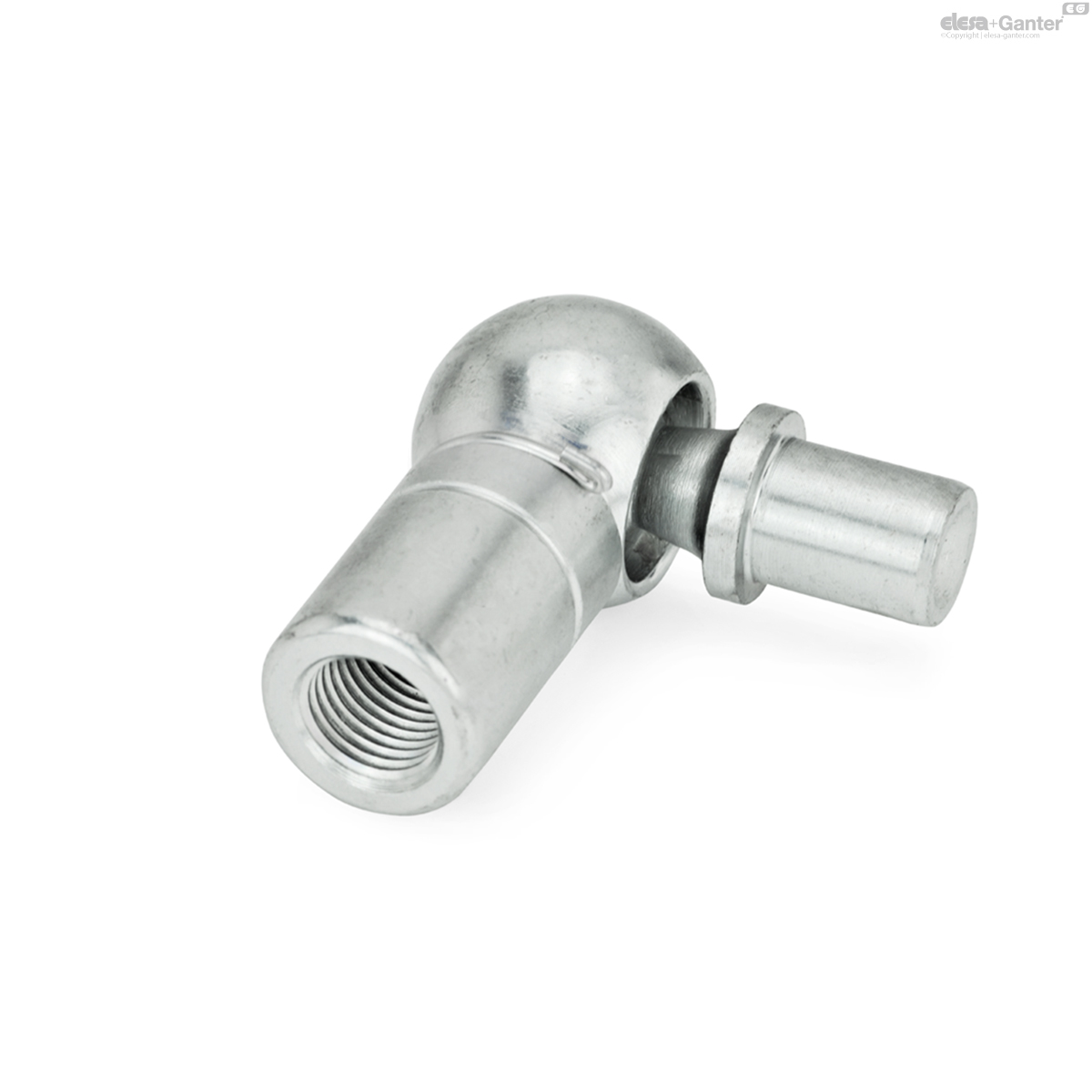

Type BS: with rivet ball shank, with safety catch

Type B: with rivet ball shank, without safety catch

Steel

Tensile strength class 5

zinc plated, colorless passivated

Ball

Steel

hardened

ball seat lubricated

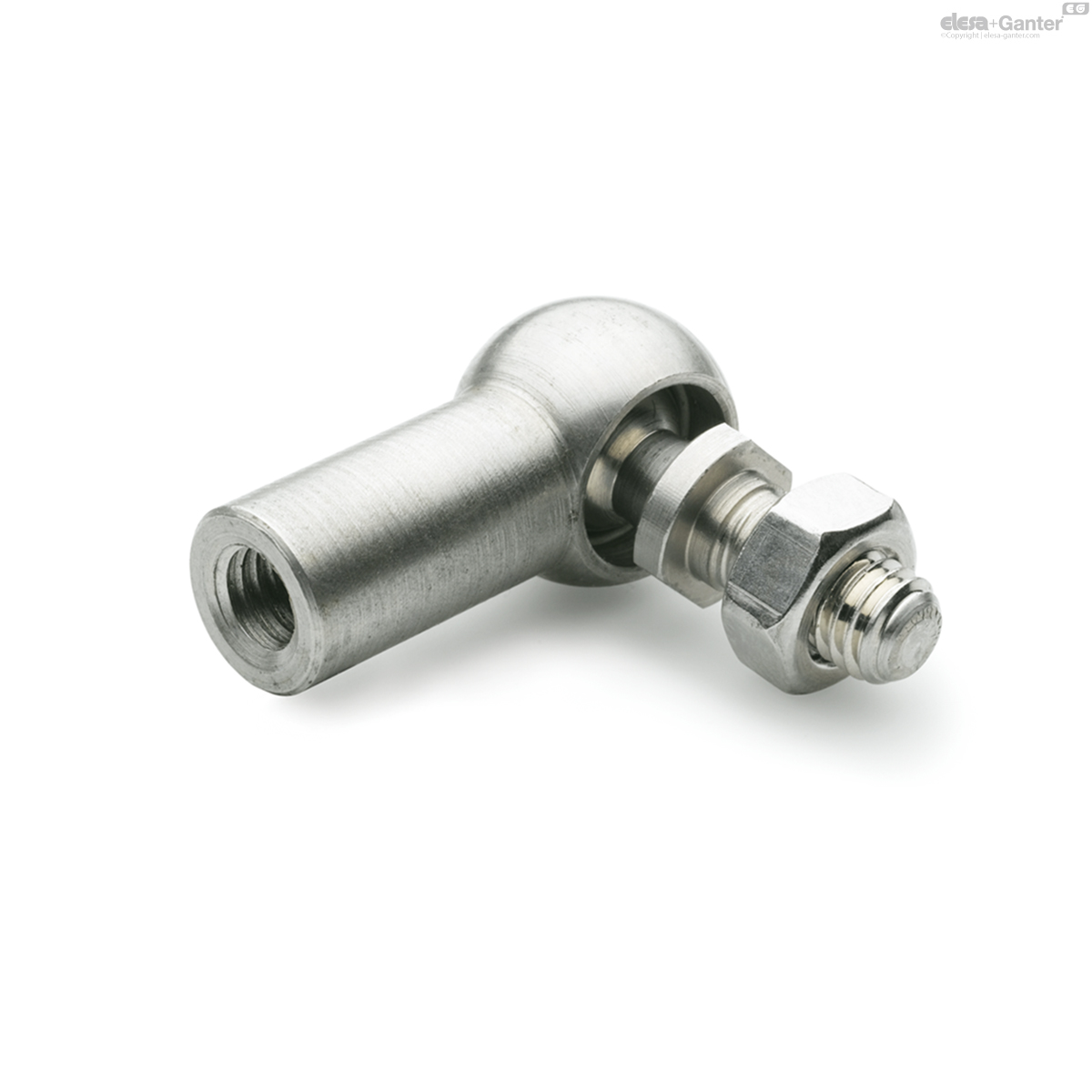

Version in Stainless Steel

Types

Type CSN: with threaded ball shank, with safety catch

Type CN: with threaded ball shank, without safety catch

Stainless Steel AISI 303

Ball

Stainless Steel

not hardened

ball seat greased

Information

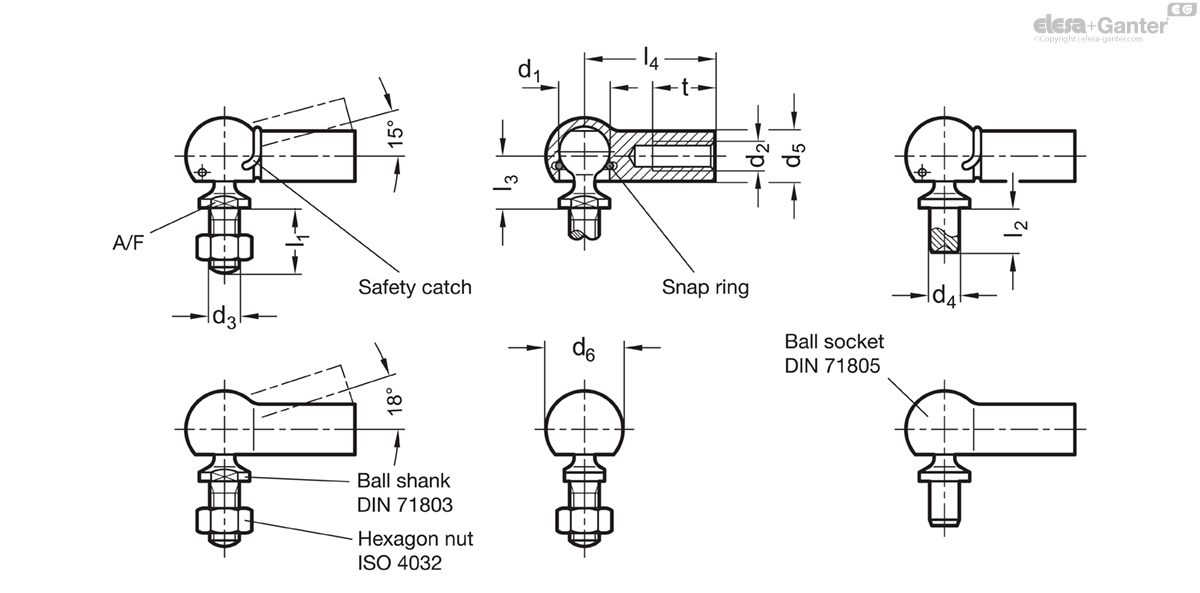

Angled ball joints DIN 71802 consist of a ball socket DIN 71805 and a ball shank DIN 71803.

The angle of rotation for the type with safety catch (Types CS, BS, CSN) ist 15°, without safety catch (Types C, B, CN) is 18°.

For assembly the ball ist pushed through the circlip which acts as a retainer. Should the retaining force (see pull-off force in the table above) between ball and socket not be sufficient, this can be increased by adding a safety catch, which can easily be fitted.

To protect the angled ball point, a dust cap GN 710 can be added.

The hexagon nut is part of the angled ball joints.

On request

smooth specification (Ball seat with play)

Ball studs DIN 71803

Ball sockets DIN 71805

Axial joints (ball socket and ball shank in one axis)

Technical information

ISO-Fundamental Tolerances

Stainless Steel characteristics

Strength values of nuts

Accessory

Dust caps GN 710

DIN 71802

	Color	d₁ H9/h9	d₂	d₃	l₂	d₄ h11	d₅	d₆	l₁	l₃	l₄	t	A/F	min. pull-off force in N
Code																Actions
DIN 71802-8-M5-4-B	B	8	M 5	-	4	5	8	12.8	-	8.5	22	10.5	7	30	13
DIN 71802-8-M5-4-BS	BS	8	M 5	-	4	5	8	12.8	-	8.5	22	10.5	7	30	13
DIN 71802-8-M5-7,5-B	B	8	M 5	-	7.5	5	8	12.8	-	8.5	22	10.5	7	30	14
DIN 71802-8-M5-7,5-BS	BS	8	M 5	-	7.5	5	8	12.8	-	8.5	22	10.5	7	30	13
DIN 71802-8-M5-C	C	8	M 5	M 5	-	-	8	12.8	10	8.5	22	10.5	7	30	14
DIN 71802-8-M5-CS	CS	8	M 5	M 5	-	-	8	12.8	10	8.5	22	10.5	7	30	15
DIN 71802-8-M5L-4-B	B	8	M 5L	-	4	5	8	12.8	-	8.5	22	10.5	7	30	13
DIN 71802-8-M5L-4-BS	BS	8	M 5L	-	4	5	8	12.8	-	8.5	22	10.5	7	30	14
DIN 71802-8-M5L-7,5-B	B	8	M 5L	-	7.5	5	8	12.8	-	8.5	22	10.5	7	30	15
DIN 71802-8-M5L-7,5-BS	BS	8	M 5L	-	7.5	5	8	12.8	-	8.5	22	10.5	7	30	14
DIN 71802-8-M5L-C	C	8	M 5L	M 5	-	-	8	12.8	10	8.5	22	10.5	7	30	15
DIN 71802-8-M5L-CS	CS	8	M 5L	M 5	-	-	8	12.8	10	8.5	22	10.5	7	30	10
DIN 71802-10-M6-4,5-B	B	10	M 6	-	4.5	6	10	14.8	-	10.5	25	11.5	8	40	23
DIN 71802-10-M6-4,5-BS	BS	10	M 6	-	4.5	6	10	14.8	-	10.5	25	11.5	8	40	22
DIN 71802-10-M6-8-B	B	10	M 6	-	8	6	10	14.8	-	10.5	25	11.5	8	40	23
DIN 71802-10-M6-8-BS	BS	10	M 6	-	8	6	10	14.8	-	10.5	25	11.5	8	40	23
DIN 71802-10-M6-C	C	10	M 6	M 6	-	-	10	14.8	12.5	10.5	25	11.5	8	40	25
DIN 71802-10-M6-CS	CS	10	M 6	M 6	-	-	10	14.8	12.5	10.5	25	11.5	8	40	25
DIN 71802-10-M6L-4,5-B	B	10	M 6L	-	4.5	6	10	14.8	-	10.5	25	11.5	8	40	23
DIN 71802-10-M6L-4,5-BS	BS	10	M 6L	-	4.5	6	10	14.8	-	10.5	25	11.5	8	40	22
DIN 71802-10-M6L-8-B	B	10	M 6L	-	8	6	10	14.8	-	10.5	25	11.5	8	40	22
DIN 71802-10-M6L-8-BS	BS	10	M 6L	-	8	6	10	14.8	-	10.5	25	11.5	8	40	230
DIN 71802-10-M6L-C	C	10	M 6L	M 6	-	-	10	14.8	12.5	10.5	25	11.5	8	40	25
DIN 71802-10-M6L-CS	CS	10	M 6L	M 6	-	-	10	14.8	12.5	10.5	25	11.5	8	40	26
DIN 71802-13-M8-5-B	B	13	M 8	-	5	8	13	19.3	-	12	30	14	11	60	4
DIN 71802-13-M8-5-BS	BS	13	M 8	-	5	8	13	19.3	-	12	30	14	11	60	42
DIN 71802-13-M8-10-B	B	13	M 8	-	10	8	13	19.3	-	12	30	14	11	60	47
DIN 71802-13-M8-10-BS	BS	13	M 8	-	10	8	13	19.3	-	12	30	14	11	60	40
DIN 71802-13-M8-C	C	13	M 8	M 8	-	-	13	19.3	16.5	12	30	14	11	60	49
DIN 71802-13-M8-CS	CS	13	M 8	M 8	-	-	13	19.3	16.5	12	30	14	11	60	50
DIN 71802-13-M8L-5-B	B	13	M 8L	-	5	8	13	19.3	-	12	30	14	11	60	44
DIN 71802-13-M8L-5-BS	BS	13	M 8L	-	5	8	13	19.3	-	12	30	14	11	60	80
DIN 71802-13-M8L-10-B	B	13	M 8L	-	10	8	13	19.3	-	12	30	14	11	60	46
DIN 71802-13-M8L-10-BS	BS	13	M 8L	-	10	8	13	19.3	-	12	30	14	11	60	48
DIN 71802-13-M8L-C	C	13	M 8L	M 8	-	-	13	19.3	16.5	12	30	14	11	60	76
DIN 71802-13-M8L-CS	CS	13	M 8L	M 8	-	-	13	19.3	16.5	12	30	14	11	60	50
DIN 71802-16-M10-6-B	B	16	M 10	-	6	10	16	24	-	15	35	15.5	13	80	88
DIN 71802-16-M10-6-BS	BS	16	M 10	-	6	10	16	24	-	15	35	15.5	13	80	80
DIN 71802-16-M10-13-B	B	16	M 10	-	13	10	16	24	-	15	35	15.5	13	80	89
DIN 71802-16-M10-13-BS	BS	16	M 10	-	13	10	16	24	-	15	35	15.5	13	80	85
DIN 71802-16-M10-C	C	16	M 10	M 10	-	-	16	24	20	15	35	15.5	13	80	100
DIN 71802-16-M10-CS	CS	16	M 10	M 10	-	-	16	24	20	15	35	15.5	13	80	100
DIN 71802-16-M10L-6-B	B	16	M 10L	-	6	10	16	24	-	15	35	15.5	13	80	81
DIN 71802-16-M10L-6-BS	BS	16	M 10L	-	6	10	16	24	-	15	35	15.5	13	80	80
DIN 71802-16-M10L-13-B	B	16	M 10L	-	13	10	16	24	-	15	35	15.5	13	80	80
DIN 71802-16-M10L-13-BS	BS	16	M 10L	-	13	10	16	24	-	15	35	15.5	13	80	85
DIN 71802-16-M10L-C	C	16	M 10L	M 10	-	-	16	24	20	15	35	15.5	13	80	95
DIN 71802-16-M10L-CS	CS	16	M 10L	M 10	-	-	16	24	20	15	35	15.5	13	80	97
DIN 71802-16-M12-6-B	B	16	M 12	-	6	10	16	24	-	15	35	15.5	13	80	60
DIN 71802-16-M12-6-BS	BS	16	M 12	-	6	10	16	24	-	15	35	15.5	13	80	62
DIN 71802-16-M12-13-B	B	16	M 12	-	13	10	16	24	-	15	35	15.5	13	80	80
DIN 71802-16-M12-13-BS	BS	16	M 12	-	13	10	16	24	-	15	35	15.5	13	80	80
DIN 71802-16-M12-C	C	16	M 12	M 12	-	-	16	24	20	15	35	15.5	13	80	100
DIN 71802-16-M12-CS	CS	16	M 12	M 12	-	-	16	24	20	15	35	15.5	13	80	102
DIN 71802-16-M12L-6-B	B	16	M 12L	-	6	10	16	24	-	15	35	15.5	13	80	60
DIN 71802-16-M12L-6-BS	BS	16	M 12L	-	6	10	16	24	-	15	35	15.5	13	80	62
DIN 71802-16-M12L-13-B	B	16	M 12L	-	13	10	16	24	-	15	35	15.5	13	80	80
DIN 71802-16-M12L-13-BS	BS	16	M 12L	-	13	10	16	24	-	15	35	15.5	13	80	83
DIN 71802-16-M12L-C	C	16	M 12L	M 12	-	-	16	24	20	15	35	15.5	13	80	100
DIN 71802-16-M12L-CS	CS	16	M 12L	M 12	-	-	16	24	20	15	35	15.5	13	80	102
DIN 71802-19-M14F-12-B	B	19	M 14 F = M 14x1.5	-	12	14	22	30	-	19.5	45	21.5	16	100	200
DIN 71802-19-M14F-12-BS	BS	19	M 14 F = M 14x1.5	-	12	14	22	30	-	19.5	45	21.5	16	100	181
DIN 71802-19-M14F-18-B	B	19	M 14 F = M 14x1.5	-	18	14	22	30	-	19.5	45	21.5	16	100	190
DIN 71802-19-M14F-18-BS	BS	19	M 14 F = M 14x1.5	-	18	14	22	30	-	19.5	45	21.5	16	100	180
DIN 71802-19-M14F-C	C	19	M 14F = M 14x1.5	M 14 x 1.5	-	-	22	30	28	19.5	45	21.5	16	100	217
DIN 71802-19-M14F-CS	CS	19	M 14F = M 14x1.5	M 14 x 1.5	-	-	22	30	28	19.5	45	21.5	16	100	180
DIN 71802-19-M14FL-12-B	B	19	M 14 FL = M 14x1.5 L	-	12	14	22	30	-	19.5	45	21.5	16	100	183
DIN 71802-19-M14FL-12-BS	BS	19	M 14 FL = M 14x1.5 L	-	12	14	22	30	-	19.5	45	21.5	16	100	181
DIN 71802-19-M14FL-18-B	B	19	M 14 FL = M 14x1.5 L	-	18	14	22	30	-	19.5	45	21.5	16	100	187
DIN 71802-19-M14FL-18-BS	BS	19	M 14 FL = M 14x1.5 L	-	18	14	22	30	-	19.5	45	21.5	16	100	189
DIN 71802-19-M14FL-C	C	19	M 14 FL = M 14x1.5 L	M 14 x 1.5	-	-	22	30	28	19.5	45	21.5	16	100	200
DIN 71802-19-M14FL-CS	CS	19	M 14 FL = M 14x1.5 L	M 14 x 1.5	-	-	22	30	28	19.5	45	21.5	16	100	220
