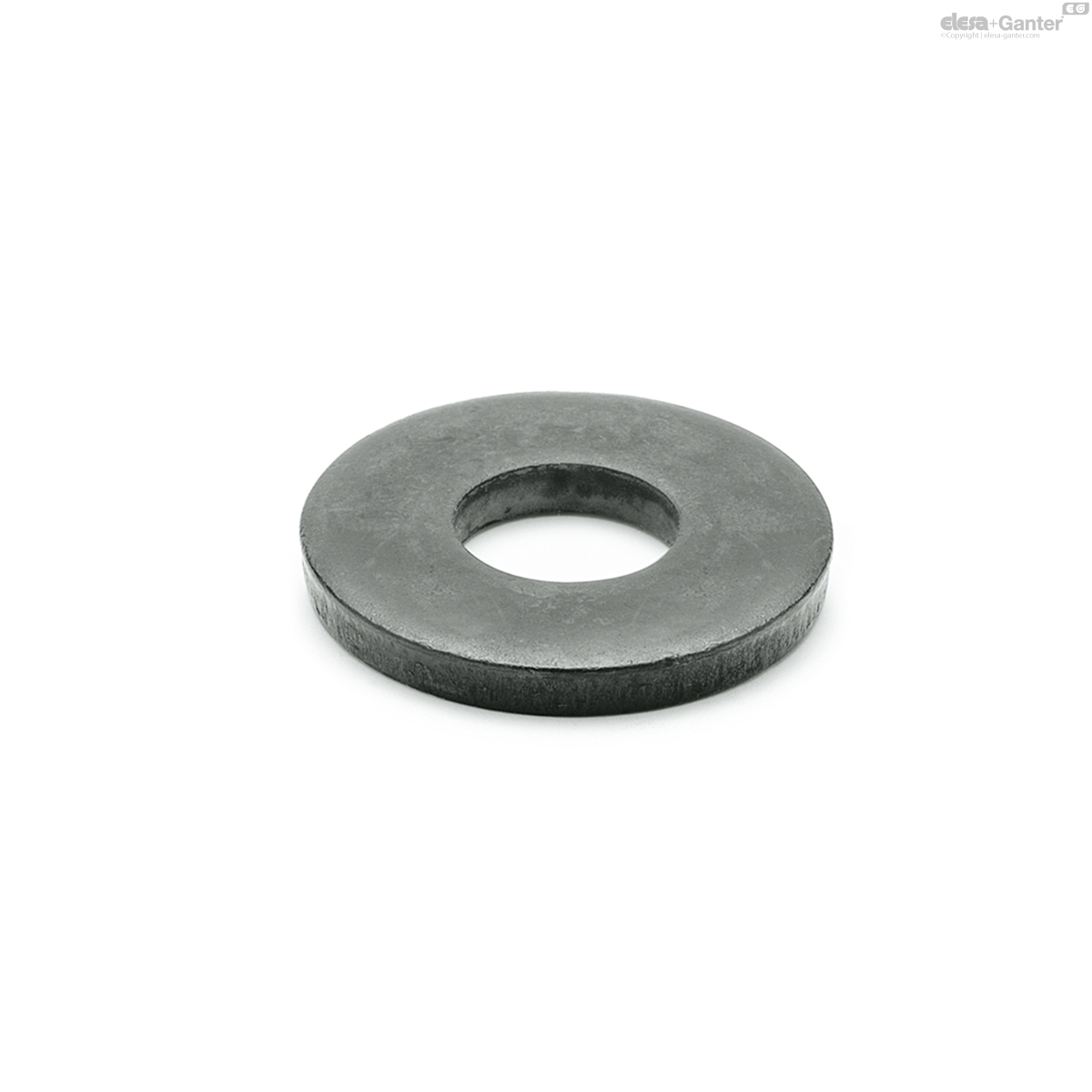

DIN 6340
Washers
Description
Specification
Heat-treated steel
- tempered hardness (350 + 80) HV 30
- phosphate-threated
- blanked not deburred
Information
Washers DIN 6340 are mainly used for elongated holes.
DIN 6340

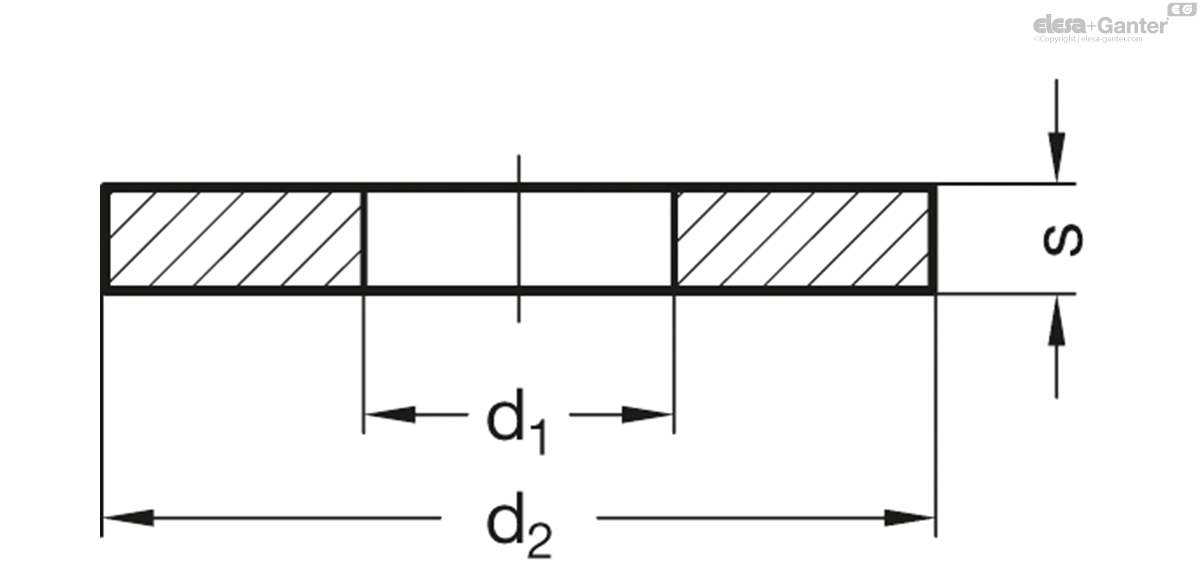

| d1 | d2 | s | For threaded bolts |  |
||
|---|---|---|---|---|---|---|
| Code | Actions | |||||
| DIN 6340-6,4 | 6.4 | 17 | 3 | M 6 | 4 |
|
| DIN 6340-8,4 | 8.4 | 23 | 4 | M 8 | 10 |
|
| DIN 6340-10,5 | 10.5 | 28 | 4 | M 10 | 16 |
|
| DIN 6340-13 | 13 | 35 | 5 | M 12 | 27 |
|
| DIN 6340-15 | 15 | 40 | 5 | M 14 | 36 |
|
| DIN 6340-17 | 17 | 45 | 6 | M 16 | 56 |
|
| DIN 6340-21 | 21 | 50 | 6 | M 20 | 60 |
|
| DIN 6340-25 | 25 | 60 | 8 | M 24 | 128 |
|
| DIN 6340-31 | 31 | 68 | 10 | M 30 | 205 |
|
