DIN 6332

Grub Screws

Steel / Stainless Steel, with Thrust Point

Enquire Now

Description

Specification

Steel

Tensile strength class 5.8

blackened

Thrust point hardened (Type SK)

Thrust point not hardened (Type SKN)

zinc plated, blue passivated ZB

Thrust point not hardened (Type SKN)

Stainless Steel AISI 304 NI

Thrust point not hardened (Type SKN)

Information

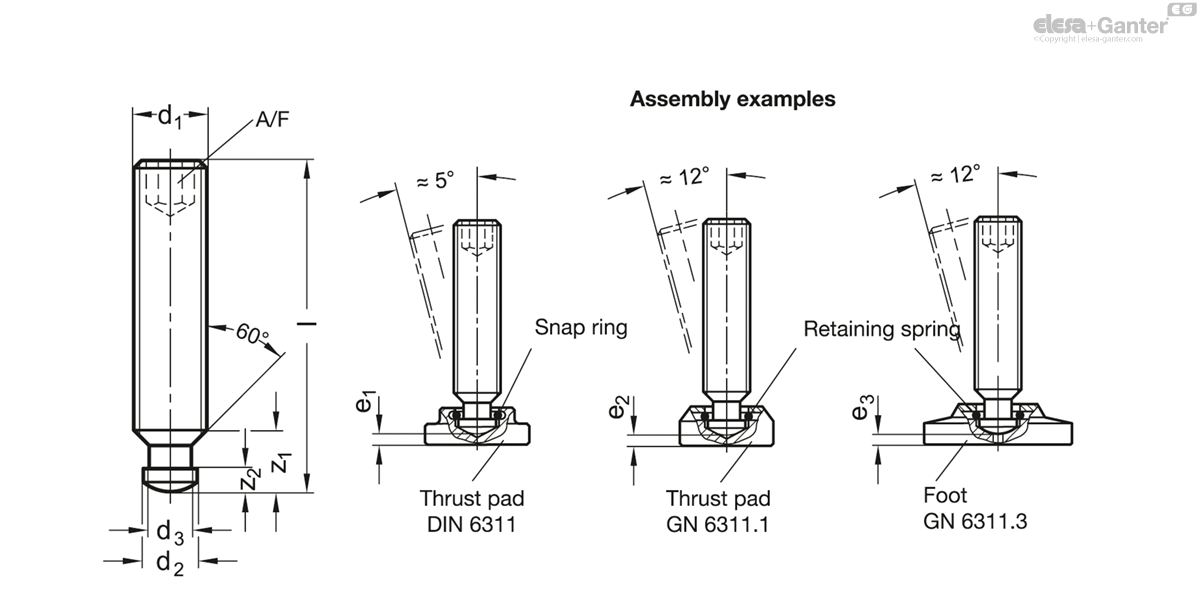

The thrust point of the grub screws DIN 6332 is designed to be used with or without the thrust pad for clamping.

The pin diameter of the grub screws is smaller than the core diameter of the thread, allowing them to be screwed in on the pin side.

The snap ring resp. snap spring of the the thrust pad is a simple and quick method to connect the thrust pad to the grub screw.

Technical information

	d₁	l	d₂ h11	d₃	e₁ ≈	e₃ ≈	A/F	z₁ ≈	z₂ ≈
Code											Actions
DIN 6332-M10-45-SKN-ZB	M 10	45	8	7.2	3.6	-	5	9	4.5	20
DIN 6332-M10-55-SKN-ZB	M 10	55	8	7.2	3.6	-	5	9	4.5	25
DIN 6332-M10-65-SKN-ZB	M 10	65	8	7.2	3.6	-	5	9	4.5	30
DIN 6332-M10-80-SKN-ZB	M 10	80	8	7.2	3.6	-	5	9	4.5	37
DIN 6332-M12-50-SKN-ZB	M 12	50	8	7.2	4.6	3.7	6	10	4.5	30
DIN 6332-M12-60-SKN-ZB	M 12	60	8	7.2	4.6	3.7	6	10	4.5	38
DIN 6332-M12-70-SKN-ZB	M 12	70	8	7.2	4.6	3.7	6	10	4.5	44
DIN 6332-M12-80-SKN-ZB	M 12	80	8	7.2	4.6	3.7	6	10	4.5	51
DIN 6332-M12-100-SKN-ZB	M 12	100	8	7.2	4.6	3.7	6	10	4.5	65
DIN 6332-M16-65-SKN-ZB	M 16	65	12	11	5.4	4	8	12	5	67
DIN 6332-M16-70-SKN-ZB	M 16	70	12	11	5.4	4	8	12	5	74
DIN 6332-M16-80-SKN-ZB	M 16	80	12	11	5.4	4	8	12	5	90
DIN 6332-M16-100-SKN-ZB	M 16	100	12	11	5.4	4	8	12	5	118
DIN 6332-M16-125-SKN-ZB	M 16	125	12	11	5.4	4	8	12	5	150
DIN 6332-M20-90-SKN-ZB	M 20	90	15.5	14.4	5.5	4.3	10	14	5.5	171
DIN 6332-M20-100-SKN-ZB	M 20	100	15.5	14.4	5.5	4.3	10	14	5.5	189
DIN 6332-M20-125-SKN-ZB	M 20	125	15.5	14.4	5.5	4.3	10	14	5.5	241
DIN 6332-M20-150-SKN-ZB	M 20	150	15.5	14.4	5.5	4.3	10	14	5.5	141
