DIN 6332

Grub Screws

Steel / Stainless Steel, with Thrust Point

Enquire Now

Zinc plated, blue passivated

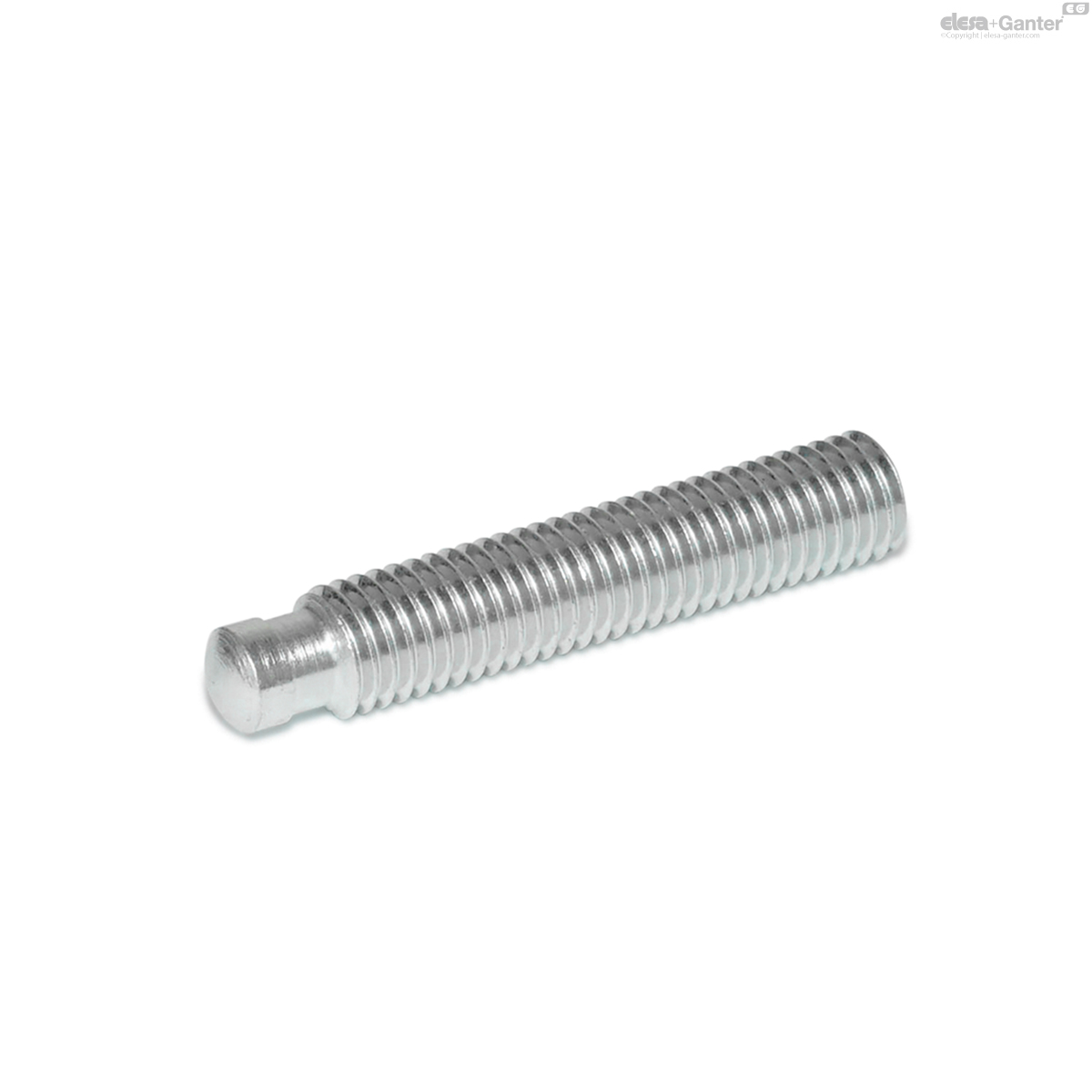

DIN 6332-NI

Grub Screws

Stainless Steel

Description

Specification

Types

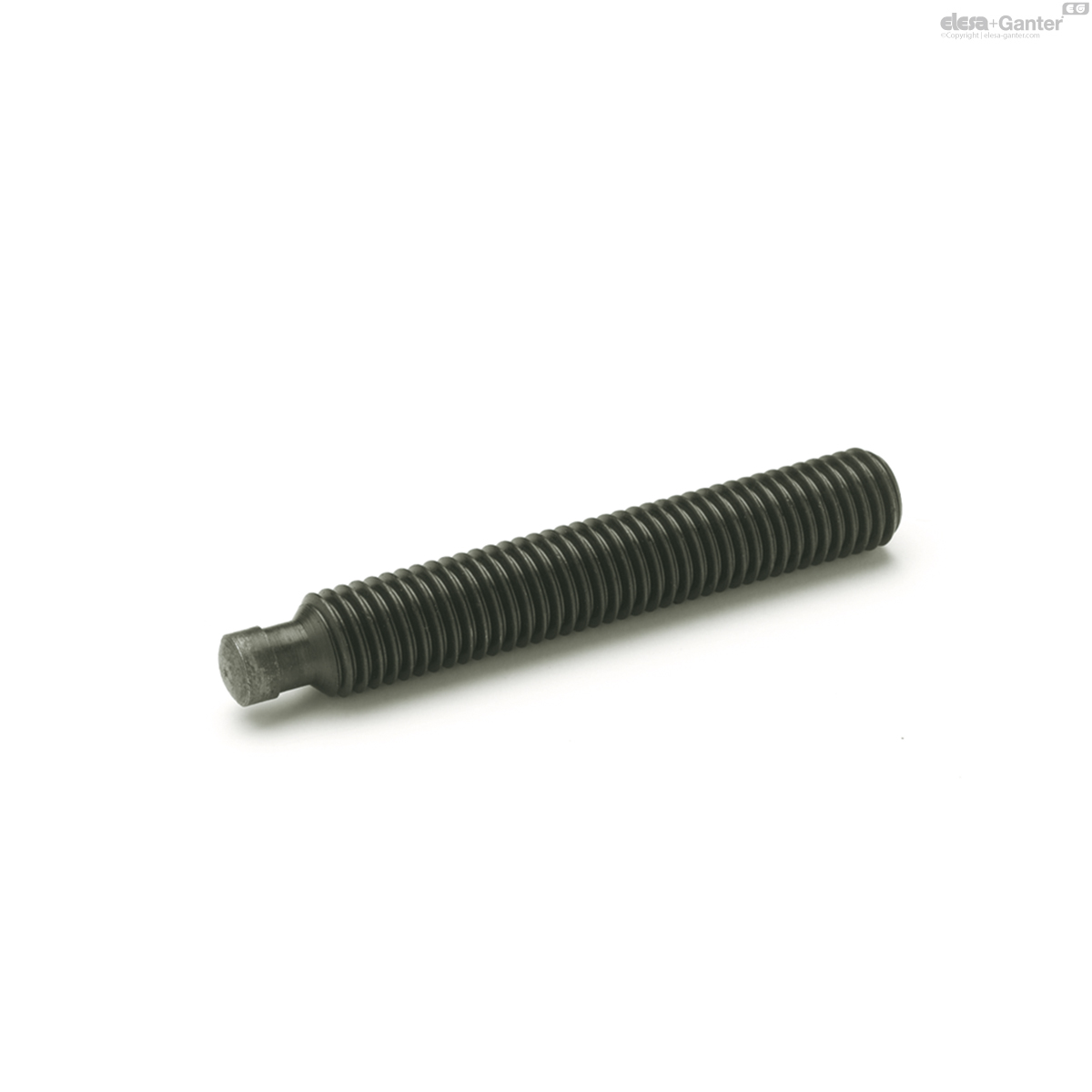

Type SK: with thrust point, hardened (only in steel, blackened)

Type SKN: with thrust point, not hardened

Steel

Tensile strength class 5.8

blackened

Thrust point hardened (Type SK)

Thrust point not hardened (Type SKN)

zinc plated, blue passivated ZB

Thrust point not hardened (Type SKN)

Stainless Steel AISI 304 NI

Thrust point not hardened (Type SKN)

Information

The thrust point of the grub screws DIN 6332 is designed to be used with or without the thrust pad for clamping.

The pin diameter of the grub screws is smaller than the core diameter of the thread, allowing them to be screwed in on the pin side.

The snap ring resp. snap spring of the the thrust pad is a simple and quick method to connect the thrust pad to the grub screw.

Technical information

Stainless Steel characteristics

ISO-Fundamental Tolerances

Strength values of screws

DIN 6332

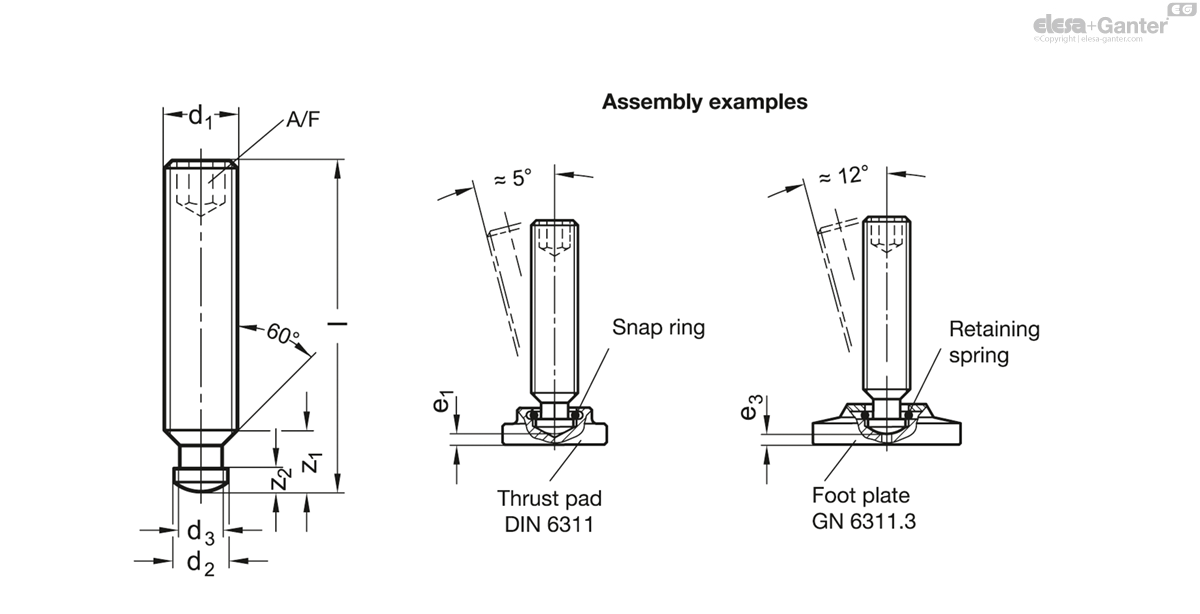

	d₁	l	d₂ h11	d₃	e₁ ≈	e₂ ≈ Type A	e₂ ≈ Type P	e₃ ≈	A/F	z₁ ≈	z₂ ≈
Code													Actions
DIN 6332-M6-30-SK	M 6	30	4.5	4	2.1	1.5	4.5	-	3	6	2.5	5
DIN 6332-M6-30-SKN	M 6	30	4.5	4	2.1	1.5	4.5	-	3	6	2.5	5
DIN 6332-M6-35-SK	M 6	35	4.5	4	2.1	1.5	4.5	-	3	6	2.5	6
DIN 6332-M6-35-SKN	M 6	35	4.5	4	2.1	1.5	4.5	-	3	6	2.5	6
DIN 6332-M6-40-SK	M 6	40	4.5	4	2.1	1.5	4.5	-	3	6	2.5	7
DIN 6332-M6-40-SKN	M 6	40	4.5	4	2.1	1.5	4.5	-	3	6	2.5	7
DIN 6332-M6-45-SK	M 6	45	4.5	4	2.1	1.5	4.5	-	3	6	2.5	8
DIN 6332-M6-45-SKN	M 6	45	4.5	4	2.1	1.5	4.5	-	3	6	2.5	8
DIN 6332-M6-50-SK	M 6	50	4.5	4	2.1	1.5	4.5	-	3	6	2.5	9
DIN 6332-M6-50-SKN	M 6	50	4.5	4	2.1	1.5	4.5	-	3	6	2.5	9
DIN 6332-M8-35-SK	M 8	35	6	5.4	3	2.3	5,3	-	4	7.5	3	10
DIN 6332-M8-35-SKN	M 8	35	6	5.4	3	2.3	4.5	-	4	7.5	3	10
DIN 6332-M8-40-SK	M 8	40	6	5.4	3	2.3	5,3	-	4	7.5	3	11
DIN 6332-M8-40-SKN	M 8	40	6	5.4	3	2.3	5.3	-	4	7.5	3	11
DIN 6332-M8-45-SK	M 8	45	6	5.4	3	2.3	5,3	-	4	7.5	3	13
DIN 6332-M8-45-SKN	M 8	45	6	5.4	3	2.3	5.3	-	4	7.5	3	13
DIN 6332-M8-50-SK	M 8	50	6	5.4	3	2.3	5,3	-	4	7.5	3	14
DIN 6332-M8-50-SKN	M 8	50	6	5.4	3	2.3	5.3	-	4	7.5	3	14
DIN 6332-M8-60-SK	M 8	60	6	5.4	3	2.3	5,3	-	4	7.5	3	17
DIN 6332-M8-60-SKN	M 8	60	6	5.4	3	2.3	5.3	-	4	7.5	3	17
DIN 6332-M8-70-SK	M 8	70	6	5.4	3	2.3	5,3	-	4	7.5	3	21
DIN 6332-M8-70-SKN	M 8	70	6	5.4	3	2.3	5.3	-	4	7.5	3	21
DIN 6332-M10-45-SK	M 10	45	8	7.2	3.6	2.6	5.6	-	5	9	4.5	20
DIN 6332-M10-45-SKN	M 10	45	8	7.2	3.6	2.6	5.6	-	5	9	4.5	20
DIN 6332-M10-50-SK	M 10	50	8	7.2	3.6	2.6	5.6	-	5	9	4.5	23
DIN 6332-M10-50-SKN	M 10	50	8	7.2	3.6	2.6	5.6	-	5	9	4.5	23
DIN 6332-M10-55-SK	M 10	55	8	7.2	3.6	2.6	5.6	-	5	9	4.5	25
DIN 6332-M10-55-SKN	M 10	55	8	7.2	3.6	2.6	5.6	-	5	9	4.5	25
DIN 6332-M10-60-SK	M 10	60	8	7.2	3.6	2.6	5.6	-	5	9	4.5	28
DIN 6332-M10-60-SKN	M 10	60	8	7.2	3.6	2.6	5.6	-	5	9	4.5	28
DIN 6332-M10-65-SK	M 10	65	8	7.2	3.6	2.6	5.6	-	5	9	4.5	30
DIN 6332-M10-65-SKN	M 10	65	8	7.2	3.6	2.6	5.6	-	5	9	4.5	30
DIN 6332-M10-80-SK	M 10	80	8	7.2	3.6	2.6	5.6	-	5	9	4.5	37
DIN 6332-M10-80-SKN	M 10	80	8	7.2	3.6	2.6	5.6	-	5	9	4.5	37
DIN 6332-M12-50-SK	M 12	50	8	7.2	4.6	2.9	6.9	3.7	6	10	4.5	30
DIN 6332-M12-50-SKN	M 12	50	8	7.2	4.6	2.9	6,9	3.7	6	10	4.5	30
DIN 6332-M12-60-SK	M 12	60	8	7.2	4.6	2.9	6.9	3.7	6	10	4.5	38
DIN 6332-M12-60-SKN	M 12	60	8	7.2	4.6	2.9	6,9	3.7	6	10	4.5	38
DIN 6332-M12-65-SK	M 12	65	8	7.2	4.6	2.9	6.9	3.7	6	10	4.5	41
DIN 6332-M12-65-SKN	M 12	65	8	7.2	4.6	2.9	6,9	3.7	6	10	4.5	41
DIN 6332-M12-70-SK	M 12	70	8	7.2	4.6	2.9	6.9	3.7	6	10	4.5	44
DIN 6332-M12-70-SKN	M 12	70	8	7.2	4.6	2.9	6,9	3.7	6	10	4.5	44
DIN 6332-M12-80-SK	M 12	80	8	7.2	4.6	2.9	6.9	3.7	6	10	4.5	51
DIN 6332-M12-80-SKN	M 12	80	8	7.2	4.6	2.9	6,9	3.7	6	10	4.5	51
DIN 6332-M12-100-SK	M 12	100	8	7.2	4.6	2.9	6.9	3.7	6	10	4.5	65
DIN 6332-M12-100-SKN	M 12	100	8	7.2	4.6	2.9	6,9	3.7	6	10	4.5	65
DIN 6332-M16-65-SK	M 16	65	12	11	5.4	4.5	9.5	4	8	12	5	67
DIN 6332-M16-65-SKN	M 16	65	12	11	5.4	4.5	9.5	4	8	12	5	67
DIN 6332-M16-70-SK	M 16	70	12	11	5.4	4.5	9.5	4	8	12	5	74
DIN 6332-M16-70-SKN	M 16	70	12	11	5.4	4.5	9.5	4	8	12	5	74
DIN 6332-M16-75-SK	M 16	75	12	11	5.4	4.5	9.5	4	8	12	5	80
DIN 6332-M16-75-SKN	M 16	75	12	11	5.4	4.5	9.5	4	8	12	5	80
DIN 6332-M16-80-SK	M 16	80	12	11	5.4	4.5	9.5	4	8	12	5	90
DIN 6332-M16-80-SKN	M 16	80	12	11	5.4	4.5	9.5	4	8	12	5	90
DIN 6332-M16-100-SK	M 16	100	12	11	5.4	4.5	9.5	4	8	12	5	118
DIN 6332-M16-100-SKN	M 16	100	12	11	5.4	4.5	9.5	4	8	12	5	118
DIN 6332-M16-125-SK	M 16	125	12	11	5.4	4.5	9.5	4	8	12	5	150
DIN 6332-M16-125-SKN	M 16	125	12	11	5.4	4.5	9.5	4	8	12	5	150
DIN 6332-M20-80-SK	M 20	80	15.5	14.4	5.5	4.5	10,5	4.3	10	14	5.5	141
DIN 6332-M20-80-SKN	M 20	80	15.5	14.4	5.5	4.5	10.5	4.3	10	14	5.5	141
DIN 6332-M20-90-SK	M 20	90	15.5	14.4	5.5	4.5	10,5	4.3	10	14	5.5	171
DIN 6332-M20-90-SKN	M 20	90	15.5	14.4	5.5	4.5	10.5	4.3	10	14	5.5	171
DIN 6332-M20-100-SK	M 20	100	15.5	14.4	5.5	4.5	10,5	4.3	10	14	5.5	189
DIN 6332-M20-100-SKN	M 20	100	15.5	14.4	5.5	4.5	10.5	4.3	10	14	5.5	189
DIN 6332-M20-125-SK	M 20	125	15.5	14.4	5.5	4.5	10,5	4.3	10	14	5.5	241
DIN 6332-M20-125-SKN	M 20	125	15.5	14.4	5.5	4.5	10.5	4.3	10	14	5.5	241
DIN 6332-M20-150-SK	M 20	150	15.5	14.4	5.5	4.5	10,5	4.3	10	14	5.5	141
DIN 6332-M20-150-SKN	M 20	150	15.5	14.4	5.5	4.5	10.5	4.3	10	14	5.5	141
