DIN 6320

Feet

Enquire Now

Description

Specification

Steel (German Material No. 1.0718)

Information

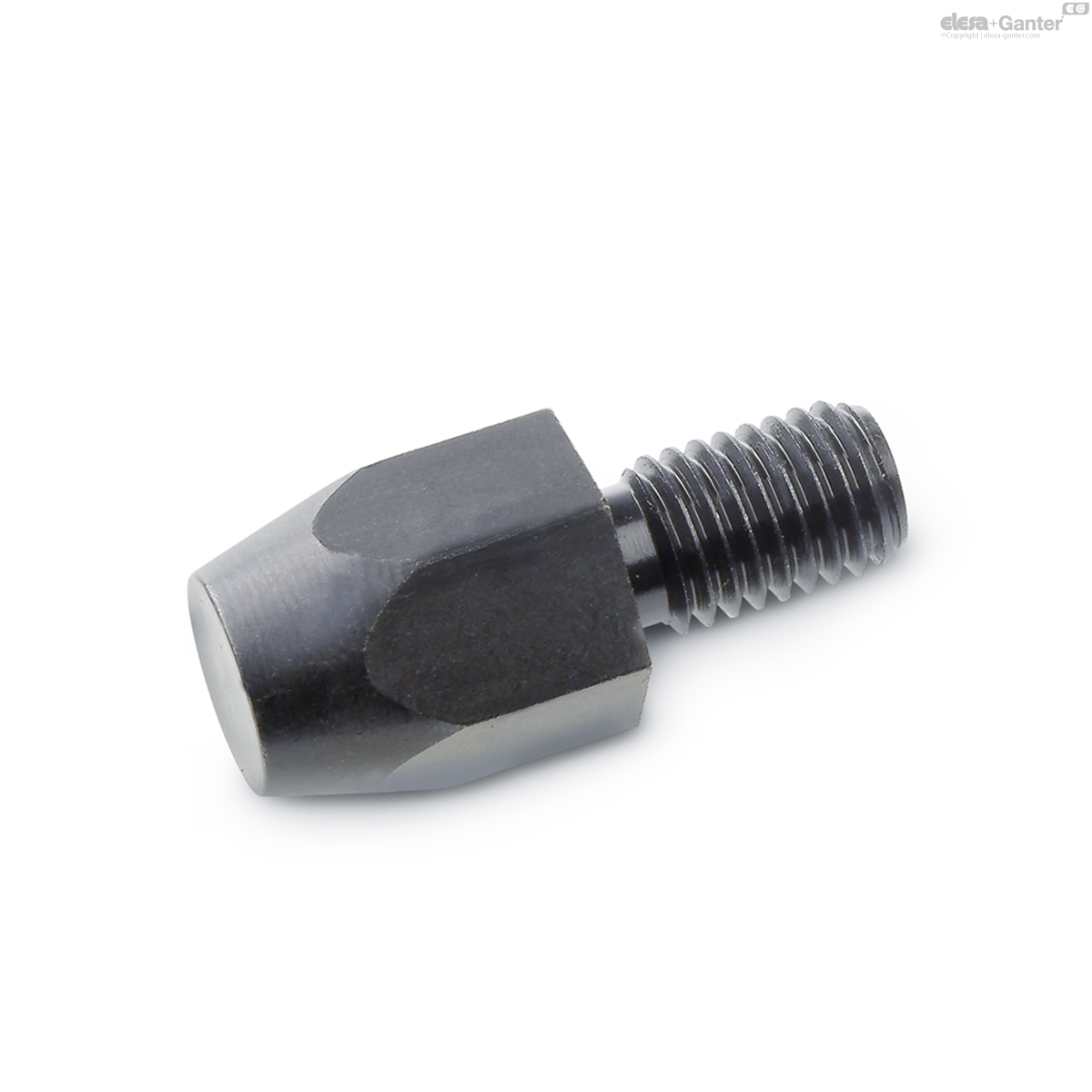

Feet DIN 6320 are normally used in jig construction if neither a self-aligning support nor an axial adjustment is required.

Unlike the models specified in the official standard sheet, these feet are made of 1.0718 steel (in place of quenched and tempered steel).

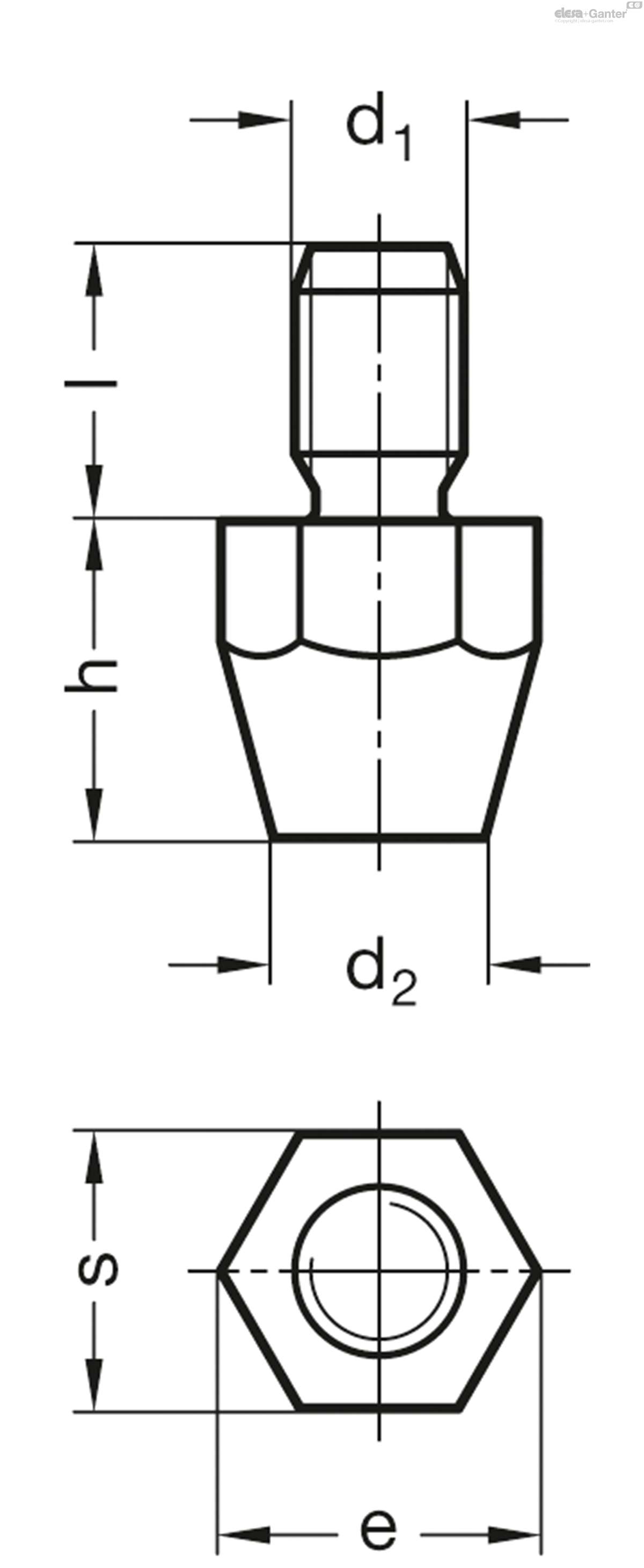

	h	d₁	d₂	e min.	l	s
Code								Actions
DIN 6320-10-M6	10	M 6	8	11.5	11	10	8
DIN 6320-15-M8	15	M 8	10	15	13	13	18
DIN 6320-20-M6	20	M 6	6	11.5	11	10	15
DIN 6320-20-M10	20	M 10	13	19.6	16	17	42
DIN 6320-25-M12	25	M 12	15	21.9	20	19	69
DIN 6320-30-M8	30	M 8	9	15	13	13	35
DIN 6320-40-M10	40	M 10	13	19.6	16	17	80
DIN 6320-50-M12	50	M 12	15	21.9	20	19	130
