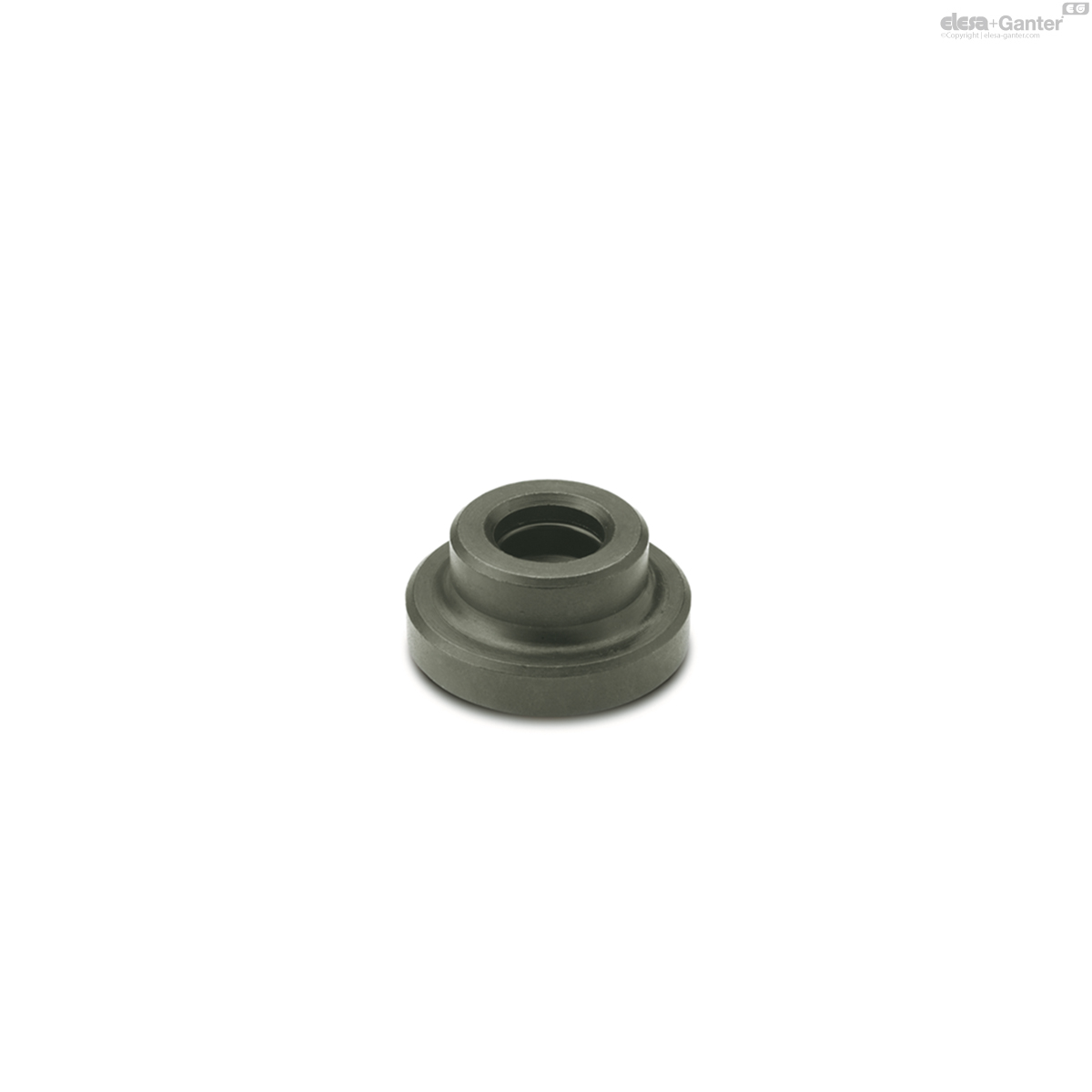

DIN 6311
Thrust pads
for Grub screws DIN 6332, for Tommy screws DIN 6304 / DIN 6306
Description
Specification
Type
Type S: with snap ring
Steel
case hardened
Snap ring
Spring steel wire
Information
Thrust pads DIN 6311 are utilized to transmit clamping forces. They lean to uneven and unparallel surfaces and eliminate the transmission of any screw turning movement to the workpiece.
Technical information
- ISO-Fundamental TolerancesÂ

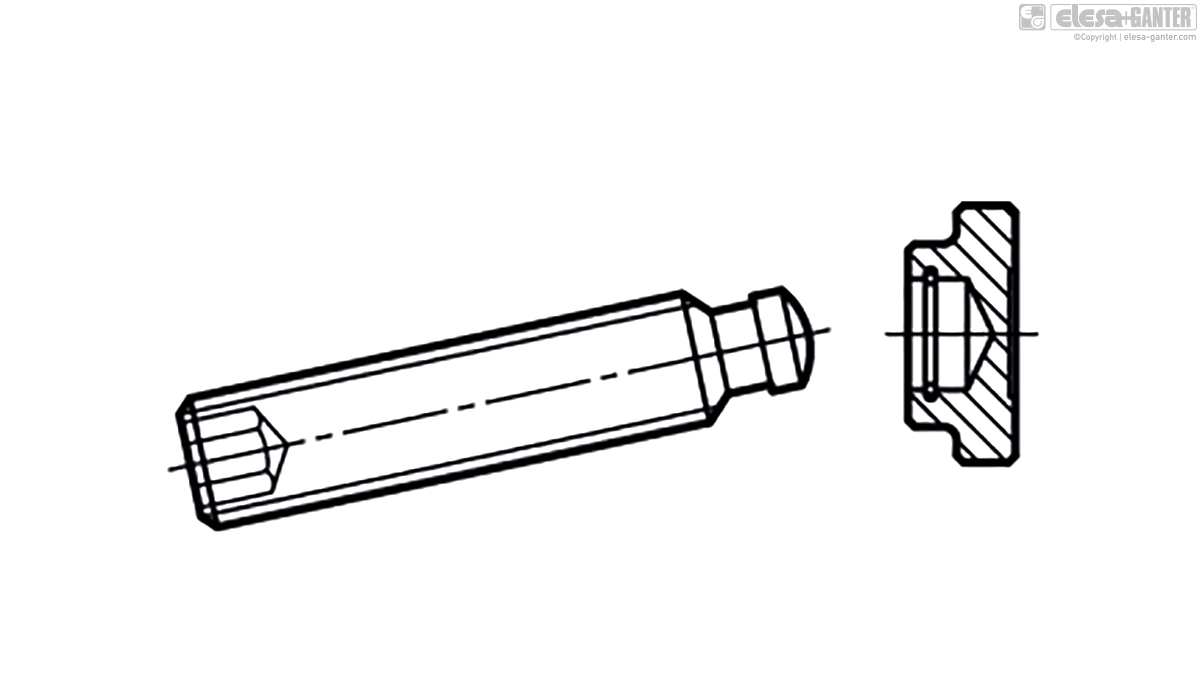

Hints for installation
The thrust pad has to be held at an angle allowing the circlip to drop to the bottom of its groove with the split end downwards. The thrust pin is then offered up top the split end of the circlip at the lowest possbile angle and pressed home.

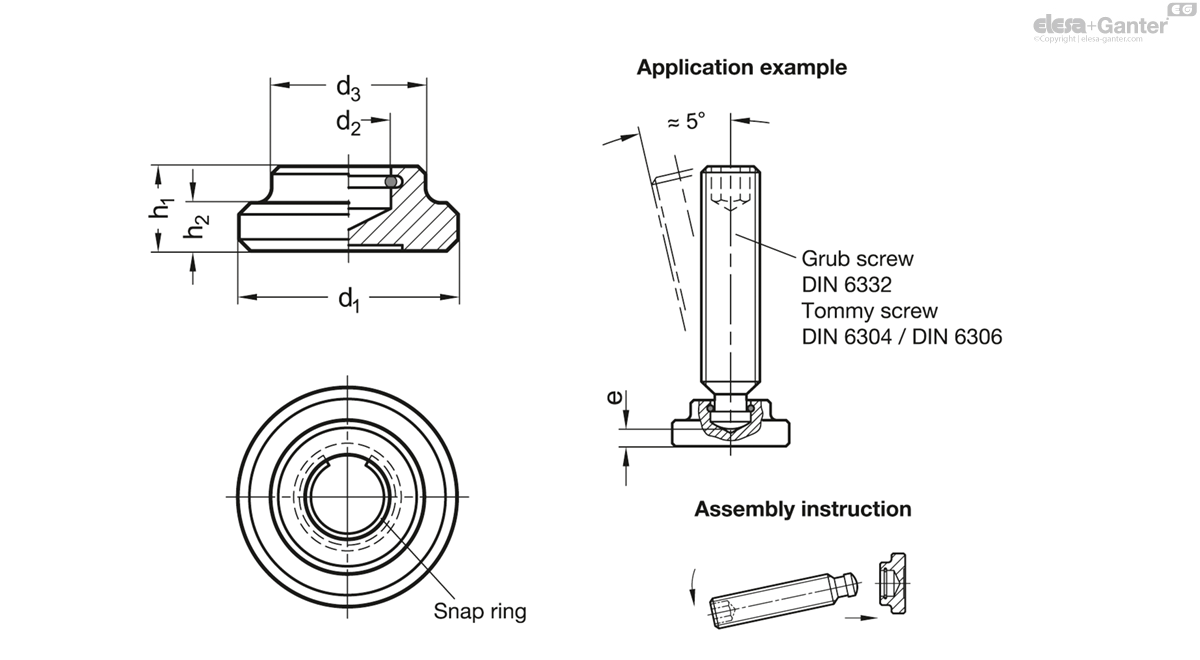

 DIN 6311
| d1 | d2 H12 | d3 | e ≈ | h1 | h2 | Grub screw DIN 6332 |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| DIN 6311-12-S | 12 | 4.6 | 10 | 2.2 | 7 | 2.5 | M 6 | 5 |
|
| DIN 6311-16-S | 16 | 6.1 | 12 | 3 | 9 | 4 | M 8 | 10 |
|
| DIN 6311-20-S | 20 | 8.1 | 15 | 3.6 | 11 | 5 | M 10 | M 12 | 18 |
|
| DIN 6311-25-S | 25 | 8.1 | 18 | 4.5 | 13 | 6 | M 10 | M 12 | 34 |
|
| DIN 6311-32-S | 32 | 12.1 | 22 | 5.3 | 15 | 7 | M 16 | 58 |
|
| DIN 6311-40-S | 40 | 15.6 | 28 | 5.6 | 16 | 9 | M 20 | 104 |
|
