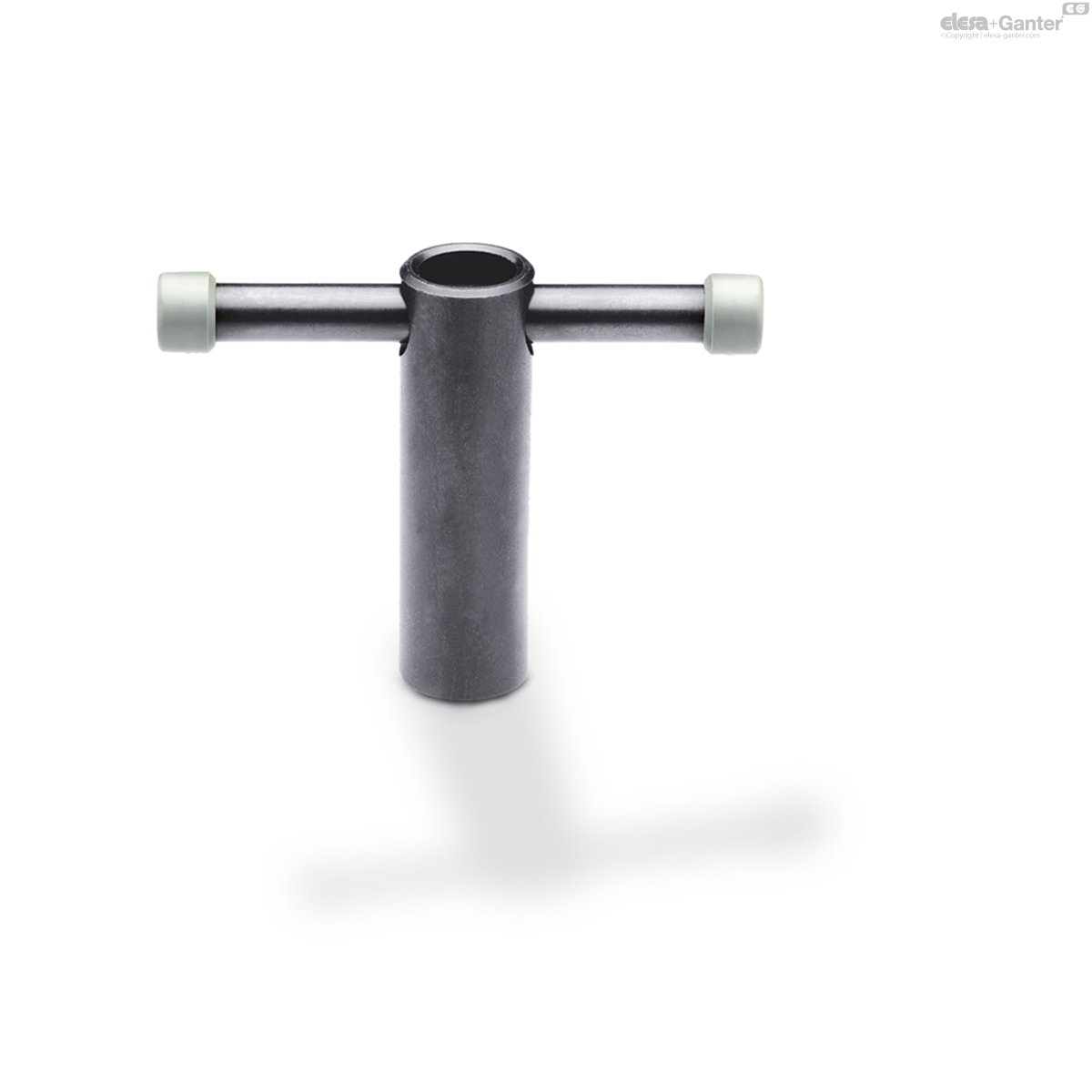

DIN 6307
Tommy nuts
with moveable bar
Description
Specification
Steel
Tensile strength class 5
blackened
Bar end caps
Plastic, grey
Information
The movable bar of the tommy nut DIN 6307 is held in any position by the pressure spring.
The plastic end caps limit the travel distance. They are pressed on with form-lock and may be supplied separately if the parts are to be electro-plated. The official DIN standard sheets provides for steel rings at this point.
Technical information
- Strength values of screwsÂ

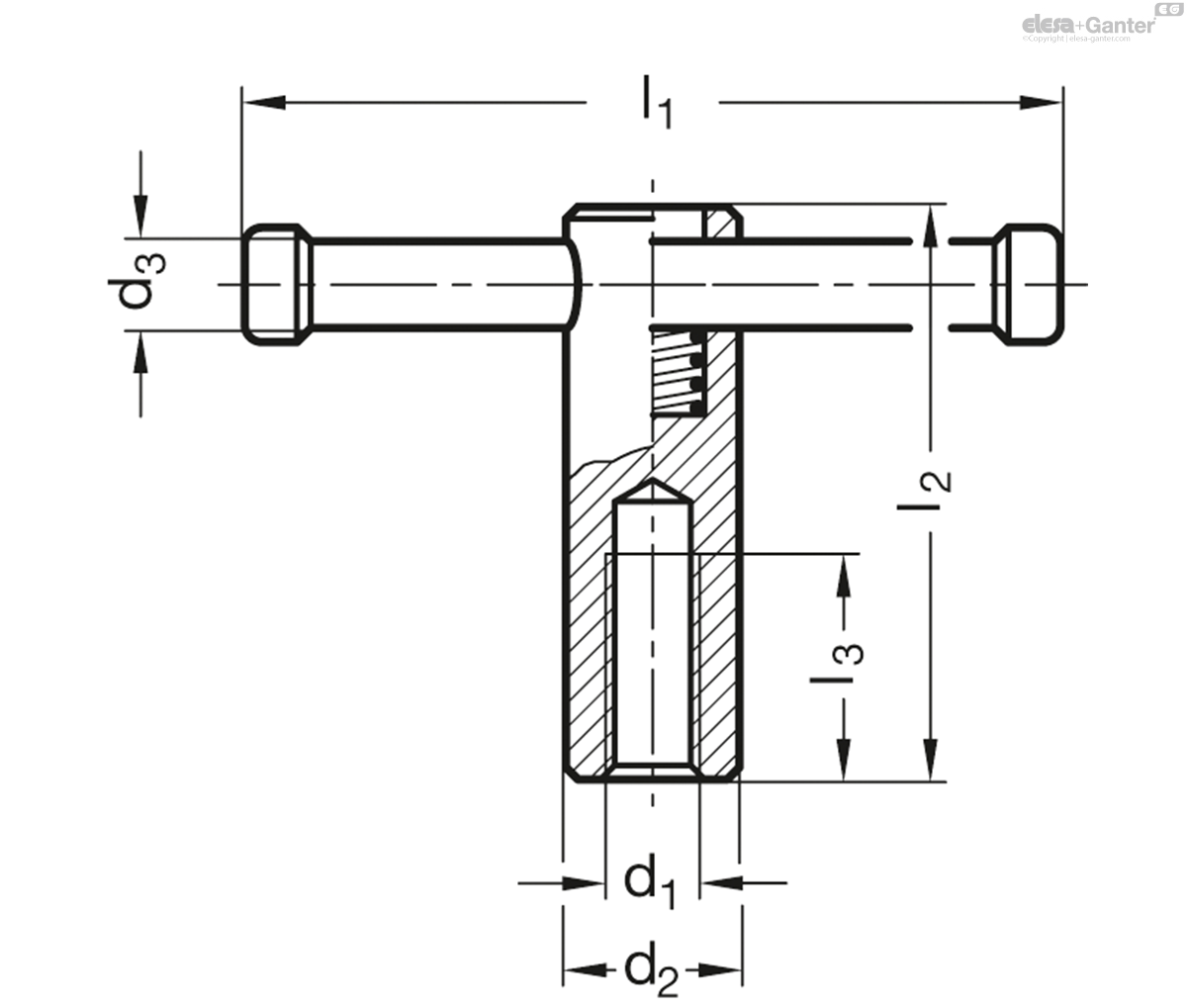

DIN 6307
| d1 | d2 | d3 | l1 | l2 | l3 min. |  |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| DIN 6307-M10 | M 10 | 18 | 8 | 80 | 60 | 20 | 110 |
|
| DIN 6307-M12 | M 12 | 20 | 10 | 100 | 70 | 25 | 173 |
|
| DIN 6307-M16 | M 16 | 24 | 13 | 120 | 85 | 35 | 320 |
|
| DIN 6307-M20 | M 20 | 30 | 16 | 140 | 95 | 40 | 568 |
|
