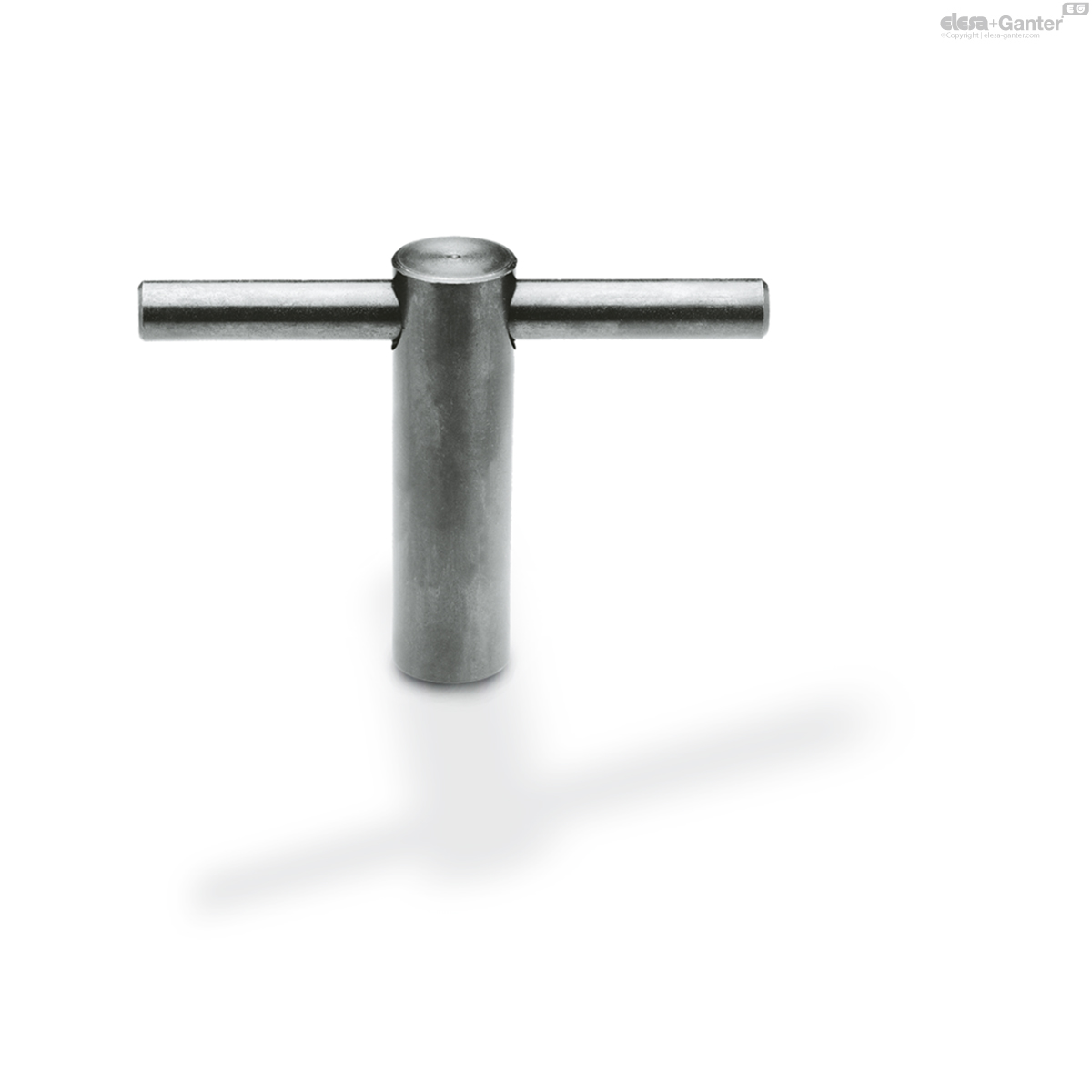

DIN 6305
Tommy nuts
with fixed bar
Description
Specification
Steel
Tensile strength class 5
blackened
Technical information
- Strength values of screwsÂ

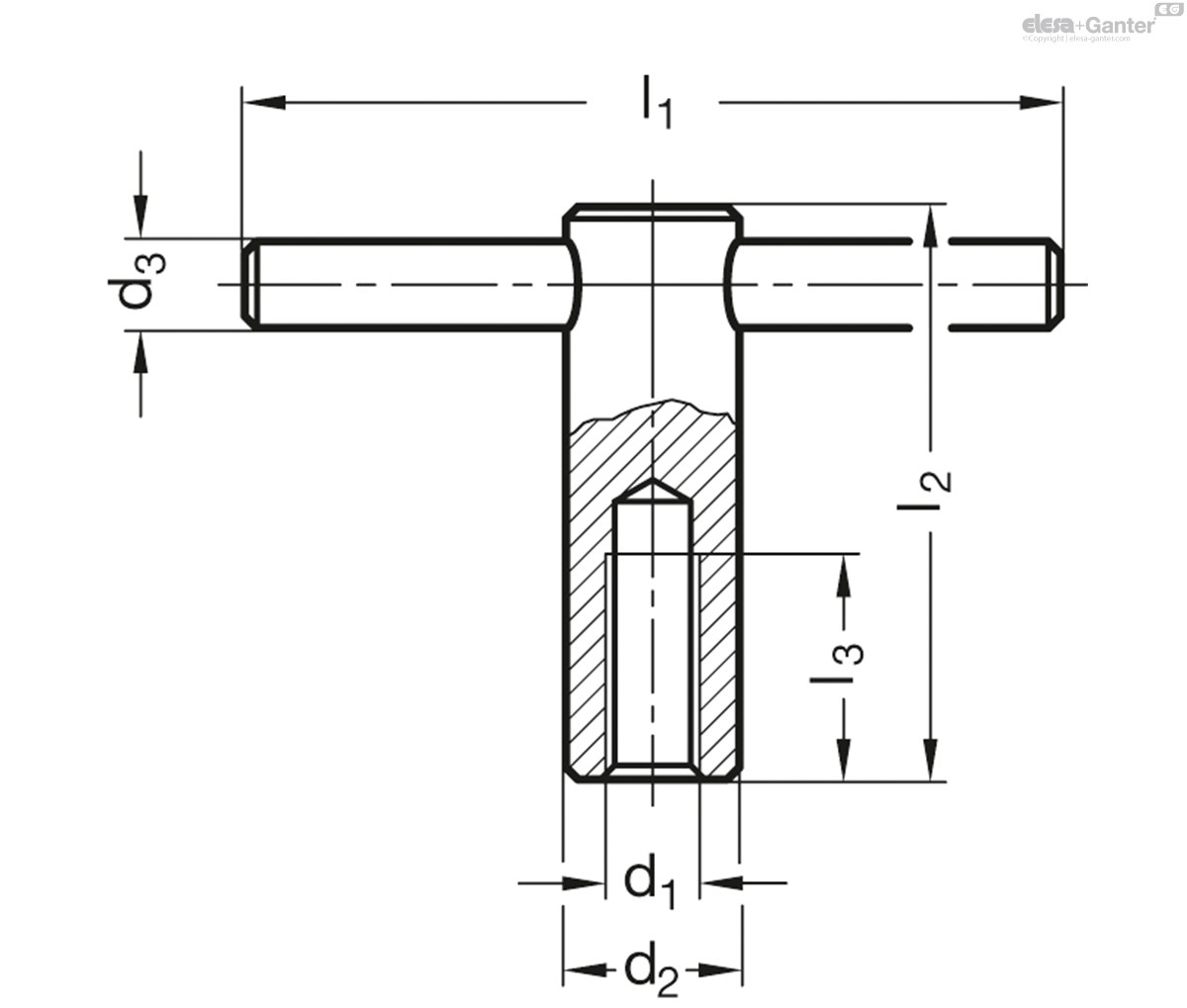

DIN 6305
| d1 | d2 | d3 | l1 | l2 | l3 min. |  |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| DIN 6305-M10 | M 10 | 18 | 8 | 80 | 60 | 20 | 129 |
|
| DIN 6305-M12 | M 12 | 20 | 10 | 100 | 70 | 25 | 194 |
|
| DIN 6305-M16 | M 16 | 24 | 12 | 120 | 85 | 35 | 322 |
|
| DIN 6305-M20 | M 20 | 30 | 16 | 140 | 95 | 40 | 589 |
|
