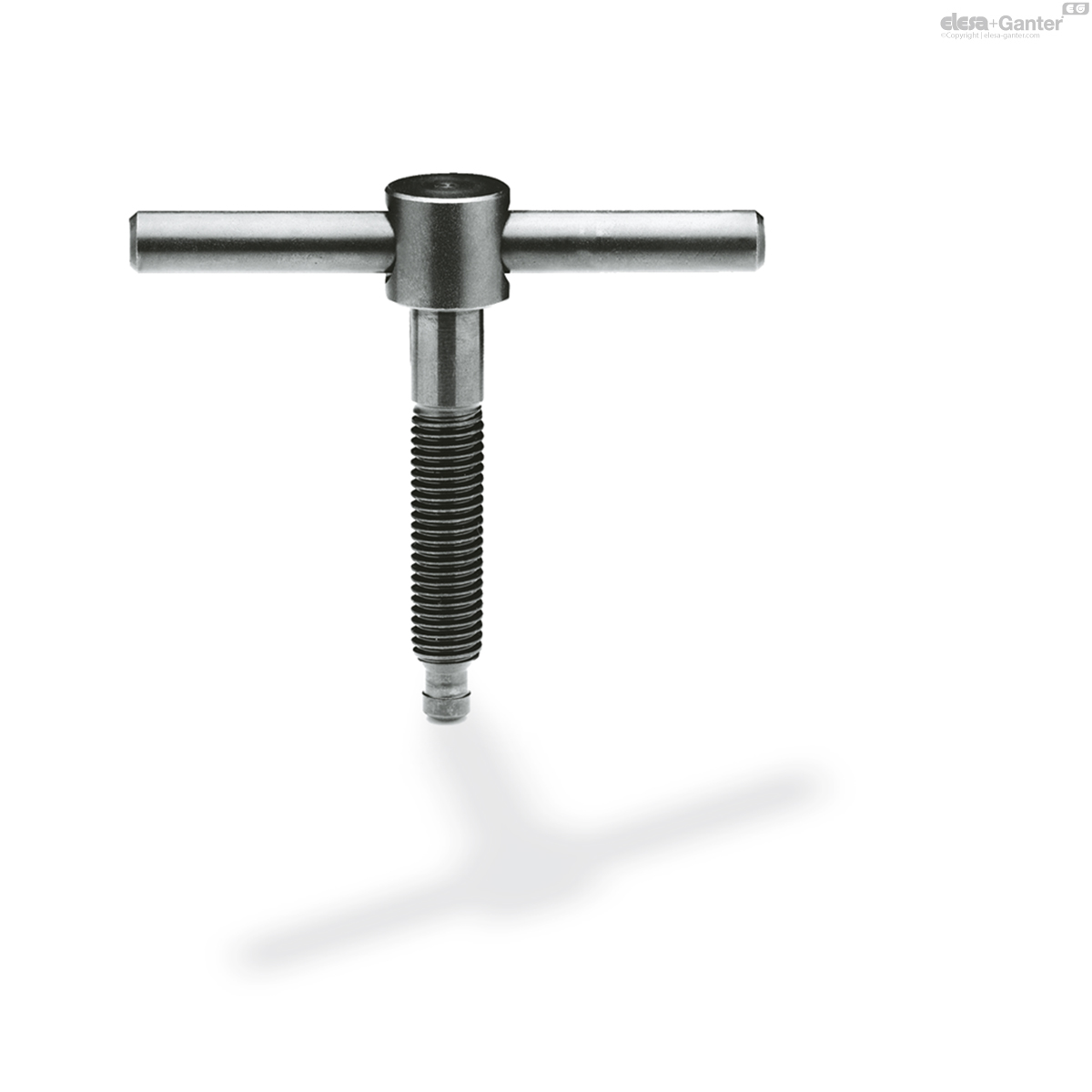

DIN 6304
Tommy screws
with fixed bar
Description
Specification
Types
- Type E: without thrust pad
- Type F: with thrust pad DIN 6311Â
Steel
Tensile strength class 5.8
- Blackened
- Thrust point hardened
Information
The thrust point of these screws DIN 6304 is designed to be used with or without a thrust pad for clamping.
The snap ring is a simple and quick method to connect the thrust pad to the tommy screw.
Instead of DIN 6311 a thrust pad GN 6311.1 can be used. In that case the tommy screw and the thrust pad have to be ordered separately.
Technical information
- ISO-Fundamental TolerancesÂ
- Strength values of screwsÂ
Hint for installation (Type F)
The thrust pad has to be held at an angle allowing the circlip to drop to the bottom of its groove with the split end downwards. The thrust point is then offered up tp the spit end of the circlip at the lowest possible angle and pressed home.

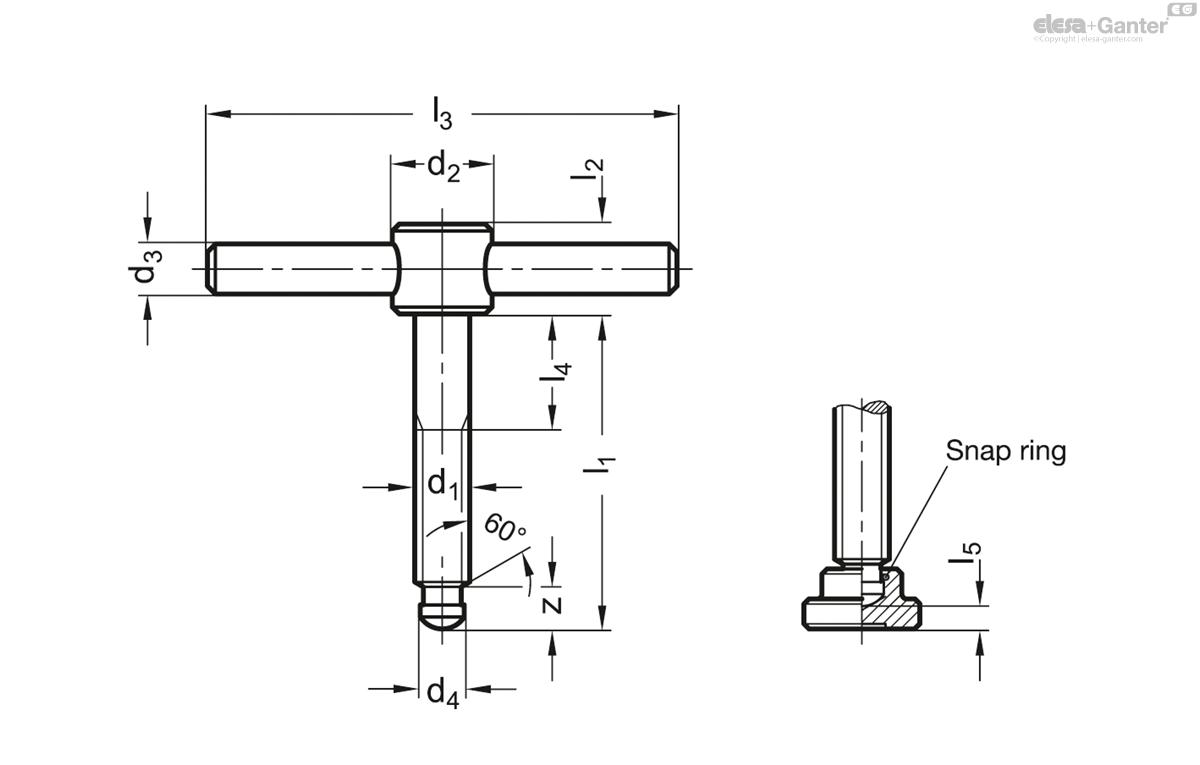

DIN 6304
| d1 | l1 | d2 | d3 | d4 h11 | l2 | l3 | l4 | l5 ≈ | z ≈ |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| DIN 6304-M6-40-E | M 6 | 40 | 12 | 5 | 4.5 | 10 | 50 | 10 | - | 5.4 | 22 |
|
| DIN 6304-M6-40-F | M 6 | 40 | 12 | 5 | 4.5 | 10 | 50 | 10 | 2.2 | 5.4 | 26 |
|
| DIN 6304-M6-50-E | M 6 | 50 | 12 | 5 | 4.5 | 10 | 50 | 10 | - | 5.4 | 20 |
|
| DIN 6304-M6-50-F | M 6 | 50 | 12 | 5 | 4.5 | 10 | 50 | 10 | 2.2 | 5.4 | 27 |
|
| DIN 6304-M8-50-E | M 8 | 50 | 14 | 6 | 6 | 12 | 60 | 15 | - | 6.8 | 40 |
|
| DIN 6304-M8-50-F | M 8 | 50 | 14 | 6 | 6 | 12 | 60 | 15 | 3 | 6.8 | 49 |
|
| DIN 6304-M8-60-E | M 8 | 60 | 14 | 6 | 6 | 12 | 60 | 15 | - | 6.8 | 43 |
|
| DIN 6304-M8-60-F | M 8 | 60 | 14 | 6 | 6 | 12 | 60 | 15 | 3 | 6.8 | 52 |
|
| DIN 6304-M10-60-E | M 10 | 60 | 18 | 8 | 8 | 14 | 80 | 20 | - | 8.2 | 81 |
|
| DIN 6304-M10-60-F | M 10 | 60 | 18 | 8 | 8 | 14 | 80 | 20 | 3.6 | 8.2 | 100 |
|
| DIN 6304-M10-70-E | M 10 | 70 | 18 | 8 | 8 | 14 | 80 | 20 | - | 8.2 | 88 |
|
| DIN 6304-M10-70-F | M 10 | 70 | 18 | 8 | 8 | 14 | 80 | 20 | 3,6 | 8.2 | 105 |
|
| DIN 6304-M12-70-E | M 12 | 70 | 20 | 10 | 8 | 18 | 100 | 20 | - | 8.6 | 140 |
|
| DIN 6304-M12-70-F | M 12 | 70 | 20 | 10 | 8 | 18 | 100 | 20 | 4.5 | 8.6 | 160 |
|
| DIN 6304-M12-80-E | M 12 | 80 | 20 | 10 | 8 | 18 | 100 | 20 | - | 8.6 | 150 |
|
| DIN 6304-M12-80-F | M 12 | 80 | 20 | 10 | 8 | 18 | 100 | 20 | 4.5 | 8.6 | 179 |
|
| DIN 6304-M16-75-E | M 16 | 75 | 24 | 12 | 12 | 20 | 120 | 20 | - | 10.6 | 240 |
|
| DIN 6304-M16-75-F | M 16 | 75 | 24 | 12 | 12 | 20 | 120 | 20 | 5.3 | 10.6 | 260 |
|
| DIN 6304-M16-90-E | M 16 | 90 | 24 | 12 | 12 | 20 | 120 | 20 | - | 10.6 | 265 |
|
| DIN 6304-M16-90-F | M 16 | 90 | 24 | 12 | 12 | 20 | 120 | 20 | 5.3 | 10.6 | 324 |
|
| DIN 6304-M16-110-E | M 16 | 110 | 24 | 12 | 12 | 20 | 120 | 20 | - | 10.6 | 292 |
|
| DIN 6304-M16-110-F | M 16 | 110 | 24 | 12 | 12 | 20 | 120 | 20 | 5.3 | 10.6 | 350 |
|
| DIN 6304-M20-75-E | M 20 | 75 | 30 | 16 | 15.5 | 28 | 140 | 20 | - | 12.4 | 470 |
|
| DIN 6304-M20-75-F | M 20 | 75 | 30 | 16 | 15.5 | 28 | 140 | 20 | 5.6 | 12.4 | 551 |
|
| DIN 6304-M20-90-E | M 20 | 90 | 30 | 16 | 15.5 | 28 | 140 | 20 | - | 12.4 | 497 |
|
| DIN 6304-M20-90-F | M 20 | 90 | 30 | 16 | 15.5 | 28 | 140 | 20 | 5.6 | 12.4 | 602 |
|
| DIN 6304-M20-110-E | M 20 | 110 | 30 | 16 | 15.5 | 28 | 140 | 20 | - | 12.4 | 540 |
|
| DIN 6304-M20-110-F | M 20 | 110 | 30 | 16 | 15.5 | 28 | 140 | 20 | 5.6 | 12.4 | 644 |
|
