DIN 444
Swing bolts
Steel / Stainless Steel
Description
Specification

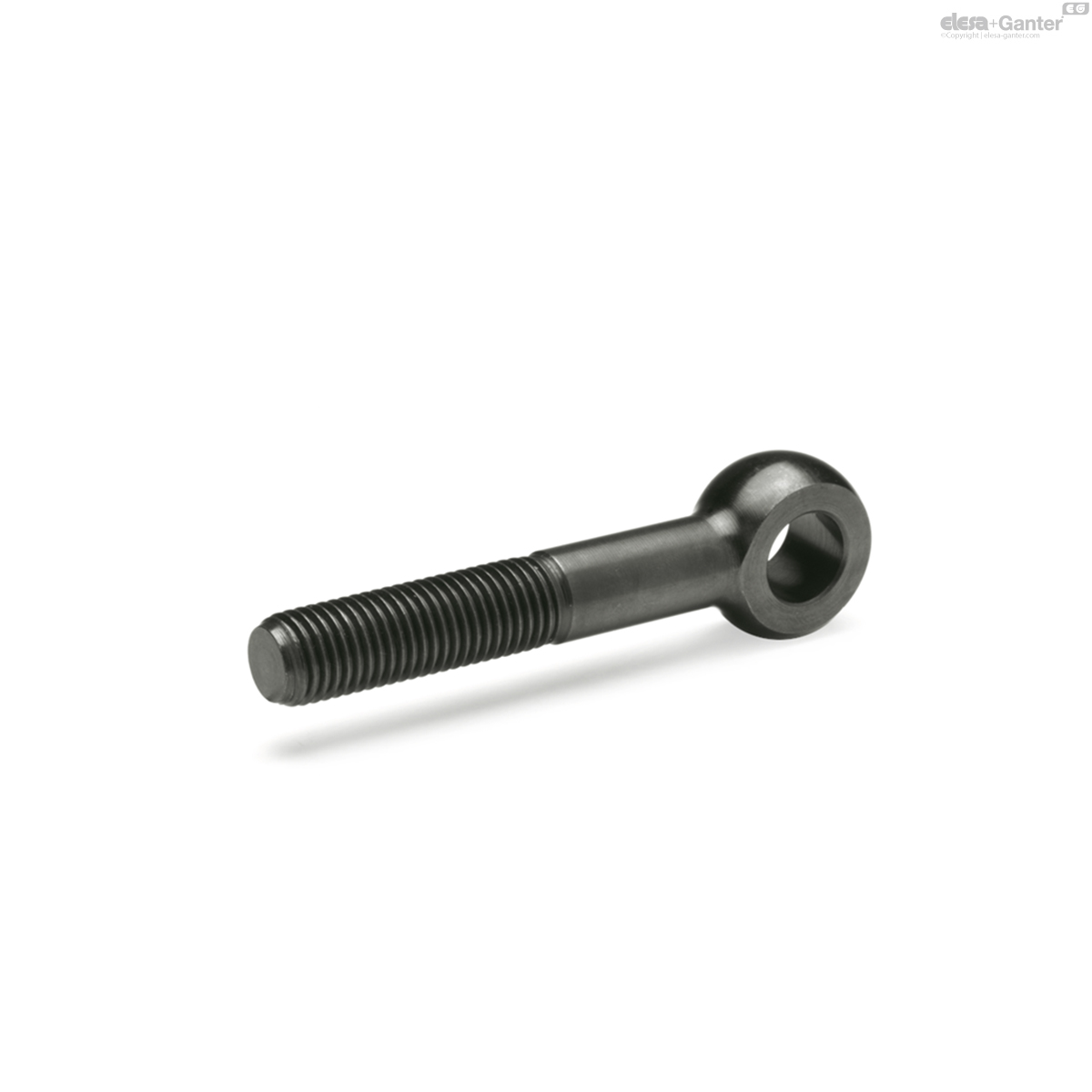

Version in Steel
- Tensile strength class 5.8
- turned, thread rolled
- blackened

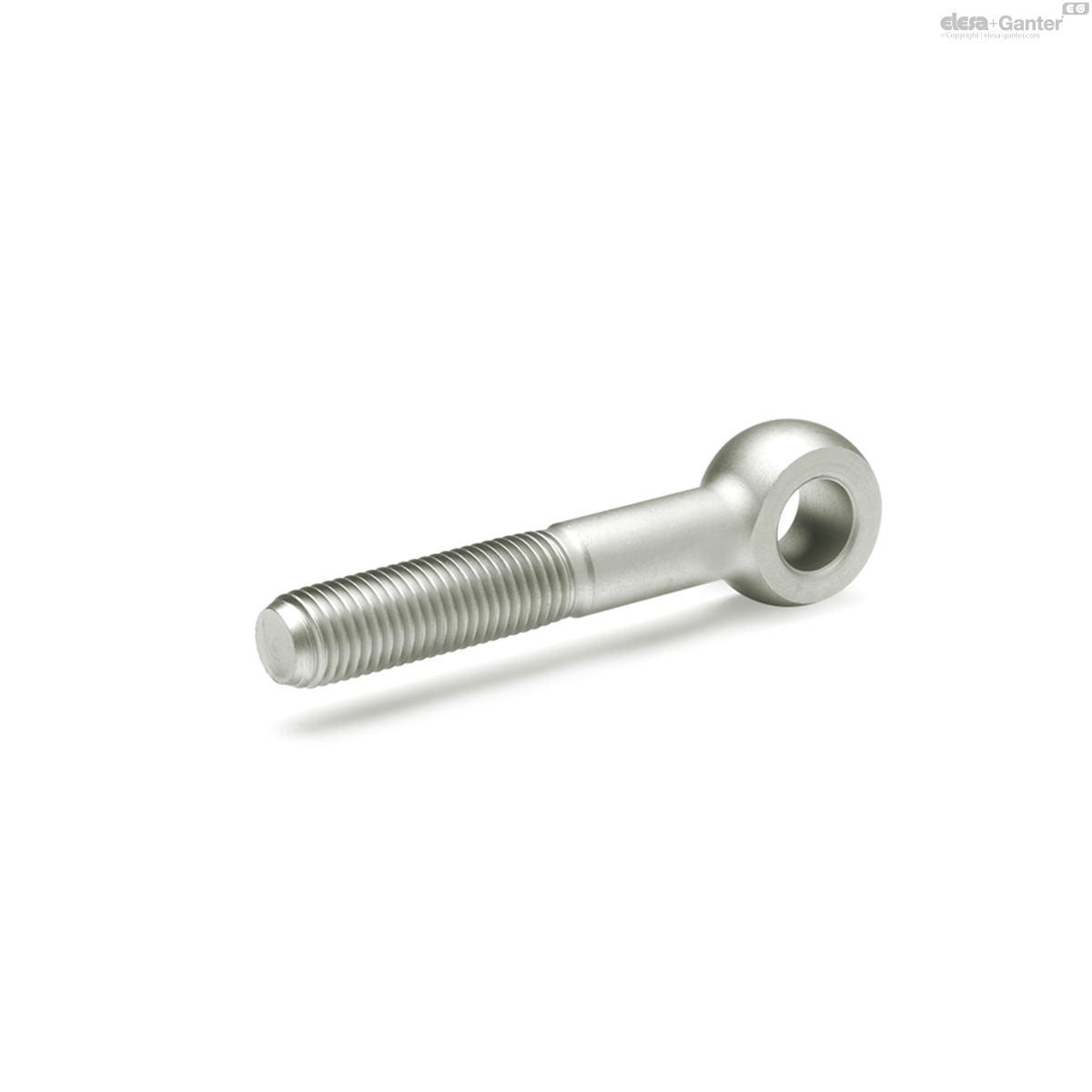

Version in Stainless Steel AISI 303 NI
- turned, thread rolled
- matt shot-blasted
Information
Precision type swing bolts DIN 444 are mainly used for jigs and fixtures.
For stocking purposes cylinder head shoulder bolts  GN 732.1 can be used for the sizes M6, M8, M10 and M12.
Technical information
- ISO-Fundamental Tolerances-
- Stainless Steel characteristics
- Strength values of screws

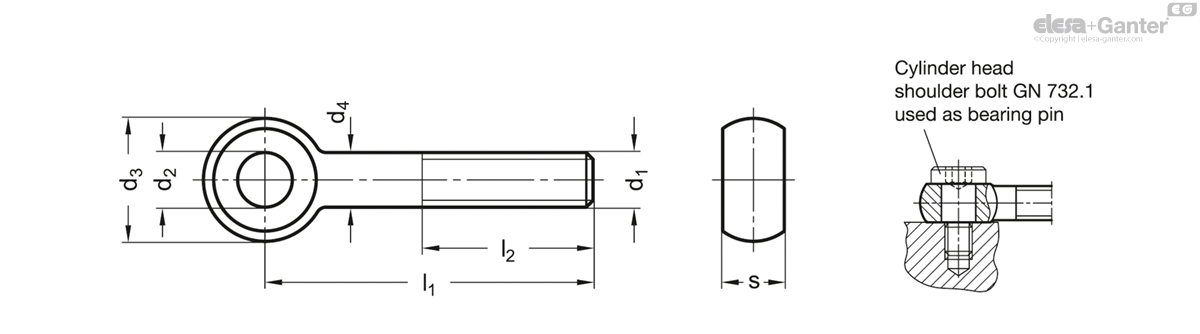

DIN 444
| d1 | l1 | l2 | d2 H7 | d3 -0.3 | s -0.15 | d4 |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| DIN 444-M5-50 | M 5 | 50 | 32 | 5 | 12 | 6 | 5 | 9 |
|
| DIN 444-M5-75 | M 5 | 75 | 32 | 5 | 12 | 6 | 5 | 10 |
|
| DIN 444-M6-50 | M 6 | 50 | 32 | 6 | 14 | 7 | 6 | 14 |
|
| DIN 444-M6-75 | M 6 | 75 | 32 | 6 | 14 | 7 | 6 | 19 |
|
| DIN 444-M8-50 | M 8 | 50 | 32 | 8 | 18 | 9 | 8 | 26 |
|
| DIN 444-M8-75 | M 8 | 75 | 32 | 8 | 18 | 9 | 8 | 34 |
|
| DIN 444-M10-50 | M 10 | 50 | 40 | 10 | 20 | 12 | 10 | 32 |
|
| DIN 444-M10-75 | M 10 | 75 | 40 | 10 | 20 | 12 | 10 | 50 |
|
| DIN 444-M10-100 | M 10 | 100 | 40 | 10 | 20 | 12 | 10 | 68 |
|
| DIN 444-M12-75 | M 12 | 75 | 40 | 12 | 25 | 14 | 12 | 80 |
|
| DIN 444-M12-100 | M 12 | 100 | 40 | 12 | 25 | 14 | 12 | 106 |
|
| DIN 444-M12-130 | M 12 | 130 | 40 | 12 | 25 | 14 | 12 | 110 |
|
| DIN 444-M16-75 | M 16 | 75 | 50 | 16 | 32 | 17 | 16 | 146 |
|
| DIN 444-M16-100 | M 16 | 100 | 50 | 16 | 32 | 17 | 16 | 183 |
|
| DIN 444-M16-130 | M 16 | 130 | 50 | 16 | 32 | 17 | 16 | 220 |
|
| DIN 444-M20-100 | M 20 | 100 | 63 | 18 | 40 | 22 | 20 | 320 |
|
| DIN 444-M20-130 | M 20 | 130 | 63 | 18 | 40 | 22 | 20 | 366 |
|
| DIN 444-M20-160 | M 20 | 160 | 63 | 18 | 40 | 22 | 20 | 477 |
|
