DIN 39

Fixed handles

Enquire Now

Description

Specification

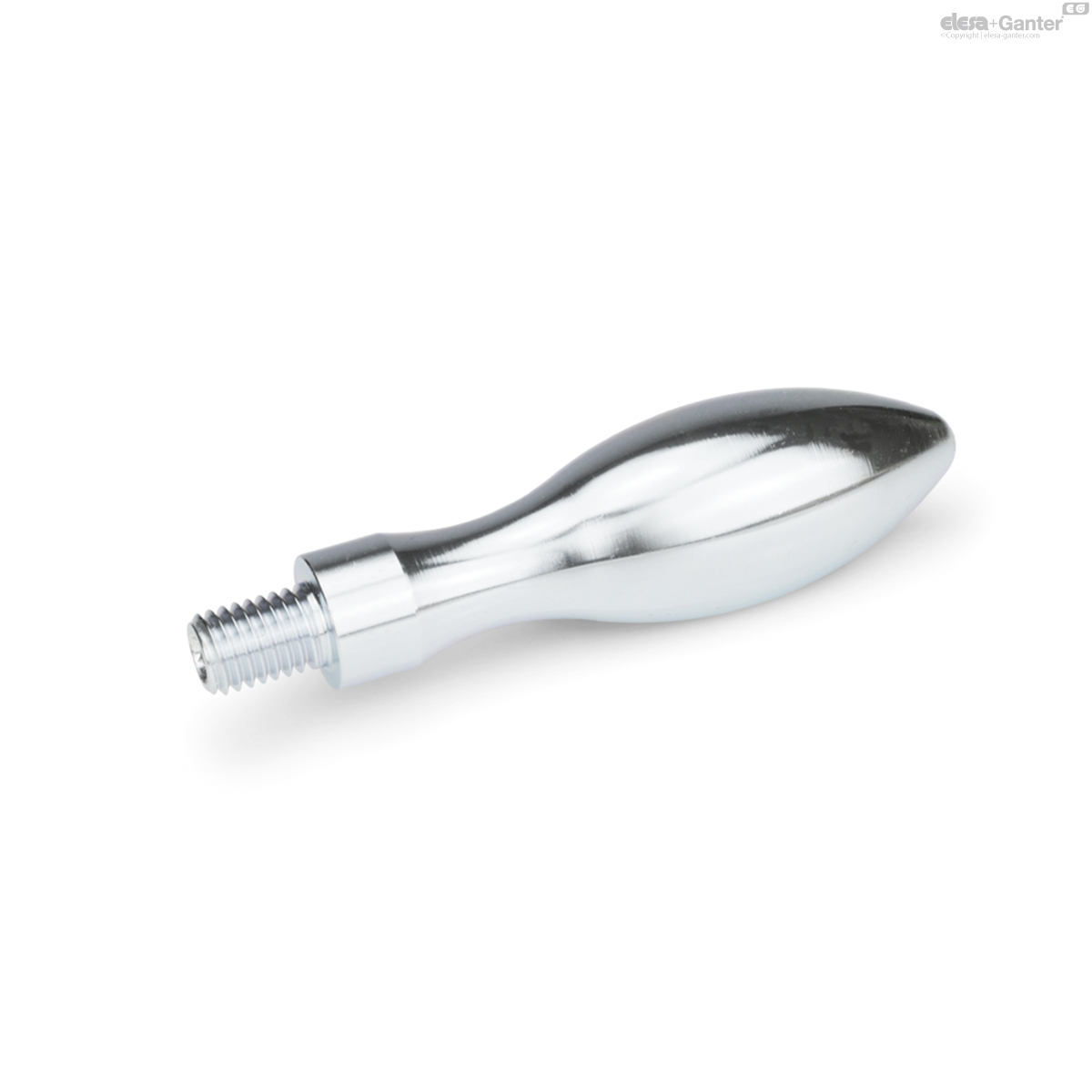

Steel ST

zinc plated, blue passivated

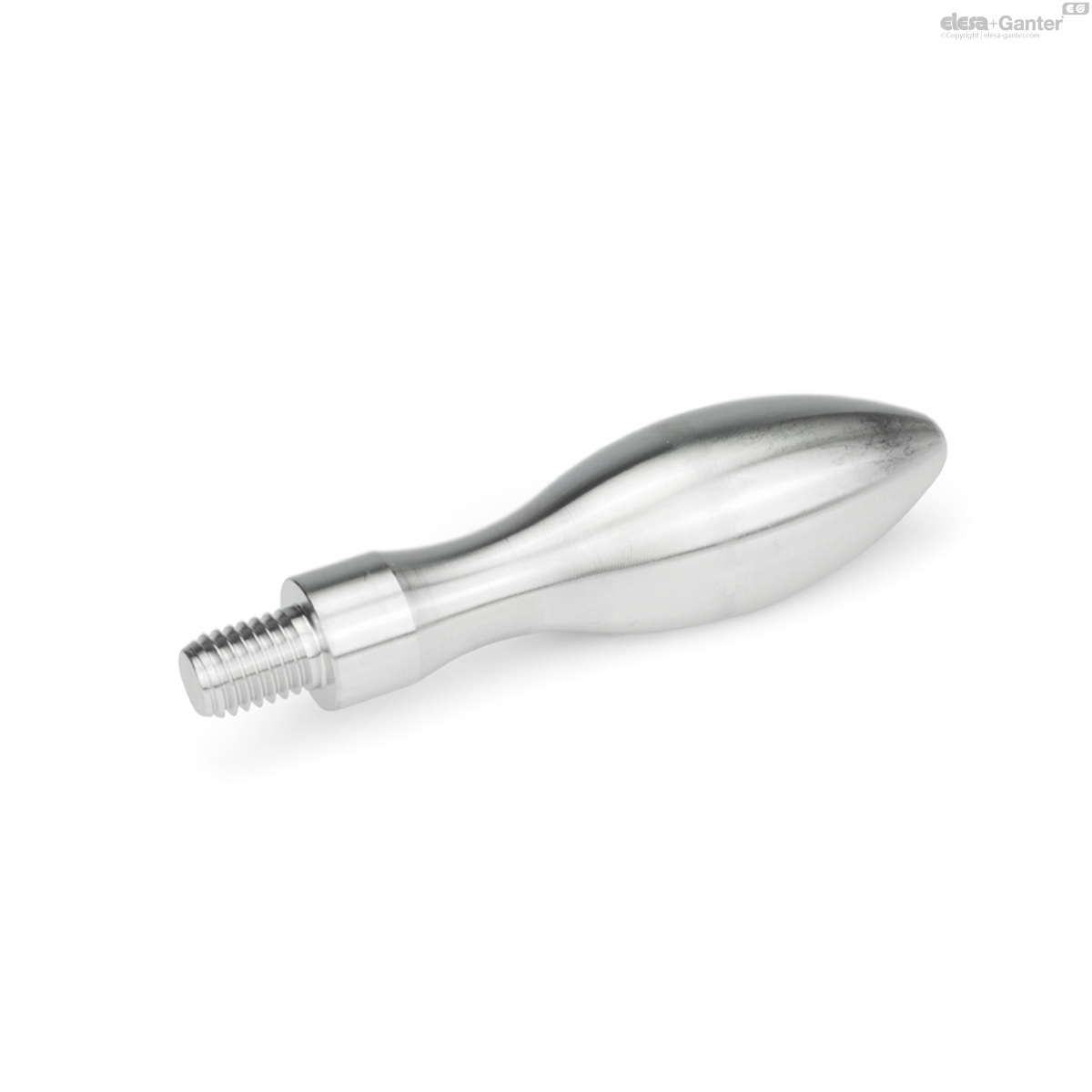

Stainless Steel AISI 316L A4

Plastic KT

Technopolymer (Polyamide PA)

Information

On the official DIN standard sheet you can find the additional sizes 10 and 13.

For reasons of hygiene, no hexagonal recess is used in type A4.

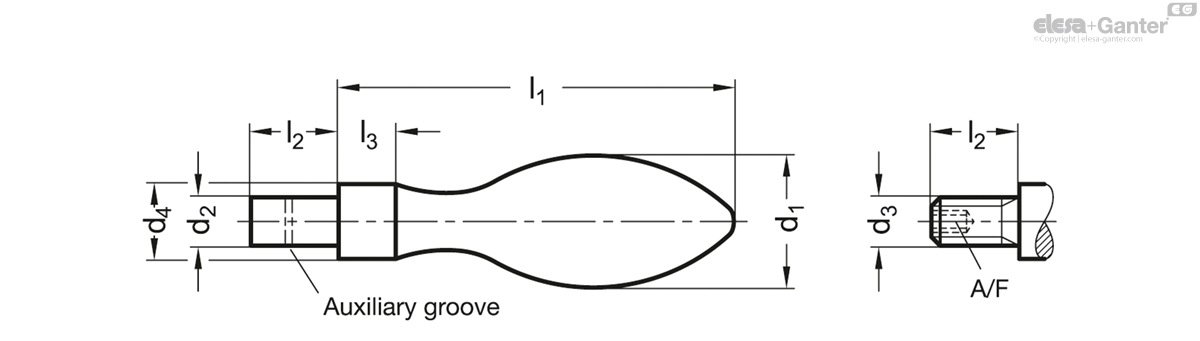

Technical information

	d₁	d₂ h8	d₃	d₄ h13	l₁ ≈	l₂	l₃	A/F
Code										Actions
DIN 39-ST-16-D	16	7	-	10	50	11	7	-	43
DIN 39-ST-16-E	16	-	M 6	10	50	11	7	3	42
DIN 39-ST-20-D	20	8	-	13	64	13	8	-	92
DIN 39-ST-20-E	20	-	M 8	13	64	13	8	4	88
DIN 39-ST-25-D	25	10	-	16	80	14	10	-	182
DIN 39-ST-25-E	25	-	M 10	16	80	14	10	5	171
DIN 39-ST-32-D	32	13	-	20	100	21	13	-	368
DIN 39-ST-32-E	32	-	M 12	20	100	21	13	6	345
DIN 39-ST-36-D	36	16	-	22	112	26	14	-	512
DIN 39-ST-36-E	36	-	M 16	22	112	26	14	8	400
