DIN 3670

Disk Handwheels

Aluminum

Enquire Now

Description

Specification

Information

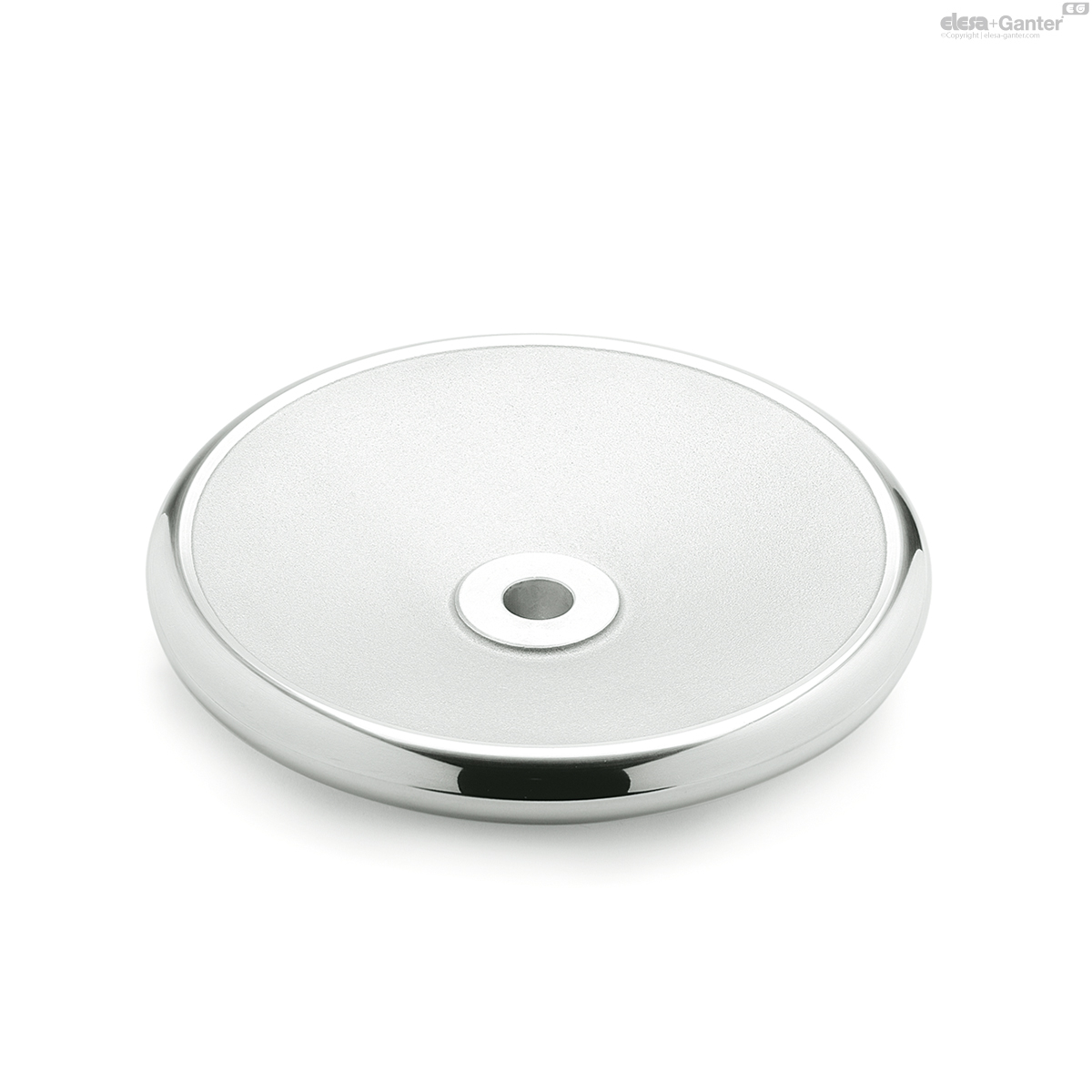

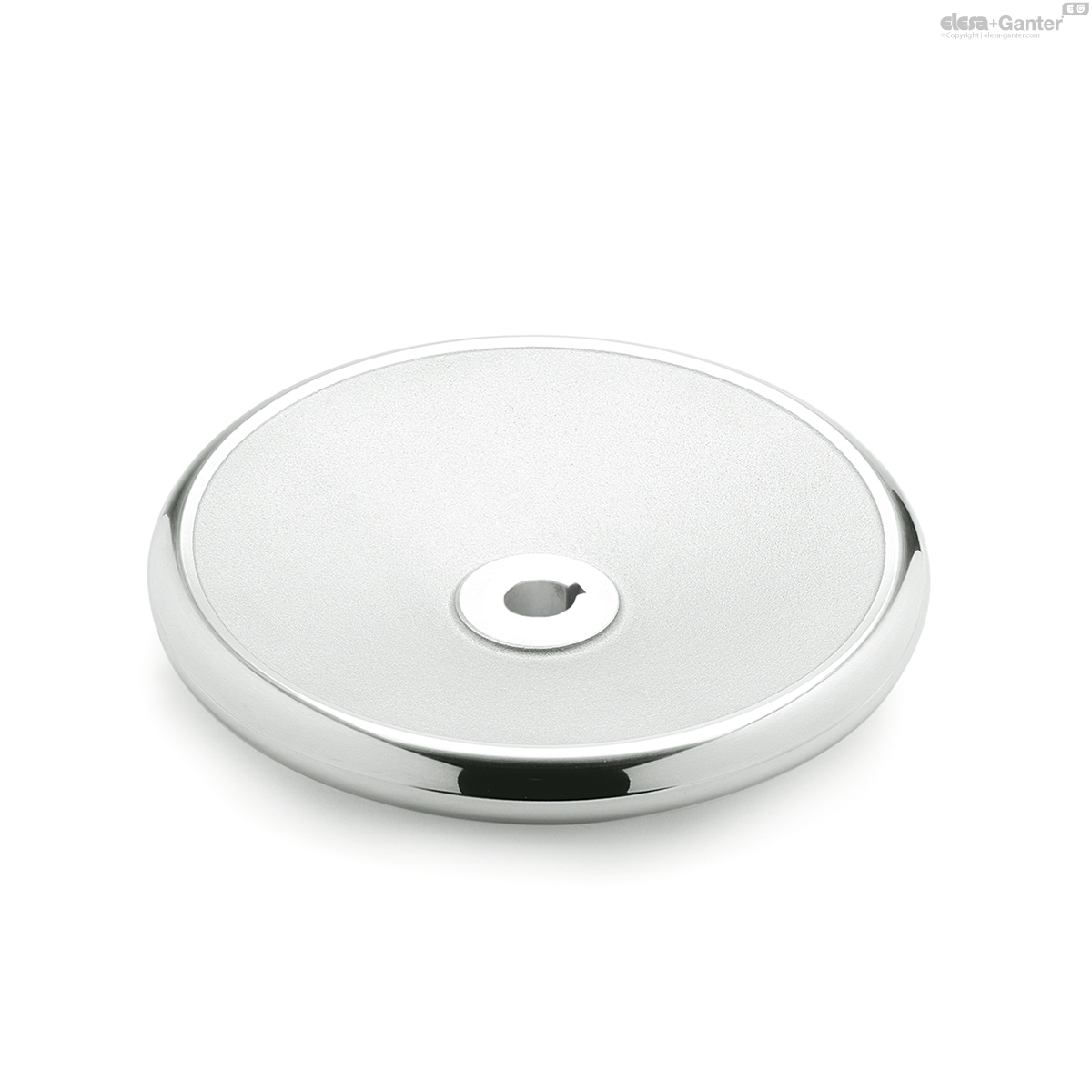

Disk handwheels DIN 3670 have recessed grips at their back. As a rule they are supplied without handle, but the mounting of a handle is possible.

The handwheel diameter d₁=80 and d₁=400 are not provided in the official standard sheet.

Accessory

Technical information

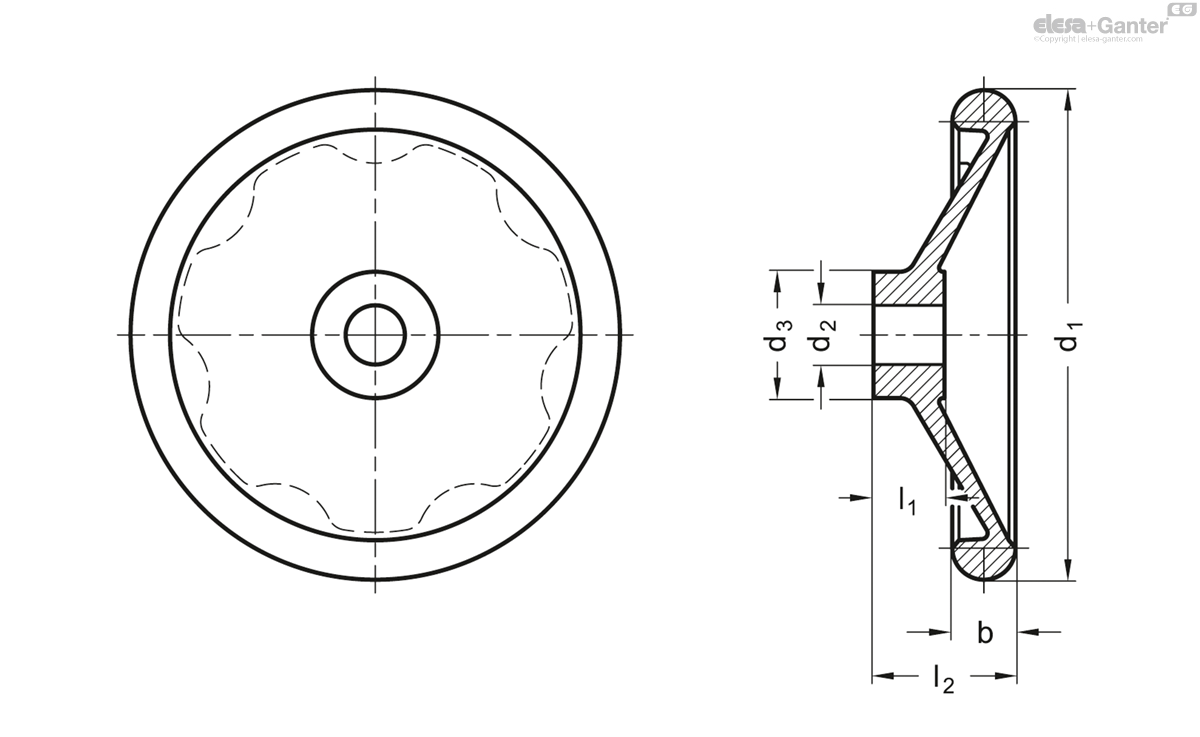

	d₁	d₂ H7 Bore	b	d₃	l₁	l₂ ≈
Code								Actions
DIN 3670-80-B10	80	10	14	26	16	29	128
DIN 3670-80-B12	80	12	14	26	16	29	127
DIN 3670-100-B10	100	10	15	28	17	33	188
DIN 3670-100-B12	100	12	15	28	17	33	185
DIN 3670-125-B12	125	12	16	31	18	36	306
DIN 3670-125-B14	125	14	16	31	18	36	289
DIN 3670-160-B14	160	14	18	36	20	40	514
DIN 3670-160-B16	160	16	18	36	20	40	510
DIN 3670-200-B18	200	18	22	42	24	45	943
DIN 3670-200-B20	200	20	22	42	24	45	938
DIN 3670-200-B22	200	22	22	42	24	45	940
DIN 3670-250-B22	250	22	26	48	28	50	1608
DIN 3670-250-B24	250	24	26	48	28	50	1596
DIN 3670-250-B26	250	26	26	48	28	50	1582
DIN 3670-315-B26	315	26	28	56	33	56	2695
DIN 3670-315-B28	315	28	28	56	33	56	2689
DIN 3670-315-B30	315	30	28	56	33	56	2683
DIN 3670-400-B30	400	30	32	65	38	63	5000
DIN 3670-400-B32	400	32	32	65	38	63	4342
