DIN 1810

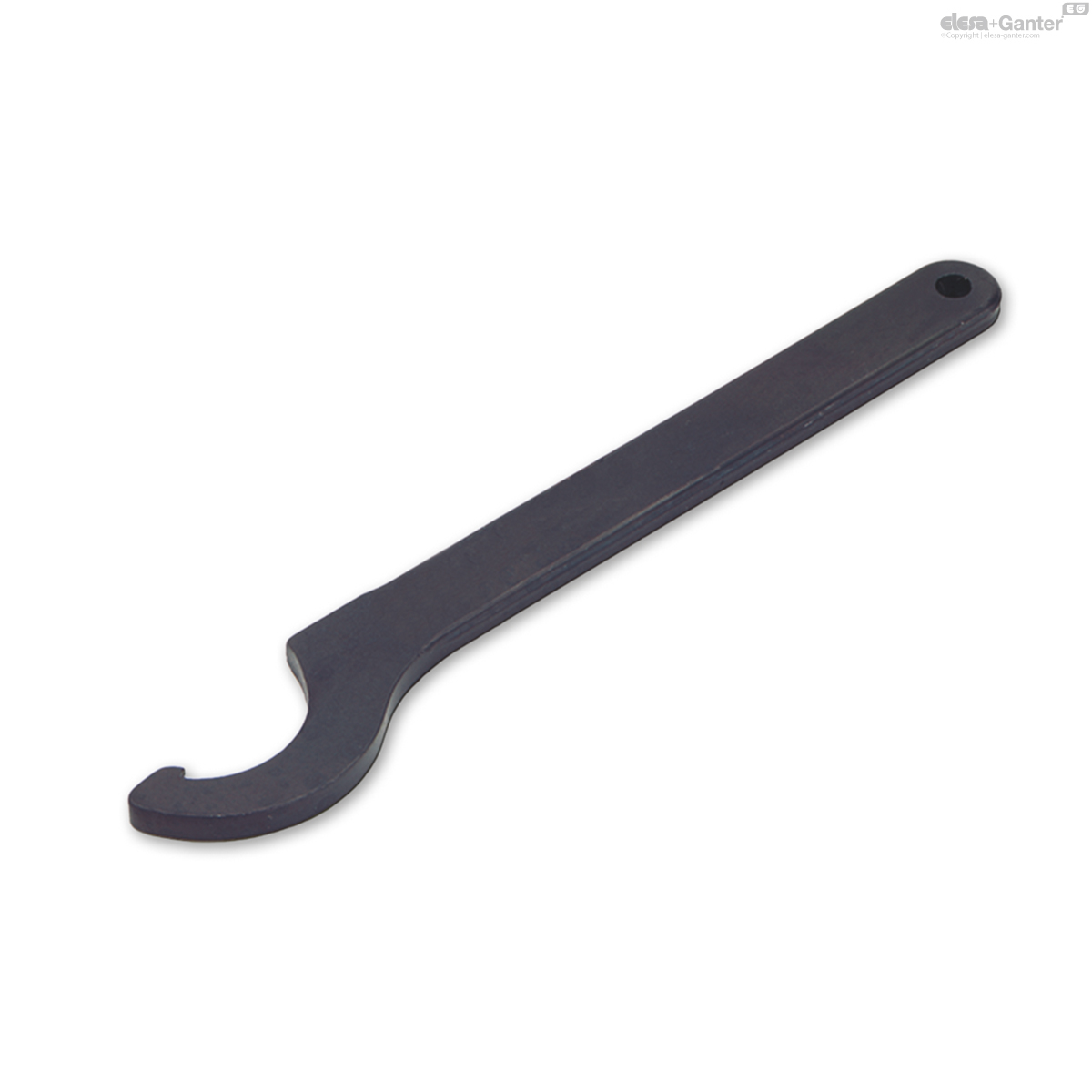

C-Spanner
Description
Specification
Steel
blackened
Information
- Levelling sets GN 350 -
- Levelling sets GN 350.1Â
- Levelling sets GN 350.2Â
- Slotted locknuts DIN 1804Â
- Slotted locknuts GN 1804.1Â
DIN 1810

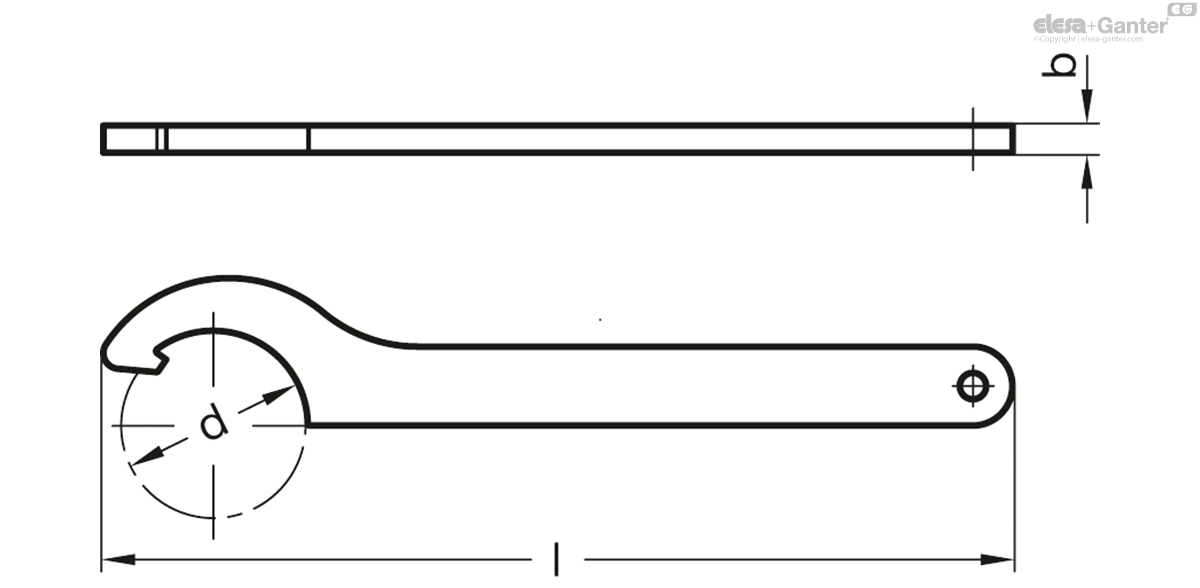

| d min. | d max. | l | b |  |
||
|---|---|---|---|---|---|---|
| Code | Actions | |||||
| DIN 1810-A16-20 | A 16 | 20 | 110 | 3 | 23 |
|
| DIN 1810-A25-28 | A 25 | 28 | 136 | 4 | 46 |
|
| DIN 1810-A30-32 | A 30 | 32 | 136 | 4 | 49 |
|
| DIN 1810-A34-36 | A 34 | 36 | 170 | 5 | 92 |
|
| DIN 1810-A40-42 | A 40 | 42 | 170 | 5 | 100 |
|
| DIN 1810-A45-50 | A 45 | 50 | 206 | 6 | 161 |
|
| DIN 1810-A52-55 | A 52 | 55 | 206 | 6 | 162 |
|
| DIN 1810-A58-62 | A 58 | 62 | 240 | 7 | 258 |
|
| DIN 1810-A65-70 | A 65 | 70 | 240 | 7 | 261 |
|
| DIN 1810-A68-75 | A 68 | 75 | 240 | 7 | 257 |
|
| DIN 1810-A80-90 | A 80 | 90 | 280 | 8 | 426 |
|
| DIN 1810-A95-100 | A 95 | 100 | 280 | 8 | 388 |
|
